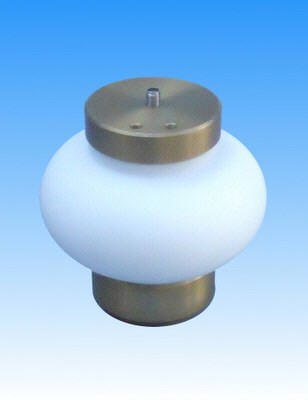

New Ultra Wideband 0.8 - 40 GHz Omni Antenna

Model Number QOM0.8-40KL

Frequency 0.8 - 40 GHz

Gain -2.2 to 6.9 dBi for 1 to 40 GHz

VSWR
< 3.5:1 max, typically < 2.5:1

-3 dB Beamwidth (Elevation)
140 to 20 degrees

-10 dB Beamwidth (Elevation)
170 to 44.5 degrees

Azimuth ripple
Typically < +/- 1 dB on horizon

Power handling 40 Watt c.w.

Weight 720 g

Dimensions
100 mm diameter x 108 mm long inc. connector

Connector type (2.92mm)
K type jack

Construction Aluminium and engineered plastics

Mounting Angled mounting plate

Antenna Measurement Systems

Ideal for RF & Wireless Antenna

Design & Test, DC to 40 GHz

Azimuth Axis (Horizontal)

360° Rotation with 1/16° Increments

Elevation Axis (Vertical)

± 45° Rotation with 1/10° Increments

New 250 lb capacity model available NOW

The all new x250 series antenna measurement systems are the newest addition to the Diamond Engineering lineup Featuring dual-axis encoded stepper movement with advanced 3D Measurement Software. A new Ethernet control option eliminates the need for the now disappearing RS-232 communication port. A 400lb capacity tripod is included for the most demanding loads

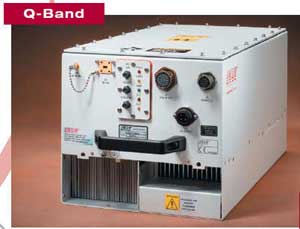

CPI (formerly varian) introduces

new TWT amplifier systems

40 GHz to 50 GHz 50 Watts CW

TWT Power Amplifier

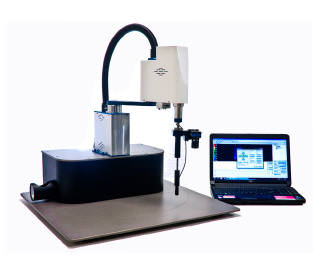

SmartScan™ Immunity (Susceptibility) and EMI Scanners

Amber Precision Instruments of Santa Clara announces the world’s first fully automated immunity scanner for accurately pinpointing areas of system and device susceptibility to the effects of Electrostatic Discharge (ESD) and other electrical disturbances. By stimulating areas of a board or system and monitoring for system upset, SmartScan^TM plots and displays sensitive areas including relative levels of sensitivity.

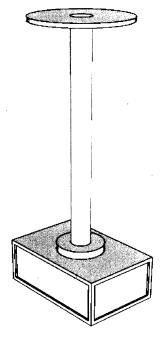

RSAM

Reflection-Less Spherical Antenna Mount (RSAM)

DC to 18 GHz

10 lb Load Rating

Plug & Play on ANY DAMs Platforms

OPHIR RF Introduces New High Power GPS Amplifier

Model 4056

1175 to 1675 MHz, 500 Watts

Ideal for GPS Applications

Broadband RF & Microwave Amplifiers & Modules

Communication & Band-Specific Amplifiers &Modules

4056-FE Shown

OPHIR RF Introduces Pulsed RF Amplifiers for NMR

OPHIR RF announces the new “6000 Series” designed with NMR in mind. The 6000 Series amplifiers offer power levels from 100W to over 1KW in broadband and band specific applications over the frequency ranges of 20MHz to 4GHz.

Pulsed Broadband RF Amplifiers

CPI (formerly varian) introduces

new TWT amplifier systems

1.0 GHz to 18.0 GHz >1000 Watts CW

Power/Phase Combined System

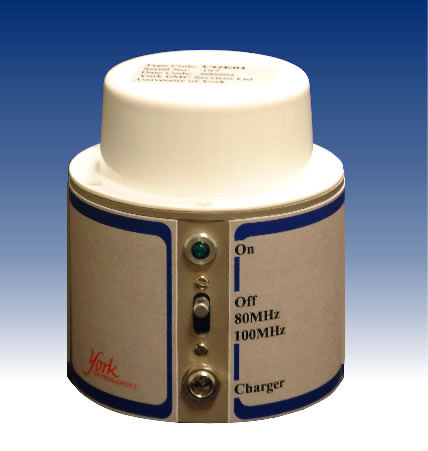

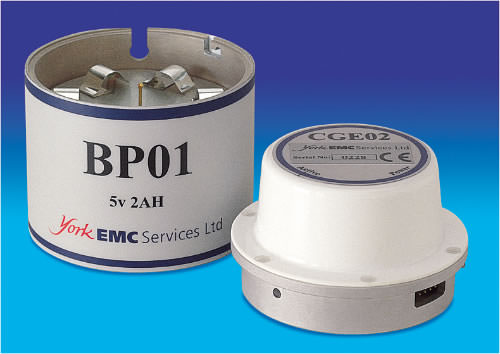

Comb Generators

up to 26 GHz

Comb Generator Emitters pave the way for a new, easier testing methodology to be used for evaluating the shielding effectiveness required to meet FCC and international emissions regulations.
