Heavy Duty Antenna Measurement Systems



The Desktop Antenna Measurement System also known as D.A.M.S, has been designed to provide a cost effective method of designing and testing small to medium sized antennas. The System uses state of the art software to fully interact with your Network Analyzer to provide seamless automatic measurements with little user intervention required.





 Ideal for Large RF & Microwave Antenna Design & Development





  DAMs x250 Antenna Measurement System


Model

Features





antenna measurement



The all new x250 series antenna measurement systems are the newest addition to the Diamond Engineering lineup Featuring dual-axis encoded stepper movement with advanced 3D Measurement Software. A new Ethernet control option eliminates the need for the now disappearing RS-232 communication port. A 400lb capacity tripod is included for the most demanding loads


Model Frequency Price
5250 DC-6 GHz $45,000 USD
6250 DC-18 GHz $49,000 USD
7250 DC-40 GHz $54,000 USD





DAMs Super Duty x250



DC to 40 GHz



250 lb Load Rating



24" Diameter Platform



DATA



Brochure



OPTIONS



Included Software   Manual (6 mb)



Positioner Features


  • Up to 40 GHz Frequency Range
  • Precision 2 axis Movement
  • 400 Lb. capacity tripod
  • Aluminum Construction
  • Speeds from .003 to 10 Deg. Second
  • 360 Degrees Azimuth Rotation
  • +/- 90 Degree Elevation Movement
  • Ethernet, USB, or RS-232 Serial Communication
Software

  • Easy to use Interface
  • Up to 801 frequencies
  • Real Time Measurement Display
  • GPIB Instrument Connection
  • Data Import/Export Functions
  • High Resolution 3D Plots
  • Works with most equipment
Advanced Features

  • Measurement array calculator
  • Iso-Sphere Plots
  • Spherical Plots
  • Plot Overlays
  • Amplitude and Polar Plots

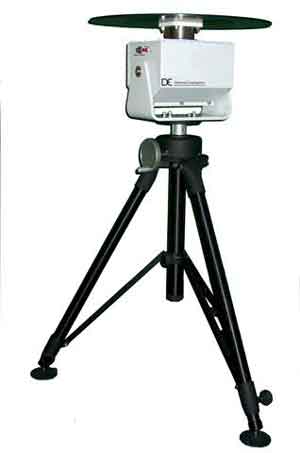

  DAMs 7100 Antenna Measurement System


Model

Features









DAMs 7100



DC to 40 GHz



150 lb Load Rating



24" Diameter Platform



DATA



Brochure



OPTIONS



Included Software   Manual (6 mb)



  • DAMs 7100 Heavy (Alum) DAMs platform 150lb load
  • Internal Heater for use in cold environments.
  • USB Interface Control Box - 25ft Cable Az & El
  • Removable 24" Aluminium Thrust Plate
  • Software: Advanced Software for PC (PC not included)
  • Spherical Plotting / Isotropic & Dipole Ref Software
  • GPIB interface (card not included)
  • Laser pointing SMA mount
  • Vertical Alignment Level
  • Az Movement: 435 with 1/10 resolution
  • El Movement: 90 with 1/10 resolution

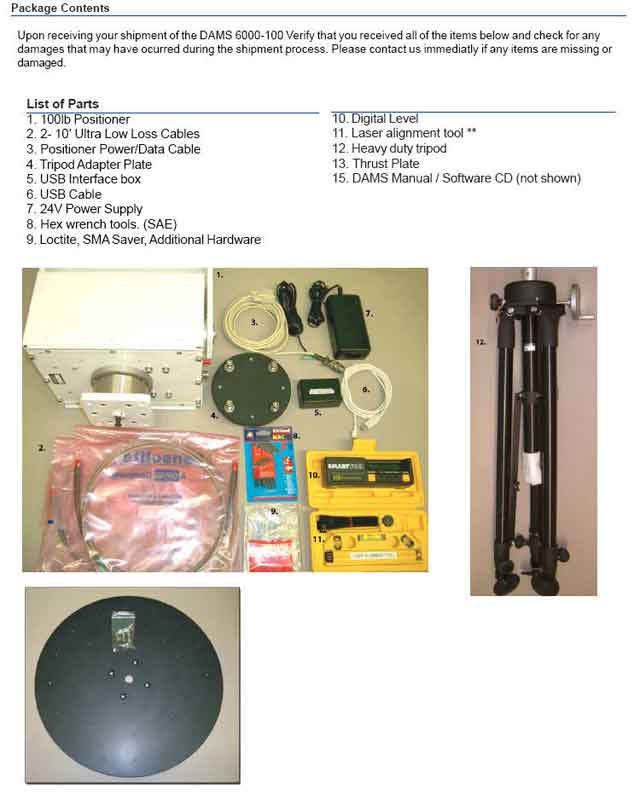

System Contents







  DAMs 6100 Antenna Measurement System









DAMs 6100



DC to 18 GHz



150 lb Load Rating



24" Diameter Platform



DATA



Brochure



OPTIONS



Included Software   Manual (6 mb)



  • DAMs 6100 Heavy (Alum) DAMs platform 150lb load
  • Internal Heater for use in cold environments.
  • USB Interface Control Box - 25ft Cable Az & El
  • Removable 24" Aluminium Thrust Plate
  • Software: Advanced Software for PC (PC not included)
  • Spherical Plotting / Isotropic & Dipole Ref Software
  • GPIB interface (card not included)
  • Laser pointing SMA mount
  • Vertical Alignment Level
  • Az Movement: 435 with 1/10 resolution
  • El Movement: 90 with 1/10 resolution



Positioning Examples





System Contents







 DAMs 5100 Antenna Measurement System









DAMs 5100



DC to 6 GHz



150 lb Load Rating



24" Diameter Platform



OPTIONS



Brochure



Included Software   Manual (6 mb)









  • DAMs 5100 Heavy (Alum) DAMs platform 150lb load
  • USB Interface Control Box - 25ft Cable Az & El
  • Removable 24" Aluminium Thrust Plate
  • Software: Advanced Software for PC (PC not included)
  • Spherical Plotting / Isotropic & Dipole Ref Software
  • GPIB interface (card not included)
  • Laser pointing SMA mount
  • Vertical Alignment Level
  • Az Movement: 435 with 1/4 resolution
  • El Movement: 90 with 1/4 resolution



System Contents

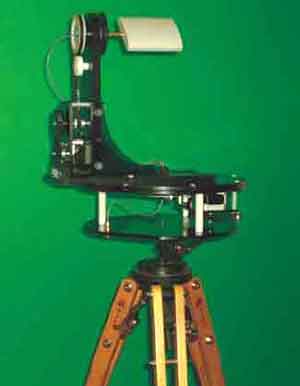

 Reflection-Less Spherical Antenna Mount (FSM-5)







FSM-5-18



DC to 18 GHz



FSM-5-40



DC to 40 GHz



10 lb Load Rating











Brochure











The new Diamond Engineering Full Spherical Mount is now a DAMS platform option that may be added to any DAMS platform. The mount utilizes delrin for ball bearings and structure, plus it enables full spherical measurements to resolutions as low as 0.1 degrees. The mount is ideal for unobstructed gain data and efficiency. The belt driven system is a plug and play substitution to the DAMS elevation motor.

Features include:

Low reflection - 90% delrin construction


DC - 18 GHz  or DC - 40 GHz


6-inch horizontal adjustment for centring


12-inch vertical height


0.1 degree movement resolution


5-pound load capacity (option 5)


10-pound load capacity (option 10)


CTIA and general efficiency software


Runs from existing platform elevation plug

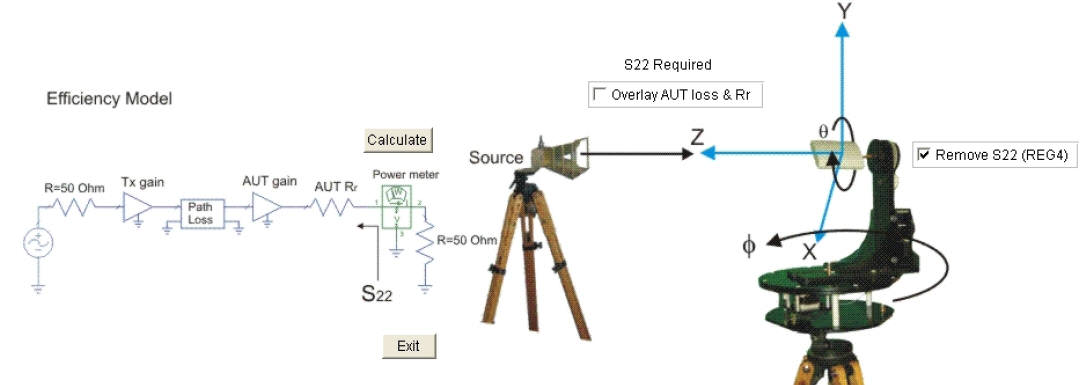

System Screenshot
