Electro-Magnetic Field Strength Meters |
|
RFP-05 (200 KHz to 18.0 GHz) |
|
Picture |
Model |
Description
/ Features |
|
 |

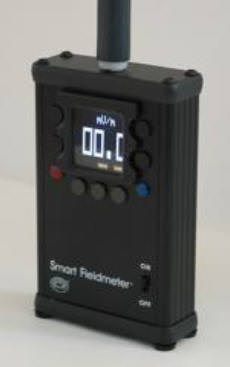

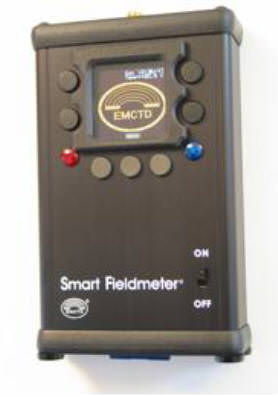

Smart
Fieldmeter®
Digital
Model:
RFP-05
|
Smart Fieldmeter® Digital
Electromagnetic
field monitor having flexible and
expandable architecture, state of
the art design with convenience
and simplicity for users on a budget.
Smart Fieldmeter®
Digital (SFD)
Features:
• SFD can operate with
multiple probes, both current and future models. Calibration
factors for multiple probes are stored internally and can be updated
from SD card by the user.
• Extremely large SFD dynamic range with
auto-ranging function offers high
accuracy and simple operation without any additional switching.
• Advanced programmable data sampling with
time averaging and spatial averaging
allows monitoring and recording of time variable signals to comply
with various RF safety and regulatory standards.
• Internal data
logging with removable memory card
provides programmable and practically unlimited data storage. No PC
is needed for data recording - log the data and read it later.
• Unique auto-zero
function can be operated either automatically or manually even in
the presence of the strongest RF fields, thus ensuring the high
sensitivity and long term stability.

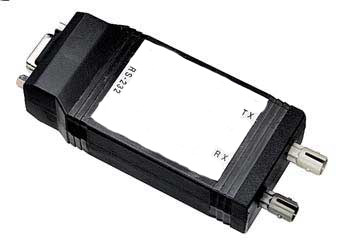

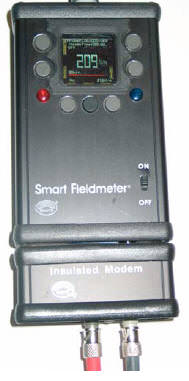

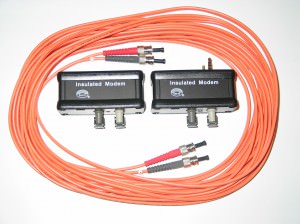

• Serial bidirectional
data port with optically decoupled or fiber optic converters
can be used for PC data transfer and instrument control in test
system integration.
• IR remote control
allows SFD control and operation from a distance - no hands, no
wires.
• Sound alarm
with variable threshold warns if the preset level is exceeded.
• Portable
lightweight design with detachable isotropic probe and
standard battery (two AA primary or
rechargeable cells) offers
flexibility and advantages in
the field.
• SFD can display the data both in
field strength and power
density units.
• Bright color OLED
display can be set do display only the information important
to the user. Maximized display mode ensures
good visibility from a distance.
• User friendly
interface puts all frequently done functions at the upper
screens making them easy to find and to use.
|
|
System Parameters of SFD
Meter RFP-05 with probes:
Kit 1D: Probe PI-01
0.2
MHz - 3 GHz.
0.2 - 600 V/m.
Kit 2D: Probe PI-02
2 MHz - 12.5 GHz.
0.5 - 800 V/m.
Kit 3D: Probe PI-03
3 MHz - 18 GHz.
0.8 - 800 V/m.
Kit 4D: Probe PI-01V
800
-1900 MHz.
0.4 - 500 V/m.
-
Calibration Accuracy: +/-0.5 dB
-
Linearity deviation: +/- 0.5 dB.
-
Battery life: >20 hours.
-
Warranty 1 year.
-
US NIST
(USA National Institute of Standards) / UK
NPL (UK National Physical Laboratory) traceable certificate
is supplied with every unit.
|
 |
|
Smart Fieldmeter®
Isotropic Probes
|
|
Model |
Frequency Range |
Correction Factor Frequencies (MHz) |
Field Strength Range |
Data |
|
PI-01 |
0.2 MHz - 3 GHz |
0.2, 0.5, 1, 10, 100, 1000,1900, 2400, 3000. |
0.2 – 600 V/m |
 |
|
PI-01E |
100 KHz - 6 GHz |
0.2, 0.5, 1, 10, 100, 1000,1900, 2400, 3000, 6000. |
0.3 – 600 V/m |
 |
|
PI-01LF |
50 KHz – 3 GHz |
0.2, 0.5, 1, 10, 100, 1000,1900, 2400, 3000. |
0.2 – 600 V/m |
|
|
PI-01V |
900 MHz - 1900 MHz
|
Correction factors for the frequency
range (MHz): 700-2100 |
0.4 – 400 V/m |
 |
|
PI-H1 |
500 KHz - 100 MHz |
0.3, 0.5, 0.6, 60, 100 (For RFP-05 Meter Only) |
0.05 - 15 A/m |
 |
|
PI-02 |
2 MHz - 12.5 GHz |
2,
10,100, 1000, 1200, 1900,
2400, 3000, 3700, 5700, 8000, 10500,12500. |
0.5 – 800 V/m |
 |
|
PI-03 |
3 MHz - 18 GHz |
3, 10, 100, 1000, 1200, 1900,2400,
3000, 3700, 5700, 8000, 10500,
12500, 13000, 13500, 14000, 15000,16000, 17000, 18000. |
0.8 – 800 V/m |
 |
|
Both Smart Fieldmeter® Digital (RFP-05) and
Smart Fieldmeter® (RFP-04)
operate with the same set of electric field probes.
Choose the ones that fit your testing
needs today and will allow you to be in business tomorrow.
Smart Fieldmeter® kits have numbers:
Kit1, Kit2, Kit3, Kit4.
Smart Fieldmeter® Digital kits have
numbers: Kit1D, Kit2D, Kit3D, Kit4D.
Magnetic field probe PI-H1 operates with Smart Fieldmeter® Digital
(RFP-05) only.
The name of the kit is Kit HD.
You can also buy multiple probes for a
single RFP-05 meter and you may buy a new RFP-05 meter to upgrade
your existing PI-01, PI-02, PI-03, PI-01V probes. |
 |
|
Active Broadband Isotropic Antenna (30 MHz to 3.0 GHz) |
|
Picture |
Model |
Description
/ Features |
|
 |

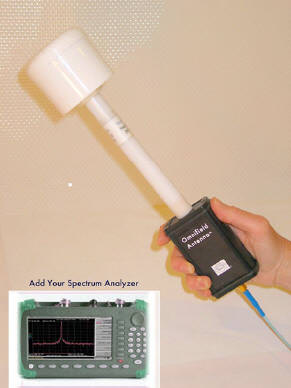

Omnifield Antenna®
30 MHz to 3 GHz
A unique broadband active E- field isotropic (omni
directional) antenna for
RF spectrum monitoring
Probe has
wide dynamic field range 3 mV/m - 300 V/m
Price of the
worldwide kit (CE Mark), including Antenna unit OFA-S.
Power unit PU-5S.
Custom 5 ft. ferrite beaded RF cable.
AC/DC plug-in charger.
Table tripod, mounting accessories.
Users Manual with documentation.
Rugged plastic storage case.
$3,800.00
|
Omnifield Antenna®
Model: OFA-S
-
Antenna Sensor:
Isotropic 3-Axis.
-
Frequency range: 30
MHz - 3 GHz.
-
Dynamic range: 110 dB
(3 mV/m - 300 V/m)
-
Dimensions of the
Antenna:
Antenna Unit (LxD) 9.0"x2.75".
Power Unit: (LxWxD) 3.75x2.25x1.25.
-
Rechargeable battery
operation time: 16 hours.
-
Warranty and
Calibration Period - 1 year.
-
CE Mark.
-
US NIST/UK NPL
traceable calibration certificate with measured Antenna Factors
and Rotational Isotropicity is supplied with every unit.
Standard Antenna Set
Includes:
-
Antenna unit OFA-S.
-
Power unit PU-5S.
-
Custom 5 ft. ferrite
beaded RF cable.
-
AC/DC plug-in
charger.
-
Table tripod,
mounting accessories.
-
Users Manual with
documentation.
-
Rugged plastic
storage case.
Accessories
|
Spectrum analyzers with
options compatible with Omnifield Antenna™ |
|
Manufacturer |
Models |
Options |
Comments |
|
HP |
8590E-8595E |
HP 85712B |
EMC personality card |
|
HP |
8596E |
HP 85712D |
EMC personality card |
|
Agilent |
N9340B |
- |
PC software for field strength measurements
is standard. |
|
Aeroflex |
2399C |
Option 13
|
PC software. |
|
R&S |
FSH3, FSH6 |
|
PC software is standard. |
|
|
RFP-04HF wit PI-03 Kit (2 MHz to 18.0 GHz) |
|
Picture |
Model |
Description
/ Features |
|
 |
Smart Fieldmeter™
2.0 MHz to 18 GHz
Probe has
wide dynamic field range 0.8 - 800 V/m
Important for field applications in the vicinity of
transmitting towers.
Price of the
worldwide kit (CE Mark), including meter RFP-04HF with probe
PI-03 in hard case, with accessories and measured probe
frequency response with Field Gauge ™:
$4,600.00
|
Meter RFP-04HF Meter with PI-03 Probe
-
Probe
directivity: Omni directional (Isotropic probe).
-
Dynamic range:
0.8-800 V/m.
-
Frequency
range: 2 MHz-18 GHz.
-
Frequency
response with correction factors: +/- 1.0 dB (2 MHz–12 GHz),
+/- 1.5 dB (12 GHz–18 GHz),
-
Frequency
response: +/- 1 dB (3 MHz–6 GHz), +/- 1.5 dB (6 GHz–12 GHz),
-3 dB @ 2 MHz.
-
Rotational
isotropicity: +/- 0.5 dB (3 MHz-6 GHz).
+/- 1 dB (6 GHz –18 GHz).
-
Field Gauge ™
Probe/Meter
System Parameters
-
Ranges (V/m,
full scale): 2, 20, 200, 600.
-
Resolution (at
range): 0.01 V/m (2 V/m and 20 V/m),
0.1 V/m (200 V/m), 1 V/m (600 V/m).
-
Calibration
accuracy: +/- 0.5 dB (at reference levels).
-
Linearity
deviation: +/- 1.5 dB (any range 10-150% of full scale).
Typically +/- 1 dB.
|
|
RFP-04CE wit PI-01V Kit (900 MHz to 1.9 GHz) |
|
Picture |
Model |
Description
/ Features |
|
|
Smart Fieldmeter™
Selective Dual Band Probe
PI-01V-900/1900
for GSM field applications.
Probe has
wide dynamic field range 0.2 - 400 V/m
Important for field applications in the vicinity of
transmitting towers.
Price of the
worldwide kit (CE Mark), including meter RFP-04CE with probe
PI-01V-900/1900 in hard case, with accessories and measured probe
frequency response:
$3,300.00
|
Meter RFP-04CE Meter with PI-01V-900/1900 MHz Probe
-
Portable EM field meter (E-Field) with detachable
isotropic probe.
-
Wide dynamic range: 0.2 - 400 V/m.
-
Resolution (at range): 0.01 V/m (2 V/m and 20 V/m),
0.1 V/m (200 V/m), 1 V/m (600 V/m).
-
Selective frequency range: 900-1900 MHz.
-
Calibration frequency ranges: 925-960 MHz and
1805-1880 MHz.
-
Probe directivity: Omni directional (Isotropic
probe).
-
Ranges (V/m, full scale): 2, 20, 200, 600.
-
Calibration accuracy: +/- 0.5 dB (at reference
levels).
-
Linearity deviation: +/- 1.5 dB (any range 10-150% of
full scale). Typically +/- 1 dB.
-

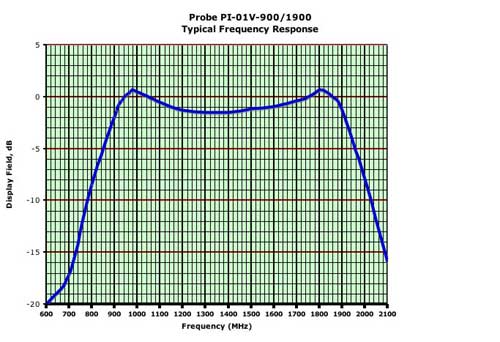

In band response flatness: +/- 1 dB (925-960 MHz),
+/- 1 dB (1805-1880 MHz),
-
Off band attenuation:
-
3 dB @ 880 MHz, >10 dB @ F<750 MHz
-
3 dB @ 1950 MHz, >10 dB @ F>2050 MHz.
-
Probe rotational isotropicity: +/- 0.6 dB.
 |
|
RFP-04CE with PI-01 Kit
(200 KHz to 3 GHz) |
|
Picture |
Model |
Description
/ Features |
|
 |

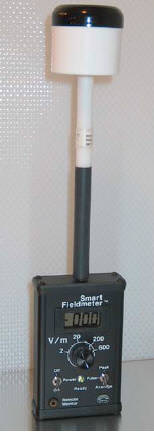

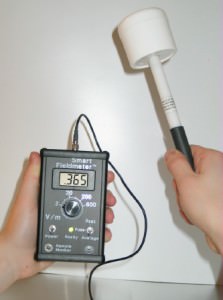

Smart Fieldmeter™
Economical
Omni-Directional EM Field Strength Meter
200 kHz to 3 GHz
0.2 to 500 Volts/meter
Complete
Kit
Model
RFP-04CE
Accepted
Worldwide
Price of the worldwide kit (CE Mark), including
meter RFP-04CE with probe PI-01 in hard case, with accessories and
standard calibration certificate with Field Gauge ™ :
$3,300.00
Model
RFP-04E
Same as RFP-04CE, but with Weather
Seals Added
$3,700.00
|
Smart Fieldmeter™- Electromagnetic (EM) field monitor
combining the major features of professional quality field monitoring
equipment with convenience and simplicity of the multi-meter for users on
a budget.
Multimode (Average, Peak and Pulse) operation allows
monitoring of the sinusoidal and modulated fields by displaying the
average or peak values together with fast response remote output
that can be used for remote data analysis and close loop field
control.

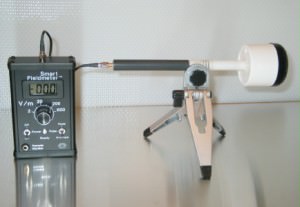

Portable lightweight design with long lasting battery and detachable
isotropic probe offers advantages in the field, while tripod
mounting of the probe and meter together with remote output
monitoring benefits the EM field measurements in the laboratory
setting.
Applications
Smart Fieldmeter™
can be used for evaluation and
measurements of EM fields from various sources:
-
AM, FM, TV and Cellular stations.
-
Transmitters & CB radios.
-
Computer & Instrument Monitors.
-
Cell Phones.
-
Microwave Ovens.
-
Industrial, Scientific and Medical Equipment.
-
EMC Test Systems.
Main Features
-
Portable
EM field monitor with detachable isotropic probe.
-
Wide
dynamic range: 0.2 - 600 V/m.
-
Broad
frequency range: 0.2 MHz-3000 MHz.
-
Probe
directivity: Omni directional.
-
Ranges
(V/m, full scale): 2, 20, 200, 600.
-
Calibration accuracy: +/- 0.5 dB (at reference levels).
-
Linearity
deviation: +/- 1.5 dB (any range 10-100% of full scale).
-
Probe
frequency response: +/- 2.5 dB (0.5 MHz–3GHz), -3 dB @ 0.2MHz.
-
Probe
isotropicity: +/- 1.5 dB (100, 500, and 2500 MHz).
-
Operating
modes: Average, Pulse and Peak.
-
Zeroing:
Automatic and/or user activated.
-
Remote monitor.
-
Battery
life: 100 hours (9V alkaline battery).
-
Calibration: Every unit is individually calibrated for absolute test
levels and linearity at specified frequencies.
-
NIST traceable Calibration certificate is supplied with each unit.
-

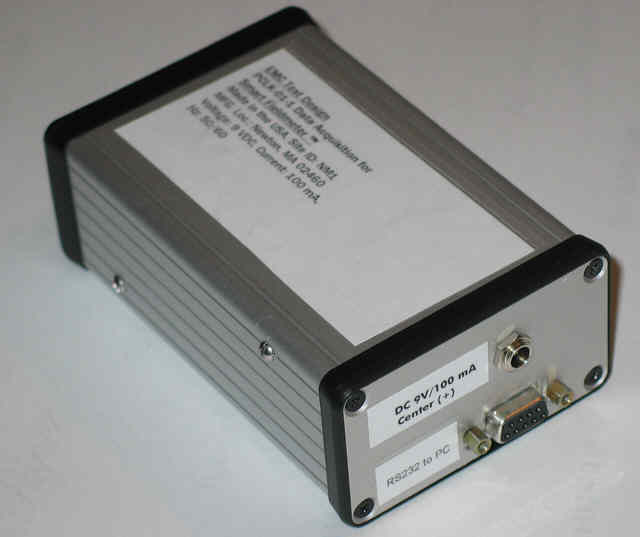

Optional Data Logging System Available
-
Warranty:
1 year.
Smart Fieldmeter™ Kit
Includes:
|
|
RFP-04HF with PI-02 Kit (1 MHz to 12.5 GHz) |
|
Picture |
Model |
Description
/ Features |
|
|
1 MHz to 12.5 GHz
0.5 to 800 Volts/meter
Introducing new probe PI-02 for RF/EMC
consumer, industrial, automotive and military applications.
Price of the worldwide kit (CE Mark), including
meter RFP-04HF with probe PI-02 in hard case, with accessories and
extended calibration certificate containing measured probe frequency
correction factors with Field Gauge ™:
$4,000.00
|
RFP-04HF Meter with PI-02 Probe
-
Probe directivity: Omni directional (Isotropic
probe).
-
Dynamic range: 0.5-800 V/m.
-
Frequency range: 1 MHz-12.5 GHz.
-
Frequency Response:
-
Rotational isotropicity:
+/- 0.5 dB (1 MHz-6 GHz)
+/- 1 dB (6 GHz –12.5 GHz).
-
Probe PI-02 operates with Meter RFP-04HF, which is a
special variant of the standard meter RFP-04CE. New probe must be
calibrated with its meter right at the factory before it is shipped to
the customer.
-
Frequency calibration factors with each probe.
-
Probe PI-02 has distinctive black color head cap to
differentiate it from probe PI-01 having white color head cap.
-
The availability of two probes (PI-01: 0.1 MHz-3 GHz,
and PI-02: 1 MHz -12.5 GHz) will greatly improve the testing
capabilities and will allow our customers to choose the best probe for
their task.
-
Field Gauge ™
|
|
Accessories |
|
GPS-R
GPS Position
Receiver
(For
RFP-05 Meter Only)
|
 |
 |
|
FIELD GAUGE ®
|
|
Field Gauge ™, for instant performance verification of all broadband
probe equipped Smart Fieldmeter ® instruments.
Check performance
of your instrument in seconds!
|
|
TRIPOD
|
 |
Non-Metallic Tripod (Probe Stand) |
|
PCLK-01-1
Wired Connection to your PC
|
 |
Introducing the Smart Fieldmeter PC Link Kit: PCLK- 01-1 – low cost solution for simple connection of the Smart Fieldmeter to PC. This kit
supports one Smart Fieldmeter unit and has into one stylish metal box
containing the isolating differential amplifier (with more than 120 dB
AC decoupling) and DAQ module acquiring 120 samples/sec with RS232 PC
output. Software for data streaming, recording and archiving is
included (WinDaq Lite (for DI-194RS) by DATAQ)
http://www.dataq.com/products/software/acquisition.htm
|
|
FOLK-01
Fiber-Optic Connection to your PC
|
 |
Fiber Optic Link Kit: FOLK- 01 – the low cost solution to make
fiber optic connection of Smart Fieldmeter to PC. Allows up to 100 ft.
(30 meters) distance between screen room setup and equipment room PC.
Kit includes two RS232/Optic converter units connected with bi-line
fiber optic cable. Up-stream converter unit is connected to PC Link Kit PCLK- 01- 1, while down-stream unit is plugged directly into RS232 port
of the PC.
Kit includes two RS232/Optic converter units connected with bi-line
fiber optic cable. Up-stream converter unit is connected to PC Link Kit
PCLK- 01- 1, while down-stream unit is plugged directly into RS232 port
of the PC.
|
|
Data Loggers |
|
|
Portable data
logging DMM with PC Link (20 samples/sec). Logging memory
43,000 data points. Logging time interval 0.05 sec.-12 hours.
|
DMM with
Optically Decoupled RS232 Link. Can also perform real time PC
streaming 1 sample/sec.
|
|
|
Portable data
logging DMM with PC Link. Has 33 readings memory for data
storage operated by the user.
|
DMM with
Optically Decoupled RS232 Link.
Can also perform
real time PC streaming 1 sample/sec.
|
|
|
Portable data
logger with RS 232 output.
Logging memory
8,192 data points. Logging time interval is set to 0.88 sec.
until memory is full (2 hours), then it is doubled, etc.
|
Battery logging
operation for 1 year.
|
|
|
Portable data
logger with RS 232 output.
Logging memory
32,768 data points. Logging time interval from 2 sec. to 12
hours, programmable.
|
Battery logging
operation for 1 year.
|
|
|
Portable
frequency counter with frequency range 30 MHz-2.8 GHz.
|
Measures pulsed
GSM and cell phone signals with RF pulse duration longer than
250 usec.
|
|
|
Comparison
Data |
Comparison of the
Smart Fieldmeter®and Smart Fieldmeter ®Digital to portable battery
operated
industry leading
field strength measuring instruments
|
Parameter |
Smart
Fieldmeter®
Digital:
RFP-05/PI-01 |
Smart
Fieldmeter®:
RFP-04/PI-01 |
Brand A
|
Brand B |
Brand C
|
Brand D |
|
Electric
field
probe type |
Isotropic, RMS, 3-axis.
Meter supports up to 4 probes. |
Isotropic, RMS, 3-axis. |
Isotropic, RMS, 3-axis,
X,Y, Z. |
Isotropic, RMS, 3-axis. |
Isotropic, RMS, 3-axis,
X,Y, Z. |
Isotropic, RMS, 3-axis. |
|
Probe
mounting |
Mounted on the meter or connected though
the cable |
Mounted on the meter or connected though
the cable |
Mounted on the meter |
Mounted on the meter |
Mounted on the meter |
Mounted on the meter |
|
Frequency |
0.2 MHz-3 GHz
(other variants available) |
0.2 MHz-3 GHz
(other variants available) |
0.1 MHz-5 GHz |
0.1 MHz-3 GHz |
0.1 MHz-3 GHz
(other probes available) |
0.1 MHz-2.5 GHz
0.1-1 MHz purely indicative. |
|
Frequency
response |
+/- 1 dB (0.5 MHz-1 GHz),
<+/- 2.5 dB (1- 3 GHz) |
+/- 1 dB (0.5 MHz-1 GHz),
<+/- 2.5 dB (1- 3 GHz) |
+/- 1 dB(1 MHz –4 GHz) |
+/- 1.5 dB (0.1 MHz-1 GHz)
<+/- 2.4 dB (1-3 GHz) |
+/- 0.5 dB (10 -300MHz)
<+/- 1.5 dB (3 MHz -3 GHz) |
+/- 1.5 dB (1 MHz-1 GHz)
<+/- 2 dB (1-2.5 GHz) |
|
Isotropicity |
+/- 0.5 dB (@100 MHz),
<+/- 1.5 dB (0.2 MHz-3 GHz) |
+/- 0.5 dB (@100 MHz),
<+/- 1.5 dB (0.2 MHz-3 GHz) |
+/- 0.7 dB |
+/- 0.5 dB (probe),
+/- 1 dB (probe with meter), |
<+/- 0.8 dB,
0.5 dB ( 930 and 1800 MHz) |
Not specified |
|
Field
strength range |
0.2-500 V/m (standard)
0.4-800 V/m (variant UL) |
0.2-500 V/m (standard)
0.4-800 V/m (variant UL) |
0.4-800 V/m
|
0.6-800 V/m
|
0.3-300 V/m
|
0.1-200 V/m
|
|
Ranges |
Auto range |
4 Ranges: 2, 20, 200, 600 V/m |
Auto range |
Auto range |
Auto range |
4 Ranges: 1, 10, 100, 200 V/m |
|
Resolution |
0.01 V/m |
0.01 V/m |
0.01 V/m |
0.01 V/m |
0.01 V/m |
0.1 V/m |
|
Usable
sensitivity |
0.2 V/m |
0.2 V/m |
0.3 V/m |
0.6 V/m |
0.3 V/m |
1 V/m (Accuracy 0.7 V/m) |
|
Calibration
accuracy |
+/- 0.5 dB |
+/- 0.5 dB |
Not specified |
+/- 1 dB |
+/- 0.8 dB |
Not specified |
|
Linearity
accuracy |
< +/- 1.0 dB
in the whole range |
< +/- 1.5 dB
10-150% of any range |
Not specified.
|
< +/- 3 dB (0.6-1.25 V/m)
< +/- 1 dB (1.25-2.5 V/m)
< +/- 0.7 dB (>2.5 V/m) |
Not specified.
|
< +/- 0.7 V/m (0.1-1 V/m)
< +/- 0.5 V/m (1-10 V/m)
< +/- 1 dB (10-100 V/m)
< +/- 2 dB (100-200 V/m) |
|
Display units |
V/m, nW/cm2, uW/cm2, mW/cm2 |
V/m |
V/m, mW/cm2, W/m2 |
V/m, mW/cm2, W/m2 |
V/m, mW/cm2, uW/cm2, W/m2 |
V/m, uW/cm2 |
|
Time response |
Multimode:
Time Averaging 30 msec-30 min
(selectable).
Space Averaging (manual).
Fast/Slow probe response. |
Multimode:
Average: 2 sec, Pulse: 0.1 sec,
Peak: 50 ms/14 sec. |
Not specified |
1 sec |
0.15-0.9 sec |
0.4 sec |
|
Zeroing |
Auto zero, prgrammable. |
Auto zero |
Auto zero |
Auto zero |
Auto zero |
Auto zero |
|
Data storage |
Internal datalogging on Memory Card,
unlimited storage, Programmable time interval
100 msec-30 min. |
External data logger or PC link kit |
Internal |
External (high end model - internal) |
Internal |
Internal |
|
PC interface |
RS232, wired or optically decoupled. |
External RS232 |
RS232 |
RS232 |
RS232 |
RS232 |
|
Size |
Meter: 130x80x30 mm,
Probe: 230x58 mm. |
Meter: 130x80x30 mm,
Probe: 230x58 mm. |
Meter: 163x87x32 mm
Probe: Not specified. |
Meter with Probe: 465x96x64 mm
|
Meter: 240x108x50 mm
Probe: 317x58 mm |
Meter: 216x72x37 mm
Probe: 320x50 mm
|
|
Battery
operating time |
25-100 Hrs. |
100 Hrs. |
20 Hrs. |
8-15 Hrs. |
20 Hrs. |
30 Hrs. |
|
Weight |
0.45 kg. |
0.33 kg. |
0.64 kg. |
0.45 kg. |
1.2 kg. |
Meter only 0.35 kg. |
|
|
