TWT Microwave Amplifiers

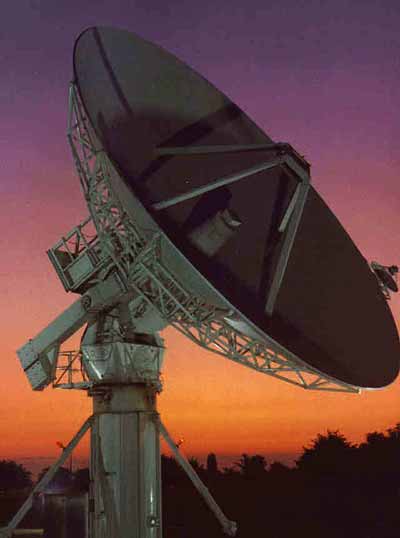

Earth Station SATCOM Satellite Dish




CPI is ISO9001 Registered





Complete line of instrumentation amplifiers available in octave and multi-octave bandwidths, covering the 1 to 50 GHz frequency range in power levels from 20 to 2000 Watts. Power combined systems up to 1000 Watts are also available. All TWT amplifiers are supported by CPI's worldwide 24-hour customer support network that includes nine regional factory service centers. From one TWT amplifier to a complete automated system, CPI has the solution. Amplifiers - 20, 100, 200, 250, 500, 1000 & 2000 Watts.

World Wide Support

CPI Worldwide Support Locations

(click Globe)

Communications and Power Industries Inc. (CPI) -formerly known as Varian Electron Device Business, originated in 1948 as the founding technology group of Varian Associates. From it's inception in 1948 until August 1995, this group established itself under the Varian name as the world's technological leader in microwave and x-ray generating devices and in electronic equipment to drive these devices. In August 1995, the Varian Electron Device Business and it's six Divisions became CPI Inc., with the mandate to continue to grow it's tradition of technology, leadership, and manufacturing excellence.



 6900 K4 SeriesCPI 6900K4 Series TWT Amplifier

 (K-Racks) CE Certified

 * Power and Gain measured without any options

Model

.PDF File

Data File

Nominal Power (Watts)*

Frequency (GHz)

Gain (dB)*

RF Connectors

Delivery (Days)

VZC-6961K4

DATA

20

4 - 8

35

N

60

VZX-6981K4

20

8 - 12.4

40

N

60

VZU-6991K4

20

12.4 - 18

40

N

60

VZM-6991K4

20

8 - 18

40

N

60

VZV-2776K4

20

4 - 18

35

N

60

K Series Options

* These options will reduce the output power

A

B

C*

D*

E*

F

G

H

J*

K

L

Q

U

Input Isolator

Input RF Attenuator

Harmonic Filter

Output Isolator

RF Output Sample Port

Chassis Slides

Remote Control Panel

Elapsed Time Meter

Rear RF Connectors

230 VAC Mains Prime Power

Solid State IPA

100 VAC Mains Prime Power

SMA Connectors



 6900 K6 Series CPI 6900K6 Series TWT Amplifier

 (K-Racks) (GPIB Controlled) CE Certified

 * Power and Gain measured without any options

Model

.PDF File

Data File

Nominal Power (Watts)*

Frequency (GHz)

Gain (dB)*

RF Connectors

Delivery (Days)

VZC-6961K6

DATA

20

4 - 8

35

N

60

VZX-6981K6

20

8 - 12.4

40

N

60

VZU-6991K6

20

12.4 - 18

40

N

60

VZM-6991K6

20

8 - 18

40

N

60

VZV-2776K6

20

4 - 18

35

N

60

K Series Options

* These options will reduce the output power

A

B

C*

D*

E*

F

G

H

J*

K

L

Q

U

Input Isolator

Input RF Attenuator

Harmonic Filter

Output Isolator

RF Output Sample Port

Chassis Slides

Remote Control Panel

Elapsed Time Meter

Rear RF Connectors

230 VAC Mains Prime Power

Solid State IPA

100 VAC Mains Prime Power

SMA Connectors



 6900 J SeriesCPI 1.0 to 2.5 GHz TWT AmplifierCPI Ka Band TWT Amplifier

 (J-Racks) CE Certified

 * Power and Gain measured without any options

Model

.PDF File

Tech. Data File

Nominal Power (Watts)*

Frequency (GHz)

Gain (dB)*

RF Connectors

Delivery (Days)

VZL-6943J2

DATA

TECH DATA

250

1 - 2.5

54

N

60

VZS/C-6963J2

DATA

TECH DATA

250

2 - 8

54

N

60

VZS/X-2776L1

DATA

C & X Bands

100

4.0 - 10.0

55

N

90

VZS/X-2777L1

DATA

C & X Bands

200

4.0 - 10.0

55

N

90

VZM-6993J5

DATA

C, X & Ku Bands

250 (320 Opt)

8 - 18

53.5

WRD-750

90

VZK-6901J1

DATA

DATA

40

18 - 26.5

46

WR-42

120

VZA-6902J1

DATA

DATA

40

26.5 - 40.0

46

WR-28

120

VZQ-2791J1  DATA Q Band 50 40 - 50 50 WR-32G 120

J Series Options

* These options will reduce the output power

A

C*

H

R

V

Input Isolator

Harmonic Filter

Interconnect Cables to 12 meters

Remote Control Panel

115 VAC External Step-Up Transformer



 MIL-STD-461E Amplifier System

RS103 (200 V/m 1 - 40 GHz)

* Power and Gain measured without any options

Model

.PDF File

Tech. Data File

Nominal Power (Watts)*

Frequency (GHz)

Gain (dB)*

RF Connectors

Delivery (Days)

VZL-6943J2

DATA

DATA

250

1 - 2.5

54

N

60

VZS/C-6963J2

DATA

DATA

250

2 - 8

54

N

60

VZM-6993J5

DATA

C, X & Ku Bands

250 (320 Opt)

8 - 18

53.5

WRD-750

90

VZK-6901J1

DATA

DATA

40

18 - 26.5

46

WR-42

120

VZA-6902J1

DATA

DATA

40

26.5 - 40.0

46

WR-28

120

J Series Options

* These options will reduce the output power

A

C*

H

R

V

Input Isolator

Harmonic Filter

Interconnect Cables to 12 meters

Remote Control Panel

115 VAC External Step-Up Transformer
