Ultra Broadband RF Amplifiers

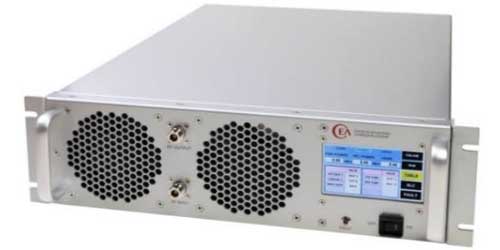

Ophir RF Ultra Broadband Amplifier



OPHIR RF Broaband Power Amplifiers



Manufactured and Serviced in Los Angeles, CA USA

OPHIR RF designs and manufactures High Power, Solid State, Broadband RF and Band-specific amplifiers.  Our products range in frequency from 10 kHz to 8 GHz, with power levels from 1 Watt to above 1000 Watts. Broadband markets served by OPHIR RF include immunity and emissions testing, Military, SATCOM, TACSAT, EMC/EMI/RFI, medical imaging MRI/NMR, TWT replacement, general laboratory equipment and much more. OPHIR RF serves the commercial market and the military. Our key commercial markets are EMC and Communications. EMC customers include system integrators, the automotive and medical industries, universities and national laboratories. Communication customers are comprised of fixed and mobile wireless infrastructure manufacturers and satellite service providers. Applications include cellular, paging, PCS, and Wireless Local Loop. Our communication amplifiers address all major modulation schemes, such as CDMA, TDMA, GSM and IMT2000/UMTS. OPHIR RF is a major provider of RF and microwave amplifiers for defense applications, such as electronic warfare, ECM (Electronic Counter Measures), radar and telemetry, as well as defense communications.



Ultra Broadband Amplifiers

Amplifier

Model

Number 2

Frequency

Range

CW

Output

(Saturated)

Linear

Output

( P1dB)

Gain

dB

Flatness

±dB

7009 10 KHz - 3.0 GHz 250 Watts 120 Watts 54 dB

±2.0

7000 1.0 MHz - 2.5 GHz 100 Watts 60 Watts 50 dB

±2.0

7011 20 MHz - 1.0 GHz 500 Watts 200 Watts 57 dB

±2.0

7001 20 MHz - 3.0 GHz

22 Watts

11 Watts

43 dB

±2.0

7002 20 MHz - 2.5 GHz

50 Watts

20 Watts 47 dB

±1.5

7003

20 MHz - 6.0 GHz

50 Watts

30 Watts

47 dB

±2.0

7004 20 MHz - 2.0 GHz

22 Watts

10 Watts

43 dB

±2.0

7005

80 MHz - 6.0 GHz

280 Watts

150 Watts

54 dB

±1.0

7006 1.0 GHz - 6.0 GHz 80 Watts 60 Watts 49 dB

±1.0



Ultra Broadband Amplifiers

Amplifier

Model

Number 2

Frequency

Range

CW

Output

(Saturated)

Linear

Output

( P1dB)

Gain

dB

Flatness

±dB

DEPA50-4000/5 50 MHz - 4.0 GHz 5 Watts   +37 dB

±2.0

DEPA500-3600/10 500 MHz - 3600 MHz 10 watts   +39 dB ±2.0
