Antenna Positioning Towers


Innco Systems Logo   Frankonia





Antenna Masts are an integral part of EMC and RF measurement systems.  Innco system masts are renowned worldwide as the standard benchmark.  Available in manual or automatic, using either pneumatic and or electric driven, the antenna mast design has the capacity to carry antennas of 6kg (MM) and 10kgs (MA) as standard. Higher loads are available upon request.

Unique designs with integrated pneumatic compressors, high speed, high accuracy, Twin Mast, Bore site function and loads as high as 30kgs, are all part of Innco supplied products, to a worldwide customer listing.

Our solutions provide optimized EMC performances, using specially design shielded drive units, which provide the required 20dB below the limit line of CISPR 22 Class B.





Index

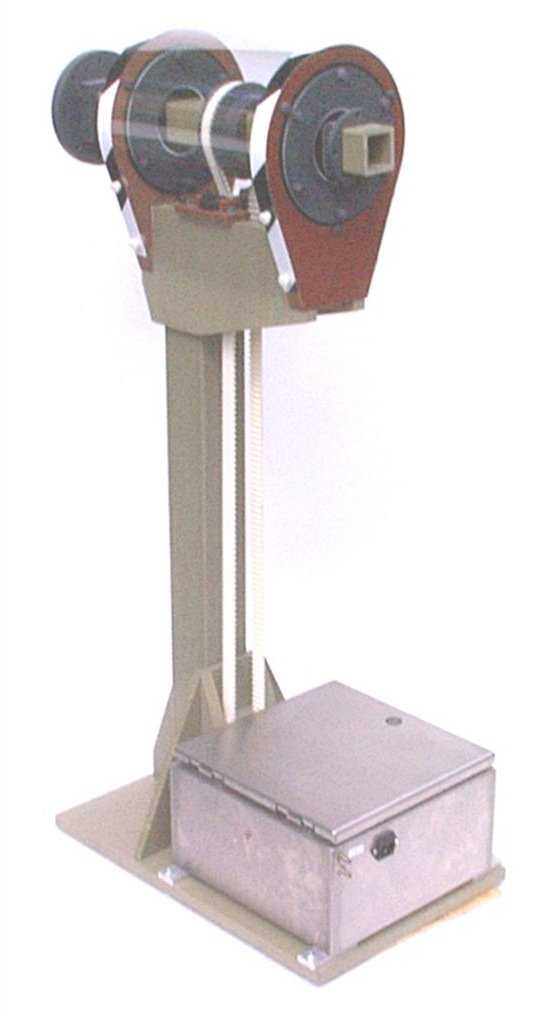

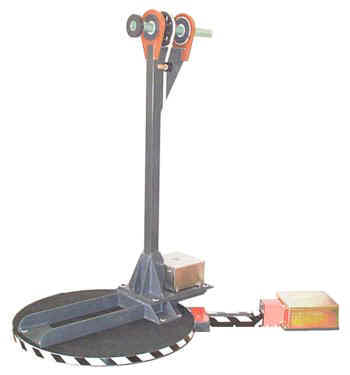

Antenna Positioners

Boresight Positioning Tower

Controllers

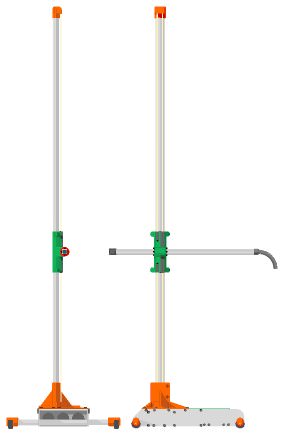

EMC Positioning Towers



Antenna Positioning Towers

Innco Systems Logo

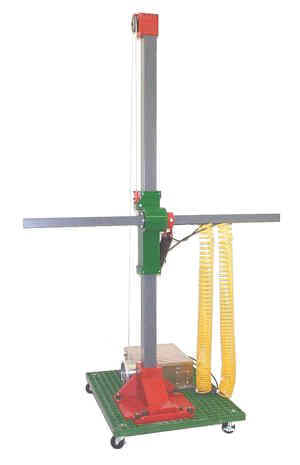

EMC Mini Mast Tower





Catalog



The MM2000-PP antenna mast is suitable for use in either open areas or in electromagnetic absorption chambers. Guy wires and anchoring pins are available for antenna installation in open areas. The MM2000 antenna mast has no metal parts above the drive unit. Special designs are available upon request. The mast tube can be delivered in 2 seperate parts for easy transportation and storage.

Key Facts

  • 1.0...4.0m electrical height adjustment
  • Pneumatic polarisation
  • 6 kg load

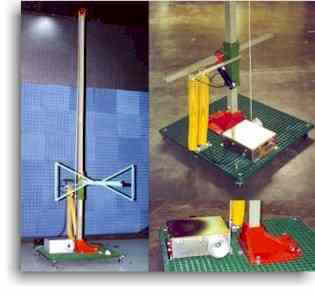

EMC Test Antenna Tower

The MA2000-EP antenna mast is suitable for use in either open areas or in electromagnetic absorption chambers. Guy wires and anchoring pins are available for antenna installation in open areas. Metal parts are located only in the base plate and the drive mechanism (max. 0,3 m above ground level).

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Electrical polarisation
  • 10 kg load


EMC Test Tower

The MA2000-PP antenna mast is suitable for use in either open areas or in electromagnetic absorption chambers. Guy wires and anchoring pins are available for antenna installation in open areas. Metal parts are located only in the base plate and the drive mechanism (max. 0,3 m above ground level).

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Pneumatic polarization
  • 10 kg load


EMC Test Antenna Positioning Tower





The MA4000-DG antenna mast is suitable for use in either open areas or in electromagnetic absorption chambers. Guy wires and anchoring pins are available for antenna installation in open areas. Metal parts are located only in the base plate and the drive mechanism (max. 0,3 m above ground level).

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Electric polarisation
  • Polarisation 0°...360° (1° steps)
  • 10 kg load






Frankonia

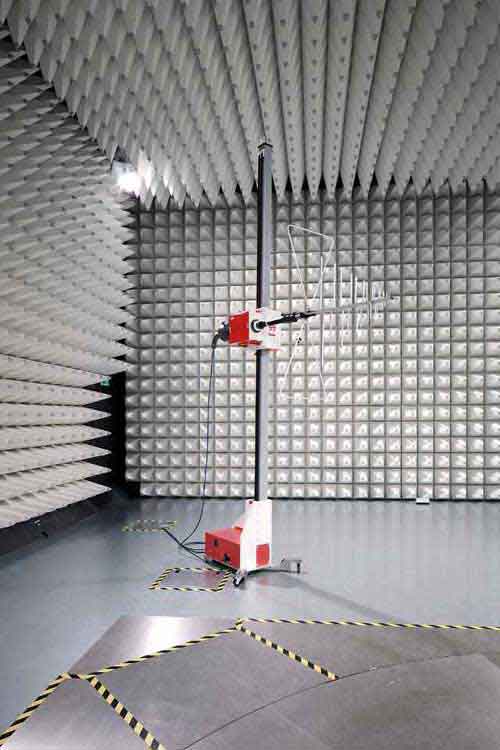

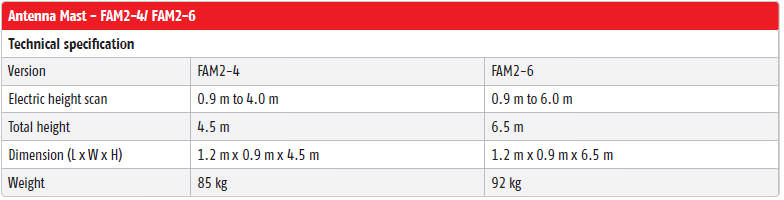

Antenna Positioning Tower



FAM Series



EMC Test Tower





Data











The antenna mast is designed for antennas up to max. 12 kg. For the convenience of the user, the mast comes on wheels, and furthermore it can be folded down for easy handling and transportation.
The control of the antenna is performed by duplex optical fibers, and the automatic operation is performed via GPIB IEEE 488.2. For the control of the antenna mast, the Frankonia controller FC06 is perfectly adapted.

Features
• Accuracy of the height scan ± 5 mm
• Electric polarization from 0°- 90°, vernier adjustment of the polarization angle possible
• Polarization time of about 6 sec
• Polarization accuracy 0.2°
• Manual antenna alignment ± 2°
• Easy positioning of antenna tubes trough a clamp ring
• Conforms to DIN EN 55022/CISPR 22/Class B


EMC Antenna Tower

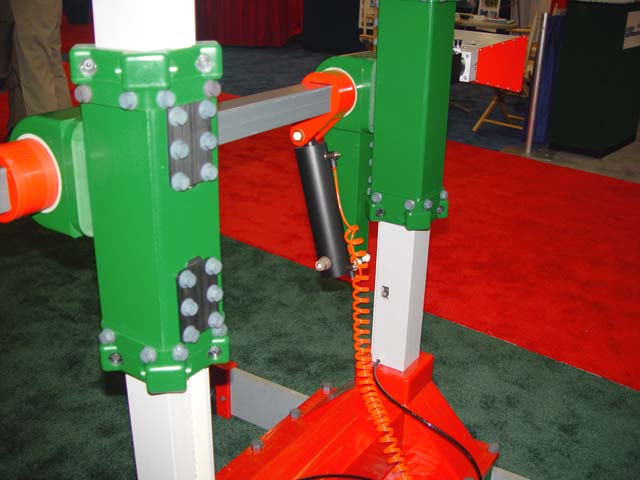

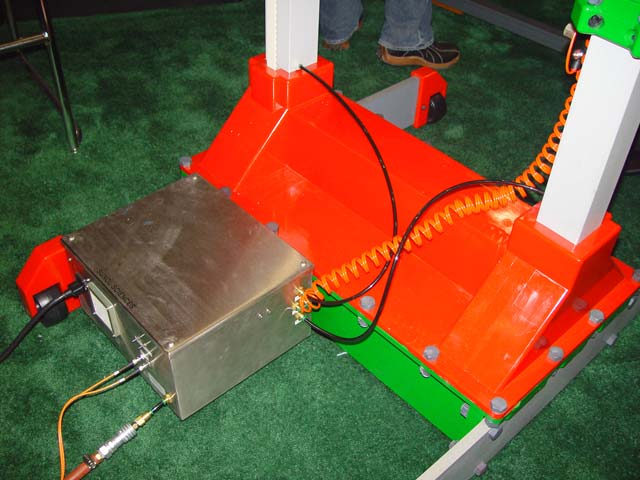

Boresight Antenna Positioning Tower



Innco Systems Logo

EMC Test Boresight Tower



The MA4000-XP-ET antenna mast is compliant with CISPR 16-1-4 BORESIGHT and ANSI C63.4 requirements and suitable for use in either open areas or in electromagnetic absorption chambers. Metal parts are located only in the base plate and the drive mechanism (max. 0,4 m above ground level).

All antennas rotate around their own axis during polarisation to eliminate any elevation errors. Limit switches and the general mechanical design provide a safe system operation.

The IEEE 488 (GPIB) bus, when operated with the CO2000 Controller, or IEEE 488 (GPIB) & TCP/IP (LAN) interface, when operated by CO3000 Controller provides an additional control option for all functions.

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Pneumatic polarisation
  • 10 kg load
  • 0°...45° tilt angle


EMC Test Heavy Duty Boresight Tower

The TW4000-EP antenna mast is suitable for use in either open areas or in electromagnetic absoption chambers. Metal parts are located only in the base plate and the drive mechanism (max. 0,4 m above ground level).

Key Facts

  • 1.0...10.0m electrical height adjustment
  • Electrical polarisation
  • 20 kg load



Twin Mast EMC Test Antenna Tower

The TW4000-PP antenna mast is suitable for use in either open areas or in electromagnetic absoption chambers. Metal parts are located only in the base plate and the drive mechanism (max. 0,4 m above ground level).

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Pneumatic polarisation
  • 20 kg load


Twin Mast EMC Tower



The TW4000-PP-ET antenna mast is suitable for use in either open areas or in electromagnetic absoption chambers. Metal parts are located only in the base plate and the drive mechanism (max. 0,4 m above ground level).

Adapters for all commercially available antennas are available. Special designs are available on request. All antennas during polarisation rotate around their axis so as to eliminate any elevation errors. Limit switches and the general mechanical design ensures a reliable system operation.

The GPIB (IEEE 488) bus, when operated wit the CO2000 Controller, or GPIB (IEEE 488) & LAN (TCP/IP), when operated by CO3000 Controller provides an additional control option for all functions.

Key Facts

  • 1.0...6.0m electrical height adjustment
  • Pneumatic polarisation
  • 20 kg load
  • 0°...45° tilt angle




Frankonia



Antenna Positioning Tower



FBM 1-4

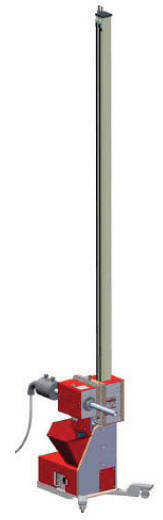

Boresight Antenna Mast





Data








FBM 1-4

FRANKONIA’s innovative range of positioning devices is entirely compatible with EMC chamber environments. In case a tilting antenna function in step-wise mode is required, the FRANKONIA boresight mast (FBM) is the right choice. FRANKONIA’s FBM offers an electrical tilt function from 0° to 50°, as well as an electrical vertical movement from 1 to 4 meters. The integrated pneumatic unit ensures the H/V polarization.

Overall, the FBM offers different operating modes:
- Vertical height scan, H/V polarization,no tilt mode (normal antenna direction)
- Vertical height scan, H/V polarization, tilt mode (Boresight) (step-wise or step-less)

The antenna mast construction is compliant with CISPR
16-1-4 and ANSI C63.4. The FBM has been designed for both tilting and no tilting functionality. Various antennas can be attached with suitable adapters (not included) to the antenna mast. The FBM carries up to 8 kg antennas incl. adapter using the tilt function, and up to 12 kg antennas incl. adapter using the normal operation without tilt. A functional safety is guaranteed in case the antenna incl. adapter does not exceed the maximum weight and is balanced with counterweights (2x 3 kg weights included) during setup.

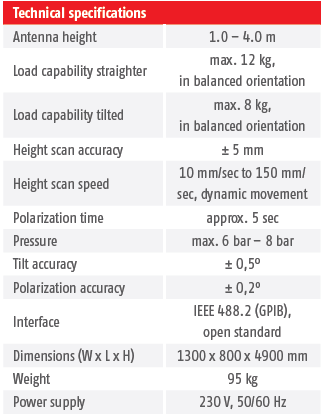

Boresight Antenna Mast Data



 Antenna Positioners



Frankonia

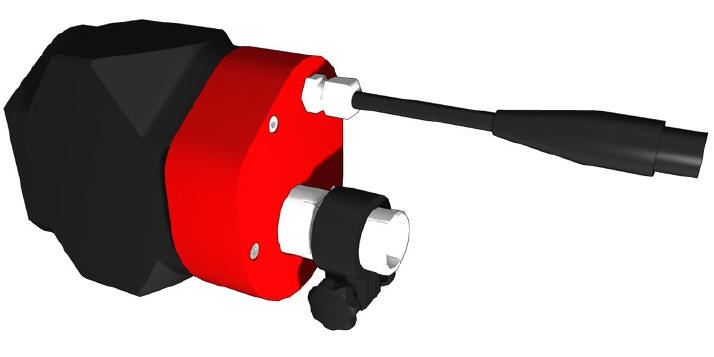

Antenna Polarizing Unit



Model FPD-01



Antenna Polarization Unit



Data



The polarization unit FPD-01 is designed for the polarization of antennas, and is a perfect complement to the antenna stand FSM 1.6 or FSM 2.0.

The polarization unit FPD-01 is adapted for antennas up to a weight of 5 kg, and has a slewing range from 0° to 90°. The FPD-01 polarization unit has an antenna tube of ř 22 mm, which is equipped with a clamp ring for easy and safe installation of antennas. On the side a
3/8” thread is provided for the installation of a stand. The control is effected by the controller FC06 which is equipped with an additional 24V output. The control signal is fed through the shielded wall via an EMC filter that is mounted on the carrying unit.



Features
• Electric polarization from 0° to 90°
• Polarization time of about 5 sec
• Polarization accuracy of 0.2°
• For antennas up to 5 kg
• Antenna tube of ř 22 mm ± 0.1

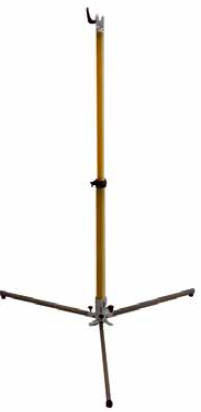

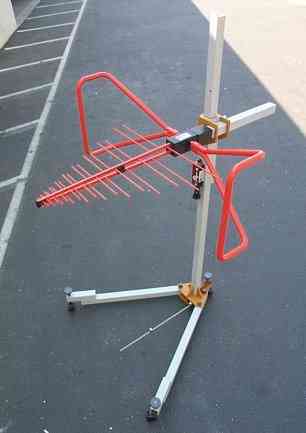

Manual Antenna Mast



 Model FSM-1.6 / FSM-2.0 / FSM-4.0



Manual Antenna Mast



Data




The height level of the double telescopic antenna masts FSM-1.6 and FSM-2.0 can be manually adjusted
from 0.9 / 1.2 m to 1.6 / 2.0 m (depending on the model). The height setting is made within a few seconds.
In order to avoid unwanted reflections the mast rods are made of fibre glass. A collapsible tripod provides a
secure stand and easy adaption to uneven ground. The perpendicular mast adjustment is simplified with a
spirit level mounted at the tripod. A rotatable spider fixes the tripod legs for easy movement within seconds
by one person only. Antennas can be mounted directly on the 3/8” male thread or by the use of adapters for
double stacked antennas.

Description FSM-4.0
The main applications of FSM-4.0 are emission measurements, where frequent height scans are required. Level adjustment from 0.4 m to
4.15 m can easily be done by using the manual winch. The mast can be set up and disassembled without any tools within 2 minutes. The
FSM-4.0 tripod is suitable for both stationary and mobile applications. Thanks to its small transport dimensions it can be stored without problems
even in small cars. The antennas are mounted with their 22 mm tube directly to the support. The polarization is fixed with an indexing
ring for both, vertical and horizontal polarization without tools. There is no additional adapter needed to fix antennas with 22 mm tubes. Each
of the three spider legs can be adjusted individually for a coarse level adjustment on uneven or inclined mounting surfaces.

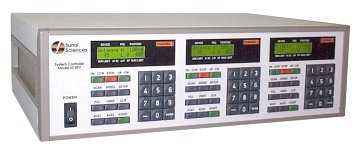

Controllers


Innco Systems Logo

EMC Test Tower and Turntable Controller

Controllers

The introduction of our new CO3000 controller combines more than 20 years of experience, with research and development, taking into consideration feedback from existing new and existing customers. The intuitive design provides a 7’’ TFT display, allowing easy and precise operation in manual, semi-automatic and remote control mode.

The controller supports Innco and Innco-systems positioning devices, which are controlled via fiber optic cables. The GPIB (IEEE) and LAN (TCP/IP) ports add additional control methods and for future upgrades.

Innco also offers a Hand Control Unit (HCU) for use with up to 3 devices. The connection of the HCU can be by either fiber optic or wire cable.

Catalog






Frankonia



 System Controller



Model FC-06



Frankonia FC-06 Turntable Controller



Accuracy of 0.1°/0.2°

Resolution of 0.1°



Data



Features
• Able to control up to six devices
• 19” rack mounting possibility
• Easy and user-friendly software design
• Software updates via USB

Controller FC06 Technical Specification

Dimension (L x W x H) 482.6 mm x 284.5 mm x 88.9 mm
19” rack case, 2 RU
Weight 2 kg
Software

Frankonia’s software for the FC06 runs on any Microsoft Windows® operating system. The software offers two main functions to control and command:
• Combination of up to 6 positioning devices
• Control of devices via optical signal
• Real-time position of each device
• WebVisu software control for tablet, computers or any other mobile devices
• Full programmable functionality due to customer specific test scenario
• Preset a specific test procedure with loop function
• User-friendly interface

The software uses either a USB or GPIB interface to exchange control commands and to receive real-time position information.
EMC Test Software
