RF Shielded Tents - EZ Up Frame



Select Fabricators Logo

Manufactured and Serviced in Canandaigua, NY  USA

Select Fabricators EZ-Up External Frame RF Shielded Tents



EZ-Up External Frame





Series 100

Single Layer Tent

≥ 60 dB Attenuation 14 MHz to 10 GHz



Series 100

Double Layer Tent

≥ 70 dB Attenuation 1 MHz to 10 GHz



≥ 90 dB Attenuation 26 MHz to 10 GHz

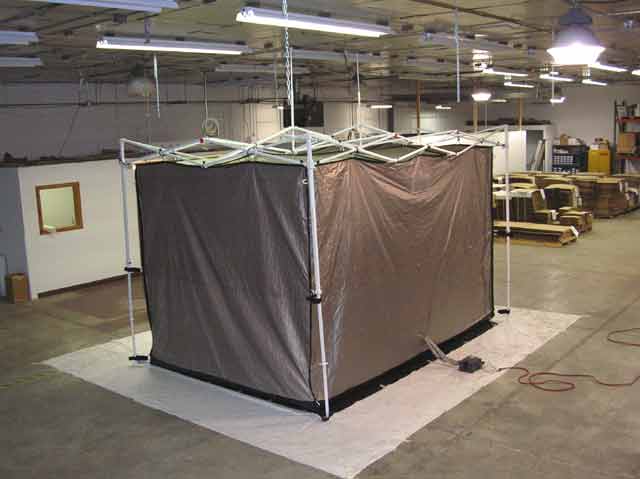

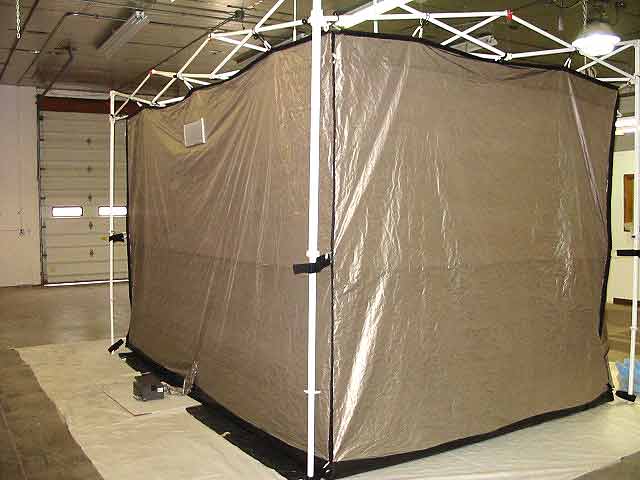

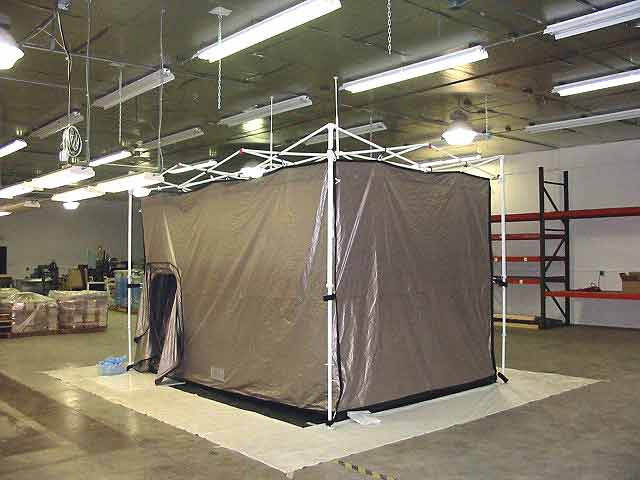

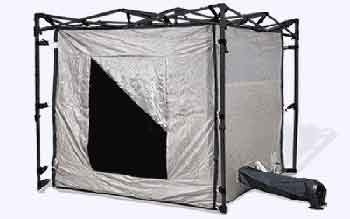

EZ-UP RF Shielded Tent

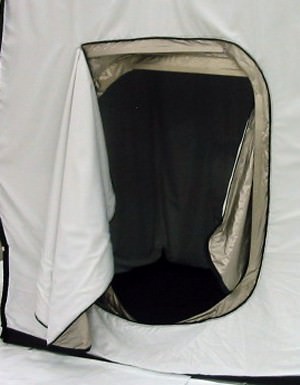

Magnetic Seal Door



Series 100 RF Shielded Tent

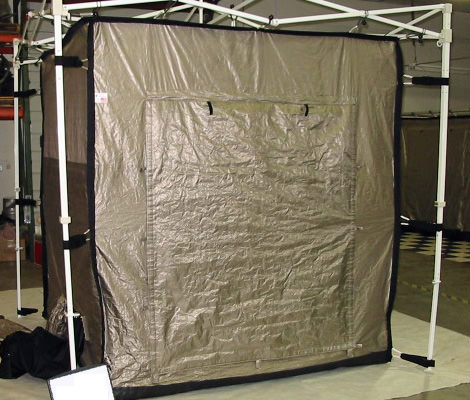

New Magnetic Seal Rollup Door



Data

Quote

Installation







NOVA or JUNO (Fire Rated) Fabric



Easy-Assemble Features

  • Free-standing shelters that need no guy wires.

  • They'll stand securely on grass, dirt, or pavement without ropes or poles.

  • Portable, folding easily and compactly into its own carrying bag.

  • Installation in less than 15 minutes





Tent Features

  • Basic tent has a floor which is 1 layer of conductive fabric sandwiched between 2 layers of heavy duty black vinyl. It is very durable

  • Storage / Transport Bag

  • Filtered or Unfiltered Power via Shielded Sleeve

  • Nova Select conductive tent fabric is not rated for flame resistance

  • Juno Select conductive tent fabric is flame retardent rated to NFPA 701-2015



Manufactured using Select’s US made, RoHS compliant, conductive fabric and double (US No. 8,530,756) or single (US No. 9,029,714) patented door seal systems, these tent enclosures deliver maximum isolation.

Double Layer Enclosure SE: -87.5 dB minimum from 400 MHz to 18 GHz

Double wall enclosure with ESD liner and vestibule





Model Number

Single

Layer

(SW)

Double

Layer

(DW)

Frame Size

Tent Size

Length

Width

Height

Length

Width

Height

feet

feet

feet

feet

feet

feet

100-080807

-SW

-DW

8

8

7

7

7

5' 6"

100-080808

*

*

8

8

8

7

7

6' 5"

100-080810

*

*

8

8

10

7

7

8'

100-101007

*

*

10

10

7

9

9

5' 6"

100-101008

*

*

10

10

8

9

9

6' 5"

100-101010

*

*

10

10

10

9

9

8'

100-101012

*

*

10

10

12

9

9

10'

100-101507

*

*

10

15

7

9

14

5' 6"

100-101508

*

*

10

15

8

9

14

6' 5"

100-101510

*

*

10

15

10

9

14

8'

100-101512

*

*

10

15

12

9

14

10'

100-102007

*

*

10

20

7

9

19

5' 6"

100-102008

*

*

10

20

8

9

19

6' 5"

100-102010

*

*

10

20

10

9

19

8'

100-102012

*

*

10

20

12

9

19

10'






EMI Shielded Tent








EMI Shielded Tent Standard Features:

  • Single or Double layer of highly conductive Nickel/Copper/Silver fabric

  • Floor of conductive fabric sandwiched between two layers of durable reinforced coated vinyl

  • One door approximately 3' wide x 4'3" vertical opening

  • Frame: Easy-Assemble EZ-Up

  • Assembly Instructions

  • Quality in-house sewing production

  •  Available with NOVA or JUNO (FR) Fabric

EMI Shielded Tent Options:

  • Fiber-optic interior perimeter lighting system

  • RF/Shielded filter box with cable sleeve

  • Cable Sleeve

  • Double wall construction with or without insulators

  • Multiple door entry systems

  • Intake and exhaust EMI shielding honeycomb panels for ventilation

  • Clean room compatible

  • Durable storage and transport bags

  • Testing



Select Fabricators RF Shielded Tent Accessories

Quick Connect Fasteners

Filtered Power & I/O's





Tent Setup Panel

Tent Filter  Plate with Ethernet





If you need to have any metallic AC or DC Power or I/O lines inside the RF shielded tent

Those lines need to be filtered

Input Output Connectors

EMI / RF Shielded Fluorescent Lighting Honeycomb Air Vent

24" Fluorescent Light

RF Shielded Fluorescent Light (Click to Enlarge)

One to Twenty Lights on one circuit

EMI Shielded Fluorescent Light (Click to Enlarge)



Air vent with fans



RF Shielded Tent Door and Air Circulation Fan

RF Shielded Vestibule



Series 100 Tent with Ventilation System (Click to Enlarge)

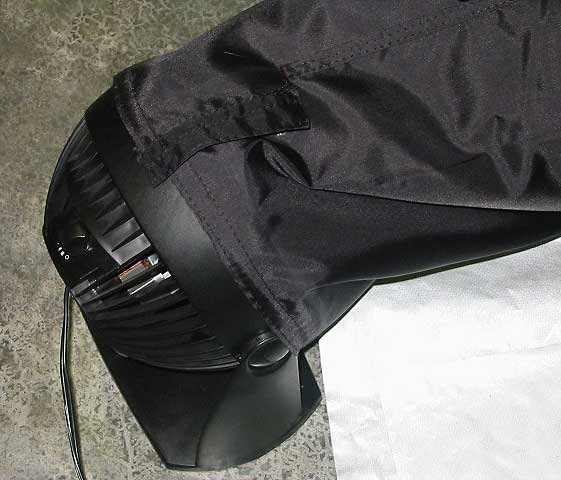

Closeup of Fan to Sleeve Connection (Click to Enlarge)

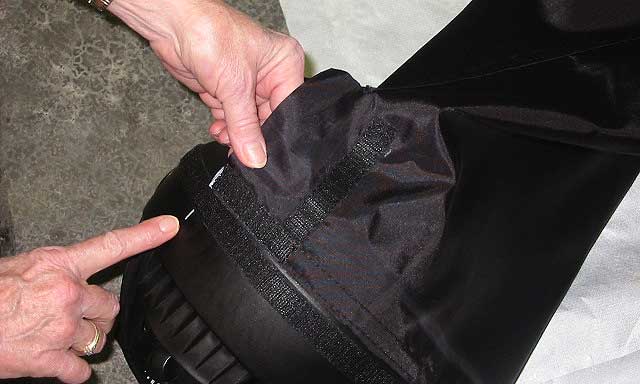

Ventilation Fan Connected to Sleeve (Click to Enlarge)





RF Shielded Vestibule

RF Shielded Vestibule (Outside)

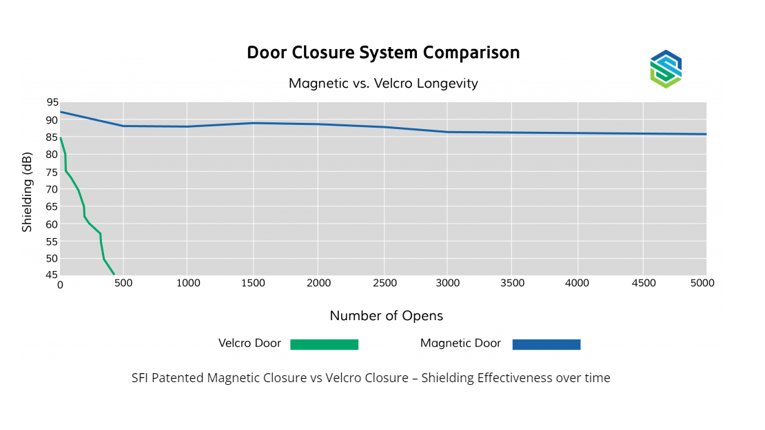

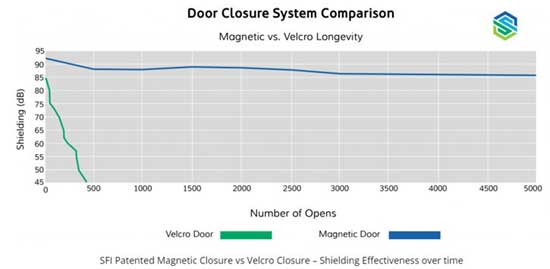

Patented Magnetic Seal RF Shielded Tent Door

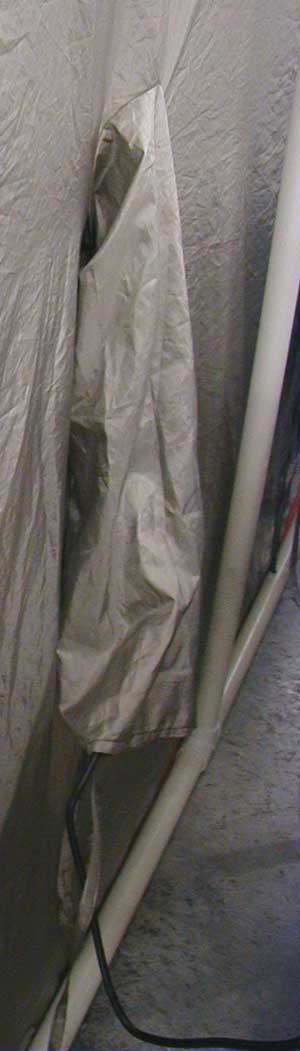

Unfiltered Input / Output Sleeve



RF shielded door

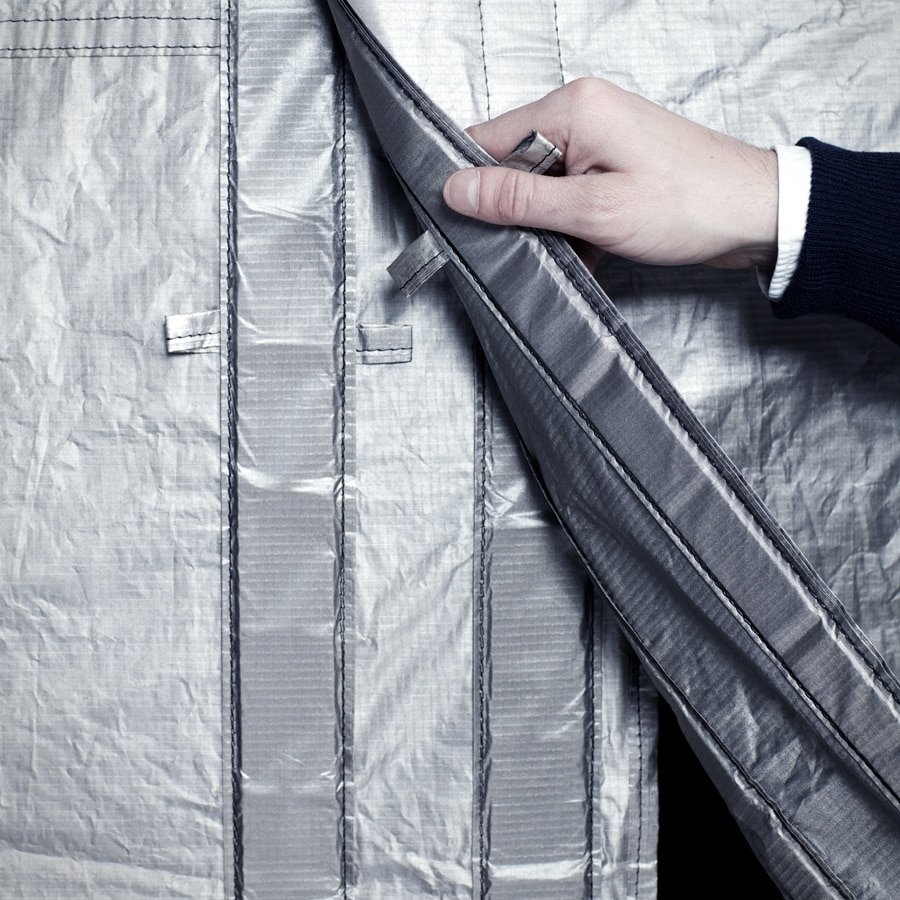

Flexible neodymium double strip magnets can be bent and flexed without affecting their performance and are magnetized in a matched pole configuration to provide even alignment.  The magnets are encased in NovaSelect material and are easily opened and closed with user-friendly alignment tabs. The NovaSelect material, with a surface resistivity of 0.006 ohms-per-square used to seal between the magnets provides a very effective door closure system with repeatable shielding performance.

Unfiltered Shielded Sleeve (Click to Enlarge)

LED Rope Lighting Options Brochure

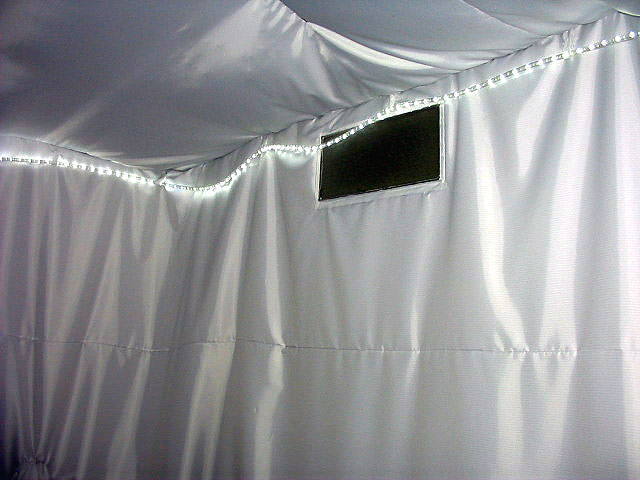

LED Lighting also Air Vent (Click to Enlarge)

Options





Select Fabricators RF Shielded Fabrics



NOVA SELECT     Ag/Cu/Ni, URE-coated RipStop Nylon     Made in USA



Purpose:

Conductive gasket skin, tent and cable shielding

Description:

Ag/Cu/Ni, URE-coated ripstop nylon fabric

Surface Resistivity:

0.005 ohms/in² Max – average 0.004 ohms/in²

Shielding Effectiveness:

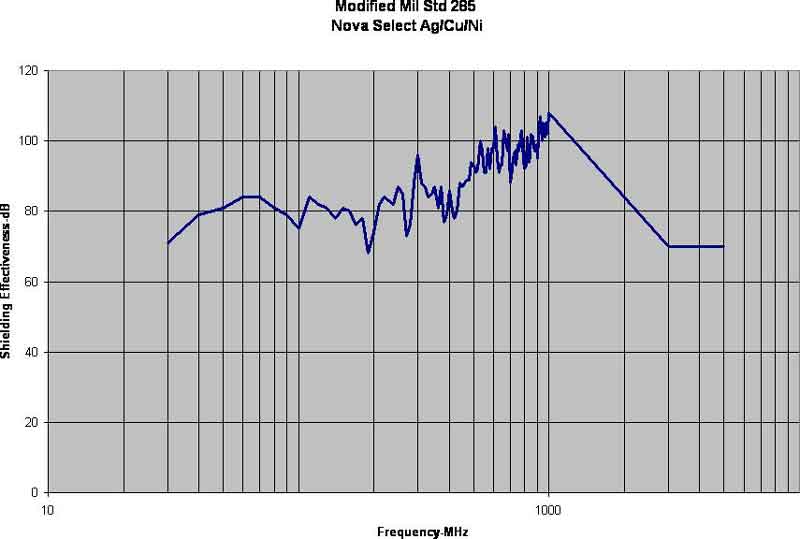

Average 85 dB from 30 MHz to 1 GHz

Abrasion Resistance:

1,000,000 Cycles

Temperature Range:

-30º C to 90º C

Total Thickness:

0.130 mm (.0048”) nominal

Data








JUNO SELECT     Cu/Ni, URE-coated RipStop Polyester



Purpose:

Conductive gasket skin, tent and cable shielding

Description:

Cu/Ni, URE-coated polyester fabric

Surface Resistivity:

0.02 ohms/in²  Max – average 0.04 ohms/in²

Shielding Effectiveness:

Average 70 dB from 30 MHz to 3 GHz

Abrasion Resistance:

1,000,000 Cycles

Temperature Range:

-30º C to 90º C

Total Thickness:

0.130 mm (.0048”) nominal

Flame Retardant Grade: NFPA 701-2015



Data







Select Fabricators RF Shielded Curtains



EMI Shielded Curtain



Single, Double, Triple & Multi Layer



Heat Insulated, Sound Insulated, RF & Microwave Absorber



Offices, Test Facilities, Medical, Military



RF Shielded Curtain Webpage











  Last Updated: October 24, 2019
