RF Shielded Tent Options

Meets Buy American Act

Select Fabricators Logo

Made In The USA

Select Fabricators RF Shielded Tent Options

Part Number

Tent Options Description



RF Shielded Tent Sleeve

RMEC0001

Additional 4" dia. x 3’ long, Cable Sleeve

RMEC0008

Additional 5" dia. x 3’ long, Cable Sleeve

RMEC0011

Additional 6" dia. x 4’ long, Cable Sleeve



RF Shielded Tent Filter    Shielded Tent Filter Plate with Ethernet    RF Shielded Tent Power Filter

RMEC0073

Filter Plate without Ethernet

0-250 VAC, 15 Amp wall mounted removable plate with 5-outlet power cord 120 VAC, 15 Amp- for power inside tent.

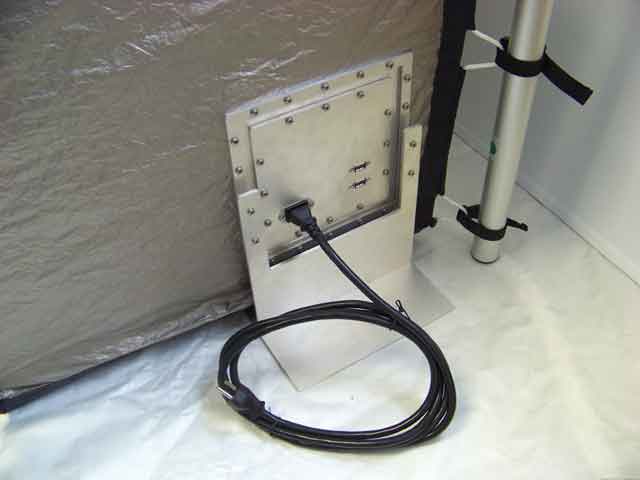

RMEC0074

Filter Plate with Ethernet

0-250 VAC, 15 amp enclosure with 6-outlet power cord 120 VAC, 15 Amp- for power inside tent.

Ethernet: (2) 100 PF DB9 RF Filtered connectors to filter (2) RJ45/DB9 Adapter Kits

Note: Insertion Loss is only 40dB for the 100pf DB9, will degrade shielding effectiveness

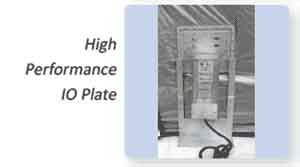

RMEC0196

High Performance IO Plate without Ethernet, wall-mounted,

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100kHz to 40 GHz) with two (2) USA 120VAC/15A five (5) outlet power strips rated for max. 20A and a L5-20P 120V/20A line cord

RMEC0196

-NEMA

High Performance IO Plate without NEMA cord:

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100 kHz to 40 GHz) with one (1) USA 120VAC/15A five (5) outlet power strips rated for max. 20A.

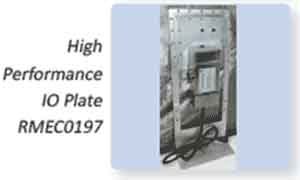

RMEC0197

High Performance IO Plate with Ethernet, wall-mounted,

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100kHz to 40 GHz) with two (2) 10/100/1000 megabyte Ethernet media converters with cables & connectors, two (2) USA 120VAC/15A five (5) outlet power strips rated for max. 20A and a L5-20P 120V/20A line cord

RMEC0197

-NEMA

High Performance IO Plate with Ethernet, wall-mounted, without NEMA cord, 10/100/1000 gigabit Ethernet

Includes: 250VAC/500VDC/30A facility filter (-100 dB 100 kHz to 40 GHz) with two (2) 10/100/1000 megabit Ethernet media converters with cables & connectors, one (1) USA 120VAC/15/ five (5) outlet power strips rated for max. 15A and a 5-15P 120V/15A line cord



RF Shielded Tent I/O Plate

RMEC0222

Blank Wall-Mounted Removable Plate with leg extenders

RMEC0072

Blank Input / Output Plate Assembly

CK-0001

100 pf DB9 Connector

Note: Insertion Loss is only 40dB for the 100pf DB9, will degrade shielding effectiveness

CK-0002

1000 pf DB9 Connector

Note: Insertion Loss is only 63dB for the 1000pf DB9, will degrade shielding effectiveness

CK-0003

2500 pf DB9 Connector

CK-0004

1000 pf DB15 Connector

CK-0005

USA 5 Outlet PS 120V/15A

CK-0006

UK 5 Outlet PS 250V/15A

CK-0007

S. Africa 5 Outlet PS 240V/15A

CK-0008

USB B-A Coupler, Shielded

CK-0009

USB B-A Coupler, Filtered

CK-0011

SMA F Bulkhead w/Dust Cap

CK-0013

BNC F Bulkhead w/Dust Cap

CK-0014

SHV Jack Bulkhead w/Dust Cap

CK-0015

N Female Bulkhead

CK-0016

N F Bulkhead w/Dust Cap

CK-0017

ST/ST Fiber Bulkhead - Multimode

CK-0018

RJ45/DB9 Shielded Adapter Kit

CK-0019

RJ11/DB9 Adapter Kit

CK-0020

6 Terminal DC Filtered Barrier

CK-0021

10/100/1000 Fiber Optic Ethernet System

CK-0022

ST/ST Fiber Bulkhead - Single Mode

CK-0024

100pf DB25 Connector

CK-0025

USB 2.0 High Speed Filtered Interface, Over 80 dB attenuation > 1 GHz with flat response < 480 MHz

CK-0026

RJ-45 Ethernet - Filtered

CK-0027

2500 pf DB25 Connector

CK-0029

4 Terminal DC Filtered Barrier

CK-0031

USB 2.0 Dual HP Filter

CK-0032

USB 3.0 HP Filter

CK-0033

USB 3.0 Dual HP Filter

CK-0035

RJ45 & USB 2.0 HP Filter

CK-0036

HDMI 1.4 Filtered

CK-0037

TNC Female/Female Connector

CK-0038

SO239 UHF Female/Female Conn

CK-0039

K Connector - 2.92mm F /2.92mm F Connector

CK-0040

1000pf DB25 Connector

CK-0041

1/2” x 4”L Brass Waveguide

CK-0042

6 Line Waveguide

CK-0043

RP-SMA/RP-SMA Connector

CK-0044

SMB/SMB Connector

CK-0045

1000pf DB50 Connector

CK-0046

RJ45 & USB 3.0 HP Filter

CK-0047

RJ-45 Ethernet 10G - Filtered

CK-0056

USB C-Speed

CK-0058

Dual HDMI 1.4 Filtered

CK-0059

3/4" x 4"L Brass Waveguide

CUSTOM PLATE

Filter Plate with custom options

Options include:

AC/DC Power, USB, SMA, BNC, Fiber Optics, etc.



RF Shielded Tent Large Door

RMEC0021

Size upgrade from Standard Door: 40” x 54.5” I.D. (58” x 64.5” O.D.) with either double (US Pat. No. 8,530,756) or single (U.S. Pat. No. 9,029,714) patented door sealing systems.



RF Shielded Tent LED Rope Lighting

RMEC0022

ESD Liner — White Electrostatic Dissipative liner on four walls and ceiling.

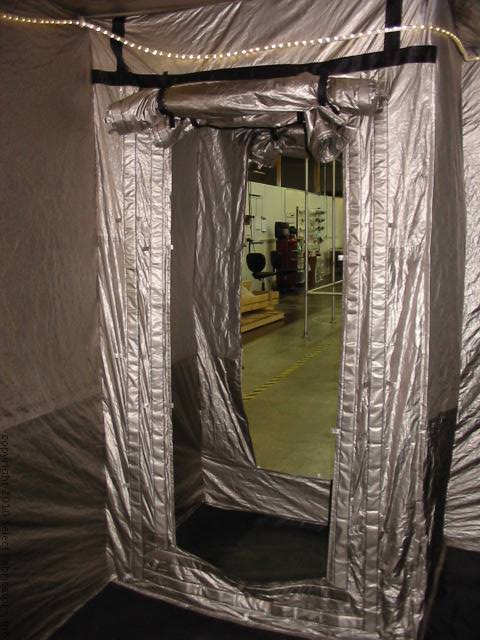

RF Shielded Vestibule
RF Shielded Vestibule (Outside)

RF Shielded Tent Vestibule   RF Shielded Tent Vestibule   RF Shielded Tent Foyer

VESTIBULE

RF Shielded Entry Vestibule

Size and door locations TBD

Vestibule / Foyer - Internal or External



RF Shielded Tent For Clean Room

RMEC0009

Cleanroom Services –

Onsite ISO Class 6 (class 1000 cleanroom) and isolated area which is ISO Class 5 (Class 100 cleanroom)



RF Shielded Tent IEEE-299 Testing

RMEC0006

Testing of Completed Enclosure to IEEE Std 299™ -2006

Standard Frequencies tested:

150 KHZ, 14, 26, 300 MHZ, .4, .8, 1, 3, 6, 10 12,14,16,18 GHz



RF Shielded Tent Lighting   RF Shielded Tent Rope Lighting

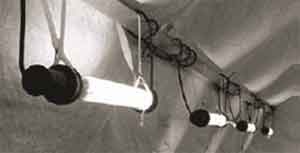

24" Fluorescent Light

RF Shielded Fluorescent Light

One to Twenty Lights on one circuit

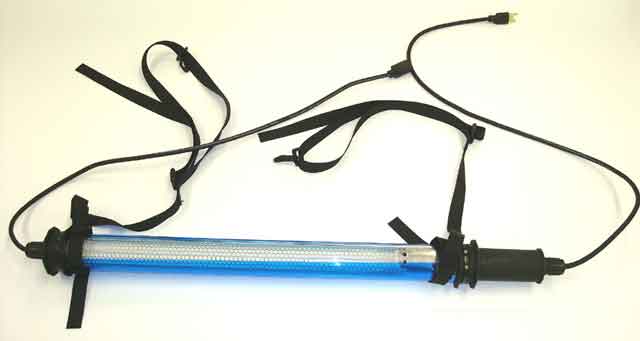

EMI Shielded Fluorescent Light

RMEC0016

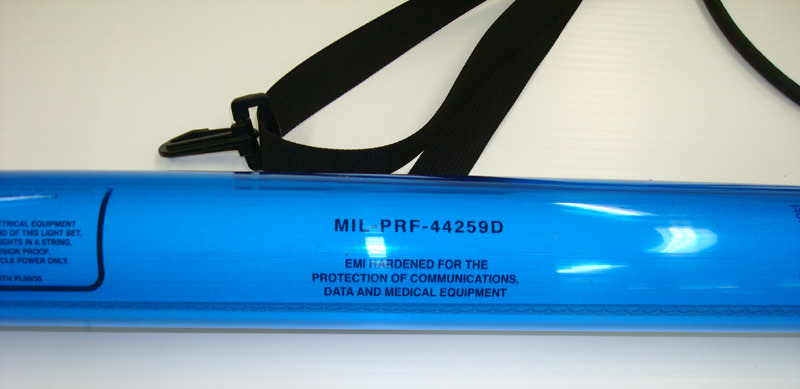

EMI Hardened String Lights

Lights will operate on 100-240 Volts at 50 to 60 cycles.

RMEC Custom

Custom sized interior perimeter lighting based on enclosure size.

RMEC0221

Interior perimeter lighting system consisting of a two wire LED rope with a standard live feed (plug). Operates on 120 VAC, 60Hz for a 48” x 48” x 78” enclosure

RMEC0023

Fiber-optic interior perimeter lighting system consisting of a two wire LED rope with a standard live feed (plug)

LED Lighting for 7’ x 7’ Tent

RMEC0024

LED Lighting for 9’ x 9’ Tent

RMEC0025

LED Lighting for 9’ x 14’ Tent

RMEC0026

LED Lighting for 9’ x 19’ Tent

Ventilation

SFi strongly advises the use of a complete ventilation system or A/C unit with any tent that will contain people.

All openings on the EMI Shielding Tent must be completely sealed during operation for proper use including both layers of the tent door. Without ventilation (vents, fan and sleeve), the inside air temperature may rise due to the heat generated from equipment and/or people inside the tent.

Also, due to a lack of air circulation, the interior air quality may be affected.

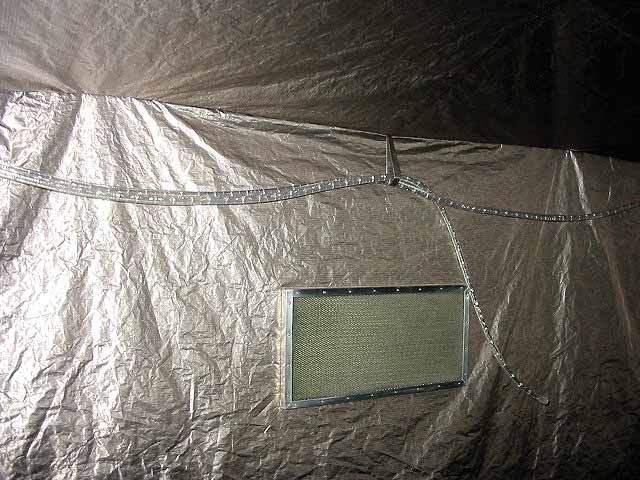

RF Shielded Tent Air Vent    RF Shielded Tent Honeycomb Air Vent    RF Shielded Tent Venting

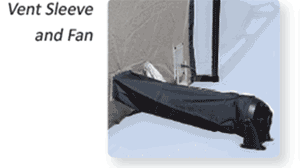

Air vent with fans

RF Shielded Tent Light

RMEC0314

Ventilation System-Includes (2) 120 mm x 120 mm Dual Honeycomb Vent Panels with 12VDC fans for intake and (1) 6" x 12" Dual Honeycomb Vent Panel for exhaust. Includes 90-240VAC/12VDC power supply with USA Plug (USA Plug clip can be changed for International operation).  Air Flow: 204CFM.

RMEC0315

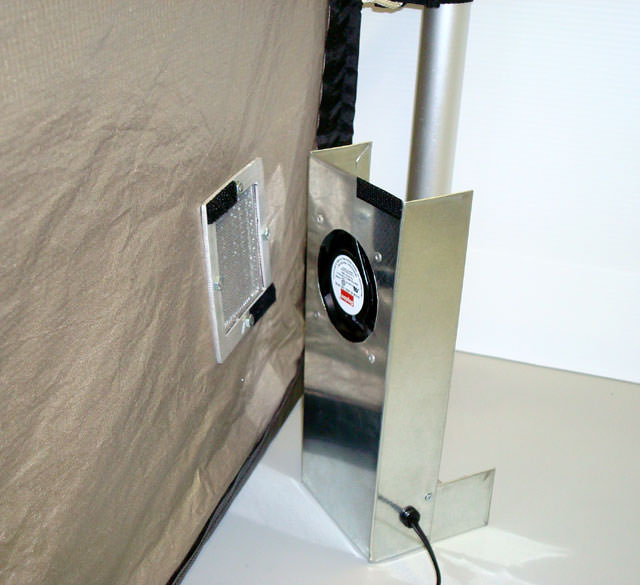

Ventilation System for Tabletop Tents - Includes (2) 120 mm x 120 mm Dual Honeycomb Vent Panels for intake and exhaust Includes (1) 120 mm 12 VDC Muffin Fan with 90-240VAC/ 12VDC power supply with USA Plug (USA Plug clip can be changed for International operation). Air Flow: 102 CFM

RMEC0374

Large Ventilation System with 7"x7" honeycomb vent panel and a 6" x 12" honeycomb exhaust panel with a 7" 24DC muffin fan Air flow: 470CFM



Tent Air Conditioner

RMEC0030

Air Conditioning: 5050 BTU/115v HVAC unit ready for hookup with hoses, two (2) honeycomb vents, and drip pan.

Note: Includes ventilation system RMEC0028 (above).

RMEC0030 -

NEW

Same as RMEC0030 plus RMEC0310 ventilation system.

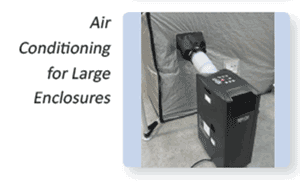

RF Shielded Tent Air Conditioner

RMEC0031

Air conditioning unit for large tents (250min-500max sq.

12,000 BTU3.5 kW unit. Uses environmentally friendly

R410a refrigerant. No water collecting tank required.

Compact, portable, self-contained unit is installed via shielded vent and standard 5-15R outlet. Includes (2) 11.9” x 6.2” two-layer honeycomb vent panels for intake and exhaust plus RMEC0314 ventilation system



RF Shielded Tent Bag

RMEC0010

Canvas Carry Bag for tents, 18” x 33” x 12.5”

RMEC0004

Canvas Carry Bag for tents, 40” x 20” x 20”

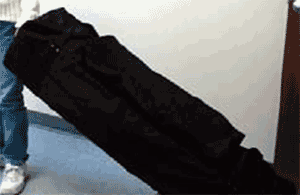

RF Shielded Tent Roller Bag

RMMC0047

Series 100 Frame Deluxe Roller Bag – Up to 8’

RMMC0095

Series 100 Frame Deluxe Roller Bag – Up to 10’

RMMC0096

Series 100 Frame Deluxe Roller Bag – Up to 15’

RMMC0097

Series 100 Frame Deluxe Roller Bag–Up to 20’



RF Shielded Tent Deluxe Roller Bag

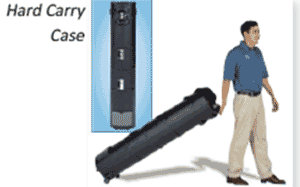

RMMC0144

Series 100 Frame Hard Carry Case - Up to 10’ High density polyethylene molded case with sturdy wheels and heavy duty handle.



RF Shielded Tent Carrying Case

3SKB-292-

1MR

Hard Case for tent or frame 29” x 21.5” x 17”

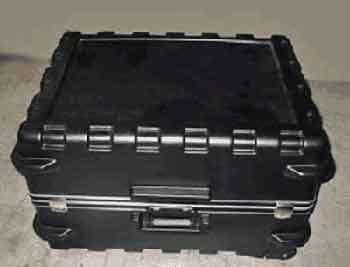

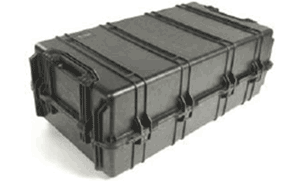

RF Shielded Tent Shipping Case

1780T

Hard Case for tent or frame 42” x 22” x 15.1”


Select Fabricators RF Shielded Fabrics

NOVA SELECT     Ag/Cu/Ni, URE-coated RipStop Nylon     Made in USA

Purpose:

Conductive gasket skin, tent and cable shielding

Description:

Ag/Cu/Ni, URE-coated ripstop nylon fabric

Surface Resistivity:

0.005 ohms/in² Max – average 0.004 ohms/in²

Shielding Effectiveness:

Average 85 dB from 30 MHz to 1 GHz

Abrasion Resistance:

1,000,000 Cycles

Temperature Range:

-30Ί C to 90Ί C

Total Thickness:

0.130 mm (.0048”) nominal

Data


JUNO SELECT     Cu/Ni, URE-coated RipStop Polyester

Purpose:

Conductive gasket skin, tent and cable shielding

Description:

Cu/Ni, URE-coated polyester fabric

Surface Resistivity:

0.02 ohms/in²  Max – average 0.04 ohms/in²

Shielding Effectiveness:

Average 70 dB from 30 MHz to 3 GHz

Abrasion Resistance:

1,000,000 Cycles

Temperature Range:

-30Ί C to 90Ί C

Total Thickness:

0.130 mm (.0048”) nominal

Flame Retardant Grade: NFPA 701-2015

Data

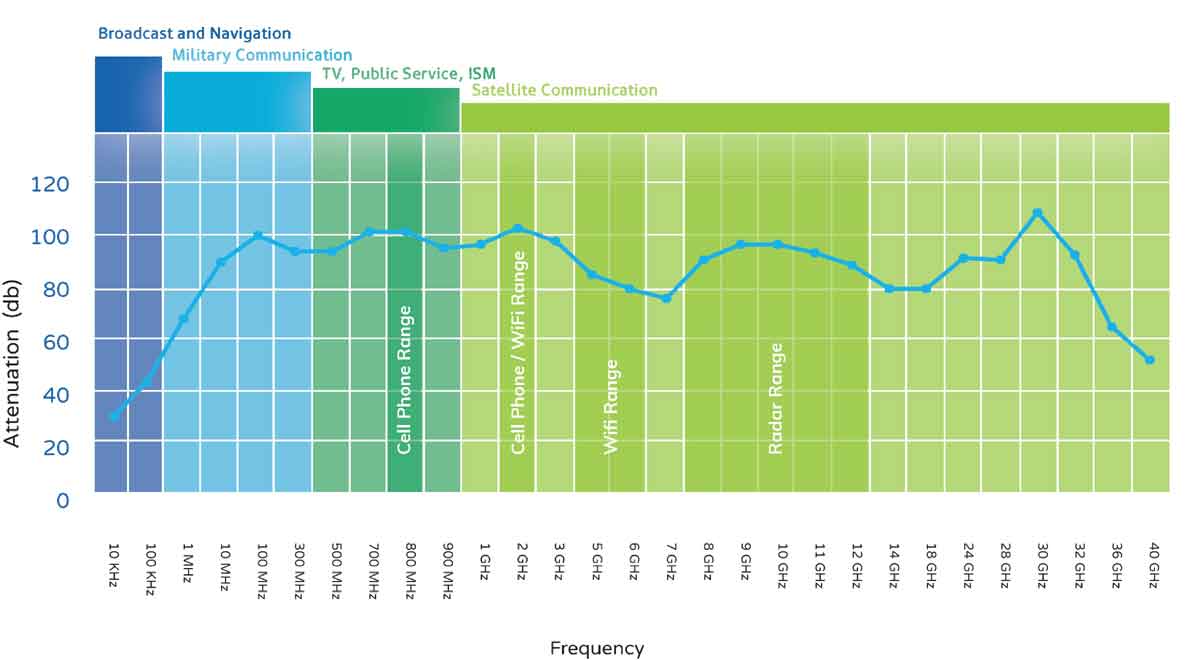

SFI Tent Shielding Effectiveness Levels

Below is the IEEE-299 standard test of a walk-in tent performed by an independent laboratory.

Tent Shielding Effectiveness Chart

Shielding

Effectiveness

(dB)

Attenuation

Ratio

Percentage

of Signal

Attenuation

20

 10 : 1

90.0

40

 100 : 1

99.0

60

 1,000 : 1

99.9

80

 10,000 : 1

99.99

100

 100,000 : 1

99.999

120

 1,000,000 : 1

99.9999
