  Electromagnetic Safety E-Field Meters & Probes

Microrad

Microrad's mission is to design isotropic measuring systems for electromagnetic safety. Our know-how is aimed at the sensors of electric, magnetic, and electromagnetic fields and ranges from static fields to millimeter waves. We have vanguard solutions in each and every sector both for broadband and selective measures. Our products have been developed in order to operate in agreement with all principal international regulations.

Broadband meters (DC-40GHz)

Complex signal analyzers in the time/frequency domain from DC to 1 MHz

Interchangeable isotropic probes for measuring electric, magnetic and electromagnetic fields.


MICRORAD ELECTROMAGNETIC RADIATION MEASUREMENT SAFETY INSTRUMENTS

MICRORAD METERS

Microrad provide Probes and Meters to measure Electromagnetic Fields (with 14 Unique and Valuable features).
For manufacturers selling to the European Union (EU), this is a requirement of health and safety Directive 2013/35/EU regarding the exposure of workers to electromagnetic fields

Microrad Meters

METERS – NHT SERIES
The NHT series is available in three models.
• NHT 310 broadband meter from 0 Hz to 40 GHz. Integrated GPS
• NHT 3D complex signal analyzer with selectivity from 1 Hz to 400 kHz and broadband operation mode from 100 kHz to 40 GHz, remote analysis of the time/frequency domain via optical fiber. Integrated GPS.
• NHT 3DL complex signal analyzer with selectivity from 1 Hz to 1 MHz and broadband mode from 100 kHz to 40 GHz. Time/frequency domain instrument analysis, WI-FI migration of the user interface on Android and OS smart phones. External GPS.
All meters work with interchangeable probes. They are made of aluminum/magnesium alloy and have an operating autonomy of more than 24 hours.

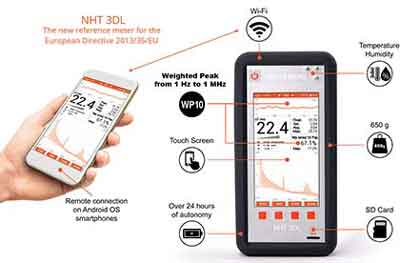

NHT 3DL THE NEW REFERENCE METER FOR EU DIRECTIVE 2013/35/EU

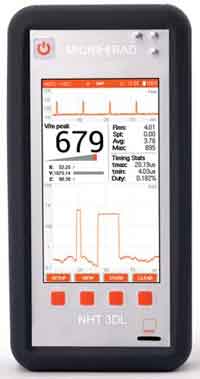

Microrad NHT 3DL Meter
• The NHT 3DL has been designed to measure electromagnetic fields in compliance with all the main international standards and regulations. This device is able to adapt to future regulatory requirements using its completely re-programmable system and structure.
• NHT 3DL is ready for the 5G challenge, for the automotive/railway electric traction industry, the medical diagnostics field and wherever regulated industrial activities exist.
• The NHT 3DL has been specifically designed to provide on board measurements of electromagnetic field characteristics in both time and frequency domains.
• The bandwidth in both modes is 1 MHz.
• Thanks to this solution it is possible to analyze and store complex waveforms with transitory/pulse features.
• In the FFT Analysis mode, the device covers the 1 MHz band in four decades, 1/10/100/1,000 kHz with 1,000 points resolution per decade and automatic peak search markers.
• In the Oscilloscope mode, it displays high-definition time frames with manual trigger function and Amplitude/Time marker.
• In the broadband operating mode with RF probes from 100 kHz to 40 GHz, it demodulates the pulse signal base band up to 500 ns, with automatic measurement of Tau, PRF and Duty Cycle values.
•This mode has been specifically designed for the Radar sources recognition and measurement.
• NHT 3DL can be completely remotely controlled via fiber optic or wireless (Wi-Fi) connections.

Aaronia_AG_EMC_Analyzer_Bundle-1_Data_Sheet Microrad NHT 3DL reference meter for the European Directive 2013/35/E Data Sheet

 NHT 3D COMPLEX SIGNALS ANALYZER 0HZ-40GHZ

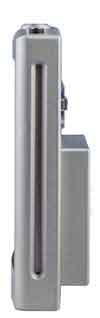

Microrad-NHT-3D-FrontMicrorad-NHT-3D-SideMicrorad-NHT-3D-Rear
• Time/Frequency domain measurements: Selective Mode: 0Hz – 400 kHz, Broadband mode: 100kHz -40GHz
• Continuous Dynamic Range>100 dB (without range changing)
• Automatic calculation of the weighted peak (WP) according to ICNIRP 2010 guidelines
• Automatic calculation of the field according to the ICNIRP index II98
• Mask with limit for the Safety standards (public or occupational)

Aaronia_AG_EMC_Analyzer_Bundle-1_Data_Sheet Microrad NHT 3D Analyzer for Complex Signals DC 40GHz Data Sheet
Aaronia_AG_EMC_Analyzer_Bundle-1_Data_Sheet Microrad NHT 3D Analyzer for Complex Signals DC 40GHz Users Manual

 NHT 310 BROADBAND EM FIELD METER: 0HZ-40GHZ

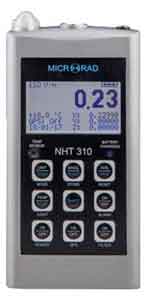

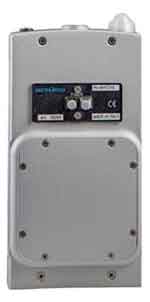

Microrad-NHT-310-FrontMicrorad-NHT-310-SideMicrorad-NHT-310-Rear
• Measurements, via different probes, broadband from 0 Hz up to 40 GHz
• Interchangeable probes for Electric, Magnetic and Electromagnetic Field Measurements
• GPS and temperature sensor embedded on board
• Multiple monitoring
• Up to 70 hours of autonomy, over 24 hours of recording

Aaronia_AG_EMC_Analyzer_Bundle-1_Data_Sheet Microrad NHT 310 Electromagnetic Field Meter DC 40GHz Data Sheet
Aaronia_AG_EMC_Analyzer_Bundle-1_Data_Sheet Microrad NHT 310 Electromagnetic Field Meter DC 40GHz Users Manual

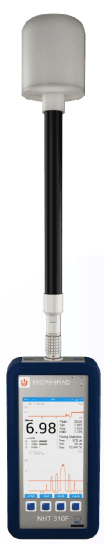

NHT 310 F BROADBAND EM FIELD METER FOR 5G AND RADAR SIGNALS

microrad NHT 310 F Broadband EM Field Meter for 5G and Radar Signalsmicrorad NHT 310 F Broadband EM Field Meter for 5G and Radar Signals
• Capture and display of pulse signals up to 500ns
• Measurements, via different probes, broadband from 0 Hz up to 40 GHz
• Interchangeable probes for Electric, Magnetic and Electromagnetic Field Measurements
• GPS and temperature sensor embedded on board
• Multiple monitoring
• Up to 70 hours of autonomy, over 24 hours of recording

NHT 310 F Specifications Matrix

FREQUENCY

FrequencyRange

Selective mode: DC – 1 MHz
Wide Band mode: 100 kHz – 40GHz

OPERATOR INTERFACE

Graphic Display

4.3” TFT, 272 x 480 pixel, 262K color

Backlight

LED, automatic or manual intensity adjustment, readable in the sun

Input devices

Touch Screen and keypad

MEASUREMENT FUNCTIONS

Measurement units

V/m, kV/m, A/m, W/m2, mW/cm2,, uW/cm2, uT, mT, Gauss, % (depending on the probe)

Display measurement range

From 0,00001 to 999’999 (depending on the probe and on the selected unit)

Refresh period

4 times per second

Result types

r.m.s. instantaneous and peak, isotropic and individual Cartesian components

Time average

r.m.s. value on a moving window selectable from 1 sec to 24 hours

Space average

Single acquisitions average value

Max Hold

Display of the r.m.s. instantaneous value

Combined mode

Simultaneous display of electric and magnetic field values (series 33 probes)

Time measurement

Minimum (up to 500 ns) and maximum pulse width measurement and duty cycle

GRAPHIC FUNCTIONS

Data Logger

Time diagram of the measured values, selectable among: r.m.s. instantaneous or peak, time average. The window length can be set from 1 minute to 48 hours

Oscilloscope

High resolution diagram of the signal in the time domain

Marker

Graphic markers with indication of the selected value

Trigger

Programmable threshold for exceeding the instantaneous peak r.m.s. value

ACQUISITIONS

Single / continuous acquisitions

Saving of all the data presented by the instrument, with a settable interval, between one memorization and the next, from 1 to 60 seconds

Acquisition memory

Removable memory card; with the provided memory over 1 million measurements in acquisition mode or over 200 seconds in high resolution mode can be stored

GENERAL SPECIFICATIONS

Operation time

> 24 hours (backlight and external accessories off)

Charging time

3.5 hours

Integrated sensors

Humidity (accuracy ą2%) and temperature (accuracy ą0.2°C)

Interface

USB

Operating temperature

-10 °C to +50 °C

Storage temperature

-20 °C to +70°C

Humidity

5 to 90%, non-condensing

Size (h x w x d)

170 x 85 x 31 mm (without probe)

Weight

650 g (including battery, without probe)

Country of origin

Italy

ACCESSORIES

Included accessories

Rigid case, power charger, protective silicone shell, USB cable, application software and user manual in electronic format, ISO 9001÷2015 Standard IEEE 1309-2013 calibration certificate

Optional accessories

GPS sensor, Wi-Fi module, Fiber optic module, Power Bank, ISO 17025 accredited calibration certificate



Aaronia_AG_EMC_Analyzer_Bundle-1_Data_Sheet Microrad NHT 310 F Electromagnetic Field Meter DC 40GHz Data Sheet

MICRORAD PROBES



Microrad Probes

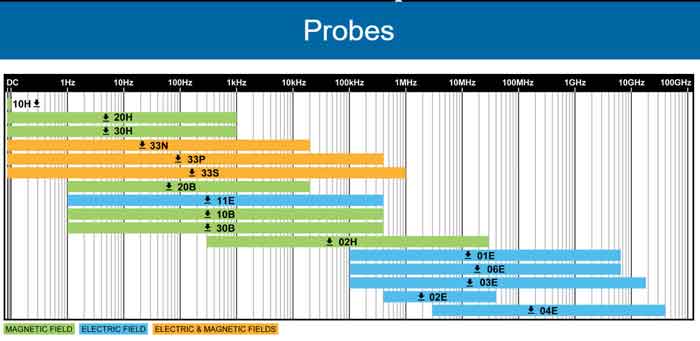

Microrad Probe Matrix



Click on the model of the probe to download the data sheet

Find the Probe for your application!

Microrad Probe Model Matrix

10H

20H

30H

33N

33P

33S

20B

11E

10B

30B

02H

01E

03E

06E

02E

04E

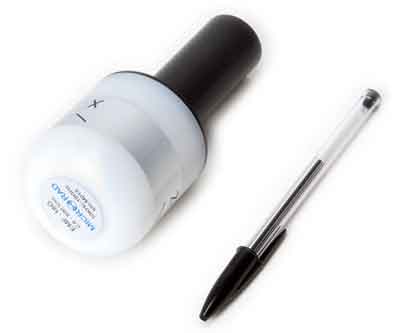

EMF18-G Sensor for EMC Applications

EMF18-G Sensor

• Frequency band 10 KHz – 18 GHz
• Dynamic Range 0,5 – 500 V/m
• Sample Rate (Max) 20 mS
• Temperature Compensation 0 – 40 °C
• +/- 0.8 dB max with Normalization
• Operational Autonomy > 45 hours
• Possibility to simultaneously use up to eight Probes using the same SW release

Aaronia_AG_EMC_Analyzer_Bundle-1_Data_Sheet Microrad EMF18-G Electromagnetic Field Probe 10KHz 18GHz Data Sheet

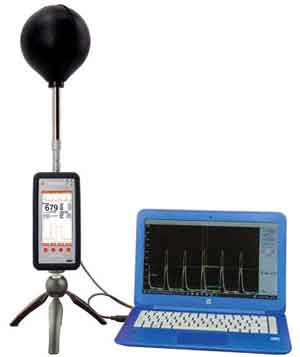

MICRORAD SOFTWARE with PC Interface

Microrad Software

MICRORAD OFFERS 3 SOFTWARE PACKAGES FOR THEIR METERS AND SENSORS
• Waves Software for the NHT 3D meter
• MicroLink Software for the NHT 310 meter
• EMC Viewer Software displays data from 8 Sensors Simultaneously



WAVES SOFTWARE FOR THE NHT ED METER

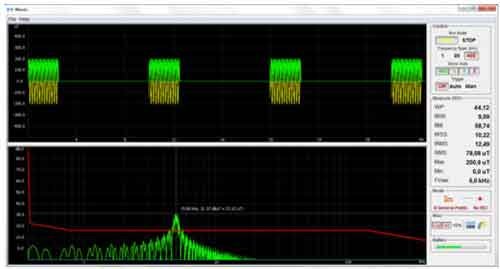

Microrad Wave Software

Microrad Waves is a software application which allows the user to interact with the NHT 3D meter. The Waves application allows the operator to perform domain analysis and frequency measurements in both real time and in post processing mode using data recorded during monitoring. Waves is easy to use, modern (state of the art) and intuitive. It interfaces with the NHT 3D meter to provide an optimal measuring device. This software application provides the operator with an integrated system capable of performing fully automated analysis in the time and frequency domain of ELF complex signals. The application is suitable for analyzing complex and pulse signals in conjunction with a PC / Tablet connected via fiber optic (through a converter Optical / USB).



Main functions:
  • Marker and simultaneous reading Amplitude/Time/Frequency
  • Zoom and Pan
  • Masks selectable according to the reference Standard
  • Manual or Automatic trigger
  • Simultaneous calculation of the indexes: WP10, II98, IB50, IRSS
  • Suppression of spectral contributions according to the standard EN 50 500



All the displayed information can be exported as image or data. Waves can be installed on systems running Microsoft Windows XP, Vista, Windows 7, and 8 (32 or 64 bit).

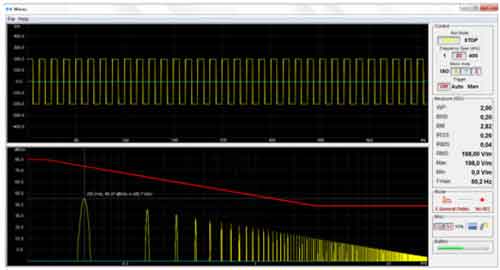

Microrad Wave Software 2




MICROLINK SOFTWARE FOR THE NHT 310 METER

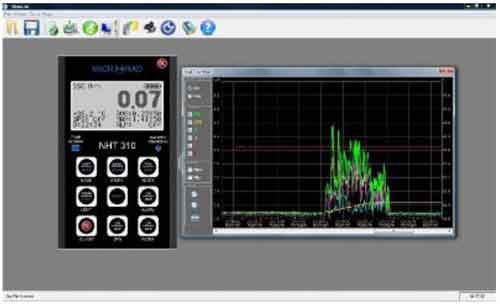

Microrad MicroLink Software

The software used in conjunction with the NHT 310 meter, provides the remote management of the meter via optical fiber on PC through Optical/USB converter. The software is direct and intuitive. It graphically displays the amplitude/time output and reproduces the user interface in real time. Complete with keyboard and graphic display, and provides the table with all the data related to monitoring.



The data measured via single or multiple monitoring are listed in a table providing the following information
  • Date/Time
  • Axis X, Y, Z
  • ISO value
  • AVG value
  • MAX value
  • Temperature
  • Type of Probe (clicking on the specific field opens a window with data from the corresponding probe).
  • GPS Lock/Off
  • GPS coordinates



In the amplitude/time mode pan, zoom, min and max functions are available, and the operator can select linear or logarithmic scale. The graph allows the display of each single axis, the resulting, of the mean and temperature value. Additional software functions: Data export Alarm threshold setting (buzzer) Moving average sample rate Sample rate and programmed start of the monitoring Date and time setting




EMC VIEWER SOFTWARE DISPLAYS DATA FROM 8 SENSORS SIMULTANEOUSLY

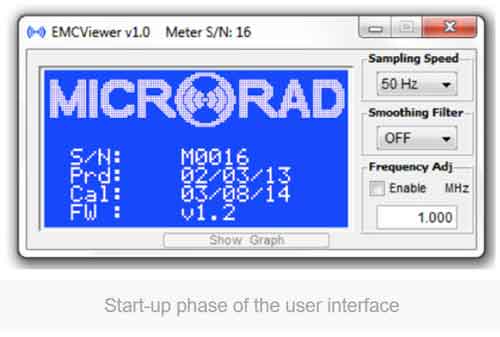

Microrad EMC Viewer Software Start-up phase of the user interface

The EMC Viewer allows the user to connect to a virtually unlimited number of sensors (currently configured for up to 8 sensors simultaneously). The software is simple and intuitive, it displays the current values and trends time/frequency allowing to export data and images.



Displayed information:
  • Unit of Measure of the Field (selectable sequence: V/m, A/m, Wm2, mW/cm2)
  • Indicator of the level of battery charge, percentage and graph
  • Actual value of measured field
  • Maximum value of the measured field
  • Temperature (°C)
  • Value of the field measured on each axis X, Y, Z
  • Selectable filters
  • Selectable correction factors in the frequency domain

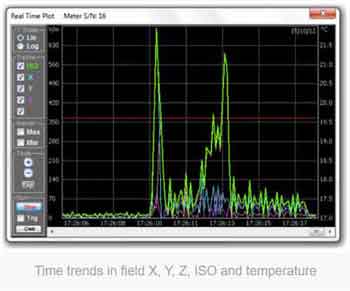

    Microrad EMC Viewer Software Time Trends in field X Y Z ISO and temperature



Other functions:
Data and images export
Trigger threshold level of acquisition
Zoom
Amplitude/Time Marker
Start/Stop Acquisition
Exp button allows the operator to export as an image file of the graph currently displayed, or export the data in Excel format.

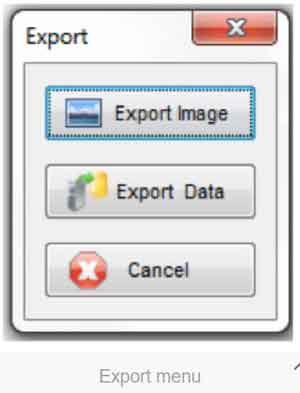

Microrad EMC Viewer Software Export Menu
