 Copper Foil for RF Shielded Rooms



EMI-SHIELD CU14



SCIF, RF & Tempest Room Applications



Copper Foil



110-ANN



0.0014" (.03556mm) (1.4 mil) Thick



Standard Rolls

24" x 150' (300 ft²) With PSA

23" x 150' (287.5 ft²) Conductive PSA

22 lbs per roll



Copper Foiled Room



Copper Foil Tape





Interior & Exterior Application



Also Available in 2.0 & 2.5 mil (0.002", 0.0025")





Installation





Data





Price List





EMI-SHIELD CU14 may be used to form shielded enclosures of almost any size or shape, but the principal use is in construction of large, low-cost shielded rooms and shielded anechoic chambers.





Wear correct gloves when installing the foil, the edge is like a razor blade



Installation Methods

Tape Methods

Electrically Conductive Tape



 Butt Joint and tape

4" Electrically Conductive Tape (Recommended)



Silver Coated Copper Foil (Cu50) RF Shielded Room



Silver Coated Copper Foil



TYPICAL SHIELDING EFFECTIVENESS

As Installed Butt Joint & 4" EC Seam Taped

(Insertion Loss per MIL STD 285)

FREQUENCY

Attenuation (Db)

200 KHz, Magnetic Field

40

200 KHz, Electrical Field

80

1 MHz, Electrical Field

80

10 MHz, Electrical Field

80

400 MHz, Plane Wave

80

10 GHz Plane Wave

60



 Copper Foil for RF Shielded Rooms



EMI-SHIELD CU50



ICD 705 Tempest SCIF

 & Other RF Applications



Copper Foil



110-ANN



0.005" (.127mm) (5.0 mil) Thick



Standard Rolls

36" x 65' (195 ft²)

58 lbs per roll



4.5oz/ft² (4.5 ounces per square foot)

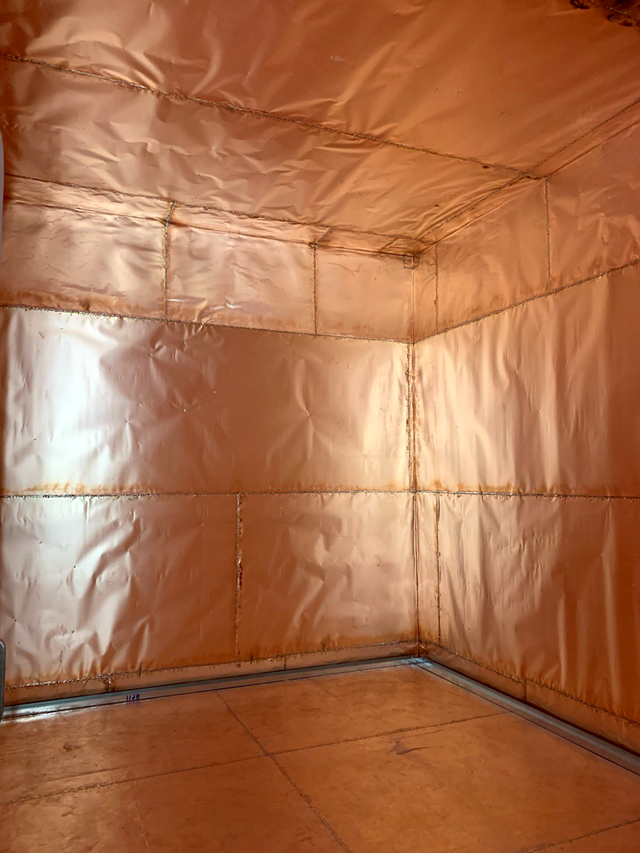

Copper Foiled Room



EC Copper Tape







Installation





Data





Price List





EMI-SHIELD CU50 may be used to form shielded enclosures of almost any size or shape, but the principal use is in construction of large, low-cost shielded rooms and shielded anechoic chambers.





Wear correct gloves when installing the foil, the edge is like a razor blade



Installation Methods



Tape Methods

Non-Conductive Tape





 Butt Joint and Tape

4" Electrically Conductive Tape (Recommended)



Silver Coated Copper Foil (Cu50) RF Shielded Room



TYPICAL SHIELDING ATTENUATION

 As Installed Butt Joint & 4" EC Seam Taped

(Insertion Loss per IEEE-299)

FREQUENCY

Attenuation (dB)

14 KHz, Magnetic Field

40

200 KHz, Magnetic Field

60

1 MHz, Magnetic Field

80

10 KHz, Electrical Field

75

200 KHz, Electrical Field

85

1 MHz, Electrical Field

90

10 MHz, Electrical Field

90

400 MHz, Plane Wave

95

1 GHz Plane Wave

95

10 GHz Plane Wave

90

18 GHz, Plane Wave

85

40 GHz, Plane Wave

80

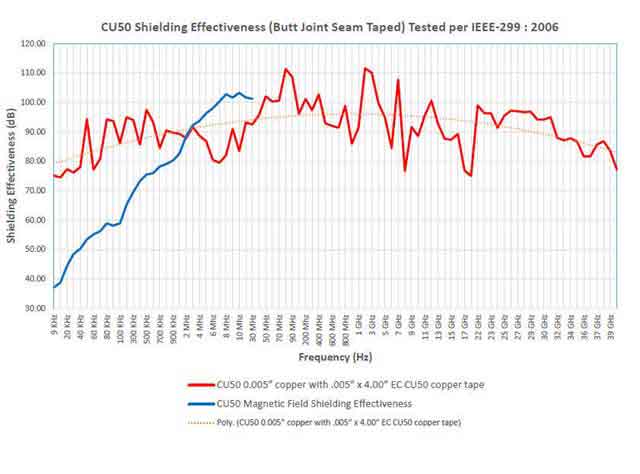

CU50 Shielding Effectiveness Chart



 Stainless Steel Foil for RF Shielded Rooms



EMI-SHIELD SS



Stainless Steel Foil



0.0020" (.0508mm) (2 mil) Thick



Standard Rolls

24" x 20' (40 ft²) No PSA

24" x 50' (100 ft²) No PSA

40" x 20' (66.67 ft²) No PSA



40" x 20' (66.67 ft²) With PSA



39" x 20' (65 ft²) Area covered by PSA



Foil Tape Rolls



Interior & Exterior Application



Installation





Price List





EMI-SHIELD SS may be used to form shielded enclosures of almost any size or shape, but the principal use is in construction of large, low-cost shielded rooms and shielded anechoic chambers.





Wear correct gloves when installing the foil, the edge is like a razor blade



Installation Methods



Tape Methods

Non-Conductive Tape



 Butt Joint and Tape

4" Electrically Conductive Tape (Recommended)



TYPICAL SHIELDING EFFECTIVENESS

As Installed Folded Seam & EC Taped

(Insertion Loss per MIL STD 285)

FREQUENCY

Attenuation (dB)

200 KHz, Magnetic Field

40

200 KHz, Electrical Field

100

1 MHz, Electrical Field

100

10 MHz, Electrical Field

100

400 MHz, Plane Wave

80

10 GHz Plane Wave

80



Applications

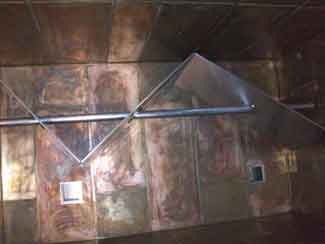

Foil Shielded Room

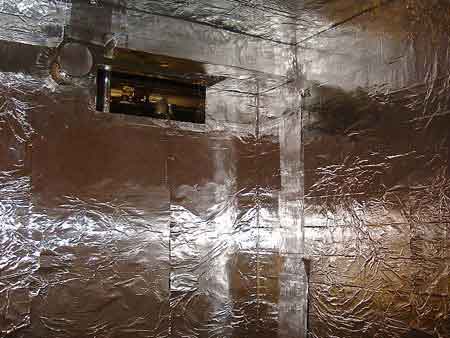

Aluminum Foil Shielded Room

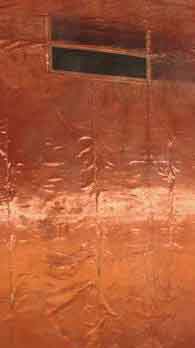

 Foil Lined Room



EMI-Shield AL5 Installed on walls and ceiling



Applications

  • Commercial

    • Anechoic Chamber

    • RF Shielded Room

    • Offices

    • Recording Studio

    • Research Areas

    • TV Broadcast Studio

    • Computer Rooms

    • SCIF's

    • Research Labs

    • Computer Labs

    • RFID Scanners

  • Private

    • Home Theater

    • Bedrooms

  • Medical

    • Operating Rooms

    • Offices

    • MRI Control Rooms

    • Labs

  • Military

    • Offices

    • Research Labs

    • Computer Labs

    • ICD 705 TEMPEST SCIF

  • Government

    • SCIF

    • Offices

    • Research Labs

    • Computer Labs

    • RFID Scanners

    • Block Wireless

  • Testing

    • RF Shielded Room

    • Test Boxes

    • Test Enclosures

    • Wireless Labs

  • Electrical

    • Electrical Equipment Rooms

    • Transformers

    • Block Electro-Magnetic Interference



Installation

    Currently, Foil Application is up to the Purchaser

  • Do-It-Yourself

  • General Contractors

  • Sheet Rock Installers

  • Wall Paper Installers



EMI Foil Spray Adhesive

3M Super 77



Spray Adhesive for Foil

High tack, high coverage and fast drying for permanently attaching foils, carpeting, lightweight foams, paper, cardboard, felt and, cloth to painted or unpainted metals, wood and hardboard.

Low VOCs. Does not contain ozone-depleting CFCs.

If you can think it up, 3M™ Super 77™ Multipurpose Adhesive can probably glue it down. It's like "can do" in a can: a strong-bonding, fast-drying glue that you just spray on.

From paper, cardboard, fabric and cushion foam to plastic, metal, wood and much more, 3M™ Super 77™ Multipurpose Adhesive sticks to just about anything.

3M™ Super 77™ Multipurpose Adhesive Aerosol

24 fl oz Net Wt 16 3/4 oz, 12 per case

NOT Recommended for the CU50

Available Nationwide Walmart & Amazon
