Foil RF Shielding Recommended Adhesives, Primers, Sealers & Fasteners

We do not sell or ship the recommended adhesives, primers, sealers or fasteners used for installing the foil RF shielding products we sell.
RF Shielding Foil Installation Instructions
See data sheets and where to purchase, below.

EMI Foil Recommended Fasteners (All Foils)

Grabber Logo

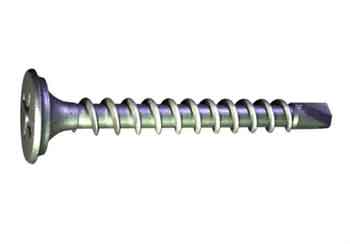

Scavenger Head Screw


PDF Submittal Sheet

PDF Data Sheet

PDF SDS Sheet

Grabber Website

Where to Purchase

We Recommend

The Clear Zinc, Drill Point, Scavanger Head

When the interior finish layer is drywall

Adjust the screw length to your wall structure thickness

The screw must penetrate beyond the metal three full thread pitches

Item# Description Unit Pack
C30SZ 8 x 2-3/8-in, Scavenger Head, Drivall, Clear Zinc, Collated 1,000
13SZ 6 x 1-in, Scavenger Head, Drill Point, Clear Zinc, Bulk 10,000
30LSZ 8 x 3-in, Scavenger Head, Drill Point, Clear Zinc, Bulk 2,000
30MSZ 8 x 2-5/8-in, Scavenger Head, Drivall, Clear Zinc, Bulk 2,000
30SSZ 8 x 2-3/8-in, Scavenger Head, Drill Point, Clear Zinc, Bulk 3,000
16SZ 6 x 1-7/8-in, Scavenger Head, Drill Point, Clear Zinc, Bulk 4,000
15SZ 6 x 1-5/8-in, Scavenger Head, Drill Point, Clear Zinc, Bulk 5,000
14SZ 6 x 1-1/4-in, Scavenger Head, Drill Point, Clear Zinc, Bulk 8,000
135SZ 6 x 1-1/8-in, Scavenger Head, Drill Point, Clear Zinc, Bulk 10,000
  Check Grabber Website for other lengths & quantities

Grabber Logo

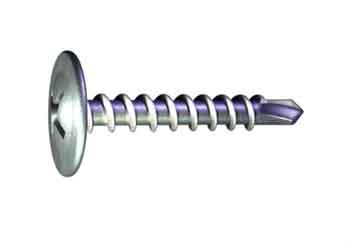

Wafer Head Screw
PDF Submittal Sheet

PDF Data Sheet

PDF SDS Sheet

Grabber Website

Where to Purchase

We Recommend

 The Clear Zinc, Drill Point, Wafer Head or Modified Truss Head

 When the interior finish layer is the foil or foil panel

Adjust the screw length to your wall structure thickness

The screw must penetrate beyond the metal three full thread pitches

Item# Description Unit Pack
34Z 8 x 1/2-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk 10,000
35Z 8 x 1-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk 5,000
36RG 8 x 1 1/4-in, Wafer Head Drivall, GrabberGard, Bulk 5,000
36Z 8 x 1-1/4-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk 5,000
37Z 8 x 1-5/8-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk 4,000
376Z 8 x 2-in, Wafer Head Drivall, Clear Zinc, Bulk 2,500
39Z 8 x 3-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk 1,000
23410CWRG 10 x 3/4-in, Wafer Head Drivall, GrabberGard, Bulk 5,000
234Z10CW 10 x 3/4-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk  5,000
236Z10CW 10 x 1-1/4-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk 3,500
240Z 10 x 3-1/2-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk 1,000
241Z 10 x 4-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk  800
242Z 10 x 5-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk  500
234Z12CW 12 x 3/4-in, Wafer Head, Drill Point, Phillips, Clear Zinc, Bulk 5,000
  Check Grabber Website for other lengths & quantities


EMI Foil Corner Flashing (All Foils)

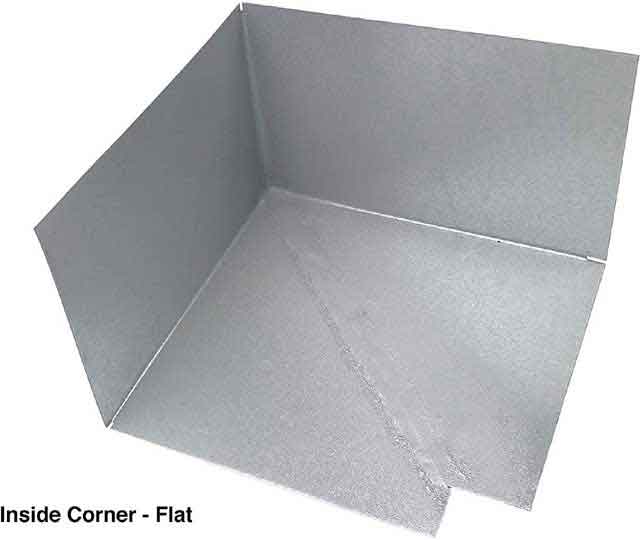

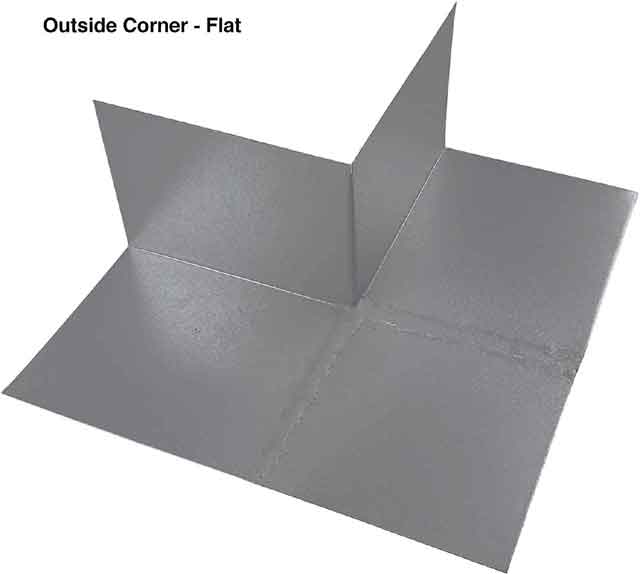

Outside Corner Flashing Inside Corner Flashing Corner Flashing for Inside & Outside Corners
Soldered Galvanized Steel
100% fully soldered seams with minimum 4" vertical height
Galvanized G90 Flat Sheet Steel (28 Gauge)

Buy From Amazon  Buy From Flashing Kings

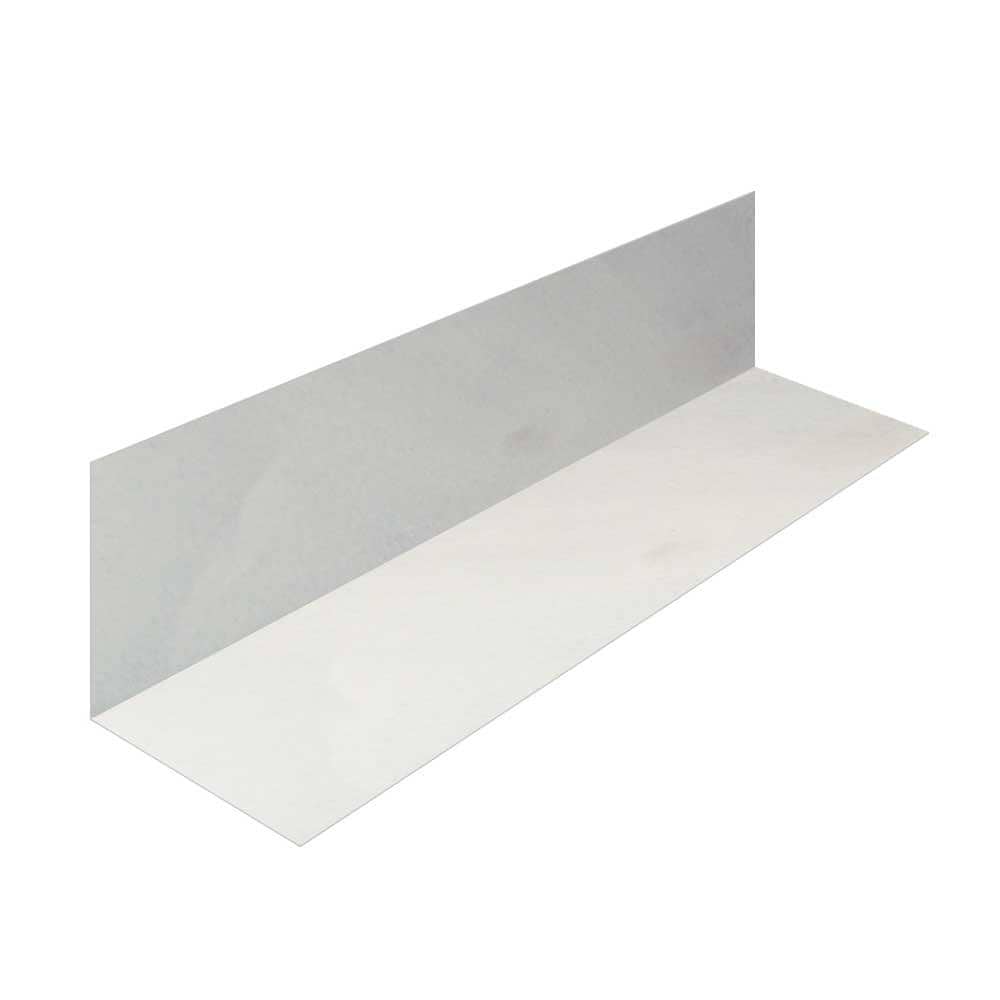

Gibraltar Building Products 4 in. x 4 in. x 10 ft. Galvanized Steel 90� L  Flashing-LF44G - The Home Depot Corner Flashing for Wall to Wall, Wall to Floor & Wall to Ceiling
Bare Metal L-Flashing
Made with 26 Gauge Galvanized Steel
For Floor, Walls & Ceiling Corners 4" x 4" or 6" x 6" Recommended
Z-Flashing to Connect Wall RF Shielding to RF Shielded Ceiling Grid

Buy from Xalon or US Foils

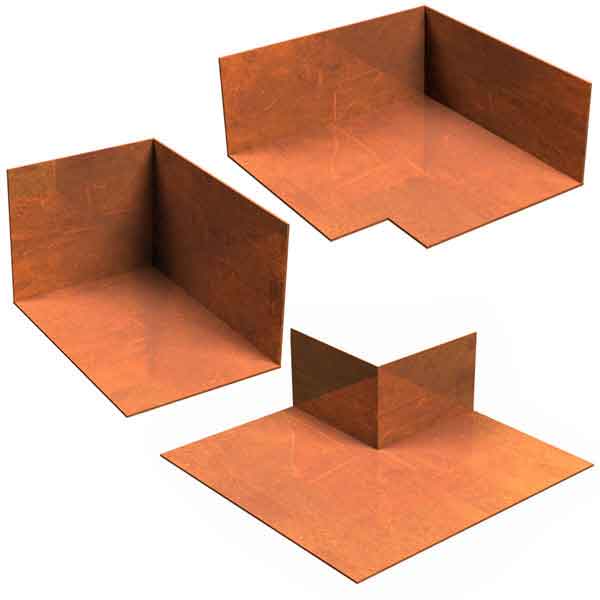

Copper Corner Flashing Corner Flashing for Inside & Outside Corners
Soldiered Copper & Stainless Steel

Buy from Hohmann & Barnard   For Stainless Steel

EMI Foil Drywall Control Joints (All Foils)

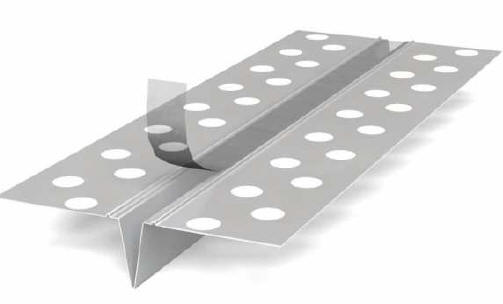

ZNCJ Control Joint 093 Zinc Control Joint is applied between abutting gypsum panels and is used to relieve the stresses of expansion and contraction of drywall and veneer plaster systems in large ceiling and wall expanses over 30' in length. Typically installed with the V apex facing into the room, then taped over with ECPSA foil tape.

ClarkeDietrich Webpage

CEMCO Webpage

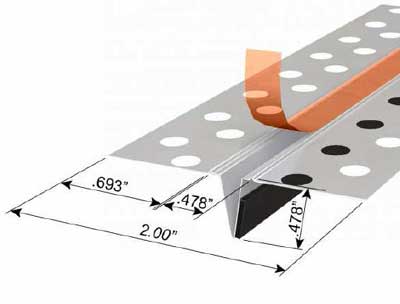

FAS 093X Control Joint FAS-093X fire rated control joint - profile for protection of control joints Fire Rated Control Joint is a composite control joint with intumescent tape factory applied to the back side of the control joint.

Hot-Dipped Galvanized Steel Recommended

ClarkeDietrich Webpage

CEMCO Webpage

Zinc-Control-Joints

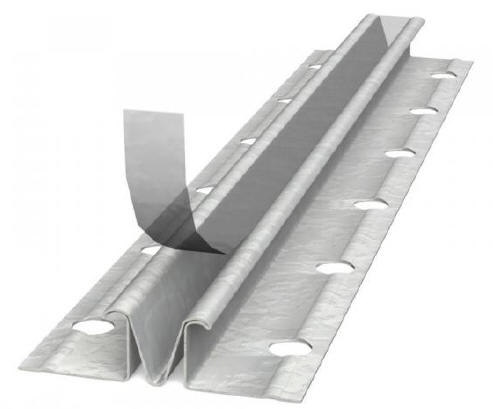

Zinc Control Joints #38, #50 & #75

A solid flange zinc control joint that resists corrosion on interior and exterior applications of plaster and stucco. The #38, #50 & # 75 is used to relieve stresses in large plastered areas of walls, ceilings, and stucco.

 G-60 Hot-Dipped Galvanized Steel Recommended

ClarkeDietrich Webpage

CEMCO Webpage


EMI Foil Aerosol Spray Adhesive

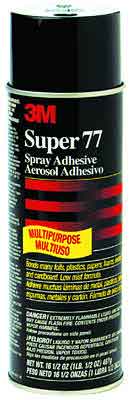

3M Super 77 Adhesive


Find Nearest Store

Sold by Grainger

Spray Adhesive for Lightweight Foils

High tack, high coverage and fast drying for permanently attaching foils, carpeting, lightweight foams, paper, cardboard, felt and, cloth to painted or unpainted metals, wood and hardboard.

Low VOCs. Does not contain ozone-depleting CFCs.

If you can think it up, 3M Super 77 Multipurpose Adhesive can probably glue it down. It's like "can do" in a can: a strong-bonding, fast-drying glue that you just spray on.

From paper, cardboard, fabric and cushion foam to plastic, metal, wood and much more, 3M Super 77 Multipurpose Adhesive sticks to just about anything.

3M Super 77 Multipurpose Adhesive Aerosol

24 fl oz Net Wt 16 3/4 oz, 12 per case

For AL2.5, AL5 or CU14 where the foil will be locked in place between two layers of plywood or drywall and only on the walls.

Available Nationwide Walmart, Home Depot & Amazon

MSDS Sheet

Data

3M Brochure


#M Hi Strength 90

Find Nearest Store

Sold by Grainger

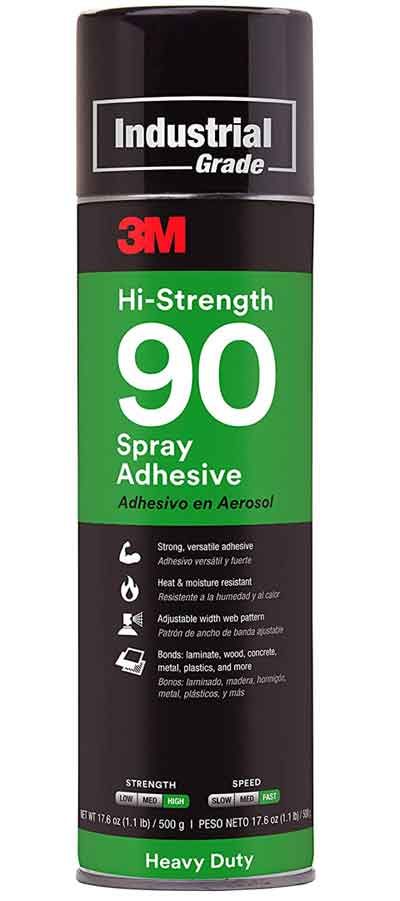

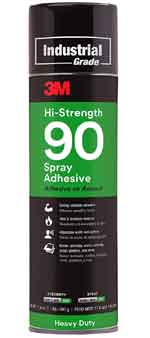

High Strength Spray Adhesive for All Foils

3M Hi-Strength 90 Spray Adhesive is an extremely versatile, fast-drying spray adhesive that bonds strongly to a wide range of materials. Our permanent bond provides fast results to keep projects moving ahead. The spray formula is easy to dispense, offering a variable-width spray pattern, and applies directly onto surfaces and materials where needed.
  • Provides professional, industrial strength for demanding applications
  • Comes with a variable-width web spray pattern
  • High strength, fast, contact type adhesive
  • Bonds laminate, wood, concrete, metal, plastic and more
  • High temperature and moisture resistance
  • Heavy Duty
  • Low VOC

Recommended for All Aluminum and Copper Foils.

When in doubt, choose the Hi-Strength 90 over the Super 77

Available Nationwide Walmart, Amazon & Others

MSDS Sheet

Data

3M Brochure

EMI Foil Contact Adhesive (All Foils)

3M Scotch Weld



#m Scotch Weld


3M 94CA Adhesive


Find Nearest Store


Sold by Grainger

Contact Adhesive for Foil

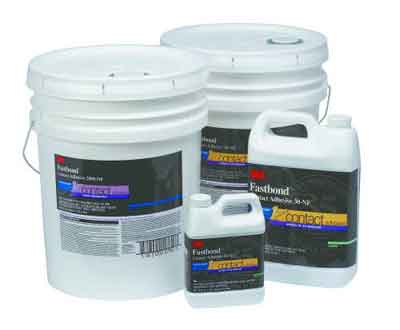

3M Fastbond 2000NF

Water-Dispersed, High Solids Activated Adhesive Provides Immediate Bonding Capabilities and Handling Strength without Forced Drying Equipment. Not recommended for aluminum foil.


3M Scotch-Weld Neoprene High Performance Contact Adhesive 1357

A Gray-Green or Light Yellow colored, high performance contact adhesive that provides a long bonding range and excellent initial strength.

Adheres exceptionally well to many decorative plastic laminates, paper honeycomb, rubber, cloth, metal, wood and foamed glass.

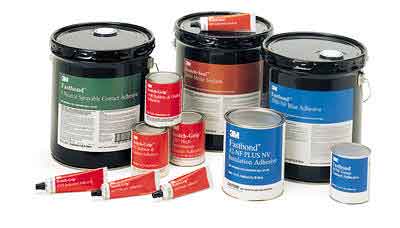

3M Fastbond Adhesives



3M Scotch-Weld 1357 Adhesives

Available Nationwide & Amazon

Fastbond



Scotch-Weld









MSDS    MSDS







Data    Data







3M Brochure

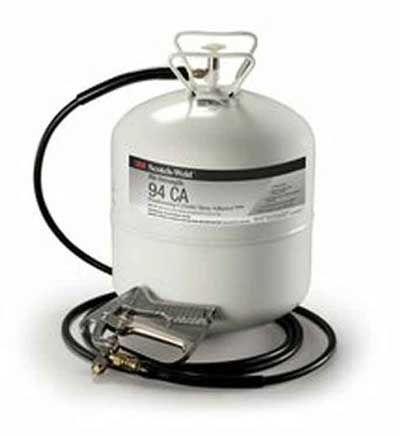

3M 94CA & 94ET

We designed 3M Hi-Strength Postforming Adhesive 94 CA to have an aggressive tack that offers a high initial grab as well as sufficient open time to position materials properly. High-solids content supports its low soak-in property, giving you ample time to align your insulation properly. This attribute also provides higher coverage than competing adhesives, alongside its 15-minute bonding range.

Recommended for All AL, CU & SS Foils. Ideal for attaching RF & Microwave Absorber directly to the foil.

94CA & 94ET

MSDS

Data

Data

EMI Foil HD Clay Adhesive (All Foils)

Dynamite 111 Adhesive

Find Nearest Store

Sold by Home Depot

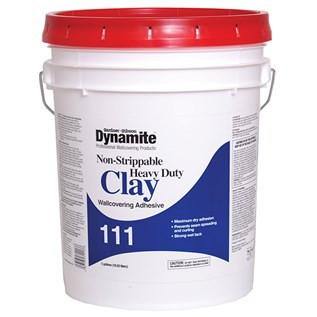

Dynamite 111 Heavy Duty Clay

Non-Strippable Wallcovering Adhesive

Dynamite 111 Heavy Duty Clay Non-Strippable Wallcovering Adhesive contains high solids to assure fast grab and a strong, durable bond. Dynamite 111 is ideally suited for heavy and difficult-to-install wallcoverings such as Commercial Type III vinyl, heavyweight fabric, flexible wood, Mylar and foil. Cleans up with water while wet.

pdf Data Sheet



pdf SDS Sheet

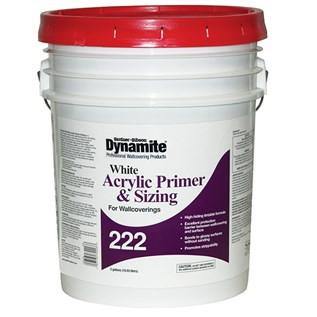

Dynamite 222 Primer

Dynamite 222 White

Acrylic Primer & Sizing

Dynamite 222 White Acrylic Primer & Sizing is a premium-grade, water-based wallcovering primer and sizing that properly prepares a wide range of surfaces prior to hanging any type of wallcovering, including pre-pasted materials. Offering excellent hiding power Dynamite 222 White Acrylic Primer & Sizing easily covers existing paint, wallcovering patterns or color variations in the wall surface.

pdf Data Sheet



pdf SDS Sheet


EMI Foil Clear Adhesive (All Foils & Most Popular)

Roman Pro 880 Adhesive

Find Nearest Sherwin-Williams Store

Sold by Sherwin-Williams, Home Depot & Amazon

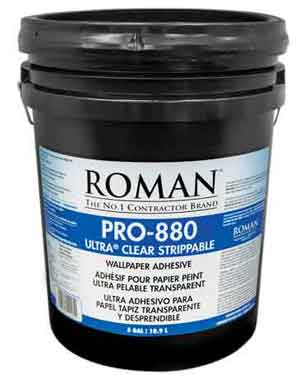

PRO-880

Ultra Clear Strippable Wallcovering Adhesive (Most Popular)

PRO-880 is a premium clear adhesive with excellent wet-tack, extended open-time and unsurpassed ease of clean-up. Undiluted PRO-880 will hang type II and type III wallcoverings, yet it can also be diluted for use with lightweight and pre-pasted wallcoverings. It promotes strippability of fabric-backed wallcoverings over new bare drywall. PRO-880 applies easily with a roller or sprayed on and back rolled.

Coverage: Up to approx. 330 square feet per gallon

Single application on bare sheetrock and plywood

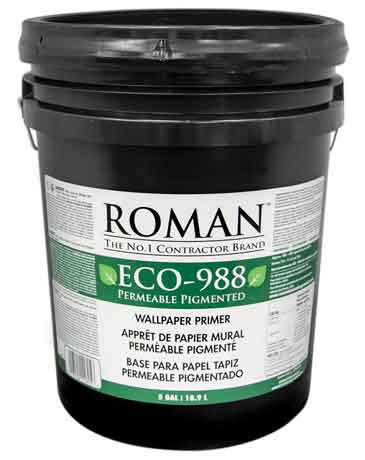

Roman ECO 988 Primer

ECO-988

Pigmented Wallpaper Primer

Key Features

Promotes strippability

100% Acrylic resin

No Formaldehyde

VOC (Regulatory): Zero ( As calculated per EPA Method 24 )

pdf Data Sheet



pdf SDS Sheet



EMI Foil Clear Adhesive (Floor Panels)

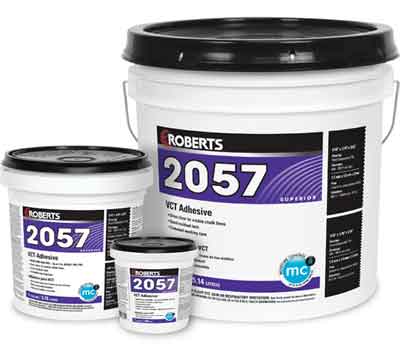

Roberts 2507 VCT Adhesive

Find Nearest Distributor

Sold by Home Depot, Grainger & Amazon

Roberts 2057 VCT Adhesive

ROBERTS 2057 is a premium, clear thin spread adhesive designed for the installation of vinyl composition tile (VCT).

Moisture Control Adhesive - Up to 8 lbs MVER (ASTM F1869) / 85% RH (ASTM F2170)

Dries clear, allowing chalk lines to remain visible

Good residual tack and extended working time

Enviro-Friendly, solvent-free and LEED compliant; VOC < 1 g/L, SCAQMD Rule 1168

CRI Green Label Plus Certified GLP #36471

GoldGuard antimicrobial product protection

Traffic - Heavy Residential/Moderate Commercial

Can be used for applying metal floor panels to concrete

Aluminum: AL20 & FP20 Floor Panels onto Waterproof Sealed Concrete
Galvanized Steel: GS26 & GS22 Floor Panels onto Unsealed Concrete

No Nap, Adhesive Applicator Roller Recommended Premier 9FZ25 or Similar

pdf Data Sheet



pdf SDS Sheet


Exterior & Cold Weather Adhesive (All Foils)

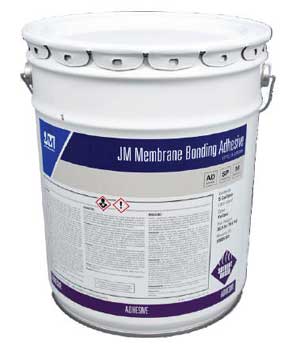

JM Membrane Bonding Adhesive

Find Nearest Distributor

Sold by Beacon Roofing Supply

JM Membrane Bonding Adhesive

Ambient Temperature Ranges:
Apply when ambient temperature is 25°F and rising
Do NOT apply when dew point is within 10°F or closer to ambient.

Adhesive Temperature Ranges:
Adhesive must be greater than 32°F.
If adhesive falls below 32°F, place back in warm area until temperature is 60°F or greater. Apply when the ambient and substrate temperature is 40°F (5°C) and rising.

pdf Data Sheet



pdf SDS Sheet


ESD Adhesive (ESD Tile Directly on Top of All Foils)


StaticSmart CDT+ Adhesive

Find Nearest Distributor

Sold by United Static Control

Find Nearest Distributor

Sold by Julie Industries, Inc.

United Static Smart SDT+ Conductive ESD Flooring Adhesive

United Static Smart SDT+ is a solvent-free, conductive, acrylic adhesive formulated to permanently install conductive and static dissipative resilient tile and sheet flooring and rubber tile and sheet flooring. To insure product stability and reduce joint openings, United Static Smart SDT+ has been formulated to produce a hard set and firm bond line less susceptible to indentation and telegraphing. May be used over properly prepared porous and non- porous surfaces such as concrete, underlayment grade plywood, cementitious based patching compounds and levelers.

Non-Porous Substrates: Apply adhesive with a 1/16″ x 1/16″ x 1/16″ V-notch trowel.


pdf Data Sheet



pdf SDS Sheet



FRP & Metal Corner Flashing Adhesive

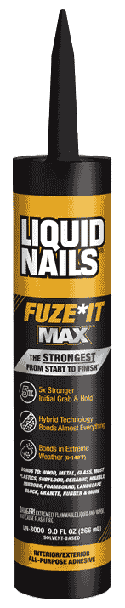

liquidnails LN-3000

Sold by Home Depot
Recommended for installing Aluminum, Galvanized Steel, Copper or Stainless Steel corner flashing.

Also recommended for installing the FRP panels directly on to to Xalon or US Foils aluminum foil or panels.

LIQUID NAILS FUZE*IT MAX (LN-3000)
Interior and exterior all-purpose construction adhesive delivers the strongest bond from start to finish* with both exceptional grab and long-term strength. Fuze*It Max sets the new standard for adhesives. This advanced adhesive provides the strongest performance* no matter the job, by combining exceptional hold & instant initial grab with outstanding long-term strength. Fuze*It Max adhesive utilizes hybrid technology to bond nearly everything to everything in any weather condition.

Typically the corner flashing is installed first, then the foil shielding roll or panel and finally the foil ECPSA seaming tape.

pdf Data Sheet



pdf SDS Sheet


EMI Foil Concrete Sealer (Aluminum Foil or Panels)

Creto DPS

Find Nearest Store

CRETO DPS

CRETO DPS (Deep Penetrating Sealer) is a water based internal membrane forming sealer to waterproof Portland cement concrete. Going below the concrete surface and reacting with the free lime and alkali forming insoluble calcium silicate crystals which "blocks" moisture from migrating to the surface through the capillary pores of concrete while allowing the concrete to breathe.

Benefits of CRETO DPS

  • One time application (for most applications)
  • Positive or Negative-side for waterproofing
  • Will not break down over time
  • Helps to cure concrete uniformly
  • Lowers ph levels at the concrete surface for greater adhesion of topical coating
  • Holds back Hydrostatic Pressure
  • Concrete is still breathable
  • Glued carpet or tiles, epoxies, thin-sets will still bond to the concrete after applying DPS
  • In most applications DPS stops moisture intrusions within 24 hours
  • Protects against ASR (Alkali-silica reaction)
  • Non-Flammable
  • No VOC's
  • Environment friendly
  • Cost effective product for protecting concrete
  • Leed points

*Creto products are GREEN & Eco-Friendly!*

pdf Data Sheet



pdf SDS Sheet

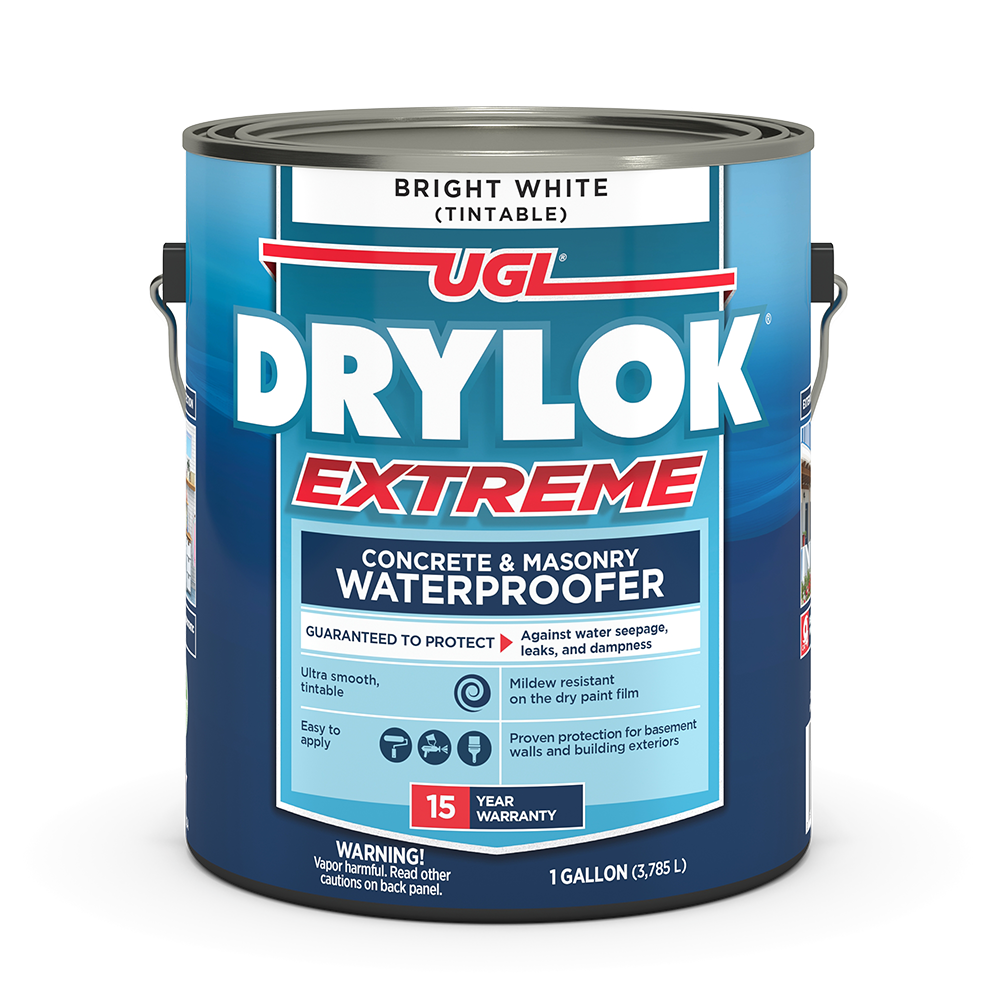

DRYLOK� Extreme Masonry Waterproofer - Best Waterproofing Paint

DRYLOK� Original Latex Masonry Waterproofer - Various Colors

Find Nearest Store

Also Sold By Home Depot & Amazon

Premium USA Manufactured Paints | US Paint Systems

If water is leaking through existing masonry or you need to protect new construction from water infiltration, our proprietary formula is GUARANTEED to stop water.

Product Overview

A versatile masonry waterproofer that can be applied interior, exterior, above or below grade.

Original guaranteed to stop water up to 10 psi.

Extreme guaranteed to stop water up to 15 psi.

Coats: Minimum 2 coats

Clean up: Soap and Water

Coverage: 75 - 100 square feet per gallon

Dry Time: 1.5 hours to touch, 2 - 3 hours to recoat

For Data & SDS Sheets https://www.drylok.com/


FS Electrically Conductive Silicone Adhesive (RTV)

Xalon RF Shielding Conductive Silicone

Sold By Xalon & US Foils
FS is an electrically conductive, moisture curing silicone RTV. FS is a 1-part electrically conductive adhesive silicone that when applied to the substrate, allows handling of the assembly after 1 hour. When cured, the electrically conductive glue resists weathering, ozone, moisture, UV and high temperatures.
Fast Room Temperature (RT) Cure
Thixotropic Paste
Non-corrosive Oxime Cure
High Temperature Resistant
Electrically Conductive Adhesive Sealant

PDF Technical Data Sheet

PDF Safety Data Sheet

Applications

Seal Foil or Foil Panels to Door or Window Frames

Seal Inside and Outside Foiled or Flashed RF Shielded Corners


Seal Duct Type Waveguide Air Vent Flange to the Inside of the HVAC Ducting


Seal Suspended Ceiling Grids where Cross Tees attach to Main Tees

Seal Suspended Ceiling Grids where Cross Tees or Main Tees attach to Perimeter Angle

Seal Foil or Foil Panels to Air Vents, I/O Panels, Pipe Penetrations, EMI Filters & Other Penetrations



Use the chart to determine how much silicone you will need for your project.

Determine how many linear feet are in ONE 10.3 FL. OZ. tube of silicone, based on the joint width and depth.

Joint Depth Joint Width
1/8" 1/4" 3/8" 1/2"
1/8" 96' 48' 36' 24'
1/4" 48' 24' 18' 12'
3/8" 32' 16' 12' 8'
1/2" 24' 12' 9' 6'
Beading Large Doors & Windows
Best option is to bead out the Xalon FS on to a non-porous surface, like a metal table. Let it will skim coat for about 15 minutes (minimum) to 30 minutes, then pick it up and gently push it into the window frame to glass interface area. You can do the whole bead at once or in sections, avoiding gaps. As it hardens, but less than 60 minutes, you can mold it into desired shape.
Then you can hold the bead in place with blue painters tape if needed and let it cure for 72 hours minimum.
After that you can apply your white caulk over it to make it look nice.

Concrete Warning
Since aluminum is subject to attack by alkaline(s) it should NOT be allowed to come in direct contact with concrete or mortar. If aluminum is in contact with concrete (or even other metals) and is subject to wetting (as would happen outdoors), the aluminum should be insulated from the concrete, mortar, or metal by adding a barrier like: asphalts, paint, sealer, 6 mil plastic polyurethane sheeting or a neoprene adhesive. Use waterproofing concrete sealer if you know water might get in, on or through the concrete. If the aluminum foil shielded room has fire sprinklers installed, it is good idea to water seal the concrete floor, just in case of an intentional or unintentional water discharge.


Copyright © 2001-2023  R. A. Mayes Company, Inc.
An Electro Mechanical Research and Development (EMRAD) Corporation, Company

See our Privacy Policy    All the data files on our website require Adobe Acrobat Reader!
