 Eurofins York Comb Generator (50 MHz to 18 GHz)



York Logo



High Frequency

 Comb Generator Emitter



Model CGE01 (R or C)



50MHz to 18 GHz



 50 MHz, 80MHz or 100MHz Steps

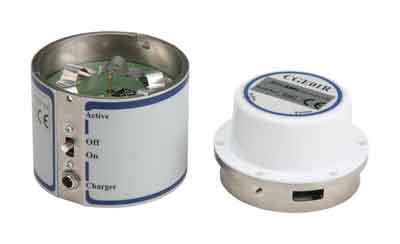

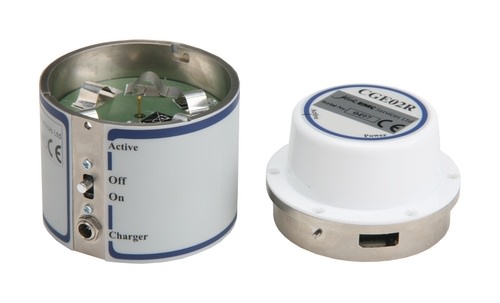

York CGE01 Comb Generator Emitter

Data

Full Catalog




Stable output
Repeatable measurements
Conducted and radiated output options
Evaluation of both conducted and radiated systems
50 MHz to 18 GHz output
Applications across a broad frequency spectrum
50 MHz step size
Complies with CISPR16 validation methods
Compact and Portable
Comparisons between sites and environments
Shielding effectiveness measurements even of small enclosures
Battery powered
No power or interconnecting cable effects on measurements

CGE01R: Radiated version with integrated wideband monopole antenna (as previously available)

CGE01C: With SMA output for direct connection



Radiated Emissions

Available either with an integral monocone antenna or with a detachable monocone antenna the CGE01 can be used as a reference source for radiated emissions. The unit is battery powered so that it can be operated as an independent source without the effect of power or interconnecting cables, which would modify the fields generated. Additionally though, for making shielding effectiveness measurements of small enclosures, the actual emitter can be separated from the battery pack and operated remotely via a cable carrying only DC power. The CGE is housed in a plated metal cylindrical enclosure, thus ensuring uniformity of the field and can be orientated to give vertical or horizontal polarization. Additionally external antennas can be attached to the output when required.

Conducted Emissions

The CGE01C is supplied with a 50Ω SMA connector allowing it to be used either for the investigation of conducted systems or to be used with an external antenna. The known output allows unknowns within systems or components to be measured or calculated.



Applications

  • CISPR16
  • Shielding effectiveness of small enclosures:
    • Desktop PCs
    • Servers
    • Wireless comms equipment
  • Radiated measurement systems validation and verification
  • Reference source for:
    • Daily pre-test checks if required by the accreditation authorities
    • Long-term performance monitoring
    • Spectrum analyzer / receiver pre-check
  • Investigation of reverberation (mode stirred) chamber behavior
  • Characterization of filter performance
  • Cable loss measurements
  • Measuring amplifier gain and bandwidth
Specifications
Frequency Range 50 MHz to 18 GHz direct connection into a 50Ω system
50 MHz to 18 GHz radiated using an integral antenna
Step Size 80 MHz or 100 MHz switchable
50 MHz or 80 MHz switchable version available to special order
Output connector 50Ω SMA socket
Temperature stability
(15°C to 35°C)
1 to 16 GHz: <1dB
100 MHz to 18 GHz: <2dB
Time stability Typically <1dB over a 12 month period
Dimensions 76mm diameter × 64mm (74mm including connector) - CGE01C with battery pack
76mm diameter × 18mm (28mm including connector) - CGE01C without battery pack
76mm diameter × 92mm - CGE01R with battery pack
76mm diameter × 46mm - CGE01R without battery pack
Weight Approx 550g (including battery)
Power supply 5V 2AHr battery pack. External input 5.00V ± 0.25V, 500mA
Operating Time 6.5 hours typical with fully charged battery pack.
Indicators Active, lower step size - green LED
Active, higher step size - red LED

Standard Order Kits

Part Number Description Parts Included
CGE01KIT01
York CGE01KIT01
Standard CGE01C comb generator emitter (conducted output) kit with battery charger
  • CGE01C conducted reference signal source
  • 80 & 100 MHz step size (switchable)
  • BP01 Rechargeable battery
  • Universal input battery charger
  • CAL13 Standard test
  • Hard case
CGE01KIT02
York CGE01KIT02
Standard CGE01R comb generator emitter (radiated output) kit with integral monocone antenna and battery charger
  • CGE01R radiated reference signal source with integral antenna
  • 80 & 100 MHz step size (switchable)
  • BP01 Rechargeable battery pack
  • Universal input battery charger
  • CAL09 Standard test
  • Hard case
CGE01KIT03
York CGE01KIT03
Enhanced CGE01C comb generator emitter (conducted output) kit with detachable monocone antenna and battery charger
  • CGE01C conducted reference signal source
  • 80 & 100 MHz step size (switchable)
  • MCN01 detachable monocone antenna optimized 1GHz - 26GHz
  • BP01 Rechargeable battery
  • Universal input battery charger
  • CAL13 Standard test
  • Hard case
CGE01KIT04
York CGE01KIT04
Special CGE01C comb generator emitter with 50 & 80 MHz step size (conducted output) kit with battery charger
  • CGE01C conducted reference signal source
  • 50 & 80 MHz step size (switchable)
  • BP01 Rechargeable battery
  • Universal input battery charger
  • CAL13 Standard test
  • Hard case
CGE01KIT05
York CGE01KIT05
Special CGE01R comb generator emitter with 50 & 80 MHz step size (radiated output) kit with integral monocone antenna and battery charger
  • CGE01R radiated reference signal source with integral antenna
  • 50 & 80 MHz step size (switchable)
  • BP01 Rechargeable battery pack
  • Universal input battery charger
  • CAL09 Standard test
  • Hard case
CGE01KIT06
York CGE01KIT06
Enhanced, special CGE01C comb generator emitter with 50 & 80 MHz step size (conducted output) kit with detachable monocone antenna and battery charger
  • CGE01C conducted reference signal source
  • 50 & 80 MHz step size (switchable)
  • MCN01 detachable monocone antenna optimized 1GHz - 26GHz
  • BP01 Rechargeable battery
  • Universal input battery charger
  • CAL13 Standard test
  • Hard case

Accessories

MCN01 Antenna Detachable monocone antenna optimized 1GHz - 26GHz
BP01 Battery Pack 5V 2AHr battery pack

Output Measurement Results

CAL13 Direct Output 0 to 18GHz power measurement using spectrum analyzer
CAL09 Radiated Output 1 to 18GHz electric field strength in FAR using a spectrum analyzer at 3m

Typical Output Measurement Results

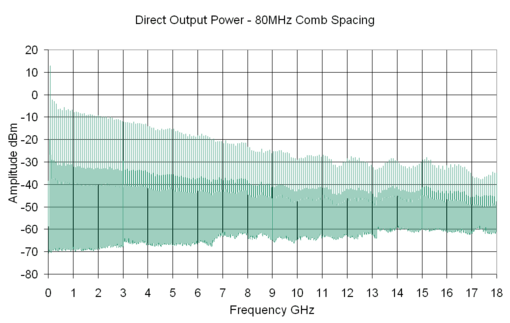

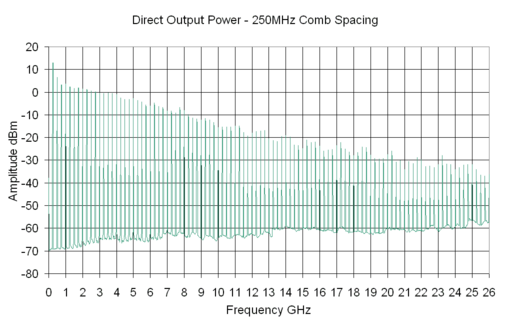

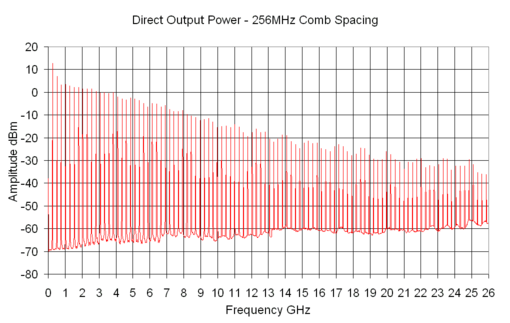

CGE01C - Direct Output Power - 80MHz Comb Spacing   CGE01C - Direct Output Power - 100MHz Comb Spacing

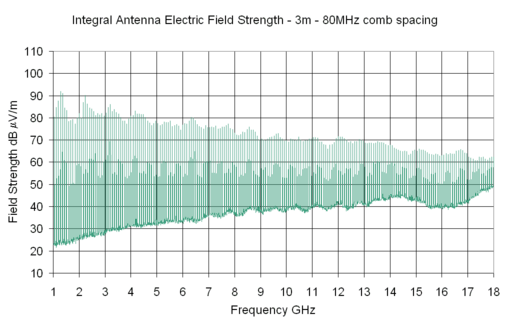

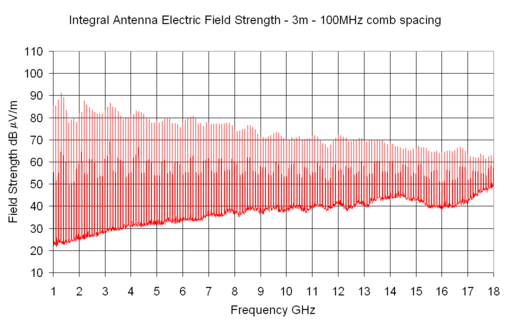

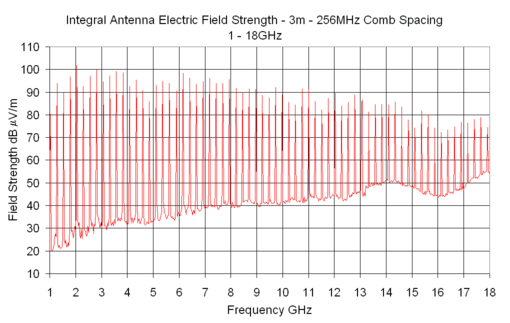

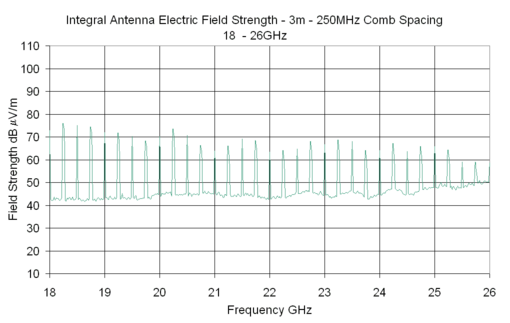

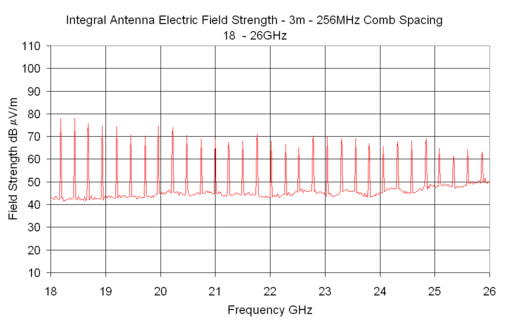

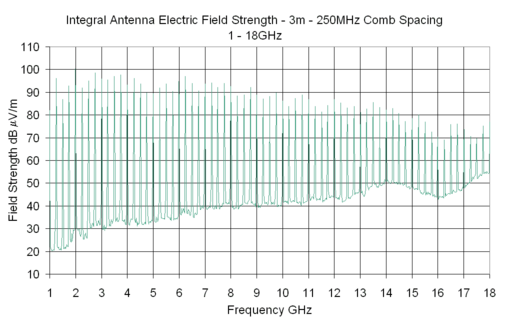

CGE01R - Integral Antenna Electric Field Strength - 3m - 80MHz Comb Spacing   CGE01R - Integral Antenna Electric Field Strength - 3m - 100MHz Comb Spacing





 Eurofins York Comb Generator (434 MHz to 26 GHz)



York Logo



High Frequency

Comb Generator Emitter



Model CGE05 (R or C)



434MHz to 26GHz

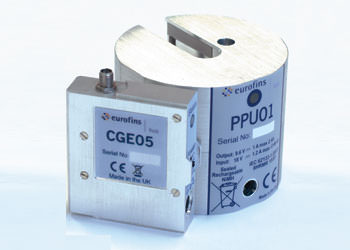

York CGE05 Comb Generator



Data

Full Catalog







The CGE05 is a broadband reference comb
source producing frequencies within the 434 MHz
to 26 GHz range, with two step sizes selectable
by the user.

It is the ideal reference source for carrying out
checks on fully- or semi-anechoic chambers and
other E-field test environments.

The CGE05 is compact and can be run from a
mains power adapter (supplied) or independently
from the PPU01 battery pack to minimise
the effect of cabling when characterising an
electromagnetic environment.

The generator unit is housed in a metal enclosure
so that it can be mounted in direct electrical
contact with a ground plane, as may be required
by some tests.

The comb signal allows both the reference
and noise floor signal levels to be viewed
simultaneously, aiding dynamic range
measurements.

The CGE05 is equipped with a precision SMA
output connector to which an antenna can be
fitted for generating radiating E-fields.





Conducted & Radiated Emissions

The CGE05 26 GHz Comb Emitter Generator is a broadband reference comb source producing frequencies within the 434 MHz to 26 GHz range, with two step sizes selectable by the user.

It is the ideal reference source for carrying out checks on fully- or semi-anechoic chambers and other E-field test environments. The CGE05 is compact and can be run from a mains power adapter (supplied) or independently from the PPU01 battery pack to minimise the effect of cabling when characterising an electromagnetic environment.

The generator unit is housed in a metal enclosure so that it can be mounted in direct electrical contact with a ground plane, as may be required by some tests.The comb signal allows both the reference and noise floor signal levels to be viewed simultaneously, aiding dynamic range measurements.

The CGE05 is equipped with a precision SMA output connector to which an antenna can be fitted for generating radiating E-fields.



Applications

  • Conducted and radiated measurement systems validation and verification
  • Investigation and characterisation of different measurement environments such as fully- or semi-anechoic chambers
  • Reference source for:-
    • Daily pre-test checks as required by accreditation authorities e.g. ISO 17025, DEFSTAN 59-411
    • Comparisons between test sites
    • Long-term performance monitoring
    • Investigation of screened room behaviour
    • Cable loss measurements
  • Evaluating component assembly characteristics e.g. filter loss, amplifier gain and bandwidth
  • Spectrum analyser or receiver pre-checks
  • Shielding evaluation
Specifications

Frequency range

  • Conducted 434 GHz to 26 GHz direct connection into 50Ω system
  • Radiated 1 GHz to 26 GHz radiated using MCN02 monocone antenna

Output level

  • Conducted 60 dBµV min. into 50 Ω system for 90% of combs up to 26 GHz

Comb signal step size

  • Comb Mode 1 – 434 MHz base frequency 434 MHz, 868 MHz, … 25.606 GHz
  • Comb Mode 2 – 0.5 GHz base frequency 0.5 GHz, 1 GHz, … 26 GHz

Stability

  • Amplitude
    15°C to 30°C <+/-1 dB, 0.5 GHz to 26 GHz
    5°C to 40°C <+/-1.5 dB, 0.5 GHz to 26 GHz
  • Frequency 5°C to 40°C <+/- 30 ppm max, <+/- 10 ppm typ
  • Time <1 dB (typical over 12 month period)

Operating Time

  • Battery powered 10 hours typical with fully charged PPU01

Output Connector

  • 50 Ω precision SMA jack

Dimensions

  • CGE05 56 mm x 17.5 mm x 65 mm (72 mm including connector)
  • With PPU01 80 mm diameter x 65 mm (72 mm including connector)

Weight

  • CGE05 0.1kg
  • With PPU01 0.65kg

Power Supply

  • 9 – 18 Vdc, 0.5 A max

Indicators

  • Blue – Active, Comb mode 1
  • Green – Active, Comb mode 2
  • Red – Low battery / supply error

Controls

  • 3-way switch Comb mode 1 | OFF | Comb mode 2

Standard Order Kits

Part Number Description Parts Included
CGE05KIT01

Standard CGE05 reference source kit

Conducted

  • CGE05 reference comb generator
  • PPU01 Portable Power Unit
  • PSU01 18 V mains power adapter
  • Hard case
  • Manufacturer’s test certificate
CGE05KIT02 CGE05 kit plus antenna

Radiated
  • CGE05 reference comb generator
  • PPU01 Portable Power Unit
  • PSU01 18 V mains power adapter
  • Hard case
  • Manufacturer’s test certificate
  • MCN02 1 to 26 GHz monocone antenna

Accessories

MCN02 Antenna Detachable monocone antenna optimized 1GHz - 26GHz
PPU01 Battery Pack 10 hours typical with fully charged

Output Measurement Results

CAL10 Radiated Output 1 to 26GHz electric field strength in FAR using a spectrum analyzer at 3m
CAL14 Direct Output 0 to 26GHz power measurement using spectrum analyzer






 Eurofins York Comb Generator (915 MHz to 40 GHz)







York Logo



High Frequency

Comb Generator Emitter



Model CGE06 (R or C)



915MHz to 40GHz

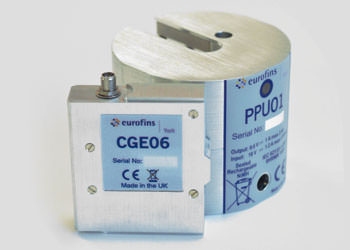

York CGE06 Comb Generator



Data



  • The CGE06 is a broadband reference comb
    source producing frequencies within the 915 MHz
    to 40 GHz range, with two step sizes selectable
    by the user.
  • It is the ideal reference source for carrying out
    checks on fully- or semi-anechoic chambers and
    other E-field test environments.
  • The CGE06 is compact and can be run from a
    mains power adapter (supplied) or independently
    from the PPU01 battery pack to minimise
    the effect of cabling when characterising an
    electromagnetic environment.
  • The generator unit is housed in a metal enclosure
    so that it can be mounted in direct electrical
    contact with a ground plane, as may be required
    by some tests.
  • The comb signal allows both the reference
    and noise floor signal levels to be viewed
    simultaneously, aiding dynamic range
    measurements.
  • The CGE06 is equipped with a 2.92 mm output
    connector to which an antenna can be fitted for
    generating radiating E-fields.



Conducted & Radiated Emissions

The CGE06 40 GHz Comb Emitter Generator is a broadband reference comb source producing frequencies within the 915 MHz to 40 GHz range, with two step sizes selectable by the user. It is the ideal reference source for carrying out checks on fully- or semi-anechoic chambers and other E-field test environments.

The CGE06 is compact and can be run from a mains power adapter (supplied) or independently from the PPU01 battery pack to minimise the effect of cabling when characterising an electromagnetic environment.

The generator unit is housed in a metal enclosure so that it can be mounted in direct electrical contact with a ground plane, as may be required by some tests. The comb signal allows both the reference and noise floor signal levels to be viewed simultaneously, aiding dynamic range measurements.

The CGE06 is equipped with a 2.92 mm output connector to which an antenna can be fitted for generating radiating E-fields.







Applications

  • Conducted and radiated measurement systems validation and verification
  • Investigation and characterisation of different measurement environments such as fully- or semi-anechoic chambers
  • Reference source for:-
    • Daily pre-test checks as required by accreditation authorities e.g. ISO 17025, DEFSTAN 59-411
    • Comparisons between test sites
    • Long-term performance monitoring
    • Investigation of screened room behaviour
    • Cable loss measurements
  • Evaluating component assembly characteristics e.g. filter loss, amplifier gain and bandwidth
  • Spectrum analyser or receiver pre-checks
  • Shielding evaluation
Specifications

Frequency range

  • Conducted 915 MHz to 40 GHz direct connection into 50Ω system
  • Radiated 1 GHz to 26 GHz radiated using MCN02 monocone antenna

Output level

  • Conducted 60 dBµV min. into 50 Ω system for 90% of combs up to 40 GHz

Comb signal step size

  • Comb Mode 1 – 915 MHz base frequency (915 MHz, 1.83 GHz … 39.345 GHz)
  • Comb Mode 2 – 1 GHz base frequency 1 GHz, 2 GHz, … 40 GHz

Stability

  • Amplitude
    15°C to 30°C <+/-1 dB, 0.5 GHz to 40 GHz
    5°C to 40°C <+/-1.5 dB, 0.5 GHz to 40 GHz
  • Frequency 5°C to 40°C <+/- 30 ppm max, <+/- 10 ppm typ
  • Time <1 dB (typical over 12 month period)

Operating Time

  • Battery powered 6.5 hours typical with fully charged PPU01

Output Connector

  • 2.92 mm jack

Dimensions

  • CGE06 56 mm x 17.5 mm x 65 mm (72 mm including connector)
  • With PPU01 80 mm diameter x 65 mm (72 mm including connector)

Weight

  • CGE06 0.1kg
  • With PPU01 0.65kg

Power Supply

  • 9 – 18 Vdc, 0.5 A max

Indicators

  • Blue – Active, Comb mode 1
  • Green – Active, Comb mode 2
  • Red – Low battery / supply error

Controls

  • 3-way switch Comb mode 1 | OFF | Comb mode 2

Standard Order Kits



Part Number

Description

Parts Included

CGE06KIT01

Standard CGE06 reference source kit

Conducted

  • CGE06 reference comb generator
  • PPU01 Portable Power Unit
  • PSU01 18 V mains power adapter
  • Hard case
  • Manufacturer’s test certificate

CGE06KIT02

CGE06 kit plus antenna

Radiated
  • CGE06 reference comb generator
  • PPU01 Portable Power Unit
  • PSU01 18 V mains power adapter
  • Hard case
  • Manufacturer’s test certificate
  • MCN02 1 to 26 GHz monocone antenna

Accessories



PPU01 Battery Pack 10 hours typical with fully charged



Output Measurement Results



CAL15

Direct Output

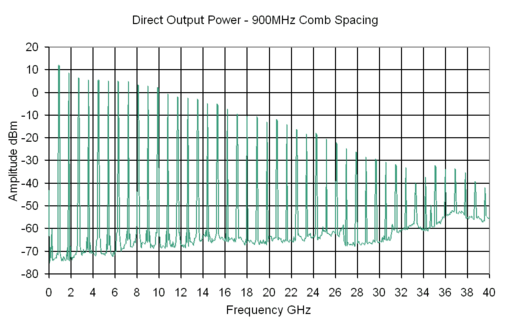

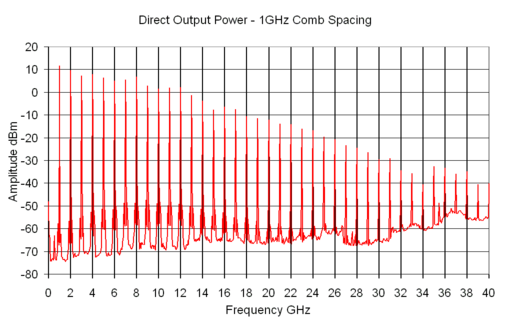

0 to 40GHz power measurement using spectrum analyzer






Copyright © 2001-2021  R. A. Mayes Company, Inc.
An Electro Mechanical Research and Development (EMRAD) Corporation, Company

See our Privacy Policy    All the data files on our website require Adobe Acrobat Reader!
