EMC Test Antenna Tripods & Masts

TDK

Non-Conductive & RF Invisible


Adjustable Tripod

Model TRI-350R

TDK TRI-350R Tripod



Supports 33 lbs



Data

The TDK TRI-350R tripod is a sturdy, lightweight, portable, non-conductive tripod designed specifically for mounting antennas and video cameras in EMC test environments.

The tripod is constructed of light but strong fiberglass and plastic to provide the necessary stability while allowing for lightweight portability.

The tripod easily adjusts from 65 cm to 160 cm in height and supports equipment up to 15 kg. The sturdy, fixed-length fiberglass legs feature smooth-rolling lockable caster wheels for easy maneuverability. If preferred, fixed adjustable rubber foot pads can be optioned to accommodate uneven floor surfaces. The tripod legs fold inward for storage or transportation between test sites.

The TRI-350R is available with a variety of antenna and video camera mount adapters to meet your requirements.


TDK



Non-Conductive & RF Invisible



Adjustable Tripod



Model TRI-150R

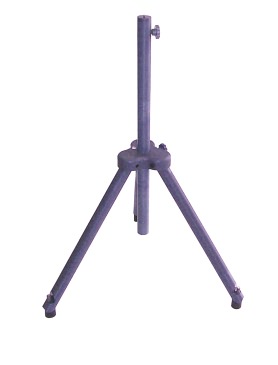

TRI-150R



Supports 100 lbs



DATA

The TDK RF Solutions TRI-150R tripod is designed specifically for mounting antennas and video cameras in EMC test environments. The tripod is constructed of durable, non-conductive, commercial grade fiberglass and plastic that provide the necessary stability while allowing for portability.



The sturdy, fixed-length fiberglass legs feature adjustable foot pads to accommodate uneven floor surfaces. The legs fold inward for storage or transportation between test sites.

  • 1/4 - 20 screw mount adapter

  • Adjusts from 100 cm to 150 cm in height (Custom Available)

  • Integrated level to allow quick and accurate positioning

  • Custom antenna mount adapters available

  • Custom video camera mount adapters available

  • Supports up to 45 kg (100 lbs.)

  • Floor to top of upper leg support member is 25.5"

  • Floor to top of height adjusting rod, fully down is 37"




TDK



Antenna Mounts



Model AM-PIVOT (Machined Top)



Model AM-PIVOT-FLAT (Flat Top)



AM-PIVOT

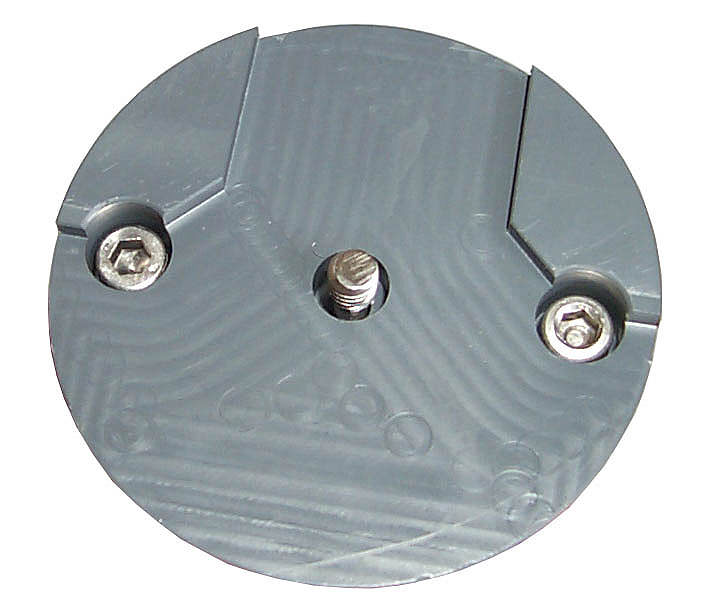

 Top of AM-PIVOT (Click to Enlarge)





AM-PIVOT

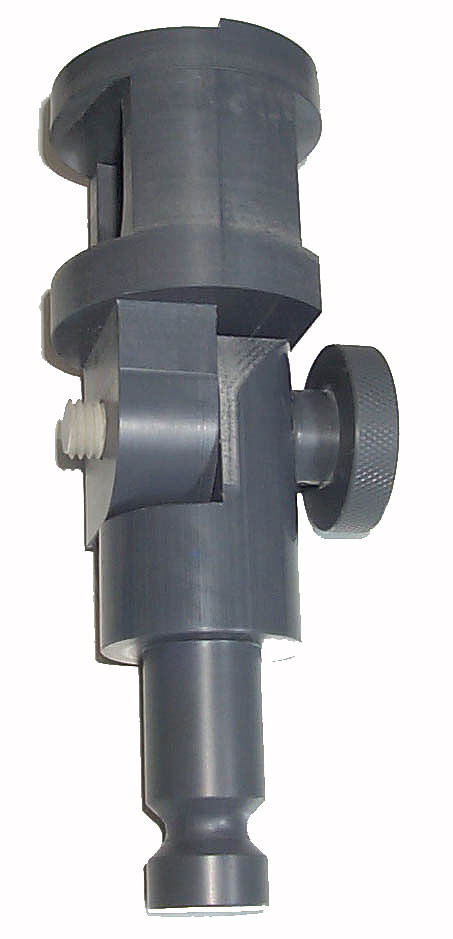

 Side View of AM-PIVOT (Click to Enlarge)

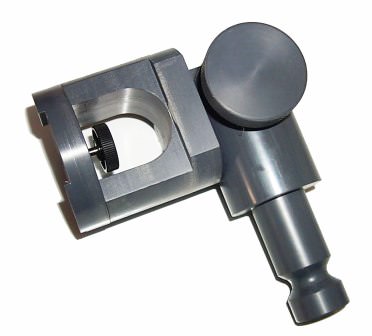

 Side View of AM-PIVOT (Click to Enlarge)



TECH DATA

Pivots from Horizontal to Vertical Polarity

  •  The AM-PIVOT mount is designed for large antennas

  •  Designed for tripods (TRI-150R Above)

  •  Other antenna stands or others with 1/4"-20 threads

  •  Commercial grade plastic (Delron)

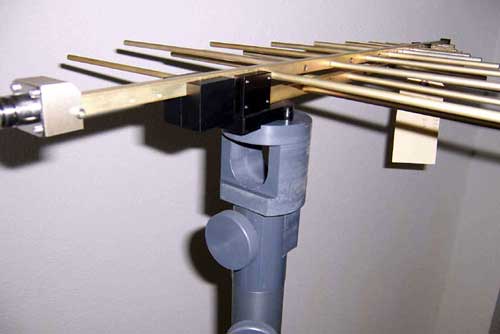

  TDK AM Pivot

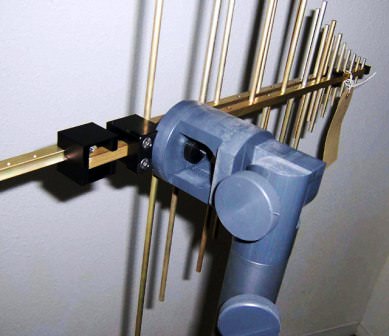

 TDK AM Pivot

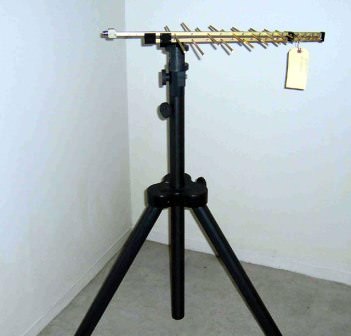

TDK AM Pivot

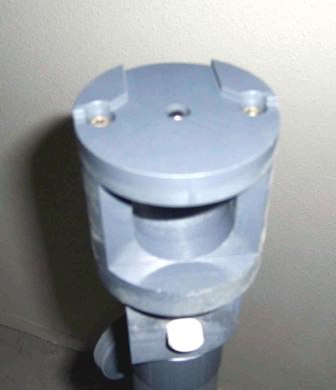

 TDK AM Pivot


TDK



Manual Vertical Masts

MVM-200R 1-2 m

MVM-300R 1-3 m



MVM-x00HD





MVM-300R



Supports 40 lbs



DATA

The TDK mast provides complete manual control of an antenna’s height, tilt, and polarization, and supports antennas up to 18 kg in weight. The MVM is constructed of high-quality, non-conductive materials to withstand the rigors of daily use in both EMI and EMS testing.

  • Complete control of height, ± 10° tilt, and polarization

  • Supports antennas up to 18 kg (Antenna mounted with its center of gravity located between 30 cm and 60 cm of mast.)

  • Four locking swivel casters

  • Heavy Duty >40 lbs



Antenna or EUT Positioners

Diamond Engineering



Multi-Axis floor mount antenna measurement system

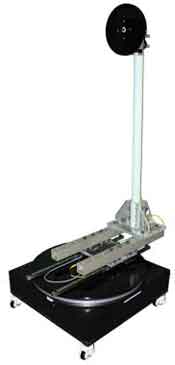

Model D6050




Data

Configurable Up to 5 Axis 50 GHz / mmW Waveguide

System Includes:

  • High-resolution floor mount positioner
  • 3D Spherical measurements
  • Precision Z axis slider for precise AUT centering
  • Includes DAMS Antenna Measurement Studio Pro
  • 5 Axis option for automated phase center Measurement

Model Frequency
D6050-6 DC-6 GHz
D6050-18 DC-18 GHz
D6050-40 DC-40 GHz
D6050-50 DC-50 GHz
D6050-mmW-CFX

mmW Waveguide





Dual Antenna Positioner

TDK



Dual Antenna Positioning System



Model DAPS-01

DAPS-01



Supports 44 lbs



DATA

Remote independent vertical and horizontal polarization

Expands illumination area on objects larger than antennas beam width capabilities

Compatible with the TDK RF Solutions SI-300 system interface

Fiber optic interface

Custom dimensions to meet illumination requirements

Shielded remote modules for use in high field environments

Universal linear power supply

Dual Antenna Mast with Integrated Turntable



E-Field Probe Positioners

TDK



Field Probe Positioner



Model PP-02

Field Probe Positioner



DATA

IEC 1000-4-3 field uniformity measurements

Automotive requirements for Expanded Field Grid Mapping

Multiple point planar grid mapping for Electric Field Distribution

Field-leveling software interfaces with probe positioner to perform various field uniformity measurements

Flexible grid definitions for a variety of test requirements

Non-conducting and rugged construction

Compatible with the SI-300 system interface

Powered by rechargeable batteries

Fiber optic controlled

Vertical axis detaches easily for storage


TDK



Field Probe Stand



Model FPS-01



Dimensions: FPS-01

Maximum Height: 250 cm (98”)

Minimum Height: 125 cm (49”)

Base Diameter: 38 cm (15”)

Weight: 9 kg (20 lbs.)



Field Probe Stand

Dimensions: FPS-01

Fixed Height: 50 cm (20”)

Base Diameter: 15 cm (6”)

Weight: 3 kg (7 lbs.)


Data

The TDK RF Solutions FPS Field Probe Stand is designed for use in anechoic chambers and shielded test rooms in compliance with IEC-61000-4-3 requiring the positioning of sensors up to either 1.5 m or 80 cm.

The field probe stand is constructed of durable, non-conductive, commercial grade fiberglass and plastic that will not interfere with RF test measurements. The FPS is available in two models to meet your test requirements:

  •  The FPS-01 field probe stand’s mast is 1.25 m high. A mast extension piece easily snaps into the base mast and extends the height to 2.5 m. The field probe support can be clamped to the mast at any point, allowing you to place the field probe precisely where needed. The FPS-01 supports equipment up to 10 kg.

  •  The FPS-01 field probe stand is fixed at .5 m high. Again, the field probe support can be clamped to the mast at any point on the mast for precise positioning. The FPS-01 supports equipment up to 1.5 kg.

  • A screw type clamp can be supplied with each stand and additional clamps are available upon request

  • Adjustable heights



3-D Manipulator (Antennas or EUT)

TDK



3-Dimensional Manipulator


Model 3DM-02

3-Dimensional Manipulator Heavy Duty (3DM-02)

Maximum Load: 40 kg

Data

The TDK 3DM-02 is a three-dimensional manipulator used for remote positioning of antennas or equipment under test (EUT) in EMC test environments. The 3DM-02 rotates on two axis to allow a complete three-dimensional pattern to be constructed. The turntable provides information for one axis and the roll axis provides accurate elevation rotation. This combination permits rotation of a test object in polar coordinates for three-dimension characterization of the test object. The test object can be rotated in Θ and Φ independently, allowing positioning of the object in any particular plane about its axis.

Remote Control
The 3DM-02 can be remotely controlled by TDK’s SI-300 system interface unit. Remote control of the 3DM-02 is achieved by use of fiber optic links, eliminating a potential interference source and distance limitations.

Custom Dimensions
The dimensions of the manipulator are designed to your specifications. Dimensions are limited only by the maximum length of cable that is used. The 3DM-02 is supports up to 40 kg.


TDK



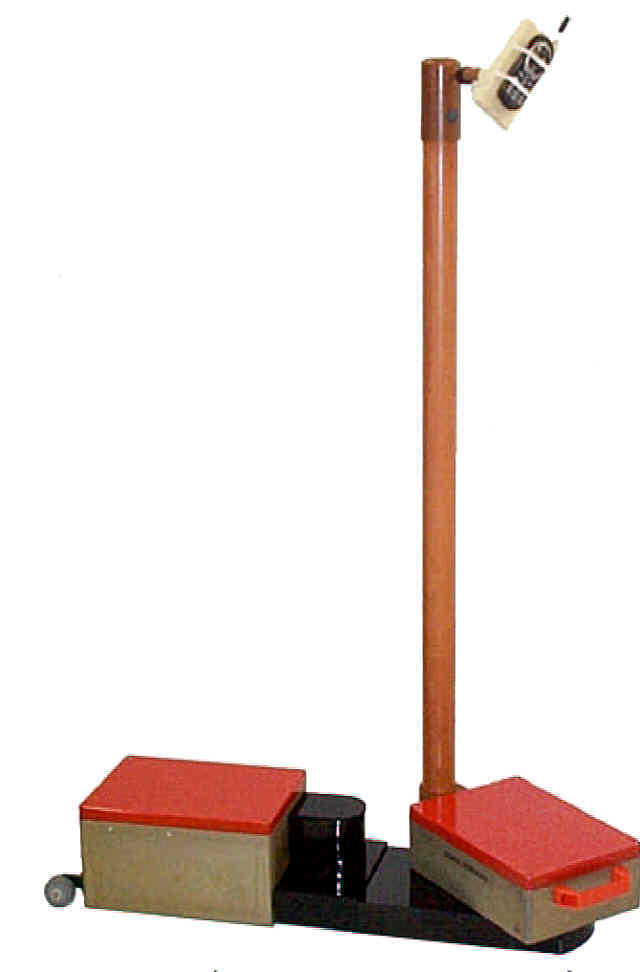

3-Dimensional Manipulator


Model 3DM-01LD

3DM-01LD



Maximum Load: 1 kg

Data

Remote positioning of test objects

Antenna pattern measurements, antenna characterization

Independent vertical and horizontal positioning control

Compatible with the TDK RF Solutions SI-300 system interface

Fiber optic interface

Shielded remote modules for use in high field environments

Custom dimensions to meet your requirements





 EMC Test Table

TDK



EUT Test Table



TSTT-01



EUT Test Table





DATA

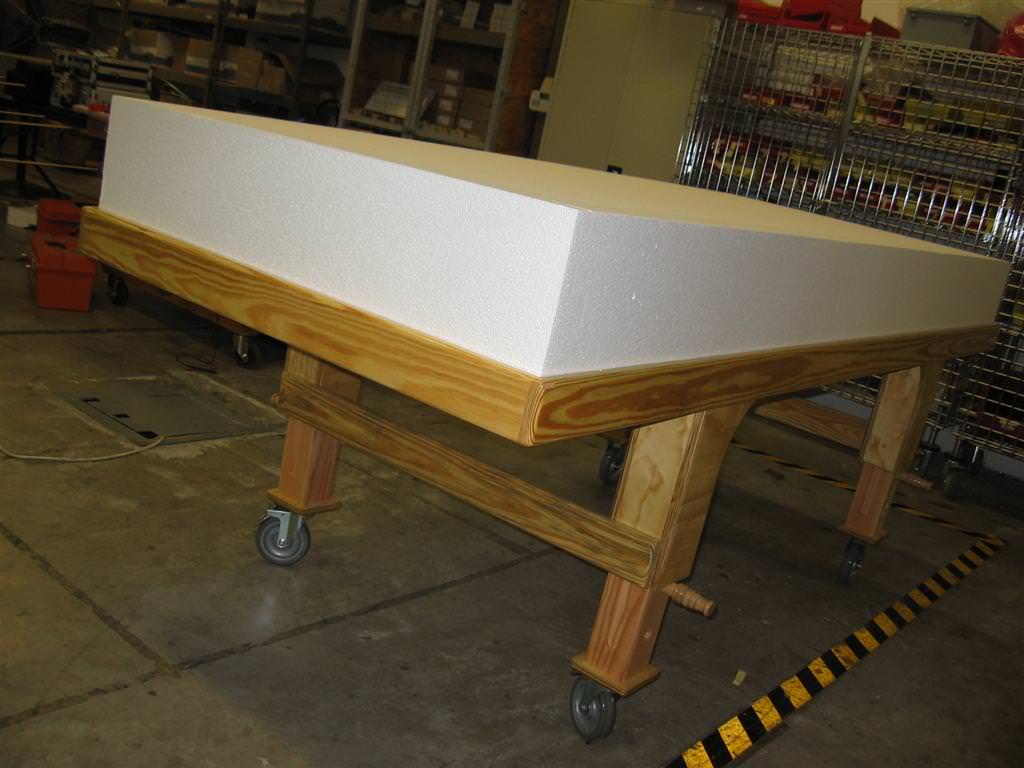

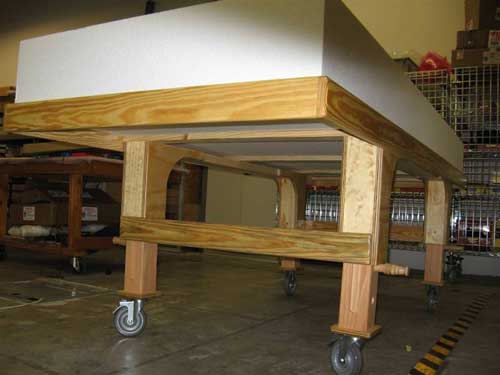

 Wood test table (2.5 m), with casters.

Comes with a Styrofoam top and can be optioned with a metal grounded surface.

Selectable heights can be 80cm, 90cm, or 100cm.

Please specify desired selectable height(s)




Frankonia

Low Reflective Testing Table - FTT

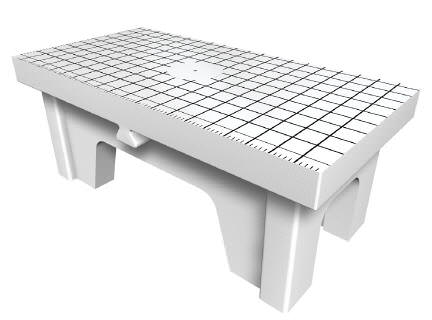

EMC Test Table

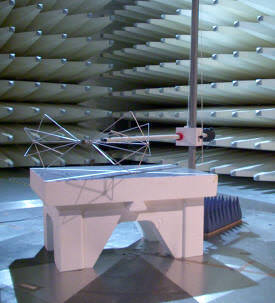

EMC Test Table in Chamber

Data
Frankonia’s ISO testing table FTT was designed in accordance with CISPR 22.

In order to not affect the EMC or RF measurements, this transparent test table is made of non-conductive material that generates no reflections and has a low dielectric constant.

The top of the table is covered with PVC to offer a non-sensitive surface, and it provides a scale to facilitate the positioning of equipment under test.

A hole in the center of the table allows a convenient guiding of EUT cables.

The Frankonia testing table FTT is available in various sizes, as well as in square- and round-shaped versions.
