Xalon RF Shielding Foil Panel System for ICD 705 Tempest SCIF Rooms

The Perfect Solution for Radio Frequency
&
Architectural Electromagnetic Shielding

Xalon RF Shielded Room Panels

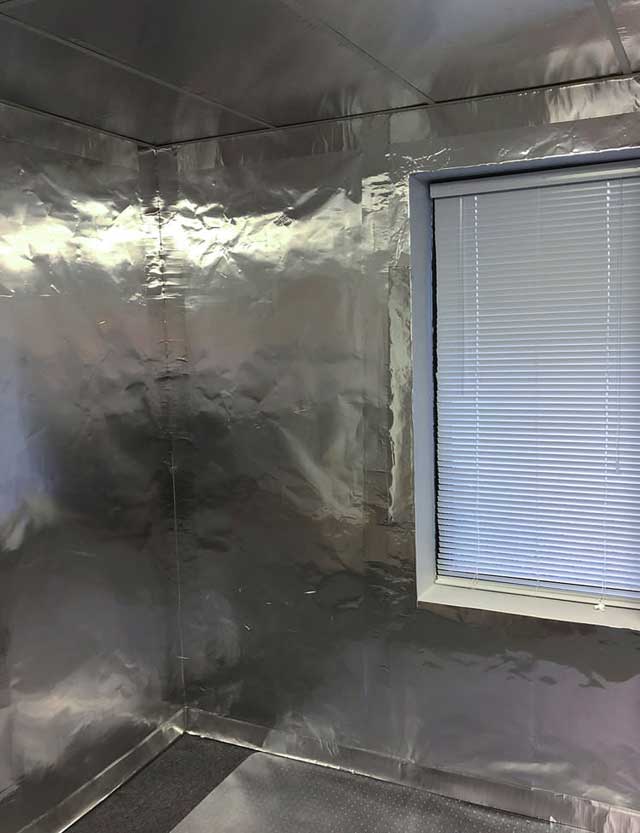

Bare Aluminum Panels Shown

Xalon RF Shielding Systems was created with a commitment to developing unique RF shielding solutions.

We have taken Radio Frequency/Electro Magnetic Interference shielding to a whole new level of performance.

Our extensive expertise allows us to offer a variety of products to meet every type of electro-magnetic shielding concern.

Our team is committed to developing the most efficient solutions, presented in a lightweight modern format, setting us apart from the competition.

Our team has over 50 years of experience within the EMI/RFI shielding industry. With quality management and decades of manufacturing experience at the forefront, our lab tested products offer solutions for each unique environment. High performance products designed to make installation more efficient, we reduce labor costs significantly. Manufactured in the United States, our Mid-west location offers quick delivery to all 50 states, and easy access to all major ports.

Xalon RF Price List



Installation



 Data




Features

Quality Materials

Cost Effective Solutions

On-time Delivery

Ease of Installation

Custom/Design Build

Quick Ship Program

Acoustically Absorptive Panels (available soon)

Meets EMP Protection Levels 1, 2, 3 & (lowest level of 4) for Infrastructure Shielding

EMP pdf EMP Levels

Codes & Certificates

Independant EMC Test Lab IEEE-299 : 2006 Tested

Most Products Tested to IEEE-299 : 2006 9KHz to 40GHz

Class “A” per ASTM E-84 with a zero smoke development / zero flame spread

Class "A" Xalon RF Panels & FRP

Class "C" Xalon RF Panels & FRP

Meets the Intelligence Community Directive. Number 705. Sensitive Compartmented Information Facilities (ICD 705) TEMPEST or EMSEC Requirement

Made in the USA

Buy American Act Compliant


Xalon X5000 RF Shielded Wall E Ceiling Panels

Technical Information

Xalon RF X5000 Panel Weight: 11.2 lbs (0.35 lbs/ft²)

FRP Weight: 12 lbs. (0.375 lbs/ft²) Optional

Density: X5000 (6-7#)

5 mil Aluminum foil on all sides

Fire Rating: Class “A” per ASTM E-84

Dimensionally Stable Core

R Value: 2.5

K Value: 0.25

STC Value: 46 (metal stud, 1/2" drywall)

Typical Shielding Effectiveness: ≥80dB from 500 KHz to 40 GHz

Sizes Available

Standard Wall Panel 4' x 8'

Custom sizes available up to 4' x 8'

 1/2" overall thickness (Typical, No FRP)

Quick Ship Ceiling Panel 2' x 4'

Standard Ship Ceiling Panel 2' x 2'

Finish: Mill finish aluminum foil

White FRP (Embossed) 2' x 2', 2' x 4', 4' x 8'

Fiberglass Core: X5000

Xalon Electrically Conductive Seaming tape (see below)



Xalon RF Shielded Wall Panels

RF Shielded Wall Panels with Optional Smooth White FRP

On Walls and Ceiling


Smooth White FRP Panel
Optional Smooth White FRP Wall Panel

Panel Specifications

Xalon RF Shielded Wall Panel Xalon RF Shielded Lightweight Wall Panel Xalon RF X5000 Shielded Ceilin or Wall Panel

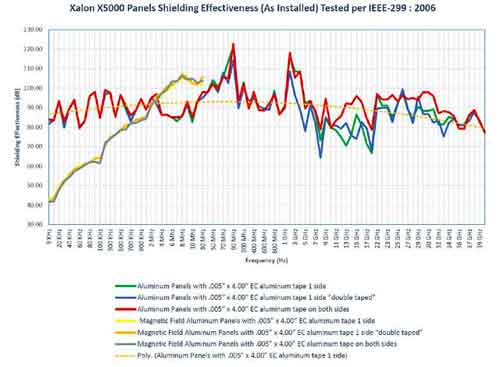

Xalon X5000 RF Shielded Wall Panels Shielding Effectiveness

Xalon X5000 SE Chart
Data



Xalon X55 RF Shielded Wall & Ceiling Panels

Technical Information

Xalon RF X55 Panel Weight: 10 lbs. (0.31 lbs/ft²)

FRP Weight: 12 lbs. (0.375 lbs/ft²) Optional

Density: X55

Edge: Cardboard

Fire Rating: Class “C” per ASTM E-84

5 mil AL on both sides

R Value: 1.0

STC Value: NRC 65 (metal stud, 1/2" drywall)

Easy Install between drywall sheets

Typical Shielding Effectiveness: ≥70dB from 200 KHz to 40 GHz

Sizes Available

Standard Wall Panel 4' x 8'

Custom sizes available up to 4' x 8'

1/4" overall thickness (Typical, No FRP)

Quick Ship Ceiling Panel 4' x 8'

Recycled Content: Documented 61% recycled content comprised of 27% post- consumer and 37% pre consumer

Finish: Mill finish aluminum foil

Optional White FRP (Embossed) 4' x 8'

Cardboard Core: X55

Xalon Electrically Conductive Seaming tape (see below)

Xalon X55 RF Shielded Wall Panels Shielding Effectiveness

Xalon X55 RF Shielded Wall & Ceiling Panels SE Chart
Data


Xalon X250 RF Shielded Wall & Ceiling Panels

Technical Information

Xalon RF X250 Panel Weight: 8 lbs. (0.25 lbs/ft²)

FRP Weight: 12 lbs. (0.375 lbs/ft²) Optional

Density: X250 (3 - 4#)

Edge: Fiberglass

Fire Rating: Class “A” per ASTM E-84

5 mil AL on one side & 2 mil AL on the other

R Value: 1.0

STC Value: NRC 65 (metal stud, 1/2" drywall)

Easy Install between drywall sheets

Typical Shielding Effectiveness: ≥70dB from 200 KHz to 40 GHz

Sizes Available

Standard Wall Panel 4' x 8'

Custom sizes available up to 4' x 8'

1/4" overall thickness (Typical, No FRP)

Quick Ship Ceiling Panel 4' x 8'

Recycled Content: Documented 61% recycled content comprised of 27% post- consumer and 37% pre consumer

Finish: Mill finish aluminum foil

Optional White FRP (Embossed) 4' x 8'

Fiberglass Core: X250

Xalon Electrically Conductive Seaming tape (see below)

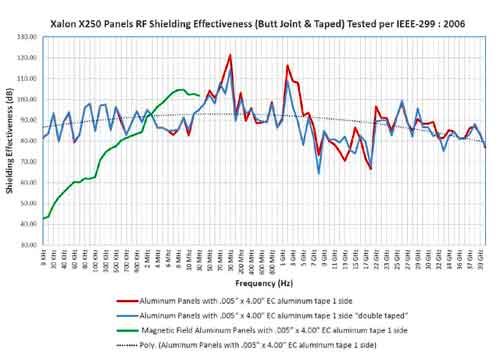

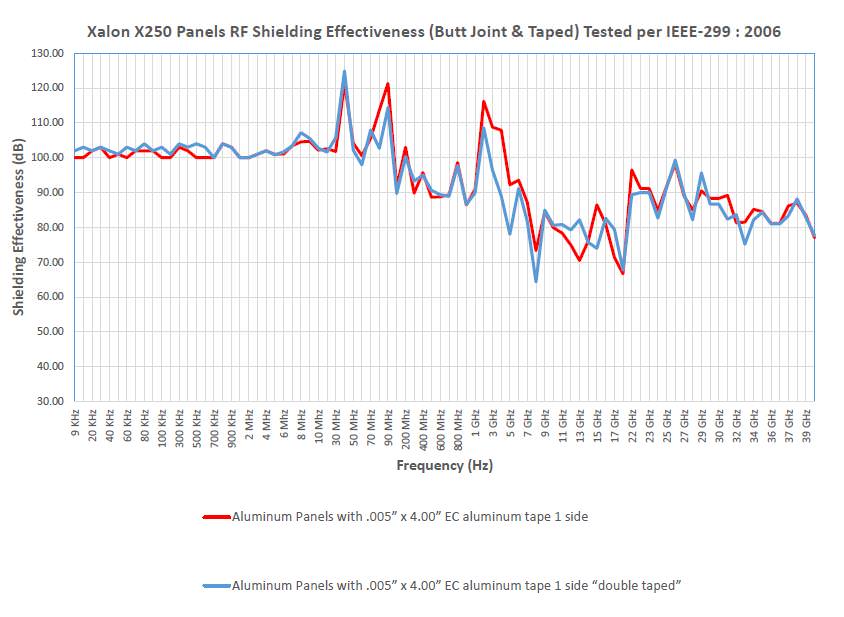

Xalon X250 RF Shielded Wall Panels Shielding Effectiveness

X250_SE_Chart
Data


Xalon X25 RF Shielded Wall & Ceiling Panels

Technical Information

Xalon RF X25 Panel Weight: 8 lbs. (0.25 lbs/ft²)

FRP Weight: 12 lbs. (0.375 lbs/ft²) Optional

Density: X25 Cardboard

Edge: Fluted Cardboard

Fire Rating: Class “C” per ASTM E-84

5 mil AL on one side & 2 mil AL on the other

R Value: 1.0

STC Value: NRC 35 (metal stud, 1/2" drywall)

Easy Install between drywall sheets

Typical Shielding Effectiveness: ≥70dB from 200 KHz to 40 GHz

Sizes Available

Standard Wall Panel 4' x 8'

Custom sizes available up to 4' x 8'

1/4" overall thickness (Typical, No FRP)

Quick Ship Ceiling Panel 4' x 8'

Recycled Content: Documented 61% recycled content comprised of 27% post- consumer and 37% pre consumer

Finish: Mill finish aluminum foil

Optional White FRP (Embossed) 4' x 8'

Cardboard Core: X25

Xalon Electrically Conductive Seaming tape (see below)

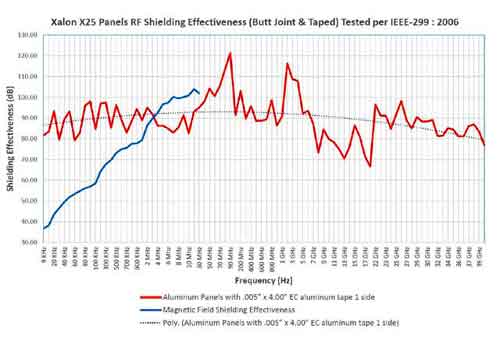

Xalon X25 RF Shielded Wall Panels Shielding Effectiveness

X25 SE Chart
Data

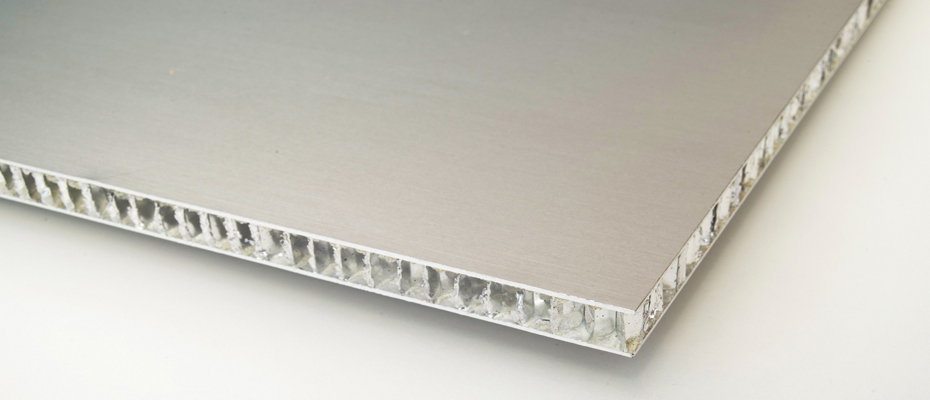

Xalon X9000 RF Shielded Ceiling Panels

Available Now, Webpage Data Coming Soon

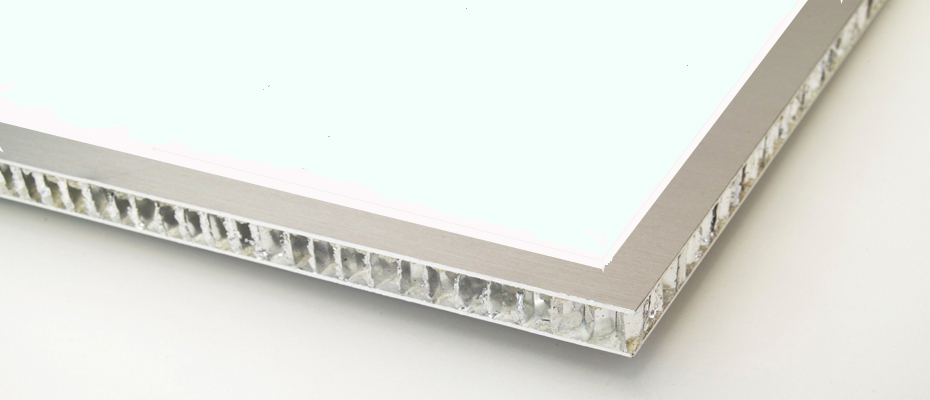

  Xalon X9000 RF Shielded Ceiling Panel

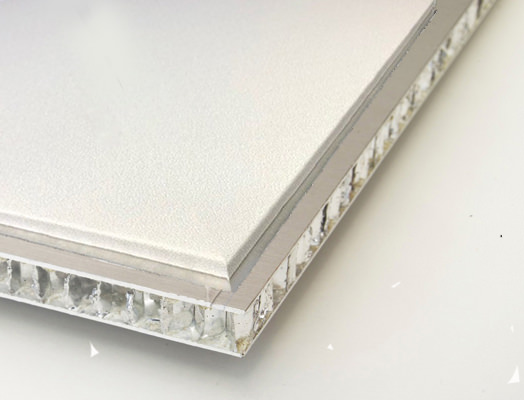

Tegular Panel

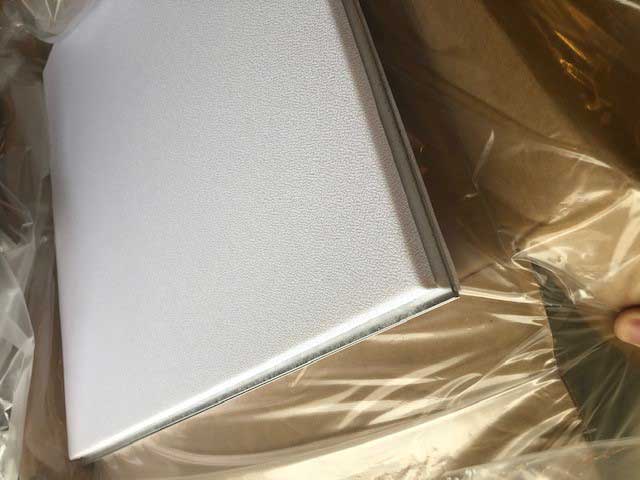

   X9000 Tegular Facia
Tegular Fascia

Data Data
X9000
(Preliminary)
X9000T
(Preliminary)


Xalon X55 RF Shielded Ceiling Panels for Suspended Ceilings

The Xalon X55 RF Shielded Ceiling Panels for Drop In Ceiling Grid Systems

Can be installed above your existing standard or tegular acoustic ceiling panels

or go for a whole new look with gloss white FRP panels and LED linear lighting



RF Shielded Suspended Ceiling

Xalon X55 Panels with Gloss White FRP Panels & LED Linear Lighting



RFI Shielded Ceiling Tiles with Embossed White FRP

Xalon RF Shielded Ceiling Panels Installed (Standard Embossed White FRP)



RF Shielded Ceiling Panel with White FRP

RF Shielded Ceiling Panel with White Embossed FRP

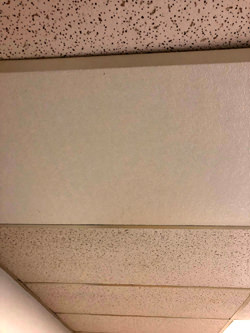

Next to Standard Acoustic Panel in Older Ceiling

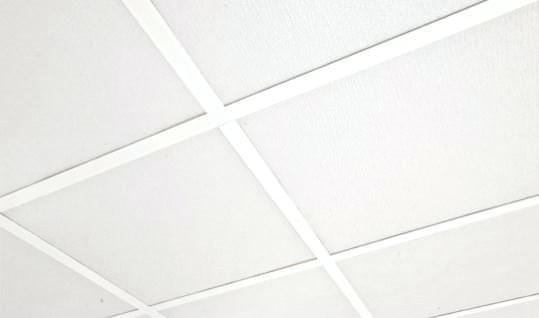

Embossed White FRP Panel
Standard Embossed White FRP Ceiling Panel

Available Sizes

Standard 2’ x 2’ x ½”
Standard (Quick Ship) 2’ x 4’ x ½”
Custom Any Size Up To 4’ x 8’ x ½”

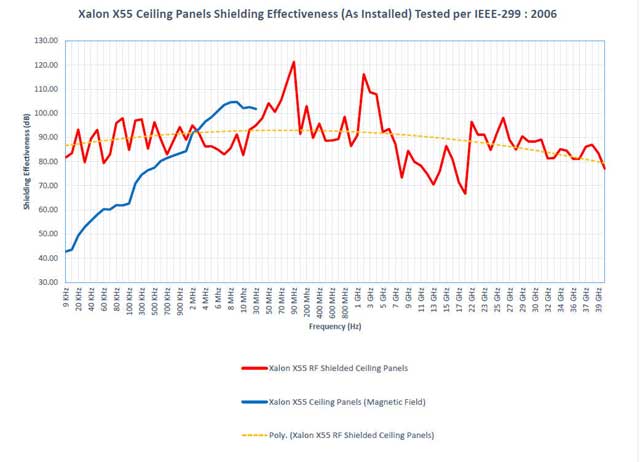

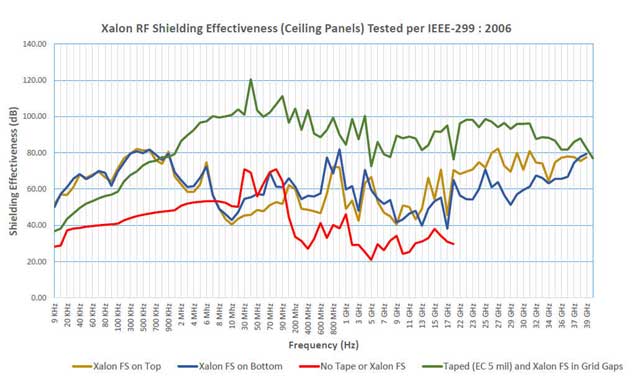

Xalon X55 RF Shielded Ceiling Panels Shielding Effectiveness

Xalon X55 Ceiling Panel SE Chart
Data

Installation


 Xalon RF Shielded Floor Panels

Xalon RF Shielded Floor Panels

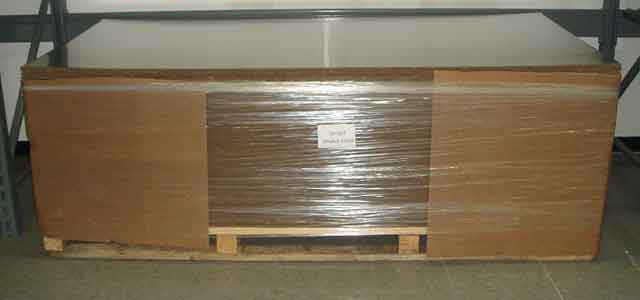

Xalon RF Shielded Floor Panels Palletized

Xalon RF Shielded Floor Panels on Pallet

Semi Rigid Aluminum Foil Panels for Shielding



We recommend Xalon FP panels be cut or shaped with electric or pneumatic metal nibbler



Must be Shipped Palletized by Truck



Ideal for covering sealed concrete floors



Final flooring can be glued directly on top of the Xalon FP



Xalon FP Panels are applied like lightweight paneling, covering all surfaces: walls and ceiling. Other than normal cleanliness, and dust free, no special preparation is required.

The panels are not self supporting.

The foil panels may be screwed (self drilling screw recommended) (wall systems) or glued in-place (floor systems).

For maximum effectiveness, seams should be taped with 5 mil Aluminum or 5 mil Copper (recommended) electrically conductive adhesive foil tape.

For floor installations we recommend  butt jointing the panels and taping the seams with 4" wide electrically conductive foil tape.

For wall installations the Xalon FP panels can be butt jointed or overlapped, screwed and seam taped.

Xalon FP Floor Panels

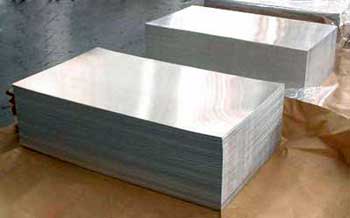

20 mil Aluminum Foil Panels



Semi Rigid Foil Sheets for EMI / RFI shielding


Aluminum .020” x 48.00” x 96.00”



Ideal for covering the floor



1 sheet weighs approx 9.5lbs





0.020" (0.508 mm) (20 mil) Thick



Standard Panel Size

48" x 96" (32 ft²)



Ideal for large coverage areas,

Cuts you labor cost by 30%









Installation Methods



Tape Joint

4" Electrically Conductive Aluminum Tape ST-5-4x180-1s



4" Electrically Conductive Copper Tape ST-5-4x75-1s-cu (Recommended)



Data

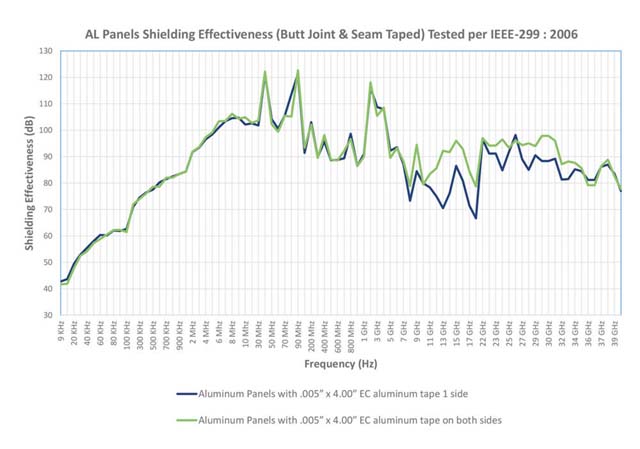

Xalon RF Shielded Floor Panels Shielding Effectiveness
Xalon FP Typical Shielding Effectiveness
(Insertion Loss per IEEE-299 : 2006)
Installation As Installed Butt Jointed
& Taped with 4" EC Tape
As Installed
1" Overlap, Screwed &
Taped with 4" EC Tape

Install Locations

Floor, Wall, Ceiling

Floor, Wall, Ceiling

Walls, Ceiling

Electrically Conductive Seaming Tape

 1 Layer 5 mil Copper

1 Layer 5 mil Aluminum

1 Layer 5 mil Aluminum

FREQUENCY

SE (dB)

SE (dB)

SE (dB)

10 KHz, Magnetic Field

45

45

45

100 KHz, Magnetic Field

65

65

65

200 KHz, Magnetic Field

65

65

65

10 KHz, Electric Field

≥95

≥90

≥100

100 KHz, Electrical Field

≥95

≥90

≥100

200 KHz, Electrical Field

≥95

≥90

≥100

1 MHz, Electrical Field

≥95

≥90

≥100

10 MHz, Electrical Field

≥100

≥95

≥100

400 MHz, Plane Wave

≥100

≥95

≥100

1 GHz Plane Wave

≥92

≥90

≥100

10 GHz Plane Wave

≥90

≥85

≥100

18 GHz Plane Wave

≥88

≥85

≥100

40 GHz Plane Wave

≥75

≥75

≥100


Data


Xalon RF Shielded ST (Aluminum & Copper) Seaming Tape

Xalon ST RF Shielded Aluminum Foil Tape

Xalon RF Shielded ST Copper Foil Tape

Xalon ST Tape is applied like any tape with a release. The tape is used to RF seal the seams of foil panels.

The 4" wide, electrically conductive PSA is ideal for sealing the panel seams and sealing the panels to door and window frames.

The 6" wide, electrically conductive PSA is used to frame out all the corners and intersections between walls, ceiling and floor, before the foil panels are applied. Also for inside corners.

The 3" wide electrically conductive tape is used to electrically bond all foil panel cuts.



Xalon ST-5 (5 mil) Aluminum Foil

Seaming Tape

Electrically Conductive PSA

P/N: ST-5-3x180-1s   3" x 180' (45 ft²)

P/N: ST-5-4x180-1s   4" x 180' (60 ft²)

P/N: ST-5-6x180-1s   6" x 180' (90 ft²)



Electrically Conductive PSA (one Side)

Non-Conductive PSA (opposite side)

P/N: ST-5-6x180-2s   6" x 180' (90 ft²)

Data

Xalon ST-2 (2 mil) Aluminum Foil

Seaming Tape

Electrically Conductive PSA (one Side)

Non-Conductive PSA (opposite side)

P/N: ST-2-6x180-2s   6" x 180' (90 ft²)

Data

Xalon ST-5 (5 mil) Copper Foil

Seaming Tape

Electrically Conductive PSA

P/N: ST-5-4x75-1s-cu   4" x 75' (25 ft²)

Data

Xalon ST Foil Tape Specifications

Adhesive Thickness (Standard)

2 Mils (.002”) (0.0508 mm)

Adhesive Thickness (Electrically Conductive)

2 Mils (.002”) (0.0508 mm)

Aluminum Foil Tape Thickness

5 Mils (.005”) (0.127 mm)

Aluminum Foil Tape Thickness

2 Mils (.002") (0.0508 mm)

Copper Foil Tape Thickness

5 Mils (.005”) (0.127 mm)

Liner Type

76# Polycoated

Peel Adhesion (PSTC - 101/180°) (20 min @ RT)

Oz./Inch: 47   N/25mm Initial to SS: 13.2

Holding Power (PSTC 107 Mod./178°)

2.2 psi (1"x1"x1000g) @ RT ≥600 min.

Volume Resistivity (ASTM D2739-97 Modified) EC Only

0.06Ω•m

Observed Resistance (ASTM D2739-97 Modified) EC Only

5m Ω

Minimum Application Temperature

50° F (10° C)

No Load Applied, Service Temperature Range

-40° to 250° F

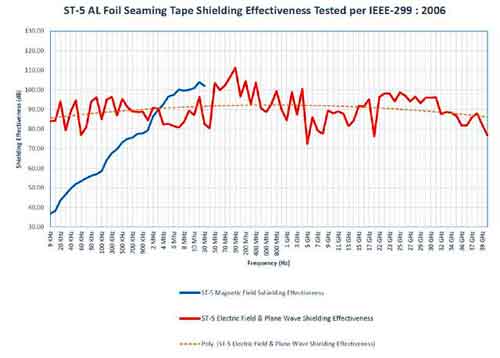

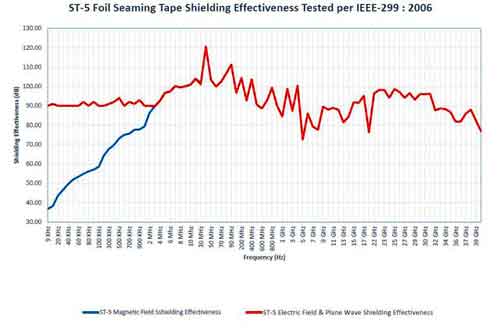

Xalon ST-5 Aluminum Tape Shielding Effectiveness
Xalon ST-5 Aluminum Tape SE Chart
Data

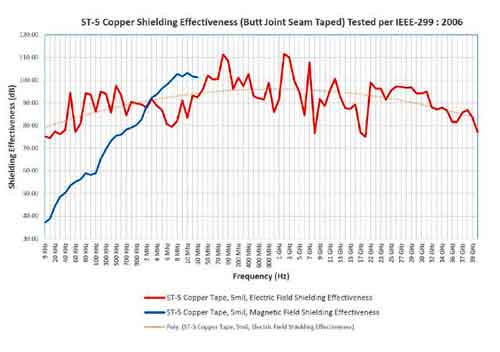

Xalon ST-5 Copper Tape Shielding Effectiveness
Xalon ST-5 Copper Tape Shielding Effectiveness Chart
Data


RF Shielded Doors & Air Vents

We Recommend Shielding Resources Group RF Shielded SCIF Doors

RF Shielded Honeycomb Air Vent in Suspended Ceiling          RF shielded air vent for drop ceiling

In Suspended Ceiling with Bare Ceiling Panels

Recommended Suspended Ceiling Grid Systems

ACP Classic X Cliq



Armstrong Prelude ML



Armstrong Prelude XL



Armstrong Prelude XM



CertainTeed Classic Aluminum Capped Stab System



CertainTeed Classic Environmental Stab System



For Retrofit. Most existing, commercial grade, suspended ceiling grid systems can be made to work


Electrically Conductive Silicone Adhesive (RTV)

Electrically Conductive Silicone


Xalon RF Shielding Conductive Silicone

FS is an electrically conductive, moisture curing silicone RTV. FS is a 1-part electrically conductive adhesive silicone that when applied to the substrate, allows handling of the assembly after 1 hour. When cured, the electrically conductive glue resists weathering, ozone, moisture, UV and high temperatures.

     Fast RT Cure

    Thixotropic Paste

    Non-corrosive Oxime Cure

High Temperature Resistant

    Electrically Conductive Adhesive Sealant

Applications

Seal Inside and Outside Corners

Seal Foil or Foil Panels to Door or Window Frames

Seal Suspended Ceiling Grids where Cross Tees attach to Main Tees

Seal Suspended Ceiling Grids where Cross Tees or Main Tees attach to Perimeter Angle

Seal Foil or Foil Panels to Air Vents, I/O Panels, Pipe Penetrations, EMI Filters & Other Penetrations


PDF Technical Data Sheet

PDF Safety Data Sheet


Use the chart to determine how much silicone you will need for your project.

Determine how many linear feet are in ONE 10.3 FL. OZ. tube of silicone, based on the joint width and depth.

Joint Depth Joint Width
1/8" 1/4" 3/8" 1/2"
1/8" 96' 48' 36' 24'
1/4" 48' 24' 18' 12'
3/8" 32' 16' 12' 8'
1/2" 24' 12' 9' 6'


Copyright © 2001-2022  R. A. Mayes Company, Inc.
An Electro Mechanical Research and Development (EMRAD) Corporation, Company

See our Privacy Policy    All the data files on our website require Adobe Acrobat Reader!
