MIL STD 461 Chambers
PPG Cuming Microwave Universal Shielding Frankonia

Frankonia MIL-CHC / DO-160 MIL-STD-461G Chamber

Frankonia Logo



1 Meter MIL Test Chamber

30MHz to 40GHz



Image result for MIL-CHC / DO-160



Data



Features

Turnkey solution Compact chamber design for military applications

MIL-STD 461, or in combination with DO-160

Advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Full compliant EMI/EMS

Turnkey solution

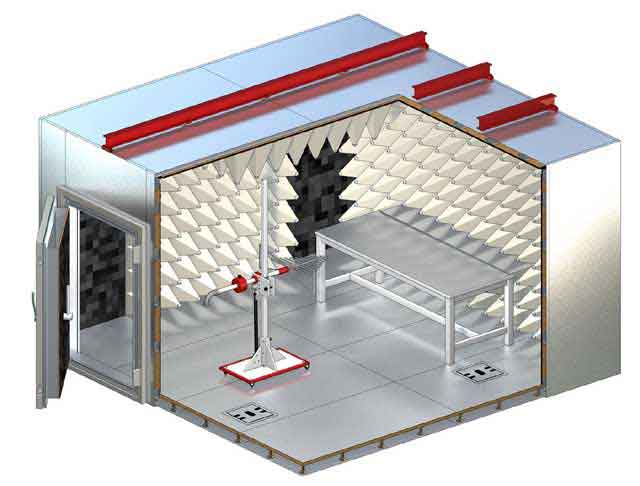

MIL-CHC / DO-160

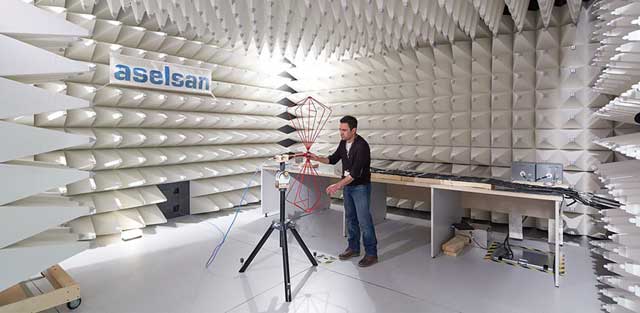

The MIL CHC is Frankonia’s compact hybrid chamber solution according to MIL-STD 461 and DO-160 for component tests.

This chamber solution is adapted for radiated emission and immunity tests at 1,0 m measuring distance.



Typical Product Standards

Emissions

MIL-STD 461

DO-160

Immunity

MIL-STD 461

DO-160



Image result for Frankonia MIL-CHC

Technical Specifications

Chamber MIL-CHC MIL-CHC / DO-160
External dimension 4.880 x 4.880 x 3.000 mm 5.330 x 4.880 x 3.000 mm
Measuring distance 1,0 m
Frequency range 30/80 MHz to 18 GHz (option 40 GHz)

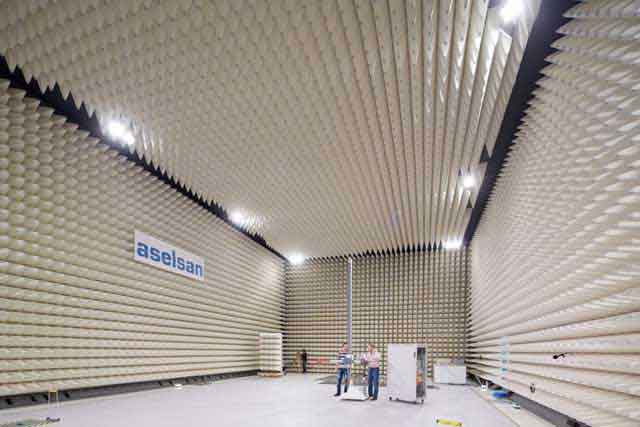

 Frankonia MIL-STD Chamber Advanced

Frankonia Logo

1 & 3 Meter MIL Test Chamber

26MHz to 40GHz



Image result for Frankonia MIL-STD Chamber Advanced



Data



Features

High performance solution for military testing

Various testing possibilities in the combination of commercial, automotive and military

Advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Full compliant EMI/EMS

Highly customizable solution for any kind of EMC testing and limitless integration of individual applications

Adjustable chamber size, characteristics and configuration due to different EUT requirements

Turnkey solution

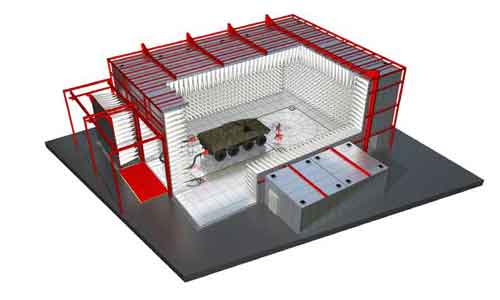

MIL-STD Chamber Advanced

The MIL STD Chamber Advanced are Frankonia’s military chamber solutions according to MIL-STD 461 for large EUT’s. It is adapted for radiated emission and immunity tests at 1,0m measuring distance.

This chamber solution is designed based on MIL-STD 461 and is fully customized according to customers’ requirements for military testing of heavyweight and large EUT’s. Frankonia’s unique Frankosorb® long-pyramid or hybrid absorber technology offers the possibility to combine MIL-STD 461 test requirements with commercial test requirements per CISPR 16-1-4 and ANSI C63.4, as well as a vehicle and automotive component tests.



Typical Product Standards

Emissions

CISPR 11
CISPR 12
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461

Immunity

IEC/EN 61000-4-3
ISO 11451
ISO 11452
MIL-STD 461



Image result for Frankonia MIL-STD Chamber Advanced

Technical Specifications

Chamber MIL-STD Chamber
External dimension To be defined
Measuring distance 1,0 m
Load capacity up to 80 tons; special turntable systems and integrations possible
Frequency range 26/80 MHz to 18 GHz (option 40 GHz)

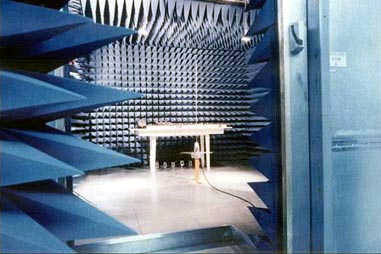

 MIL-STD-461 Ferrite Tile and Foam or Foam Only Chambers

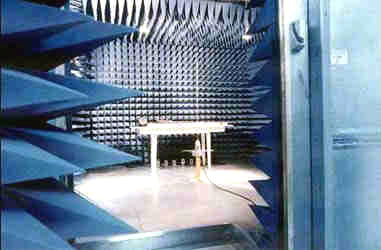

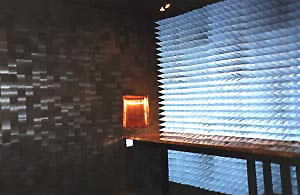

MIL STD Chamber wit Cuming Pyramidal Absorber      RTCA Chamber with Ferrite Tile

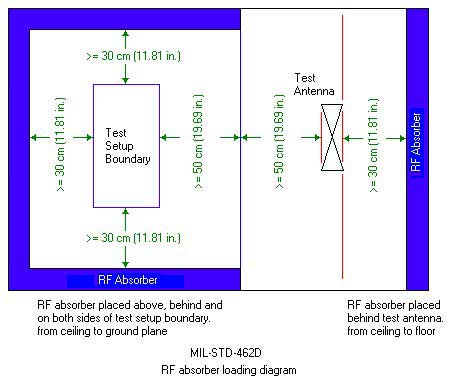

MIL-STD-461/462 Absorber Layout

Model

Features

PPG Aerospace Cuming Microwave

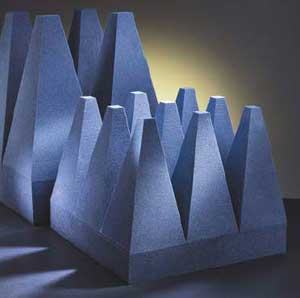

C-RAM SFC-EM

 RF ABSORBER FOR EMC CHAMBERS

TRUNCATED PYRAMIDAL

MIL-STD 461/462G

RTCA-DO-160

EN 1000-4-3



Cuming MIL STD 461 Absorber



Data

The C-RAM SFC-EM product is similar to standard C-RAM SFC pyramidal grades, but having the tips of the pyramids truncated. This saves space in small chambers and provides a more rugged product, eliminating the possibility of tip breakage.

C-RAM SFC-24 EM meets the requirements for MIL-STD 461/462G

C-RAM SFC-36 EM and C-RAM SFC-24 EM, in an appropriate combination in a chamber, are an ideal absorber treatment for Immunity Test Chambers (EN 1000-4-3 and equivalent specifications).




 PPG Aerospace Cuming Microwave

C-RAM SFC

HIGH PERFORMANCE

 BROADBAND RF ABSORBER

PYRAMIDAL

120 MHz - 50 GHz

Cuming SFC Absorber



Data

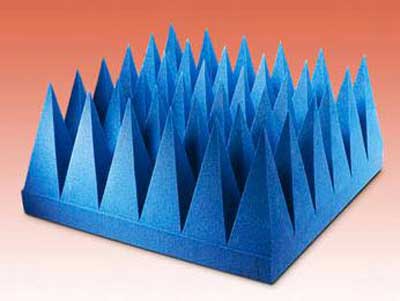

C-RAM SFC is a series of high performance broadband RF absorbers made from specially treated low density polyurethane foam.

The product is flexible and tolerant of physical abuse. Using a steep pyramid design which provides an impedance gradient, C-RAM SFC provides premium performance in anechoic chambers at both normal and off-normal incidence angles.

These products meet all of the fire retardancy requirements of NRL Specification 8093 tests 1, 2, and 3, MS-8-21 tests 1, 2, and 3, and T.I. drawing 2693066, as well as ASTM E-84-97a, Class A


Universal Shielding Corp.

USC Series 26

Solid Wall



Modular RF Shielded Room

100 dB to 40GHz

Ideal for MIL-STD-461G & RTCA DO-160 Chambers



USC-26 Modular Solid Wall RF Shielded Room



Universal RF Shielded Room

Laminated wood core panels with galvanized steel on both surfaces and zinc coated steel framing.

The series will provide up to 120db min. of attenuation from 14 KHz to 40 GHz when subject to electric fields and plane waves.



FIELD

USC-26 Typical Attenuation

Magnetic

21 dB at 1 kHz, 58 dB at 15 kHz

90 dB at 100kHz

Electric

≥ 100 dB from 15 kHz to 50 MHz

Plane Wave

≥ 100 dB from 50 MHz to 40 GHz

Microwave

≥ 100 dB at 40 GHz



http://cuminglehman.com/wp-content/uploads/mil-std.jpg
