Hilo-Test GmbH was founded in 1978 and already the next year, the first pulse generator was developed and sold. We are the largest and oldest German manufacturer of EMC devices with a very wide range of products. Hilo-Test equipment offers the capability to match most test routines exactly to spec and to modify existing spec-based routines as required. Test routines are easy to handle, sophisticated and technologically state-of-the-art. Software programs are exceptionally simple and generators are extremely reliable.

We consider it our most important task and challenge to maintain our leading position and to expand it constantly. Bound with this and same important is the responsibility of the management and the operations to take the environment into consideration. Production follows the latest directives and requirements avoiding the use of hazardous substances. And last but not least, we consider it our task to contribute to the harmonization of international standards.

 Guide          HiLo Test Catalog



Multifunction Generators for EMC Testing

Multifunction Generator

Multi-CE5 2

Hilo Multifunction Generator



Data



EMC-Test Equipment for testing the immunity against:

IEC 61000-4-04
IEC 61000-4-05
IEC 61000-4-08
IEC 61000-4-09
IEC 61000-4-11
IEC 60060-2
IEC 61000-4-29
The Multi-CE5 is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark.
In its basic configuration, the Multi-CE5 includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines.

BURST 5kV, 5/50 ns

SURGE 5kV, 1,2/50Ás SURGE 2.5kA, 8/20Ás

1-Ph. Coupling network

Voltage dips/variation

Magnetic field 50/60 Hz

Magnetic field 8/20 μs

Multifunction Generator

Multi-CE5 1

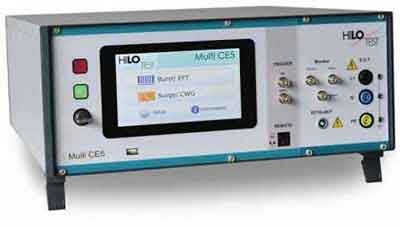

Hilo Test Mult-CE5 Multifunction Generator



Data



EMC-Test Equipment for testing the immunity against:

IEC 61000-4-04
IEC 61000-4-05
IEC 61000-4-08
IEC 61000-4-09
IEC 61000-4-11
IIEC 60060-2
The Multi-CE5 is a compact EMC test unit designed for testing electromagnetic immunity against pulsed and conducted interference. Demonstrating such immunity is generally a requirement for compliance with the European EMC directive, a necessary step leading to the CE mark.
In its basic configuration, the Multi-CE5 includes an Electrical Fast Transient Generator (EFTG), a Combination Wave Generator (CWG) and a Coupling-/Decoupling Network (CDN) for single-phase power supply lines.

BBURST 5kV, 5/50ns

SURGE 5kV, 1,2/50Ás SURGE 2.5kA, 8/20Ás

1-Ph. Coupling network

Upgradeable

Compact EMC Test Unit CE-TESTER-1

 Pulse Generator


CEľTESTER-1



HILO-TEST CE Tester 1



Data



EMC-Test Equipment for testing the immunity against:

IEC 61000-4-04

IEC 61000-4-05

IEC 61000-4-08

IEC 61000-4-09

IEC 61000-4-11

IEC 60060-2



BURST 5kV, 5/50ns

SURGE 5kV, 1,2/50Ás

SURGE 2.5kA, 8/20Ás

1-Ph. Coupling network

Upgradeable

The CE-TESTER and its subunits are available in different configurations:


CE-TESTER 1 including SURGE and BURST

EFTG 4510 Standalone BURST generator

CE-SURGE Standalone SURGE generator

Typical configurations:

CE-TESTER 1 +CDN 4416 for 3- phase testing

It is possible to build all devices in a 19ö rack cabinet.

Compact EMC Test Unit CE-TESTER-2

 Pulse Generator


CEľTESTER-2



HILO-TEST CE Tester 1



Data



EMC-Test Equipment for testing the immunity against:

IEC 61000-4-04

IEC 61000-4-05

IEC 61000-4-08

IEC 61000-4-09

IEC 61000-4-11

IEC 60060-2

IEC 61000-4-29

BURST 5kV, 5/50ns

SURGE 5kV, 1,2/50Ás

SURGE 2.5kA, 8/20Ás

1-Ph. Coupling network

Voltage dips/variation

Magnetic field 50/60 Hz

Magnetic field 8/20 μs

Upgradeable

The CE-TESTER and its subunits are available in different configurations:

CE-TESTER 2 including SURGE, BURST and POWER FAIL SWITCH

EFTG 4510 Standalone BURST generator

CE-SURGE Standalone SURGE generator Typical configurations:

CE-TESTER 2 +VPS 250-16 for testing surge, burst, power fail, voltage dips and variation


Electrical Fast Transient Burst Generators

 Electrical Fast Transient Burst Generator



EFTG 4510



Hilo Test EFTG 4510



Data

EMC-Test Equipment for testing the immunity against:

IEC 61000-4-04

Burst Generator

Outputvoltage: 5 kV

Waveform: 5/50 ns

Frequency: 1 - 1000 kHz

The Electrical Fast Transient Generator EFTG 4510 is a compact EMC test unit for testing electromagnetic immunity against electrical fast transients.

The generator provides burst-pulses, which are adjustable in frequency, amplitude, duration and repetition rate. It is suitable to test the susceptibility levels of electrical systems and installations full compliant to IEC 61000-4-4.


Electrical Fast Transient Burst Generator



EFTG-CE5



Hilo Multifunction Generator



Data

EMC-Test Equipment for testing the immunity against:

IEC 61000-4-04

The Electrical Fast Transient Generator EFTG-CE5 is a compact EMC test unit for testing electromagnetic immunity against electrical fast transients.
The generator provides burst-pulses, which are adjustable in frequency, amplitude, duration and repetition rate. It is suitable to test the susceptibility levels of electrical systems and installations full compliant to IEC 61000-4-4.

Burst Generator

Outputvoltage: 5 kV

Waveform: 5/50 ns

Frequency: 1 - 1000 kHz
