Heavy Duty Round Aluminum Tent Frame

HD Easy-Assembly Aluminum External Frame



Heavy Duty Round Series 500

Single Layer Tent

≥ 60 dB Attenuation 14 MHz to 10 GHz



Double Layer Tent

≥ 85 dB Attenuation 400 MHz to 18 GHz

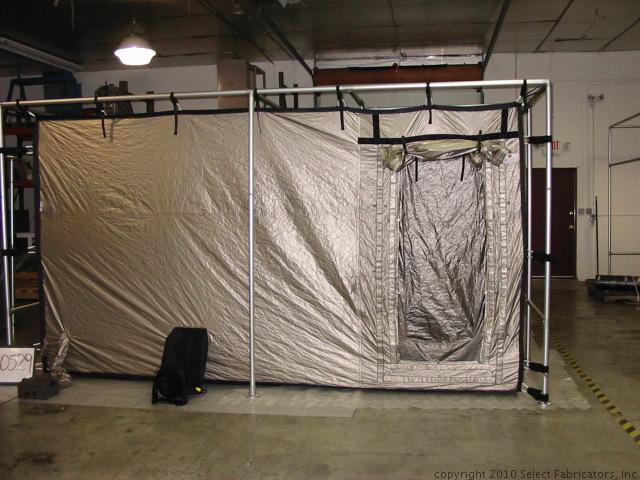

Large RF Shielded Tent

Large RF Shielded Tent

Large RF Shielded Tent

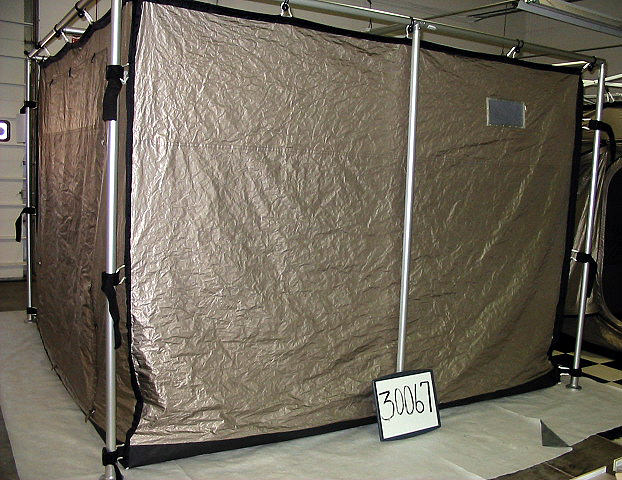

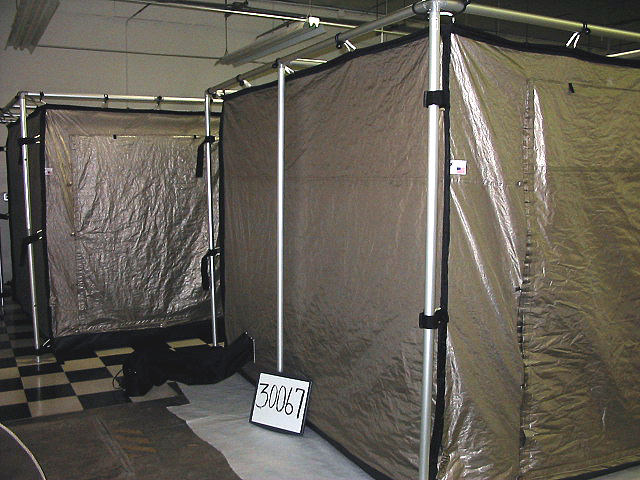

Series 500 RF Shielded tent

Magnetic Seal Rollup Door

Car Door for RF Shielded Tent

Series 500: Semi-permanent round heavy-duty aluminum frame (15-30-minute deployment)



Easy-Assemble Features

  • Free-standing shelters that need no guy wires.

  • They'll stand securely on grass, dirt, or pavement without ropes or poles.

  • Optional lengths < 48" for shipping

  • Portable and Compact

  • Heavy Duty Tubular Aluminum Construction

  • Constructed of light weight, high strength, aluminum tubing and solid aluminum fittings

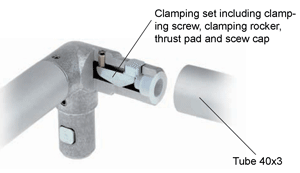

  • For the ultimate in simplicity and convenience, the entire system is designed to be assembled with only a T-handle hex wrench

Large RF Shielded Tent Frame


Tent Features

  • Basic tent has a floor which is Single or Double layer of conductive fabric sandwiched between 2 layers of heavy duty black vinyl. It is very durable

  • Storage / Transport Bag

  • Filtered or Unfiltered Power via Shielded Sleeve

Data





Brochure





Installation Manual

Tabletop RF Shielded Tent

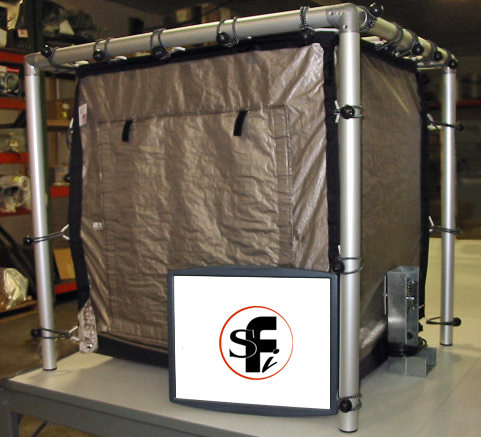

 Bench Top Tent

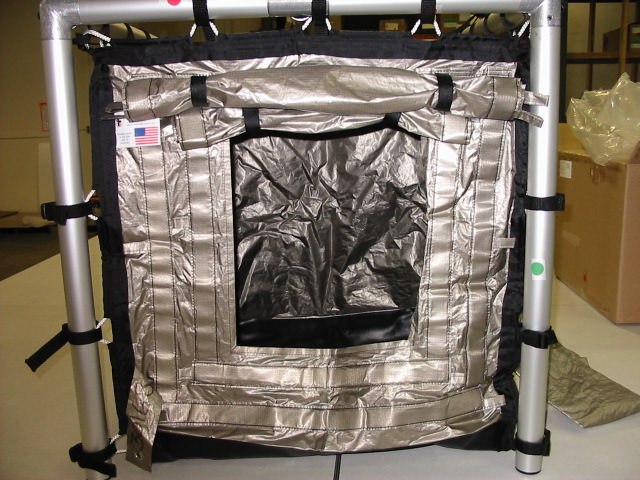

 Bench Top Tent

Bench Top Models Shown



Select Fabricators’ anechoic chambers are engineered using Select Fabricators’ US made, RoHS compliant, conductive NOVA Select™ fabric and double (US No. 8,530,756) or single (US No. 9,029,714) patented door seal systems. Our fabric, combined with our patented door system and absorbing foam allow these RF/EMI shielded tents and chambers to deliver maximum isolation. (Double Layer Enclosure Shielding Effectiveness: -85 to -100 dB on average from 400 MHz to 18 GHz.)

  • All enclosures are made in the USA
  • Standard sizes are available – we can produce any custom size as well
  • All enclosures come with:
    • Standard size patented double magnet door size: 40” x 70”
    • Heavy duty tarp flooring to protect the conductive floor
    • Protective tent carry/storage bag
    • Frame style of your choice
    • Shielding Effectiveness Certificate
    • Complete assembly instructions
    • One-year limited warranty

Manufactured using Select Fabricators’ US made, RoHS compliant, conductive NOVA Select™ fabric and double (US No. 8,530,756) or single (US No. 9,029,714) patented door seal system in order to provide the highest shielding effectiveness for a RF / EMI shielded tent on the market. Double Wall construction of NOVA Select™ fabric will provide shielding effectiveness of -85 to over -100dB on average from 400 MHz to 18 GHz.

Select Fabricators has contracted independent laboratories to perform the IEEE® 299 standard test on a complete assembled system including installed components operating under typical conditions at various frequencies measured through the tent wall at multiple locations in the tent.

  • Series 100*: Portable easy-up steel frame (5-minute deployment)
  • Series 500: Semi-permanent round heavy-duty aluminum frame (15-30-minute deployment)
  • Series 300: Semi-permanent / permanent rectangular heavy-duty extruded aluminum frame (60-minute deployment)



The following options are available for any of our RF/EMI Shielded Enclosures:

Construction:

  • Flame retardant/resistant liner
  • ESD liner to provide static control
  • Sound reduction/absorbing lining and sound masking systems
  • Exterior covers for outdoor deployment

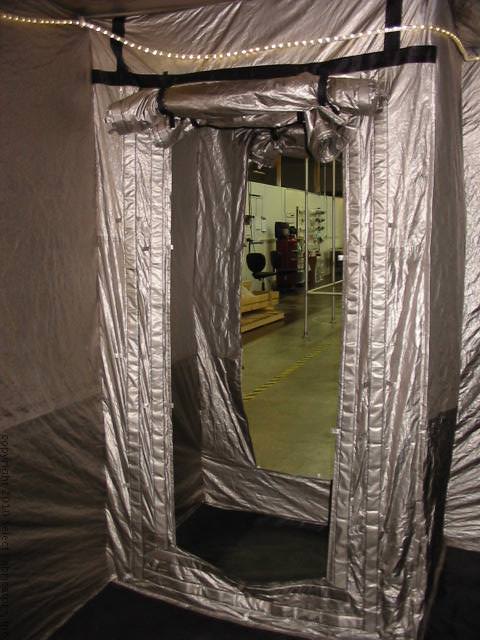

  • Vestibule entrance
  • Zero-threshold door
  • Custom size door
  • Shielded Windows

Transport:

  • Pelican storage cases
  • Shipping cases
  • Airline compatible travel cases
  • Frame cases

Other:

  • RF / microwave absorbing foam
  • I/O filter plates
  • EMI hardened lights
  • In-house or independent IEEE® 299 (1-18 gHz testing of completed enclosure)
  • Custom engineering/design of enclosure

I/O Plate Filtered Connectors:

  • AC Power
  • DC Power
  • 1G and 10G Ethernet
  • USB: 2.0, 3.0, and C-Speed
  • DB9
  • DB15
  • DB25
  • HDMI 1.4
  • SMA
  • BNC
  • N-Type
  • ST/ST
  • TNC
  • RJ11
  • Custom waveguides
  • Go to the tent options webpage Tent Options
