Frameless Bench Top RF Shielded Tent Enclosure

Frameless Bench Top

 RF Shielded

Enclosure





https://www.select-fabricators.com/wp-content/uploads/2019/10/100dB-tent-Edit-2.png





100 dB Attenuation 14 MHz to 10 GHz







Data

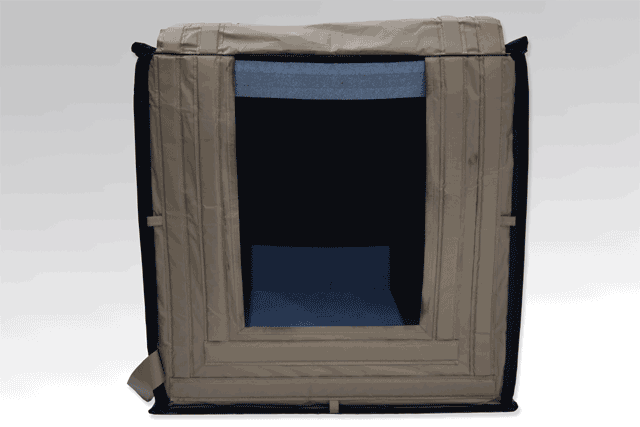

Select Fabricators’ Research and Development Team is proud to introduce a -100 dB RF / EMI Attenuation Tabletop Enclosure. The frameless design allows a smaller footprint, easier storage, and guarantees higher attenuation than the RF / EMI Shielded Tabletop Enclosure.

The double-wall NOVA (our highly conductive Ag/Cu/Ni Fabric) construction with a metal frame averages -95 dB of attenuation between 750 MHz and 6 GHz and -90 dB of attenuation between 12 GHz and 18 GHz. An internal foam skeleton allows the Enclosure to stand upright on it’s own as well as achieve attenuation of over -100 dB while also reducing reflection inside of the Enclosure for more accurate readings.

The -100 dB Frameless Tabletop Enclosure is designed to compete with other portable benchtop hard-wall RF Shielded Test Enclosures designed for efficient and cost effective RF isolated device testing. The frameless design in addition to Select Fabricators’ patented double magnet door closure allows customers to achieve the highest shielding effectiveness throughout the life of the enclosure. The double magnet closure withstands over 5,000 opening/closings without a noticeable reduction in shielding effectiveness – significantly longer than the latch-and-gasket doors.

Similar to SFI’s external-framed RF / EMI Shielded Tabletop Enclosures, the-100 dB Frameless Enclosure offers the addition of I/O filter plates and connectors, shielded ventilation systems, and other upgraded options.

  • External Dimensions: 26″ x 26″ x 26″
  • Internal Dimensions: 24″ x 24″ x 24″
  • Shielding Effectiveness: >-100 dB

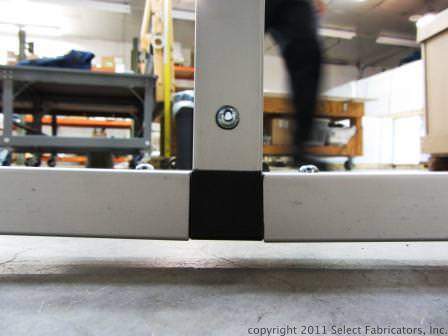

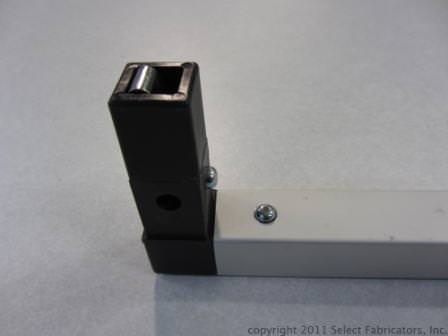

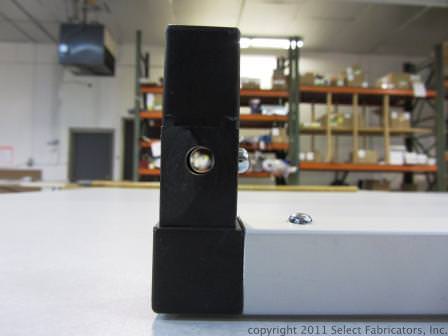

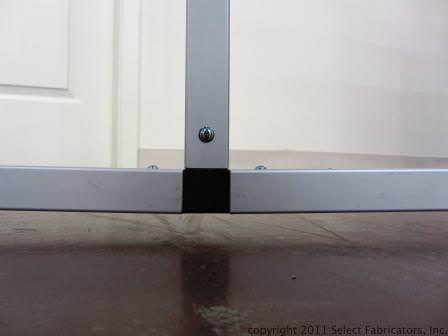

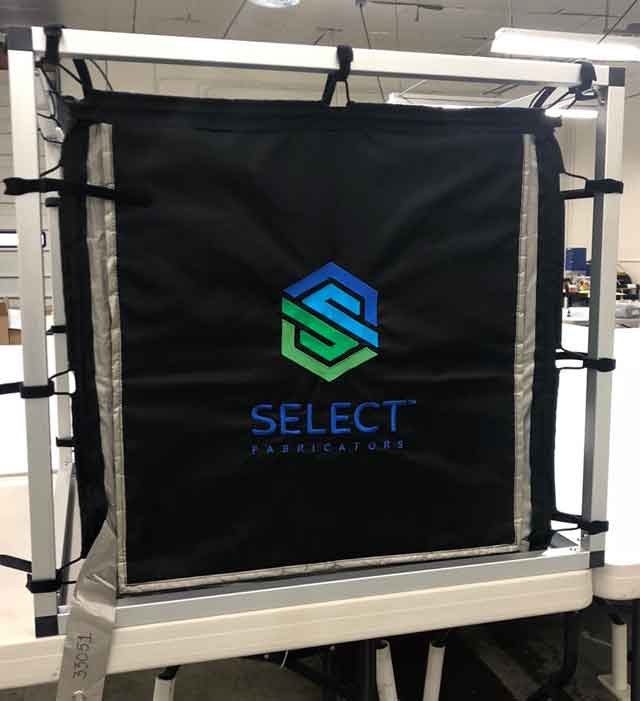

Bench Top RF Shielded Tent Easy-Assemble External Tubular Aluminum Frame (Series 600)



Easy-Assembly Lightweight  Square Aluminum External Frame

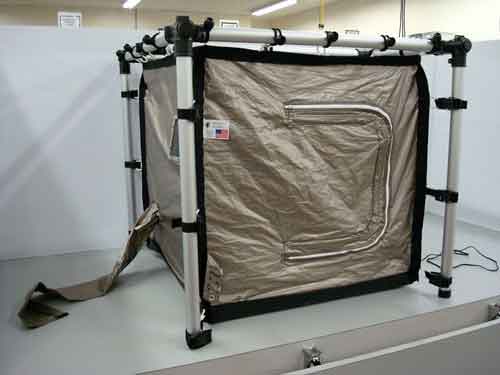

RF Shielded Table Top Tent

RF Shielded Benchtop Tent





Series 600

Single Layer Bench Top Tent



≥ 60 dB Attenuation 14 MHz to 10 GHz



Series 600

Double Layer Bench Top Tent



≥ 70 dB Attenuation 1 MHz to 10 GHz





DATA

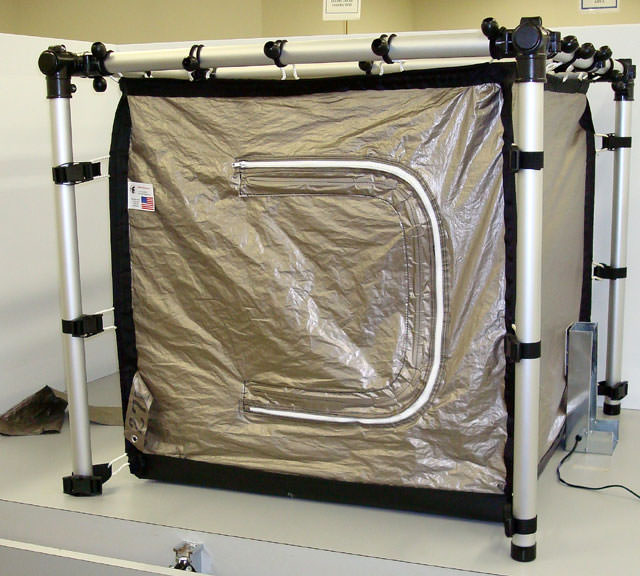

EMI Shielded Mini Tent - EZ Tube Frame (Series 600)

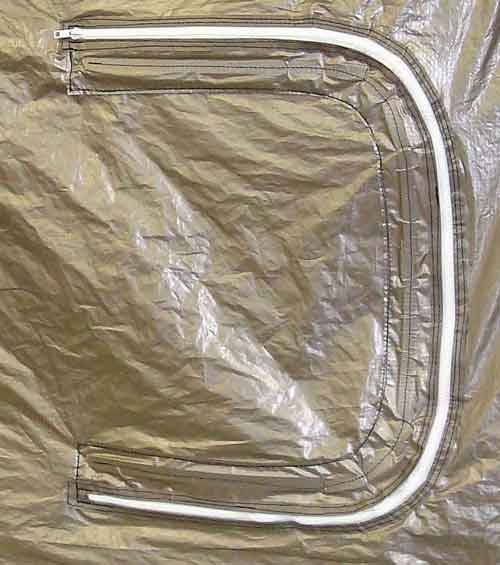

Includes: EZ Tube square aluminum frame with all locking attachments, Six sided RF shielded fabric and Standard magnetic seal flip up access door, floor (two layers of heavy-duty tarp protect) and storage bag for the tent (not frame).

Standard Sizes

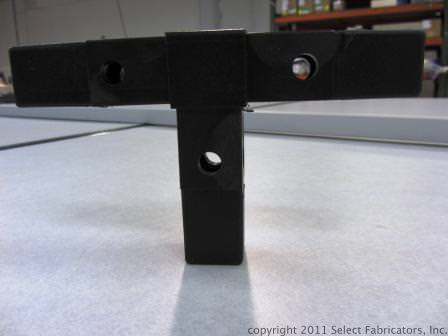

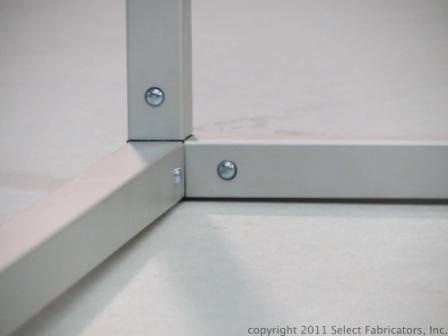

600-242424

Frame Size: 28” x 28”’ x 26” Tent Size: 24” x 24”’ x 24”

600-363636

Frame Size: 40” x 40”’ x 38” Tent Size: 36” x 36”’ x 36”

600-484848

Frame Size: 52” x 52”’ x 50” Tent Size: 48” x 48”’ x 48”

600-362424

Frame Size: 40” x 28”’ x 26” Tent Size: 36” x 24”’ x 24”

600-482424

Frame Size: 52” x 28”’ x 26” Tent Size: 48” x 24”’ x 24”

600-484878

Frame Size: 52” x 52”’ x 80” Tent Size: 48” x 48”’ x 78”

Single Wall (SW) or Double Wall (DW)

The Series 600 Frame is now standard on all Bench Top Tents


Bench Top RF Shielded Tent       Table Top RF Shielded Tent

Tent Frame   Tent Frame   Tent Frame

Tent Frame   Tent Frame   Tent Frame



Select Fabricators Bench Top RF Shielded Tent (Series 500)



Easy-Assembly Aluminum External Frame

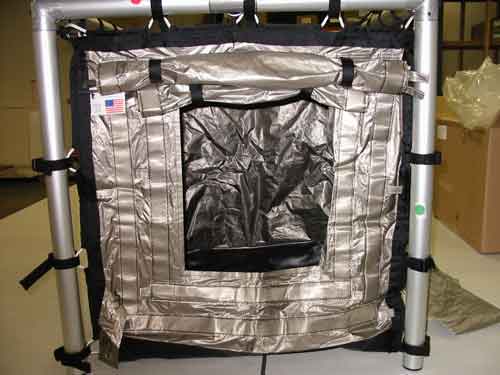

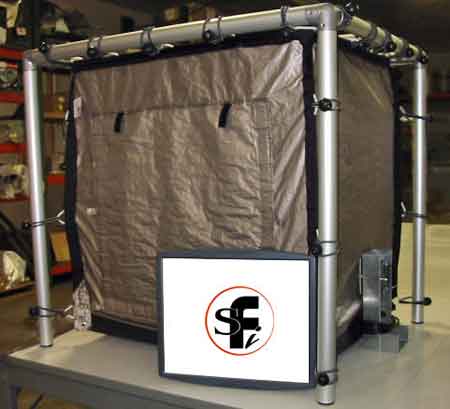

Series 500 RF Shielded Mini Tent

RF Shielded Mini Tent



Series 500

Single Layer Bench Top Tent



≥ 60 dB Attenuation 14 MHz to 10 GHz



Series 500

Double Layer Bench Top Tent



≥ 70 dB Attenuation 1 MHz to 10 GHz



DATA



Applications

  • Microwave & Wireless R&D

  • Microwave Antenna Design Enclosure

  • Ideal for small equipment EMI shielding

  • From 12" L x 12" W x 12" H to 48" L x 84" W  x 48" H

  • For larger sizes, please see the RF Shielded Tents

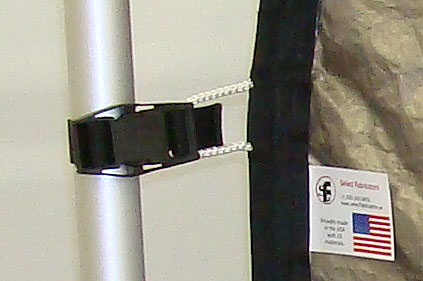

Easy-Assemble Features

  • Free-standing enclosures

  • Portable and Compact

  • Can be broken down easily for shipping

  • Tubular Aluminum Construction

  • Constructed of light weight, high strength, anodized aluminum tubing and joined by glass filled polycarbonate fittings or aluminum fittings

  • For the ultimate in simplicity and convenience, the entire system is designed to be assembled or modified with only one tool…a 3/16" Hex Key.

Tent Features

  • Basic tent has a floor which is Single or Double layer of conductive fabric sandwiched between 2 layers of heavy duty black vinyl. It is very durable

  • Storage / Transport Bag

  • Filtered or Unfiltered Power via Shielded Sleeve



The Series 500 is by request only, due to the much heavier weight, than the Series 600 frame.



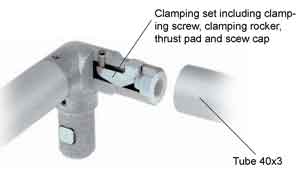

Series 500 Tent Frame       Series 500 Tent Frame

 Series 500 Tent Frame    Series 500 Tent Frame

   Series 500 Tent Frame   Series 500 Tent Frame

Series 500 Tent Frame   Series 500 Tent Frame

Series 500 Tent Frame



Select Fabricators Benchtop Tent Series 400 Frame



Easy-Assembly Aluminum External Frame

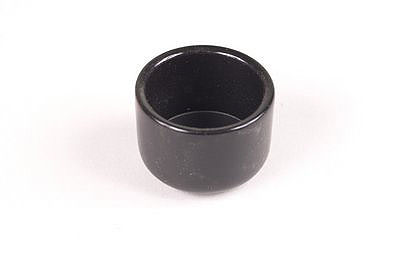

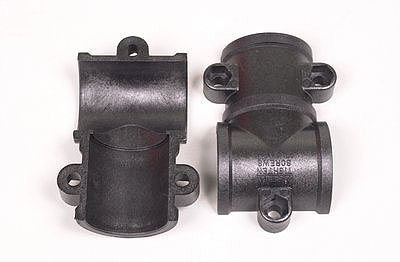

Series 400 Tent Frame



Series 400 RF shielded Tent   Series 400 RF shielded Tent

Series 400 RF shielded Tent   Series 400 RF shielded Tent







Series 400

Single Layer Bench Top Tent



≥ 60 dB Attenuation 14 MHz to 10 GHz



Series 400

Double Layer Bench Top Tent



≥ 70 dB Attenuation 1 MHz to 10 GHz





DATA





Applications

  • Microwave & Wireless R&D

  • Microwave Antenna Design Enclosure

  • Ideal for small equipment EMI shielding

  • From 12" L x 12" W x 12" H to 48" L x 84" W  x 48" H

  • For larger sizes, please see the RF Shielded Tents



Easy-Assemble Features

  • Free-standing enclosures

  • Portable and Compact

  • Can be broken down easily for shipping

  • Tubular Aluminum Construction

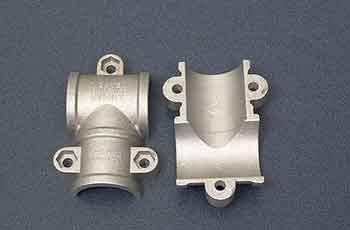

  • Constructed of light weight, high strength, anodized aluminum tubing and joined by glass filled polycarbonate fittings or aluminum fittings

  • For the ultimate in simplicity and convenience, the entire system is designed to be assembled or modified with only one tool…a 3/16" Hex Key.

Tent Features

  • Basic tent has a floor which is Single or Double layer of conductive fabric sandwiched between 2 layers of heavy duty black vinyl. It is very durable

  • Storage / Transport Bag

  • Filtered or Unfiltered Power via Shielded Sleeve



The Series 400 is by request only, due to the much heavier weight, than the Series 600 frame.



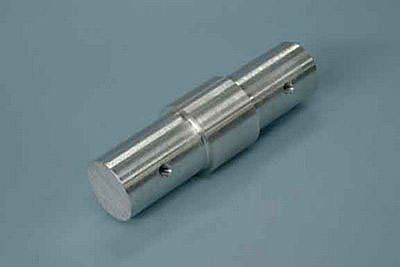

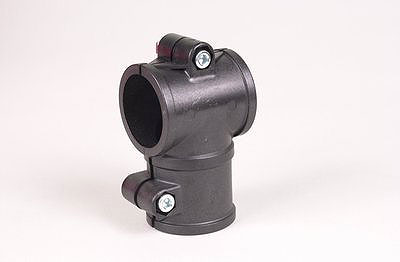

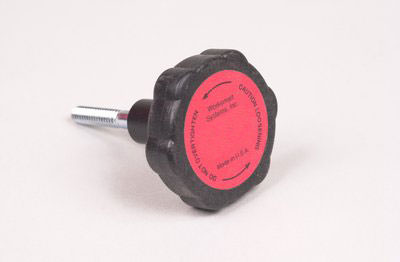

Series 400 Tent Frame   Series 400 Tent Frame   Series 400 Tent Frame

Series 400 Tent Frame   Series 400 Tent Frame   Series 400 Tent Frame

    Series 400 Tent Frame





Select Fabricators RF Shielded Tent Options & Accessories

Part Number

Tent Options Description



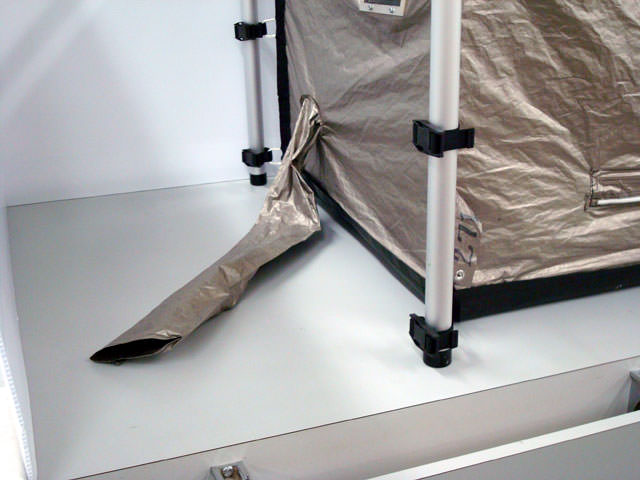

RF Shielded Tent Sleeve

RMEC0001

Additional 4" dia. x 3’ long, Cable Sleeve

RMEC0008

Additional 5" dia. x 3’ long, Cable Sleeve

RMEC0011

Additional 6" dia. x 4’ long, Cable Sleeve

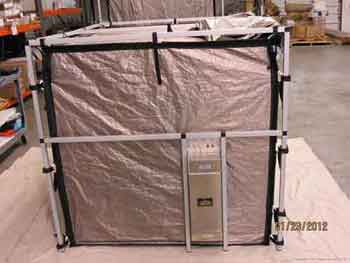

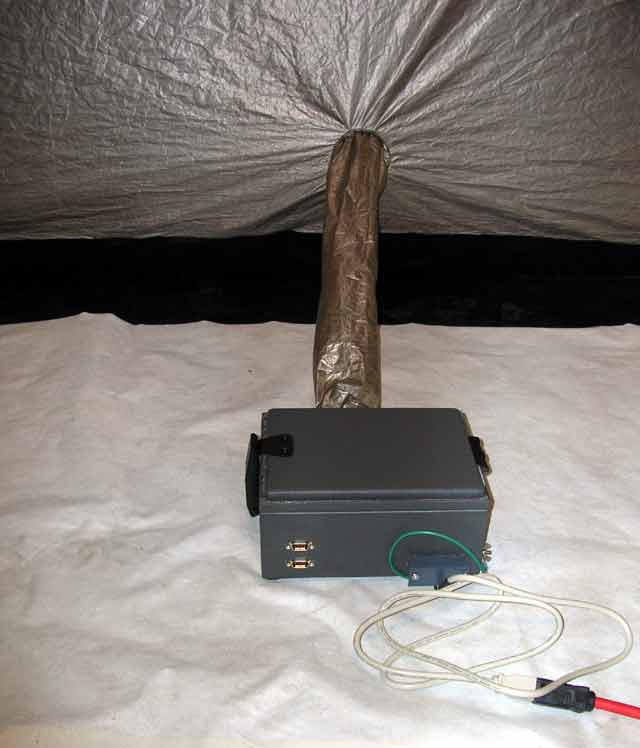

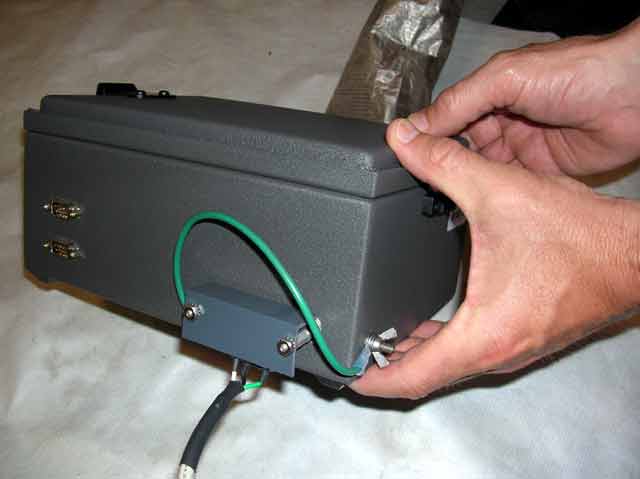

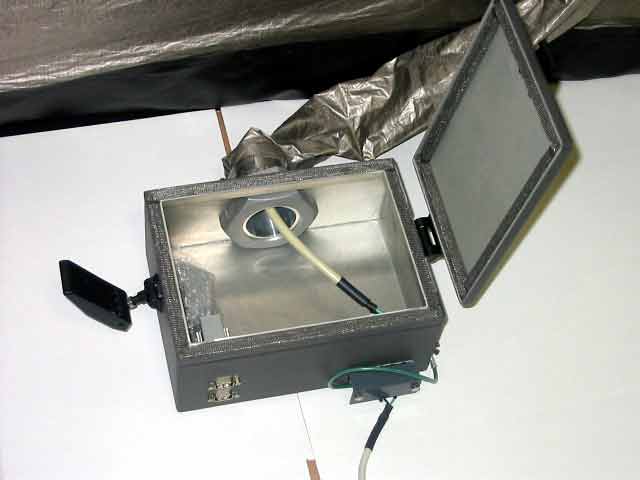

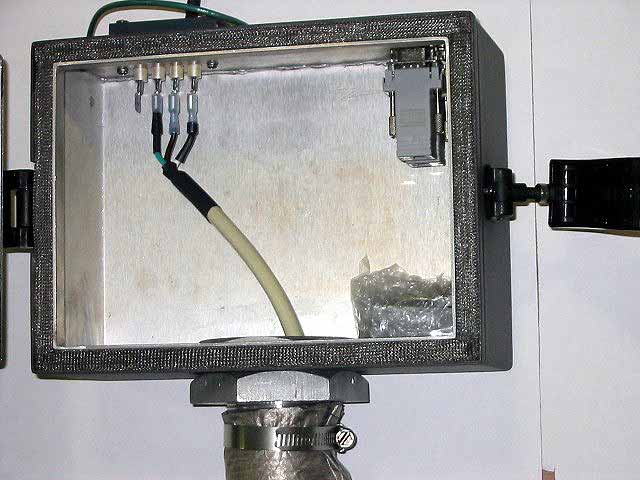

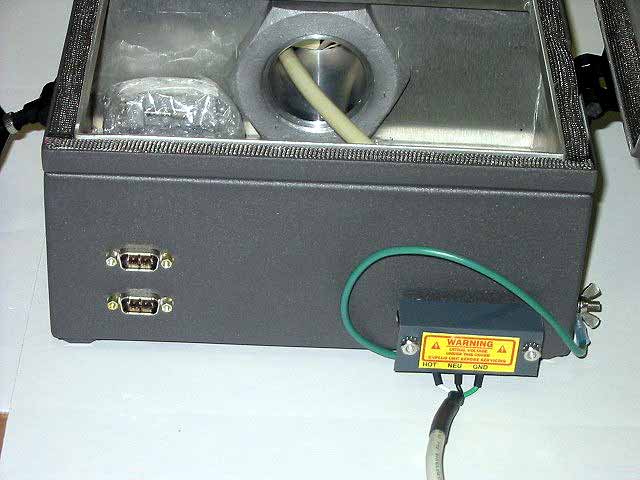

RF Shielded Tent Filter RF Shielded Tent Power Filter   Shielded Tent Filter Plate with Ethernet

RMEC0073

Filter Plate without Ethernet

0-250 VAC, 15 Amp wall mounted removable plate with 5-outlet power cord 120 VAC, 15 Amp- for power inside tent.

RMEC0074

Filter Plate with Ethernet

0-250 VAC, 15 amp enclosure with 6-outlet power cord 120 VAC, 15 Amp- for power inside tent.

Ethernet: (2) 100 PF DB9 RF Filtered connectors to filter (2) RJ45/DB9 Adapter Kits

Note: Insertion Loss is only 40dB for the 100pf DB9, will degrade shielding effectiveness

RMEC0196

High Performance IO Plate without Ethernet, wall-mounted,

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100kHz to 40 GHz) with two (2) USA 120VAC/15A five (5) outlet power strips rated for max. 20A and a L5-20P 120V/20A line cord

RMEC0196

-NEMA

High Performance IO Plate without NEMA cord:

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100 kHz to 40 GHz) with one (1) USA 120VAC/15A five (5) outlet power strips rated for max. 20A.

RMEC0197

High Performance IO Plate with Ethernet, wall-mounted,

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100kHz to 40 GHz) with two (2) 10/100/1000 megabyte Ethernet media converters with cables & connectors, two (2) USA 120VAC/15A five (5) outlet power strips rated for max. 20A and a L5-20P 120V/20A line cord

RMEC0197

-NEMA

High Performance IO Plate with Ethernet, wall-mounted, without NEMA cord, 10/100/1000 gigabit Ethernet

Includes: 250VAC/500VDC/30A facility filter (-100 dB 100 kHz to 40 GHz) with two (2) 10/100/1000 megabit Ethernet media converters with cables & connectors, one (1) USA 120VAC/15/ five (5) outlet power strips rated for max. 15A and a 5-15P 120V/15A line cord



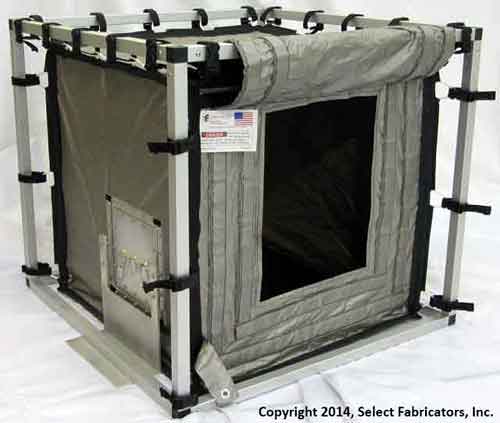

RF Shielded Tent I/O Plate

RMEC0222

Blank Wall-Mounted Removable Plate with leg extenders

RMEC0072

Blank Input / Output Plate Assembly

CK-0001

100 pf DB9 Connector

Note: Insertion Loss is only 40dB for the 100pf DB9, will degrade shielding effectiveness

CK-0002

1000 pf DB9 Connector

Note: Insertion Loss is only 63dB for the 1000pf DB9, will degrade shielding effectiveness

CK-0003

2500 pf DB9 Connector

CK-0004

1000 pf DB15 Connector

CK-0005

USA 5 Outlet PS 120V/15A

CK-0006

UK 5 Outlet PS 250V/15A

CK-0007

S. Africa 5 Outlet PS 240V/15A

CK-0008

USB B-A Coupler, Shielded

CK-0009

USB B-A Coupler, Filtered

CK-0011

SMA F Bulkhead w/Dust Cap

CK-0013

BNC F Bulkhead w/Dust Cap

CK-0014

SHV Jack Bulkhead w/Dust Cap

CK-0015

N Female Bulkhead

CK-0016

N F Bulkhead w/Dust Cap

CK-0017

ST/ST Fiber Bulkhead - Multimode

CK-0018

RJ45/DB9 Shielded Adapter Kit

CK-0019

RJ11/DB9 Adapter Kit

CK-0020

6 Terminal DC Filtered Barrier

CK-0021

10/100/1000 Fiber Optic Ethernet System

CK-0022

ST/ST Fiber Bulkhead - Single Mode

CK-0024

100pf DB25 Connector

CK-0025

USB 2.0 High Speed Filtered Interface, Over 80 dB attenuation > 1 GHz with flat response < 480 MHz

CK-0026

RJ-45 Ethernet - Filtered

CK-0027

2500 pf DB25 Connector

CK-0029

4 Terminal DC Filtered Barrier

CK-0031

USB 2.0 Dual HP Filter

CK-0032

USB 3.0 HP Filter

CK-0033

USB 3.0 Dual HP Filter

CK-0035

RJ45 & USB 2.0 HP Filter

CK-0036

HDMI 1.4 Filtered

CK-0037

TNC Female/Female Connector

CK-0038

SO239 UHF Female/Female Conn

CK-0039

K Connector - 2.92mm F /2.92mm F Connector

CK-0040

1000pf DB25 Connector

CK-0041

1/2” x 4”L Brass Waveguide

CK-0042

6 Line Waveguide

CK-0043

RP-SMA/RP-SMA Connector

CK-0044

SMB/SMB Connector

CK-0045

1000pf DB50 Connector

CK-0046

RJ45 & USB 3.0 HP Filter

CK-0047

RJ-45 Ethernet 10G - Filtered

CK-0056

USB C-Speed

CK-0058

Dual HDMI 1.4 Filtered

CK-0059

3/4" x 4"L Brass Waveguide

CUSTOM PLATE

Filter Plate with custom options

Options include:

AC/DC Power, USB, SMA, BNC, Fiber Optics, etc.



RF Shielded Tent Large Door

RMEC0021

Size upgrade from Standard Door: 40” x 54.5” I.D. (58” x 64.5” O.D.) with either double (US Pat. No. 8,530,756) or single (U.S. Pat. No. 9,029,714) patented door sealing systems.



RF Shielded Tent LED Rope Lighting

RMEC0022

ESD Liner — White Electrostatic Dissipative liner on four walls and ceiling.

RF Shielded Vestibule

RF Shielded Vestibule (Outside)

RF Shielded Tent Vestibule   RF Shielded Tent Vestibule   RF Shielded Tent Foyer

VESTIBULE

RF Shielded Entry Vestibule

Size and door locations TBD

Vestibule / Foyer - Internal or External



RF Shielded Tent For Clean Room

RMEC0009

Cleanroom Services –

Onsite ISO Class 6 (class 1000 cleanroom) and isolated area which is ISO Class 5 (Class 100 cleanroom)



RF Shielded Tent IEEE-299 Testing

RMEC0006

Testing of Completed Enclosure to IEEE Std 299™ -2006

Standard Frequencies tested:

150 KHZ, 14, 26, 300 MHZ, .4, .8, 1, 3, 6, 10 12,14,16,18 GHz



RF Shielded Tent Lighting   RF Shielded Tent Rope Lighting

24" Fluorescent Light

RF Shielded Fluorescent Light

One to Twenty Lights on one circuit

EMI Shielded Fluorescent Light

RMEC0016

EMI Hardened String Lights

Lights will operate on 100-240 Volts at 50 to 60 cycles.

RMEC Custom

Custom sized interior perimeter lighting based on enclosure size.

RMEC0221

Interior perimeter lighting system consisting of a two wire LED rope with a standard live feed (plug). Operates on 120 VAC, 60Hz for a 48” x 48” x 78” enclosure

RMEC0023

Fiber-optic interior perimeter lighting system consisting of a two wire LED rope with a standard live feed (plug)

LED Lighting for 7’ x 7’ Tent

RMEC0024

LED Lighting for 9’ x 9’ Tent

RMEC0025

LED Lighting for 9’ x 14’ Tent

RMEC0026

LED Lighting for 9’ x 19’ Tent

Ventilation

SFi strongly advises the use of a complete ventilation system or A/C unit with any tent that will contain people.

All openings on the EMI Shielding Tent must be completely sealed during operation for proper use including both layers of the tent door. Without ventilation (vents, fan and sleeve), the inside air temperature may rise due to the heat generated from equipment and/or people inside the tent.

Also, due to a lack of air circulation, the interior air quality may be affected.

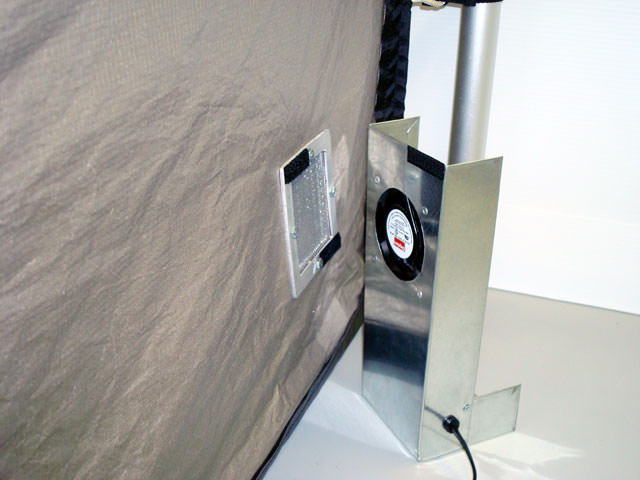

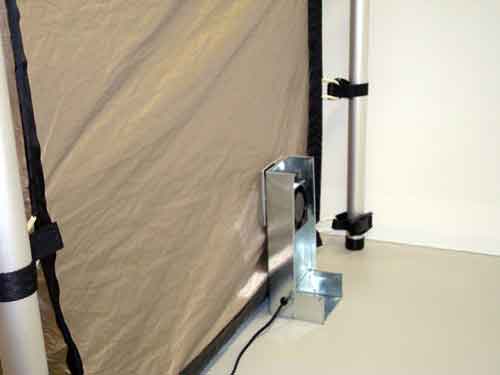

RF Shielded Tent Air Vent RF Shielded Tent Honeycomb Air Vent RF Shielded Tent Venting

Air vent with fans

RF Shielded Tent Light

RMEC0314

Ventilation System-Includes (2) 120 mm x 120 mm Dual Honeycomb Vent Panels with 12VDC fans for intake and (1) 6" x 12" Dual Honeycomb Vent Panel for exhaust. Includes 90-240VAC/12VDC power supply with USA Plug (USA Plug clip can be changed for International operation).  Air Flow: 204CFM.

RMEC0315

Ventilation System for Tabletop Tents - Includes (2) 120 mm x 120 mm Dual Honeycomb Vent Panels for intake and exhaust Includes (1) 120 mm 12 VDC Muffin Fan with 90-240VAC/ 12VDC power supply with USA Plug (USA Plug clip can be changed for International operation). Air Flow: 102 CFM

RMEC0374

Large Ventilation System with 7"x7" honeycomb vent panel and a 6" x 12" honeycomb exhaust panel with a 7" 24DC muffin fan Air flow: 470CFM



Tent Air Conditioner

RMEC0030

Air Conditioning: 5050 BTU/115v HVAC unit ready for hookup with hoses, two (2) honeycomb vents, and drip pan.

Note: Includes ventilation system RMEC0028 (above).

RMEC0030 -

NEW

Same as RMEC0030 plus RMEC0310 ventilation system.



RF Shielded Tent Air Conditioner

RMEC0031

Air conditioning unit for large tents (250min-500max sq.

12,000 BTU3.5 kW unit. Uses environmentally friendly

R410a refrigerant. No water collecting tank required.

Compact, portable, self-contained unit is installed via shielded vent and standard 5-15R outlet. Includes (2) 11.9” x 6.2” two-layer honeycomb vent panels for intake and exhaust plus RMEC0314 ven􀆟 la􀆟 on system



RF Shielded Tent Bag

RMEC0010

Canvas Carry Bag for tents, 18” x 33” x 12.5”

RMEC0004

Canvas Carry Bag for tents, 40” x 20” x 20”



RF Shielded Tent Roller Bag

RMMC0047

Series 100 Frame Deluxe Roller Bag – Up to 8’

RMMC0095

Series 100 Frame Deluxe Roller Bag – Up to 10’

RMMC0096

Series 100 Frame Deluxe Roller Bag – Up to 15’

RMMC0097

Series 100 Frame Deluxe Roller Bag–Up to 20’



RF Shielded Tent Deluxe Roller Bag

RMMC0144

Series 100 Frame Hard Carry Case - Up to 10’ High density polyethylene molded case with sturdy wheels and heavy duty handle.



RF Shielded Tent Carrying Case

3SKB-292-

1MR

Hard Case for tent or frame 29” x 21.5” x 17”



RF Shielded Tent Shipping Case

1780T

Hard Case for tent or frame 42” x 22” x 15.1”

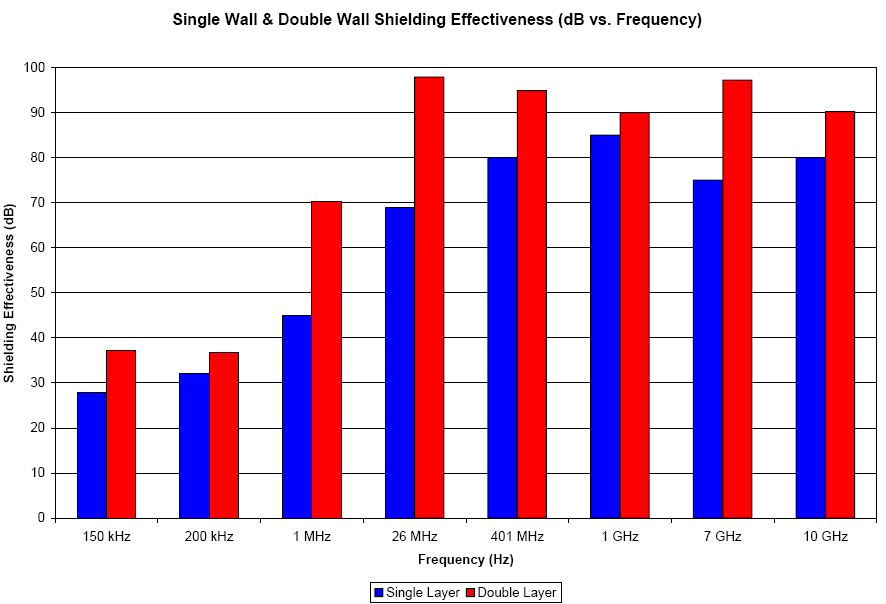

Shielded Tent Attenuation Levels - Average (Single Layer & Double Layer)

Shielding Effectiveness Chart

Shielding Effectiveness (dB)

Attenuation Ratio

Percentage of Signal Attenuation

20

 10 : 1

90.0

40

 100 : 1

99.0

60

 1,000 : 1

99.9

80

 10,000 : 1

99.99

100

 100,000 : 1

99.999

120

 1,000,000 : 1

99.9999



Copyright © 2001-2021  R. A. Mayes Company, Inc.
An Electro Mechanical Research and Development (EMRAD) Corporation, Company

See our Privacy Policy    All the data files on our website require Adobe Acrobat Reader!
