Welded RF Shielded Cabinets
Meets the Buy American Act

Universal Shielding Corp.

Universal Shielding Corp.

Made in the USA



Welded RF Shielded Cabinets

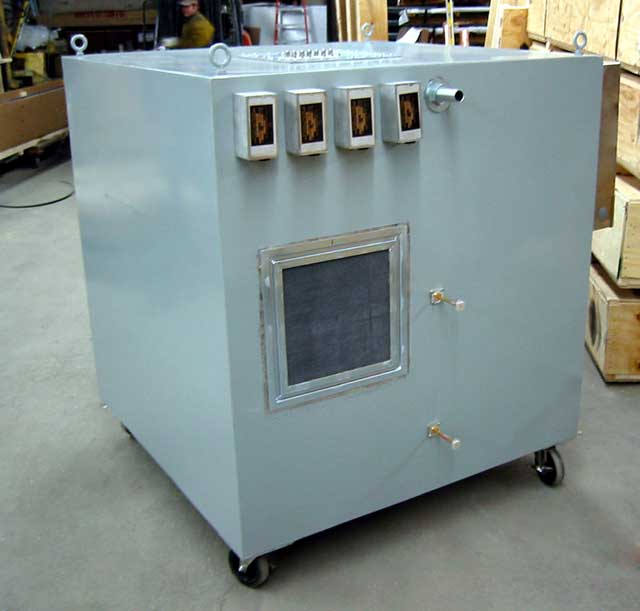

RF Shielded Cabinet



You Specify the Size



100 dB Attenuation from 14 KHz to 40 GHz



Up to 100GHz Available



Welded Steel - Zinc Plated



USC RF Shielded Cabinet

Cabinets are portable and can be placed on desks or work tables.

If large cabinets are desired, moveable platforms can be provided.

Welded 1/8" Electro Zinc Plated Steel.

Cabinets are fully coated with Zinc





Welded Electro Zinc Plated Steel

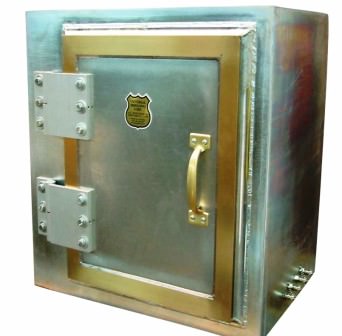

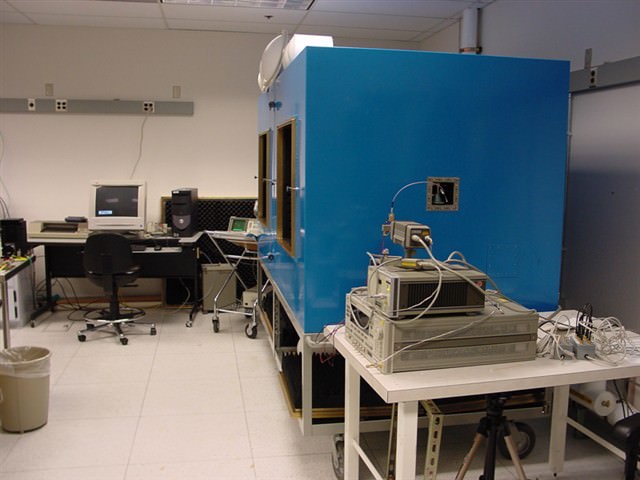

Welded RF Shielded Cabinet

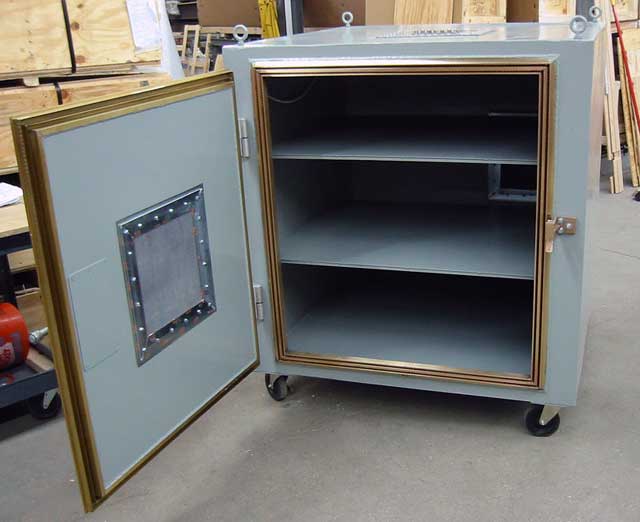

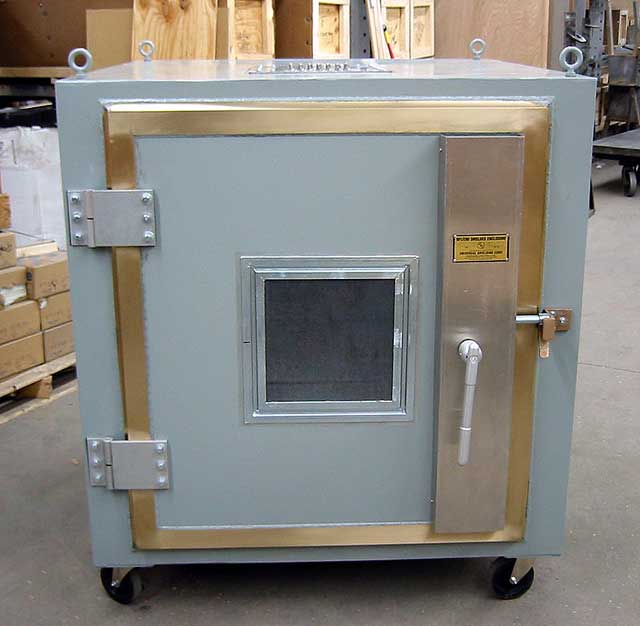

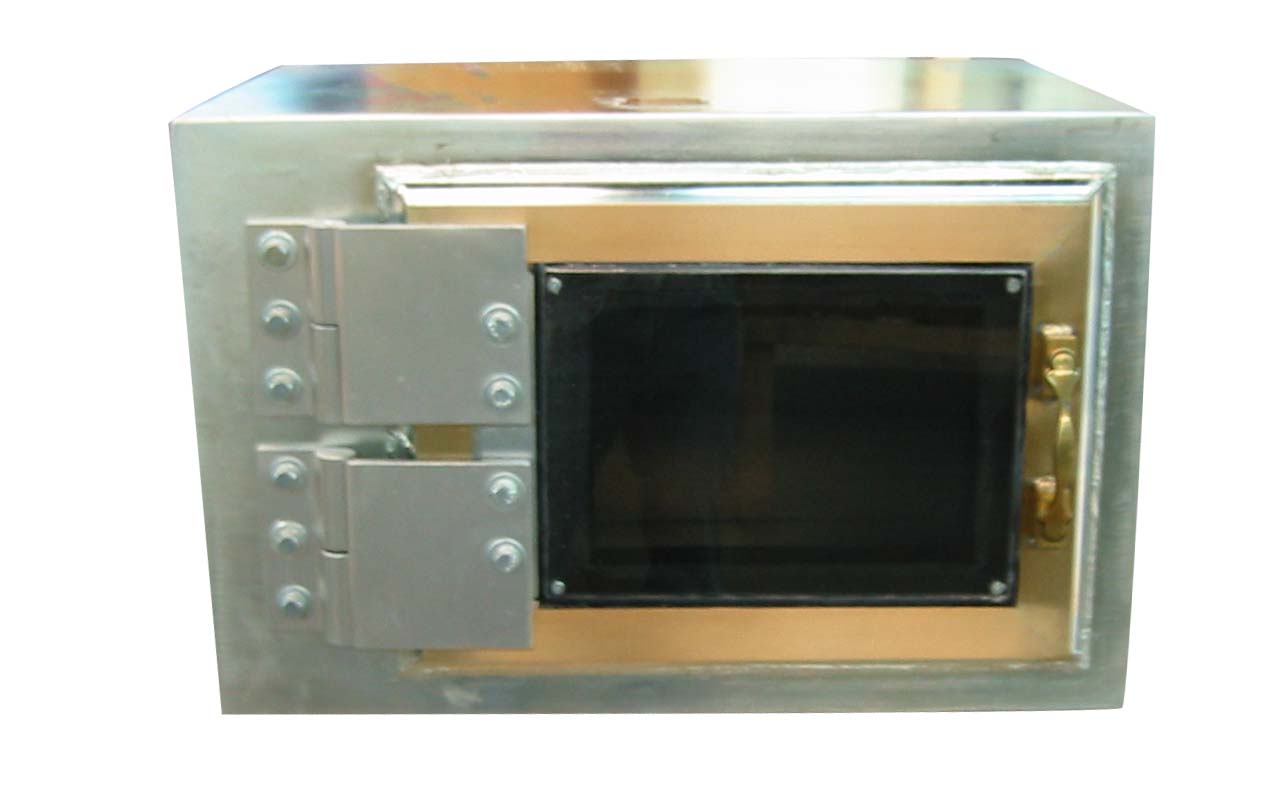

RF Shielded Cabinet with Shelves         RF Shielded Cabinet with Window

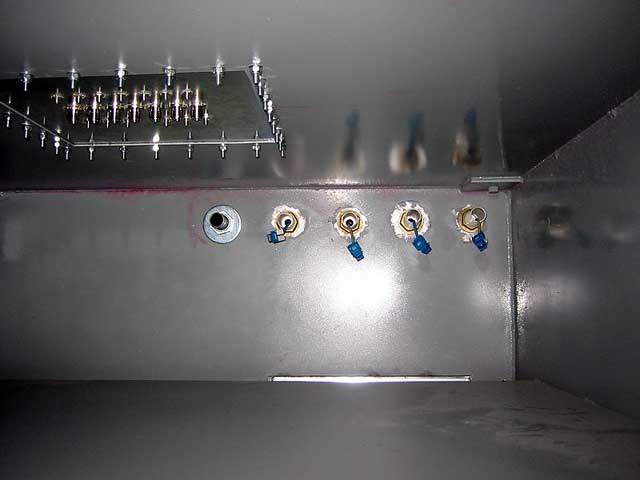

   Universal RF Shielded Cabinet         Interior of RF Shielded Cabinet

USC manufactures an entire series of prefabricated cabinets developed from the USC-26 and USC-44 designs. These cabinets are offered with the RCM-154 or RCM-254 door  design, thus providing the unit with extraordinary shielding attenuation. The cabinets can be customized to any size requirements, and can be placed on desks or workbenches. Welded cabinets are also available. If large mobile cabinets are required, movable platforms can be provided.

Each cabinet can be installed with RF accessories including:

  • RF Waveguide Air Vents
  • Ceiling Mounted Exhaust Fans
  • RF Removable Connector Panels
  • RF Hi-Hats
  • RF Waveguide Feedthrus
  • RF Absorber
  • Ferrite Tile
  • LED Lighting
  • Workbenches
  • Locking Swivel Casters
  • RF Shielded View Windows Available.
  • RF Power, Ethernet, USB, Signal, Telephone, and Data Filters
  • Welded Seams are Unaffected by Corrosion, Oxidation, and Mechanical Expansion.
  • Testing to MIL-STD 285, MIL-STD 188-125, IEEE 299, NSA 65-6/NSA 94-106, CID 09.12

Each cabinet is assembled in our facility and tested according to the customers requirements prior to shipping.

These cabinets are offered with our RCM-154 or RCM-254 door design, thus providing the unit with extraordinary shielding attenuation. Cabinets are portable and can be placed on desks or workbenches. If large cabinets are desired, movable platforms can be provided.

A shielded enclosure is only as effective as it’s access portals. USC research and engineering has developed doors that provide attenuation characteristics equal to that of the enclosure, and are mechanically and aesthetically pleasing. The shielded door manufactured is our Type RCM-154, utilizing a brass extrusion mounted on the periphery of the door frame. This extrusion houses two rows of “fingers” which are concealed from accidental damage. The door leaf has a brass “knife-edge” extrusion at the perimeter which mates with the fingers within the frame when the door is closed. This design results in a damage-free closure seal, with highly efficient prevention of RFI/EMI leakage.

Type RCM-254 “double knife design” utilizes four rows of fingers to improve the magnetic and plane wave shielding.

USC enclosure doors are equipped with a minimum of a 1-point latching mechanism for tight RFI/EMI-secure closing. Bearing surfaces, rollers and door cams are of case-hardened tool steel designed to provide years of trouble-free operation with no loss of attenuation capability due to friction and wear. Our doors are extremely easy to operate, requiring less than 20 pounds of force on the handle.



For Smaller Sizes (Click Here)

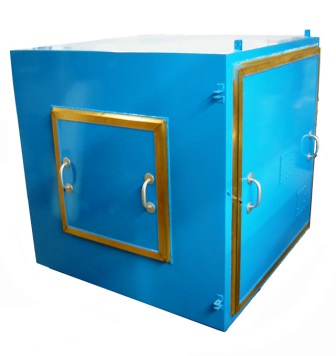

Joinable RF Shielded Enclosures

Welded Steel - Zinc Plated



Up to 4' W x 4' D x 4' L per Cabinet

Two Cabinets 4' W x 4' D x 8' L

Three Cabinets 4' W x 4' D x 12' L

RF Shielded Enclosure

Optional Powder Coating Available (As Shown)



EMI Shielded Cabinet   RFI Shielded Cabinet

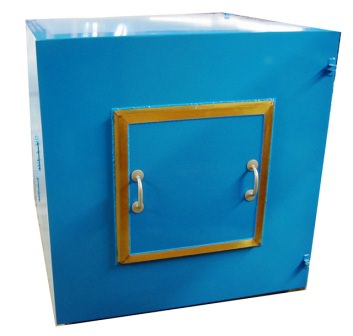

New Push On/Off Shielded Plug Doors

RF Shielded Welded Cabinets
