EMC Test PreCompliance & Compact Chambers

Frankonia Anechoic Chambers include a wide range of standardized chambers from pre-compliance up to full compliance and customized chambers, we offer a variety of innovative positioning devices and accessories required in modern testing facilities like monitoring equipment, antenna mast, turntables, doors and gates, and our unique absorber technology Frankosorb®.

TDK Corporation of America is the premier designer of anechoic chamber test sites and radio wave absorber materials for EMC compliance,precompliance and EMS testing. With over 60 years of ferrite technology expertise, and over 800 installations of anechoic chambers successfully completed, we have what it takes to design and validate our shielded room concepts and scale modeling technology with actual documented performance records.

Anechoic Pre-Compliance Chambers Index

Frankonia Compact 30MHz - 18GHz

Frankonia Compact 30MHz - 1GHz

Frankonia Component

Compact Chamber 26MHz - 18GHz

Compact Chamber 26MHz - 1GHz


Frankonia CHC Plus Compact Chamber (30 MHz - 18 GHz)

Frankonia Logo

3 Meter EMC Test Chamber

30MHz to 40GHz



Frankonia CHC Plus



Data



Features

Full compliant EMS and pre-compliant EMI solution up to 1 GHz (NSA), full compliant above 1 GHz (SVSWR)

Cost effective solution for EMS and limited EMI measurements

Compact chamber design with advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Turnkey solution

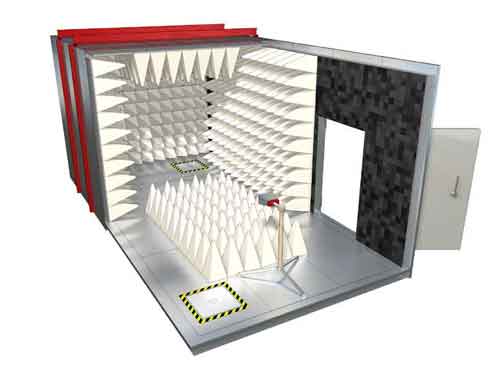

CHC Plus

The CHC Plus is Frankonia’s version of the compact hybrid chamber solution at 3,0m measuring distance with a Quiet Zone (QZ) of ř1,2m that meets the SVSWR verification.

The CHC Plus is an upgradable solution and can transform from a semi anechoic chamber configuration with ground plane to a fully anechoic chamber configuration with floor absorbers.

It is an optimal solution for both pre-compliance emission tests and full compliance immunity tests at 3,0m measuring distance.



Typical Product Standards

Emissions

CISPR 16-1-4
Pre-compliant from 30 MHz to 1 GHz
Full compliant from 1 GHz to 18 GHz

Immunity

IEC/EN 61000-4-3

Technical Specifications

Chamber CHC Plus CHC Plus L
External dimension 7.355 x 3.755 x 3.300 mm 7.580 x 4.655 x 4.350 mm
Quiet Zone ř1,2 m; height 2,0 m
Measuring distance 3,0 m


Frankonia CHC Compact Chamber (30 MHz - 1 GHz)

Frankonia Logo

3 Meter EMC Test Chamber

30MHz to 40GHz

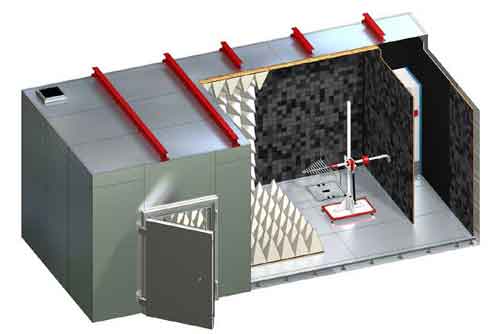

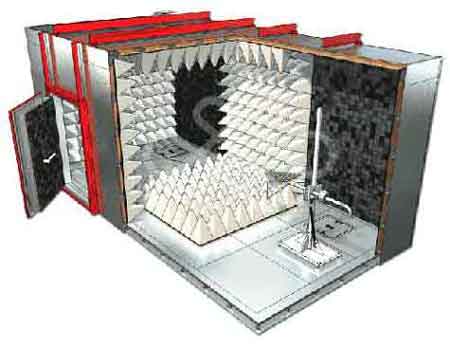

 Frankonia CHC Chamber

CHC

Image result for frankonia CHC

CHC-L



Data

Features

Full compliant EMS and pre-compliant EMI solution up to 1 GHz (NSA)

Cost effective solution for EMS measurements

Compact chamber design with advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Turnkey solution

CHC

The CHC is Frankonia’s compact hybrid chamber solution at 3,0 m measuring distance with a Quiet Zone (QZ) of ř1,2 m.

The CHC is an upgradable solution and can transform from a semi anechoic chamber configuration with ground plane to a fully anechoic chamber configuration with floor absorbers.

It is an optimal solution for both pre-compliance emission tests and full compliance immunity tests at 3,0 m measuring distance.

The extended version of the CHC, called CHC-L, includes an absorber-lined partition wall that offers the feature for housing and storing RF power amplifiers, antennas, and floor absorbers inside the chamber.



Typical Product Standards

Emissions

CISPR 16-1-4
Pre-compliant from 30 MHz to 1 GHz

Immunity

IEC/EN 61000-4-3

Technical Specifications

Chamber CHC CHC-L
External dimension 7.355 x 3.755 x 3.300 mm 8.255 x 3.755 x 3.300 mm
Quiet Zone ř1,2 m; height 2,0 m
Measuring distance 3,0 m
Turntable ř1,2 m
Frequency range 30 MHz to 18 GHz (option 40 GHz)

Frankonia UCC Automotive Component Compact Chamber (9KHz - 40 GHz)

Frankonia Logo

1 Meter EMC Test Chamber

9KHz to 40GHz



UCC – Frankonia Group



Data



Features

Compact chamber solution for automotive component testing according to CISPR 25

Comfortable alternative solution to GTEM cell

Turnkey solution

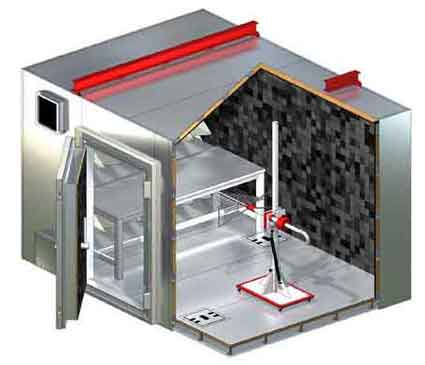

UCC

Pre-compliance Automotive Component Testing Chamber

The UCC is Frankonia’s ultra-compact hybrid chamber solution at 1,0 m measuring distance. It is an alternative solution for the GTEM cell for pre-compliance testing as well as for research and scientific purposes.
The ultra-compact chamber solution is designed for pre-compliance radiated emission and immunity tests, conducted tests, and pre-compliance tests for automotive components per the CISPR 25 method.



Typical Product Standards

Emissions

CISPR 25 Pre-compliant

Immunity

ISO 14152 Pre-compliant

Technical Specifications

Chamber UCC
External dimension 4.280 x 3.080 x 2.550 mm (LxWxH)
Frequency Range 9 kHz/ 150 kHz to 18 GHz (option 40 GHz)
Measuring distance 1.0 m

TDK CAC-S Compact Chamber (26 MHz - 18 GHz)

TDK Logo



Compact Fully Anechoic Chamber



CAC-S™



TDK 3 meter pre-compliance chamber



Data



26 MHz - 18 GHz

  • Radiated emissions: Pre-compliance with EN 50147-2, ANSI C63.4, CISPR 22

  • Radiated immunity: Full compliance with IEC 1000-4-3

  • Fully lined double layer ferrite tile and IP-045C absorber (TDK hybrid technology)

  • Space saving: 7.5 m long x 3.0 m wide x 3.0 m high (24'7" L x 9’-10" W x 9’-10" H)

  • Turnkey solution

Chamber Specifications

  • Dimensions:  7.5 m long x 3.0 m wide x 3.0 m high (24’-7" L x 9’-10" W x 9’-10" H)

  • Absorbers:  IB-017 Fully lined double layer ferrite

  • NSA test volume (@ 3 m):  1.0 m Ř, 1.0 m high

  • Field uniformity area (-0, +6 dB):  1.5 m x 1.5 m, 0.8 m from floor

  • Radiated emissions:  Compliance with EN 50147-2

  • Radiated immunity:  Compliance with IEC 1000-4-3

  • EMI frequency range:  30 MHz - 18 GHz

  • EMS frequency range:  26 MHz - 18 GHz

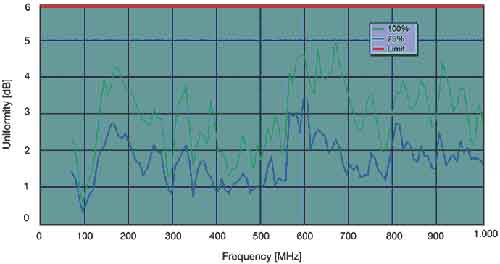

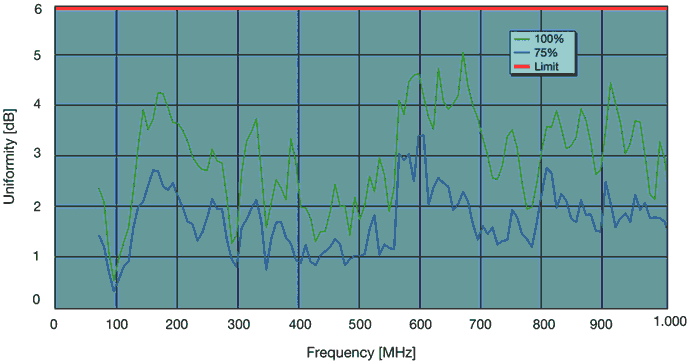

Example of actual field uniformity results in a TDK compact fully anechoic chamber CAC-S™ (measured by ARC Seibersdorf).

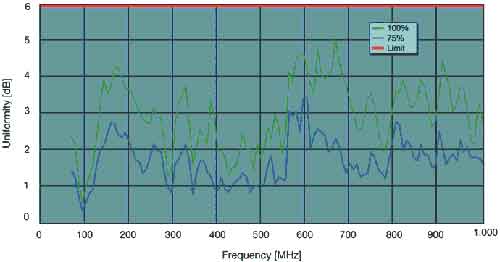

Example of actual field uniformity results in a TDK compact fully anechoic chamber CAC-S™ (measured by ARC Seibersdorf).


TDK CAC-S Compact Chamber (26 MHz - 18 GHz)

TDK Logo



Compact Fully Anechoic Chamber

CAC-S™



EMC Test Compact Chamber



with

ICM Ferrite Wedge

26 MHz - 18 GHz

  • Radiated emissions: Pre-compliance with EN 50147-2, ANSI C63.4, CISPR 22

  • Radiated immunity: Full compliance with IEC 1000-4-3

  • Fully lined double layer ferrite tile and ICM-006 absorber (TDK hybrid technology)

  • ICM-006 Ferrite Wedge is less than 3" tall

  • Space saving: 7.5 m long x 3.0 m wide x 3.0 m high (24'7" L x 9’-10" W x 9’-10" H)

  • Turnkey solution


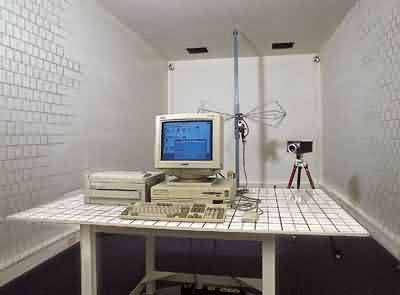

TDK CAC-S Compact Chamber (26 MHz to 1 GHz)

TDK Logo



Compact Fully Anechoic Chamber

CAC-S™



TDK 3 meter pre-compliance chamber



Data



26 MHz - 1 GHz

  • Radiated emissions: Pre-compliance with EN 50147-2, ANSI C63.4, CISPR 22

  • Radiated immunity: Full compliance with IEC 1000-4-3

  • Fully lined double layer ferrite tile and IP-045C absorber (TDK hybrid technology)

  • Space saving: 7.0 m long x 3.0 m wide x 3.0 m high (23’ L x 9’-10" W x 9’-10" H)

  • Turnkey solution

Chamber Specifications

  • Dimensions:  7.0 m long x 3.0 m wide x 3.0 m high (23’ L x 9’-10" W x 9’-10" H)

  • Absorbers:  IB-017 Fully lined double layer ferrite

  • NSA test volume (@ 3 m):  1.0 m Ř, 1.0 m high

  • Field uniformity area (-0, +6 dB):  1.5 m x 1.5 m, 0.8 m from floor

  • Radiated emissions:  Compliance with EN 50147-2

  • Radiated immunity:  Compliance with IEC 1000-4-3

  • EMI frequency range:  30 MHz - 1 GHz

  • EMS frequency range:  26 MHz - 1 GHz

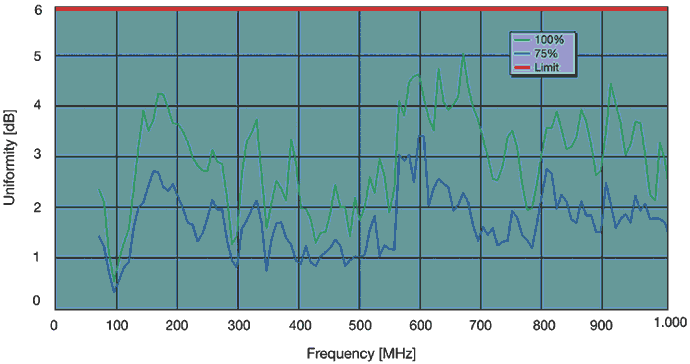

Example of actual field uniformity results in a TDK compact fully anechoic chamber CAC-S™ (measured by ARC Seibersdorf).

Example of actual field uniformity results in a TDK compact fully anechoic chamber CAC-S™ (measured by ARC Seibersdorf).
