RF Shielded Tent Quote

SFi RF Shielded Tent Quote Request Form

Select the RF Shielded Tent and Quantity

Select Tent Type     Quantity Required

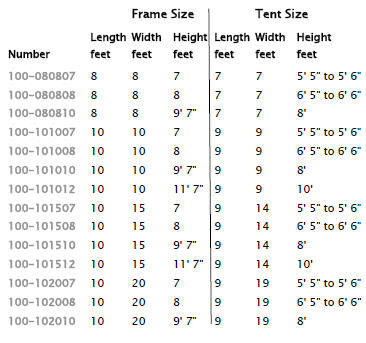

Enter the RF Shielded Tent Size & Shielding Performance
Dimensions Below Are For The Frame (Exterior) Dimensions Below Are For The Tent (Interior)
Length   Units  Width   Units  Height   Units

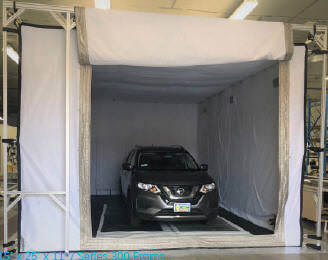

Large Equipment Door Required (Typically on a different wall than the personnel door)
Width    Units  Height   Units

  Click all that apply

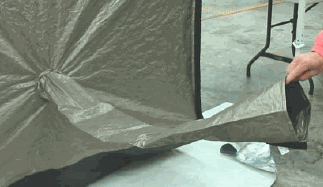

Shielding Performance  Single Wall Juno (60dB)  Double Wall Juno (80 dB)
   Single Wall Nova (70dB)  Double Wall Nova (90dB)
Fire Rated  Fabric Needs to be Fire Rated
ESD Liner  ESD Liner on the Inside  ESD Liner on the Outside
Microwave Absorber  Fully Anechoic Lowest Frequency
   Semi Anechoic Highest Frequency
    Min.Reflectivity (dB)

Select Fabricators RF Shielded Tent Accessories

Select

Part Number

Tent Options Description



RMEC0001

Additional 4" dia. x 3 feet long, Cable Sleeve



RMEC0008

Additional 5" dia. x 3 feet long, Cable Sleeve



RMEC0011

Additional 6" dia. x 4 feet long, Cable Sleeve



RMEC0073

Filter Plate without Ethernet

0-250 VAC, 15 Amp wall mounted removable plate with 5 outlet power cord 120 VAC, 15 Amp



RMEC0074

Filter Plate with Ethernet

0-250 VAC, 15 amp enclosure with 6-outlet power cord 120 VAC, 15 Amp

Ethernet: (2) 100 PF DB9 RF Filtered connectors to filter (2) RJ45/DB9 Adapter Kits

Note: Insertion Loss is only 40dB for the 100pf DB9, will degrade shielding effectiveness



RMEC0196

High Performance IO Plate without Ethernet, wall-mounted,

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100kHz to 40 GHz) with two (2) USA 120VAC/15A five outlet power strips rated for max. 20A and a L5-20P 120V/20A line cord



RMEC0196

-NEMA

High Performance IO Plate without NEMA cord:

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100 kHz to 40 GHz) with one USA 120VAC/15A five outlet power strip rated for max. 20A.



RMEC0197

High Performance IO Plate with Ethernet, wall-mounted,

Includes: 250 VAC/500 VDC/30A facility filter (-100 dB 100kHz to 40 GHz) with two (2) 10/100/1000 megabyte Ethernet media converters with cables & connectors, two USA 120VAC/15A five outlet power strips rated for max. 20A and a L5-20P 120V/20A line cord



RMEC0197

-NEMA

High Performance IO Plate with Ethernet, wall-mounted, without NEMA cord, 10/100/1000 gigabit Ethernet

Includes: 250VAC/500VDC/30A facility filter (-100 dB 100 kHz to 40 GHz) with two (2) 10/100/1000 megabit Ethernet media converters with cables & connectors, one USA 120VAC/15A five outlet power strips rated for max. 15A and a 5-15P 120V/15A line cord



RMEC0222

Blank Wall-Mounted Removable Plate with leg extenders



RMEC0072

Blank Input / Output Plate Assembly



BLANK I/O PLATE

Blank I/O Connector Plate for CK options below.



CK-0001

100 pf DB9 Connector

Note: Insertion Loss is only 40dB for the 100pf DB9, will degrade shielding effectiveness



CK-0002

1000 pf DB9 Connector

Note: Insertion Loss is only 63dB for the 1000pf DB9, will degrade shielding effectiveness



CK-0003

2500 pf DB9 Connector



CK-0004

1000 pf DB15 Connector



CK-0005

USA 5 Outlet Power Strip 120V/15A (Type B)



CK-0006

UK 5 Outlet Power Strip 250V/15A (Type G)



CK-0007

S. Africa 5 Outlet Power Strip 240V/15A (Type M)



CK-0008

USB B-A Coupler, Shielded



CK-0009

USB B-A Coupler, Filtered



CK-0011

SMA to F Bulkhead w/Dust Cap



CK-0013

BNC to F Bulkhead w/Dust Cap



CK-0014

SHV Jack Bulkhead w/Dust Cap



CK-0015

N Female Bulkhead



CK-0016

N to F Bulkhead w/Dust Cap



CK-0017

ST/ST Fiber Bulkhead - Multimode



CK-0018

RJ45/DB9 Shielded Adapter Kit



CK-0019

RJ11/DB9 Adapter Kit



CK-0020

6 Terminal DC Filtered Barrier



CK-0021

10/100/1000 Fiber Optic Ethernet System



CK-0022

ST/ST Fiber Bulkhead - Single Mode



CK-0024

100pf DB25 Connector



CK-0025

USB 2.0 High Speed Filtered Interface



CK-0026

RJ-45 Ethernet - Filtered



CK-0027

2500 pf DB25 Connector



CK-0029

4 Terminal DC Filtered Barrier



CK-0031

USB 2.0 Dual HP Filter



CK-0032

USB 3.0 HP Filter



CK-0033

USB 3.0 Dual HP Filter



CK-0035

RJ45 & USB 2.0 HP Filter



CK-0036

HDMI 1.4 Filtered



CK-0037

TNC Female/Female Connector



CK-0038

SO239 UHF Female/Female Connector



CK-0039

K Connector - 2.92mm F /2.92mm F Connector



CK-0040

1000pf DB25 Connector



CK-0041

1/2 in. x 4 in. Long Brass Waveguide



CK-0042

6 Line Waveguide (WGF-6)



CK-0043

RP-SMA/RP-SMA Connector



CK-0044

SMB/SMB Connector



CK-0045

1000pf DB50 Connector



CK-0046

RJ45 & USB 3.0 HP Filter



CK-0047

RJ-45 Ethernet 10G (Filtered)



CK-0056

USB 3.0 Type-C



CK-0058

Dual HDMI 1.4 Filtered



CK-0059

3/4 in. x 4 in. Long Brass Waveguide



RMEC0021

Size upgrade from Standard Door: 40 in. x 54.5 in. I.D. (58 in. x 64.5 in. O.D.) with either double (US Pat. No. 8,530,756) or single (U.S. Pat. No. 9,029,714) patented door sealing systems.



RMEC0022

ESD Liner  White Electrostatic Dissipative liner on the inside of the four walls and ceiling.

 Internal

 External

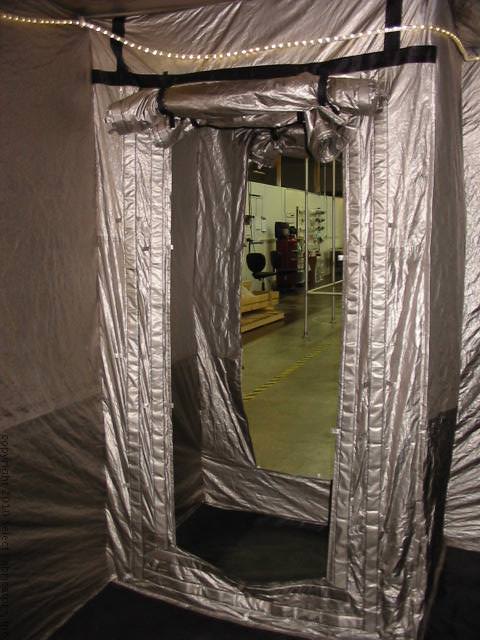

VESTIBULE

RF Shielded Entry Vestibule Size and door locations TBD

Vestibule / Foyer - Internal or External



RMEC0009

Cleanroom Services Onsite ISO Class 6 (class 1000 cleanroom) and isolated area which is ISO Class 5 (Class 100 cleanroom)



RMEC0006

Testing of Completed Enclosure to IEEE Std-299-2006

Standard Frequencies tested: 150 KHZ, 14, 26, 300 MHZ, .4, .8, 1, 3, 6, 10 12,14,16,18 GHz



RMEC0016

EMI Hardened String Lights Lights will operate on 100-240 Volts at 50 to 60 cycles.



RMEC Custom

Custom sized interior perimeter lighting based on enclosure size.



RMEC0221

Interior perimeter lighting system consisting of a two wire LED rope with a standard live feed (plug). Operates on 120 VAC, 60Hz for a 48" x 48" x 78" enclosure



RMEC0023

Fiber-optic interior perimeter lighting system consisting of a two wire LED rope with a standard live feed (plug)

LED Lighting for 7 foot x 7 foot Tent



RMEC0024

LED Lighting for 9 foot x 9 foot Tent



RMEC0025

LED Lighting for 9 foot x 14 foot Tent



RMEC0026

LED Lighting for 9 foot x 19 foot Tent

Ventilation: SFi strongly advises the use of a complete ventilation system or A/C unit with any tent that will contain people. Heat generated from equipment and/or people inside the tent. Lack of air circulation, the interior air quality may be affected.



RMEC0314

Ventilation System-Includes (2) 120 mm x 120 mm Dual Honeycomb Vent Panels with 12VDC fans for intake and (1) 6" x 12" Dual Honeycomb Vent Panel for exhaust. Includes 90-240VAC/12VDC power supply with USA Plug (USA Plug clip can be changed for International operation).  Air Flow: 204CFM.



RMEC0315

Ventilation System for Tabletop Tents - Includes (2) 120 mm x 120 mm Dual Honeycomb Vent Panels for intake and exhaust Includes (1) 120 mm 12 VDC Muffin Fan with 90-240VAC/ 12VDC power supply with USA Plug (USA Plug clip can be changed for International operation). Air Flow: 102 CFM



RMEC0374

Large Ventilation System with 7"x7" honeycomb vent panel and a 6" x 12" honeycomb exhaust panel with a 7" 24DC muffin fan Air flow: 470CFM



RMEC0030

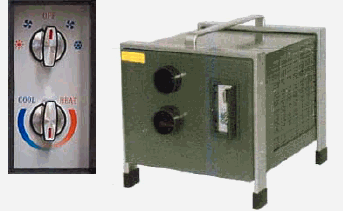

Air Conditioning: 5050 BTU/115v HVAC unit ready for hookup with hoses, two (2) honeycomb vents, and drip pan.

Note: Includes ventilation system RMEC0028 (above).



RMEC0030-NEW

Same as RMEC0030 plus RMEC0310 ventilation system.



RMEC0031

Air conditioning unit for large tents (250 min-500 max sq.)

12,000 BTU3.5 kW unit. Uses environmentally friendly

R410a refrigerant. No water collecting tank required.

Compact, portable, self-contained unit is installed via shielded vent and standard 5-15R outlet. Includes (2) 11.9" x 6.2" two-layer honeycomb vent panels for intake and exhaust plus RMEC0314 ventilaion system



RMEC0010

Canvas Carry Bag for tents, 18 in. x 33 in. x 12.5 in.



RMEC0004

Canvas Carry Bag for tents, 40 in. x 20 in. x 20 in.



RMMC0047

Series 100 Frame Deluxe Roller Bag, Up to 8 feet



RMMC0095

Series 100 Frame Deluxe Roller Bag, Up to 10 feet



RMMC0096

Series 100 Frame Deluxe Roller Bag, Up to 15 feet



RMMC0097

Series 100 Frame Deluxe Roller Bag, Up to 20 feet



RMMC0144

Series 100 Frame Hard Carry Case, Up to 10 feet High density polyethylene molded case with sturdy wheels and heavy duty handle.



3SKB-292-1MR

Hard Case for tent or frame 29 in. x 21.5 in. x 17 in.



1780T

Hard Case for tent or frame 42 in. x 22 in. x 15.1 in.



Please email us your specifications for custom sized tents
