An omnidirectional antenna is a class of antenna which radiates equal radio power in all directions perpendicular to an axis (azimuthal directions), with power varying with angle to the axis (elevation angle), declining to zero on the axis. When graphed in three dimensions this radiation pattern is often described as doughnut-shaped.



Schwarzbeck Omnidirectional Antennas

RE 1790

Schwarzbeck Logo

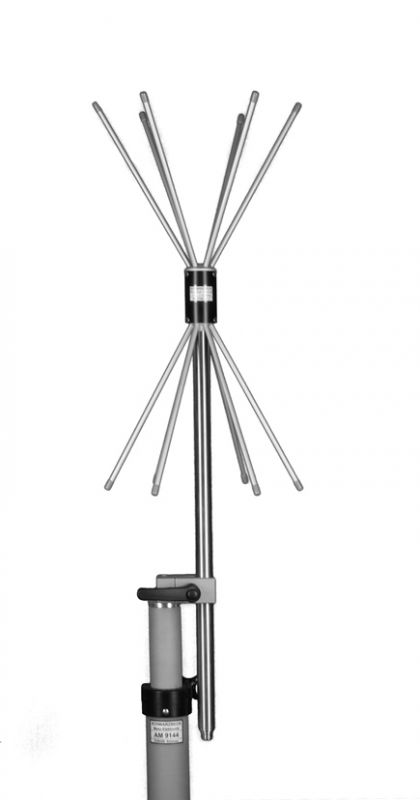

Schwarzbeck RE 1790

Vertical polarized VHF- UHF biconical antenna

(170) 230 - 1000 (1100) MHz

with omni directional H-plane pattern



 Datasheet RE 1790

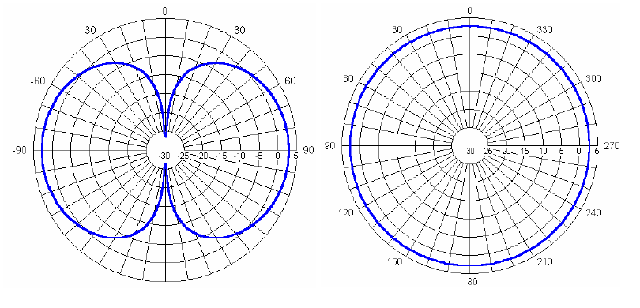

 Radiation Pattern


RE 4590

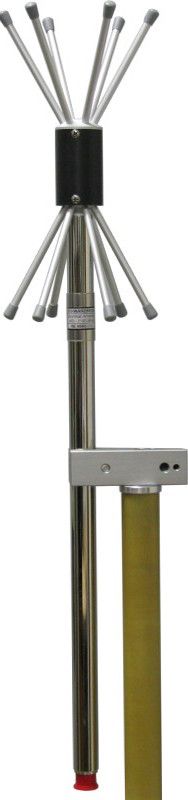

Schwarzbeck RE 4590

Vertical polarized VHF- UHF biconical antenna

(330) 450 - 1000 (1100) MHz

with omni directional H-plane pattern



 Datasheet RE 4590


RS 0460

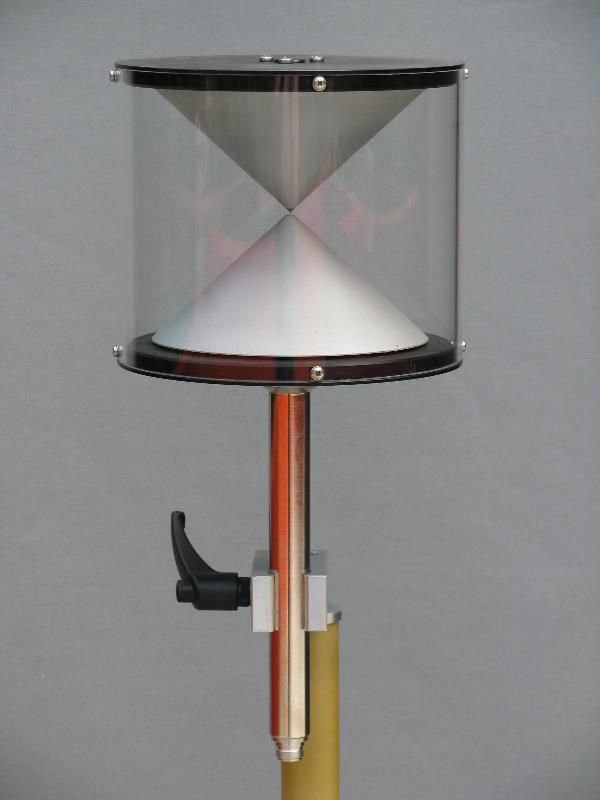

Schwarzbeck RS0460 Vertically Polarised Symmetrical Biconical Antenna

Vertically polarised symmetrical biconical antenna

0,4 - 6 GHz

omnidirectional in the H-plane



 Datasheet RS 0460


RSH 4786

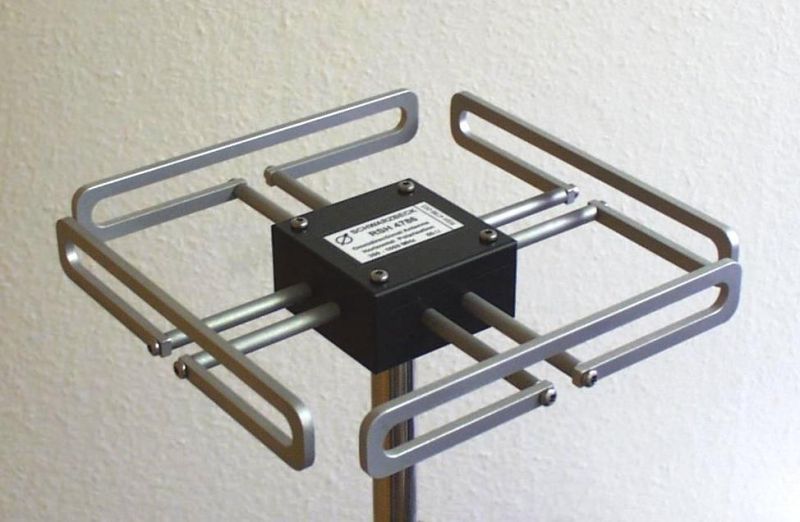

Schwarzbeck RSH4786 horizontal omnidirectional antenna



Horizontal polarised omnidirectional Antenna for mobile and stationary receive and transmit applications.



A typical application is the DVB coverage measurement using measurement vehicles.



Frequency range: 350 - 1050 MHz



 Datasheet RSH 4786

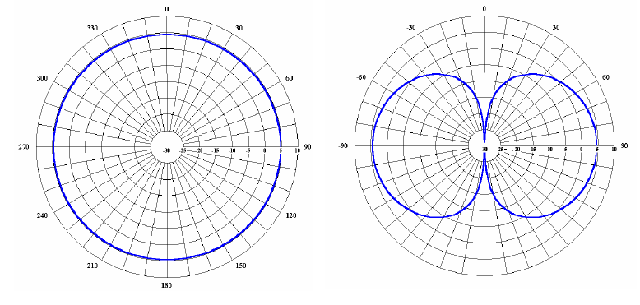

 Radiation Pattern


RSH 2342

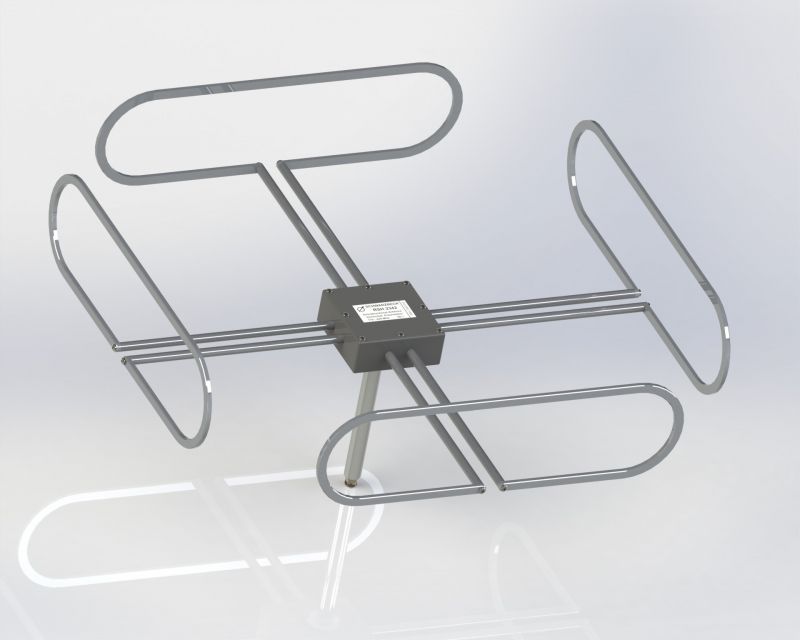

Schwarzbeck RSH2342 horizontal omnidirectional Antenna



Horizontal polarised omnidirectional Antenna for mobile and stationary receive and transmit applications.



A typical application is the DVB-T (DTMB,ATSC or ISDB-T) coverage measurement using measurement vehicles.


Frequency range: 170 - 350 MHz



 Datasheet RSH 2342



 Radiation Pattern



 TMC Design BM-03MM Biconical Monopole Antenna



TMC Design Logo

BM-03MM



500-2000 MHz



Wide Band Electronic Warfare Antenna





Multi-Octave Bandwidth
Linear Polarization
Rugged Construction





TECH DATA

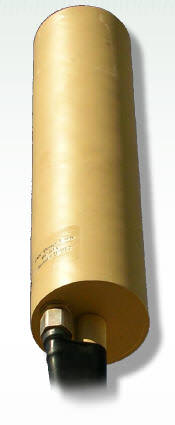

The BM-03MM is a wide-band, small bi-conical transmit and receive antenna contained within a rugged, sealed fiberglass dome.

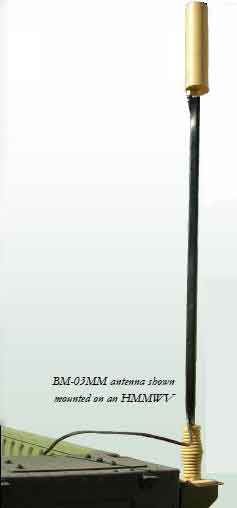

The antenna is manufactured to be mounted to an HMMWV and connected to a vehicle-based jammer.

Different mounting options are available.

Electrical Specifications

Model:

BM-03MM

Frequency:

500-2000 MHz

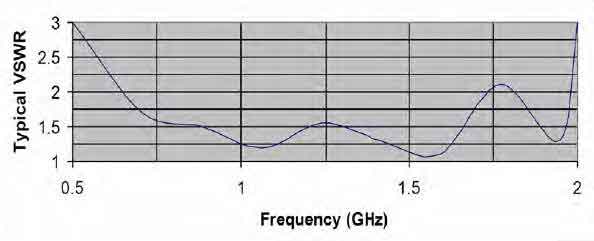

Gain (see gain plot):

4 dB (center frequency)

Power Handling:

100 watts CW

Polarization:

Linear (vertical)

VSWR:

3.0:1 maximum

Beamwidth:

360 x 85 degrees (Fo)
Mechanical Specifications

Dimensions:

5 1/2l x 5 1/2w x 64 5/6h

Weight:

12 lbs. (with mount)

Temperature:

-40 to +51 C

Environmental:

full mil-810 tested - temperature, shock and vibration









 TMC Design BM-03A & BM-3MM Biconical Monopole Antenna





TMC Design Logo

BM-03A



BM-03MM



500-2000 MHz



Wide Band Electronic Warfare Antenna



BM-03A

BM-03MM



 TECH DATA



The BM-03A is a wide-band, small biconical transmit and receive antenna contained within a rugged, sealed fiberglass radome.

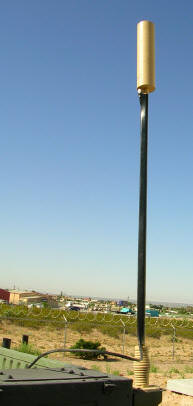

The antenna shown at left is attached to a HMMWV and vehicle based jammer but is available with a magnetic mount or as required for your application.

Email for information on complete systems design and fabrication.



Wide Bandwidth
Linear Polarization
Rugged Construction

Electrical Specifications

Model:

BM-03A & BM-3MM

Frequency:

500-2000 MHz

Gain:

4 dB (Fo)

Power:

100 watts (CW)

Polarization:

Linear (vertical)

VSWR:

3.0:1 maximum

Beamwidth:

360 x 85 degrees (Fo)

Mechanical Specifications

Dimensions:

3 1/4l x 3 1/4w x 13 1/2 h  BM-03A Antenna

Dimensions:

 5 1/2l x 5 1/2w x 64 5/6h  BM-03MM Unit Assembly

Weight:

3.0 lbs. Antenna   12.0 lbs. Assembly

Temperature:

-40 to +50 C

Environment:

full 810 military environmental shock, temp and vibe testing performed

Connector:

Type-N

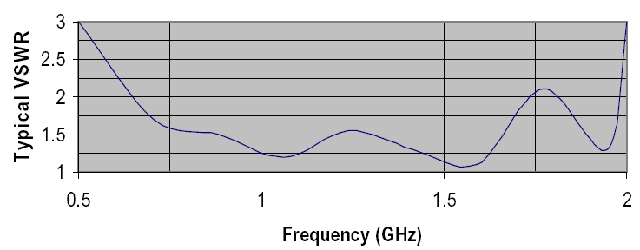

Charts & Graphs








 TMC Design BM-04 Biconical Monopole Antenna



TMC Design Logo

BM-04



30-500 MHz



Wide Band HPM Antenna

BM-04-A-L Antenna



Wide Bandwidth
Linear Polarization
Rugged Construction



 TECH DATA

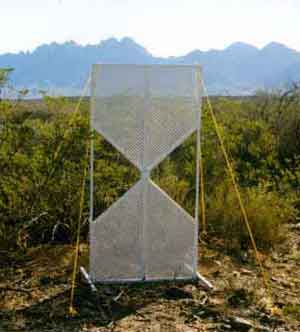

The BM-04 is a very wide band, electrically small biconical antenna designed to allow coverage of the VHF/FM communications band (30-88 MHz) without need of tuning systems.

The very wide bandwidth will also transmit fast rise pulses with high fidelity for HPM operations.

This rugged antenna is portable easily shipped/stored and can be set up and operational in a matter of minutes.

Guy kit included for outdoor operation in high winds.

Electrical Specifications

Model:

BM-04-A-L

Frequency:

30-500 MHz

Gain:

4 dB (center frequency)

Polarization:

Linear (typically vertical)

VSWR:

2.8:1 maximum (30-100 MHz)

3.0:1 maximum (25-500 MHz)

Beamwidth:

360 x 85 degrees (center frequency)

Power Handling:

to 100 watts continuous

(higher power versions available)

Mechanical Specifications

Dimensions:

72.5"x 38.2"

Weight:

28.6 lbs.

Temperature:

-20 to +150 F

Winds:

to 45 mph (with optional guy kit)

Environment:

Commercial / Industrial (MIL Spec available)

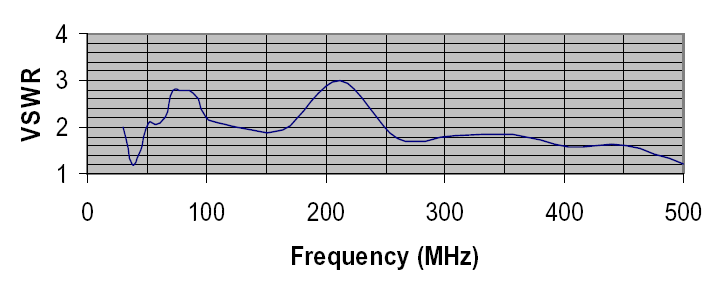

Charts & Graphs
