Universal Shielding Corp. (USC) Magnetic Resonance Imaging (MRI) Modular RF Shielded Rooms

USC was established in 1972 and during this time span has provided in excess of 40,000 pre-fabricated shielded enclosures to military, commercial and medical facilities. USC is proud to be the only company in the industry to have maintained its original ownership since its inception.


  • USC designs, manufactures, installs, and tests its MRI enclosures nationally and internationally.

  • USC's reliability, scope and quality of their services have earned them a well deserved reputation.

  • RF Shielded Enclosures have been approved by all magnetic resonance imaging (MRI) manufacturers.

  • Universal is extremely proud of threir reputation for on-time delivery, safety, reliability, and expertise.

MRI Architectural Specification Information

Specifications

Drawings



 MRI Modular Shielded Rooms

Universal Shielding

MRI Shield Room

Standard

&

Custom-Designed

Modular Enclosures to ANY Size



MRI RF Shielded Room



Universal Shielding Corp. is recognized as a leader in the medical industry for providing safe, interference-free environments for MRI.

MRI Shielded enclosures are not developed without a deep understanding of the problems faced by every customer, the RF shielding requirements of the specific MRI machines, and the expert knowledge of assembling and testing a shielded enclosure at the site.

Our experienced staff of designers, engineers, manufacturing staff, and installation crews have the necessary in depth knowledge to meet the shielded enclosure requirements of all MRI vendors.

We are extremely proud of our reputation for on-time delivery, safety, reliability, and expertise.

FIELD TYPE

USC-26 TYPICAL ATTENUATION

Magnetic

100 dB from 1 MHz to 30 MHz

Electric Fields

&

Plane Wave

100 dB from 10 MHz to 100 MHz

Plane Wave

100 dB from 400 MHz to 10 GHz

Microwave

100 dB at 10 GHz


MRI

RF Shield Doors

Solid

Clear Glass



RF Shielded Door Fingerstock



MRI Shielded Door



USC MRI Door



MRI RF Shielded Doors



Our shielded construction is a six sided pre- fabricated modular system which consists of panels joined together with a unique electro-zinc steel framing system.

Our panels consist of a wood core material with 26 gauge galvanized steel laminated to both sides. Our enclosures are designed to be free standing or supported from the parent room ceiling.

This system offers the following advantages.

  • Parent room wall and ceiling preparation are not required to install our shield. The contractor does not need to provide a superstructure for the attachment of our shielding.
  • The enclosure is modular allowing it to be modified in the future to accommodate different MRI magnets.
  • The enclosures can readily support interior finishes and systems
  • The enclosures provide both radio frequency (RF) attenuation as well as magnetic field attenuation
  • The enclosures are completely prefabricated and easy to assemble on site resulting in rapid installation, resulting in a complete ‘TURN-KEY’ installation



A shielded enclosure is only as effective as its access door.



Universal's unique design has proven its capability throughout the industry for the past 50 years.



Advantages:

  • Lightweight and easily operable

  • Excellent shielding characteristics

  • Aesthetically enhanced for medical environment

  • Two (2) rows of fingerstock seals concealed in brass extrusion

  • Easily serviceable and low maintenance

  • Doors finished with manual openers, hands free operation and various finishes.

  • Flush sills for easy entry

Installation and On-Site Testing

Our services include both installation and testing by our experienced field crews. The sequence
of our installation and testing will be as follows:
1. USC installs the entire MRI room and performs an RF Qualification Test.
2. USC opens the magnet entry wall to allow for the Magnet to be delivered.
3. The General Contractor completes all interior finishes in the MRI room except at the magnet entry.
4. The MRI is delivered.
5. USC closes the magnet entry wall and performs an RF Acceptance Test which is witnessed by the General Contractor and MRI personnel.

In addition, USC can perform magnetic field intensity gauss measurements after the installation of the magnet to ensure that the appropriate Gauss fields are contained.

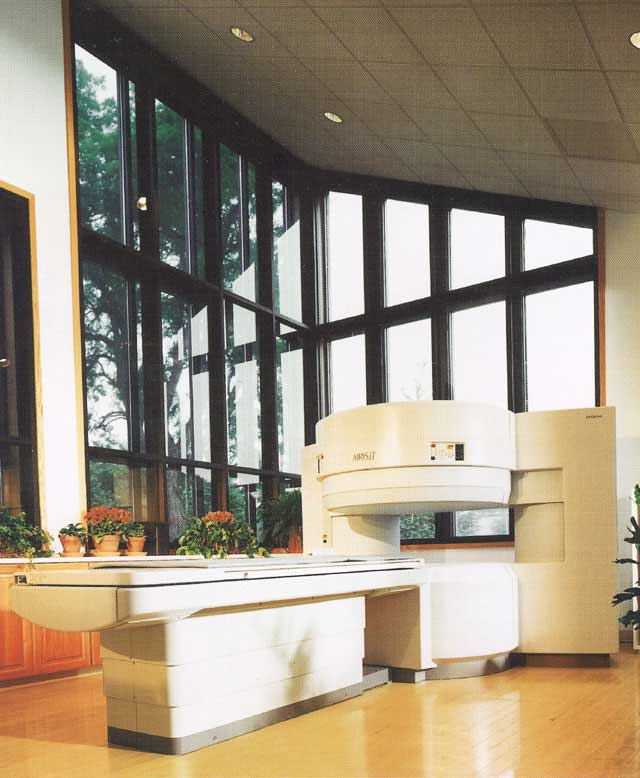

MRI Architectural

 &

View Windows





MRI Lighted Murials





MRI Shielded Glass





MRI Shielded Windows

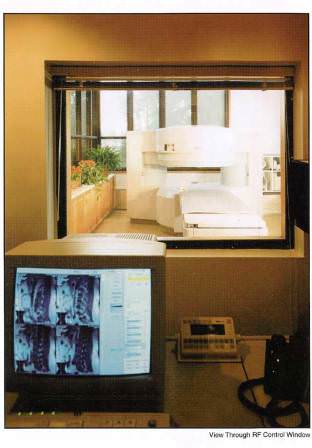

Universal RF shielded windows are designed to meet MRI attenuation specifications.



Crafted from a double layer of wire cloth with associated glazing, each window is coated to minimize visual moiré patterns.



Sliding windows are also available

Windows may be fabricated for skylights as well as large viewing areas.


MRI Lighted Murals



When a window isn't practical add a tranquil scene or advertising anywhere in the room



MRI Lighted Murials



RF Shielded back lit mural enclosures

Wood or Metal Framed

Standard fluorescent or LED lights

  • Sizes

  • 4' x 4'

  • 4' x 6'

  • 4' x 8'

  • Custom

No screen interference

Just add your mural or advertising





MRI RF Shielded Room Suite
