HP LF Log Periodic Antennas



TMC Design



        ...reasonable and timely solutions for the most  difficult engineering requirements

Manufactured and Serviced in Las Cruces, NM

At the TMC Design Antenna Division, we are committed to providing the finest antennas available to meet your requirements. We specialize in high power, airborne and ground based military Electronic Warfare antennas but produce a wide variety of commercial and industrial antennas as well. If you do not find an antenna for your application in our catalog, call or email us for a fast friendly quote on a custom design.

TMC Design High Power Log Periodic Antennas

LP Series



High Power

30 MHz to 500 MHz



HP Log Periodic Antenna



Log Periodic

Ground, Mobile & Airborne





TMC Design Corporation has many years experience in the design and fabrication of high power log periodic antennas.



We offer log periodic antennas covering the frequency spectrum from 20 MHz to 2 GHz.



Available in commercial or military grades.

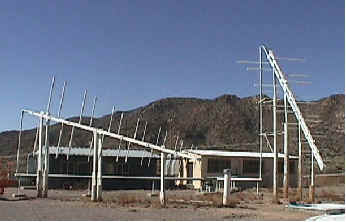

Very High Power Log Antenna

These high-powered LPDA is a directional log periodic array antennas are primarily designed for EW applications. It covers the frequency band from 30 to 500 MHz. It can handle a continuous minimum input power of 1000 W and has a gain greater than 7.5 dBi.
Every element in the LPDA antenna is a driven element, that is, connected electrically to the feedline. A parallel wire transmission line usually runs along the central boom, and each successive element is connected in opposite phase to it. The feedline can often be seen zig-zagging across the support boom holding the elements.

Model

Frequency - MHz

Gain dB

Beam width - degrees

Max Power - Watts

LP-19200-A-L

30-100

12

90x60

3,000

LP-18000-B-L

400-500

10.3

95x75

1,000

LP-16800-A-L

30-100

9.2

90x80

50,000

LP-2400-B-L

350-425

8.7

62x90

1,000

LP-3500-A-L

135-160

7.5

60x90

1,000

LP-3000-A-L

160-200

7.5

60x90

1,000

LP-6000-A-L

100-500

7.5

60x90

1,000



Dimensions





Model

Length

Width

Application

LP-19200-A-L

27 ft.

16 ft.

Ground, Mobile

LP-18000-B-L

32 in.

15 in.

Airborne

LP-16800-A-L

37 ft.

14 ft

Ground, Fixed

LP-2400-B-L

21 in.

24 in.

Airborne

LP-3500-A-L

21 in.

35 in.

Airborne

LP-3000-A-L

21 in.

30 in.

Airborne

LP-6000-A-L

90 in

60 in.

Ground, Mobile
