PRC-COM builds rugged antennas to withstand the most extreme test and operational environments.
If your system needs to work, work right, work the first time and last a long time, our antennas are the solution.
Each product is tested to insure electrical performance. Your out of the box electrical performance will meet your requirements. Each part is machined then measured to insure mechanical specifications are met. This insures fit and long term mechanical performance.

PRC COM BM-05G Wideband Omnidirectional Antenna

BM-05G

450 MHz - 6 GHz

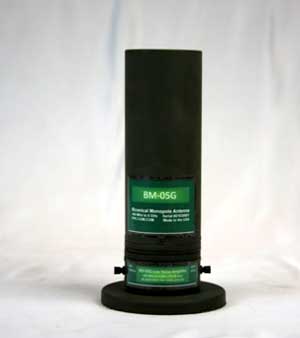

BM-05G

Shown with Antenna, LNA & Mag Mount



Standard Version

 Data



HP Version

 Data

Electrically Small

Passive Transmit

Wideband Test

Wideband Communications

Wideband Electronic Warfare

OmniDirectional Antenna

The BM-05G antenna is very wide band, electrically small biconical monopole antenna designed for wideband communications systems or electronic warfare without requiring large antennas or tuning systems.

The antenna is housed and sealed in a rugged radome to insure long life and electrical repeatability.

The BM-05G is an extremely wide band test and operations antenna designed to covering the 5G bands of operation (450 MHz to 6 GHz).

Applicable Bands: UHF, L, S, C & 5G

5G NR frequency bands (Frequency Range 1): n1 - n98 (n96 to 6GHz)

Electrical Specifications

Model:

BM-05G

Frequency:

450 MHz - 6 GHz

Gain (see gain plot):

4 dB (Fo)

Power Handling:

50 Watts CW (Standard ver.)
200 Watts CW (HP ver.)

Polarization:

Linear (vertical)

VSWR:

3.0:1 maximum

Beamwidth:

360 x 85 degrees (Fo)

Mechanical Specifications

Dimensions:

7.75" x 3.0” diameter

9.36" x 3.0" diameter with LNA

Weight:

31 oz. (1.3125 lbs.)

44 oz. (2.75 lbs.) with LNA

68 oz. (4.25 lbs.) with LNA & Mag Mount

Connector:

SMA (female) Standard ver.
Type-N (female) High Power ver.

Temperature:

-40° to +51° C

Environmental:

full mil-810 tested - temperature, shock and vibration

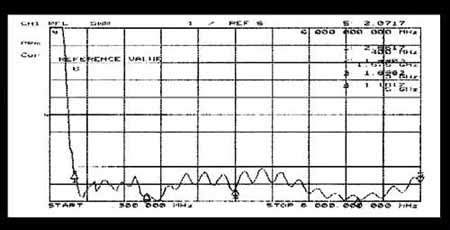

PRC COM BM-05G Performance Chart

BM-05G Performance Chart

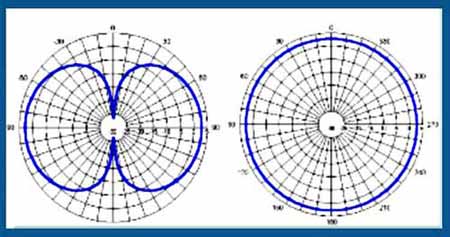

BM-05G Biconical Monopole Radiation Pattern

BM-05G Radiation Pattern

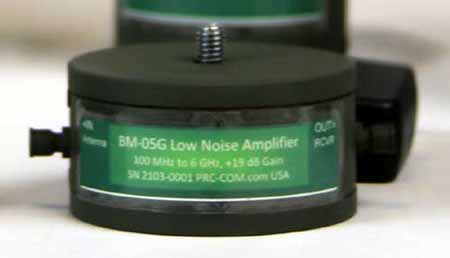

PRC COM BM-05G Low Noise Amplifier (LNA)

BM-05G LNA



100 MHz - 6 GHz

BM-05G LNA

Data

Low Noise Amplifier with power supply

The BM-05G LNA is a wide band low noise amplifier that covers 100 MHz to 6 GHz with a nominal gain of 19 dB and NF of 0.3 dB.

The LNA mounts to the bottom of the BM-05G antenna.

Mounting attachments are attached to the bottom of the LNA.

Electrical Specifications

Model:

BM-05G LNA

Frequency:

100 MHz - 6 GHz

Gain:

19 dB

Noise Figure:

0.3 dB

Power:

5 VDC

Mechanical Specifications

Dimensions:

1.6" x 3.0” diameter

Weight:

13 oz. (0.8125 lbs.)

Temperature:

-40° to +51° C

Environmental:

full mil-810 tested - temperature, shock and vibration

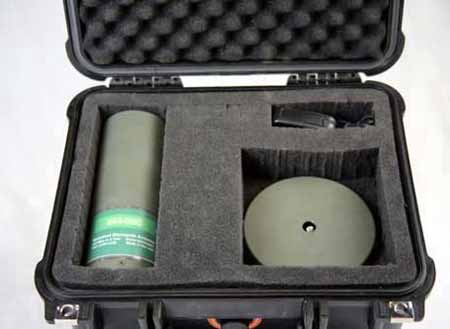

PRC COM BM-05G Antenna Flight Case

BM-05G Flight Case

BM-05G Transportation Case



Data

The optional flight case can be used for both storage and transport.

Shown here with optional Mag Mount and LNA attachment (BM-05G Kit).

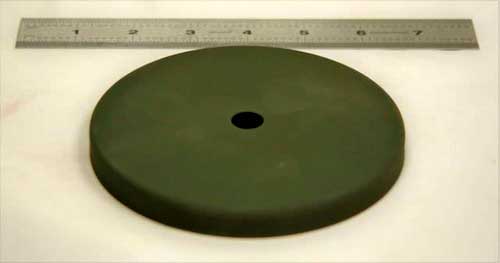

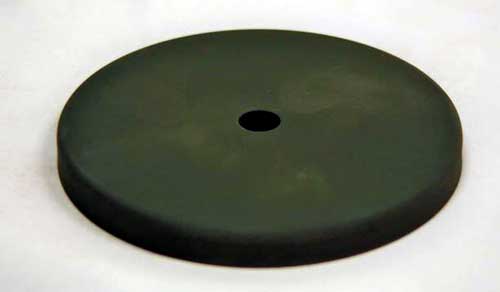

PRC COM BM-05G Magnetic Mount

BM-05G Magnetic Mount

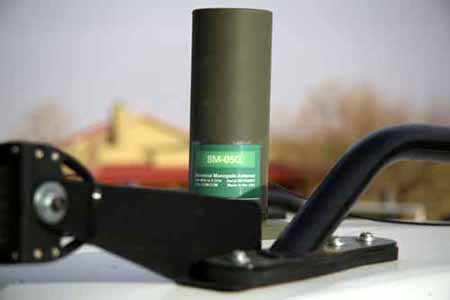

BM-05G Magnetic Mount

Attached to the roof of an SUV

BM-05G Magnetic Mount


Data

Magnetic Mount

Size: 4.925" diameter x 0.5" tall
Weight: 1 lb 8oz (1.67 lbs.)
Pull Force: 200 lbs.


Other Mounts Available:

Car Mount
Pole Mount
Thick Rubber Mount
Truck Mirror Mount
Custom Mount for Your Application


PRC COM BM-05G & BM-05GHP Antenna Kits

BM-05G Antenna Kit



PRC COM BM-05G Antenna Kit



Available as

 BM-05G (50W) Kit

Data

BM-05GHP (200W) Kit

Data

The BM-05G is a very wide band, omnidirectional, electrically small biconical antenna designed to allow coverage of the UHF Band, L Band, S Band and C Band, communications bands without need of tuning systems.

The very wide bandwidth will also transmit fast rise pulses with high fidelity for HPM operations.

This rugged antenna is portable easily shipped/stored and can be set up and operational in a matter of minutes.

Kit: Antenna, LNA, Mag Mount & Case

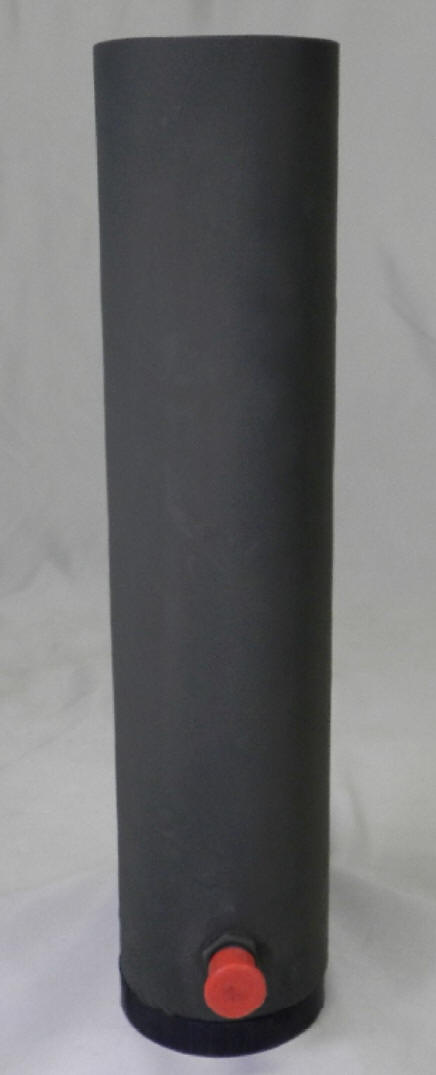

PRC COM BM-100-2000 Biconical Monopole Antenna

BM-100-2000 Antenna

BM-100-2000 Biconical Monopole Antenna



 BM-100-2000 Antenna

Data

The BM-100-2000 is a very wide band, electrically small biconical antenna designed to allow coverage of the VHF Band, UHF Band & L Band, communications bands without need of tuning systems.

The very wide bandwidth will also transmit fast rise pulses with high fidelity for HPM operations.

This rugged antenna is portable easily shipped/stored and can be set up and operational in a matter of minutes.



Frequency: 100MHz to 2GHz

Gain: 3.8dB (Fo)

Power: 100 Watts

Polarization: Vertical

VSWR: 3.0:1 (Max)

HPBW: 360° x 85° (Fo)

Kit: Antenna, LNA, Mag Mount & Case

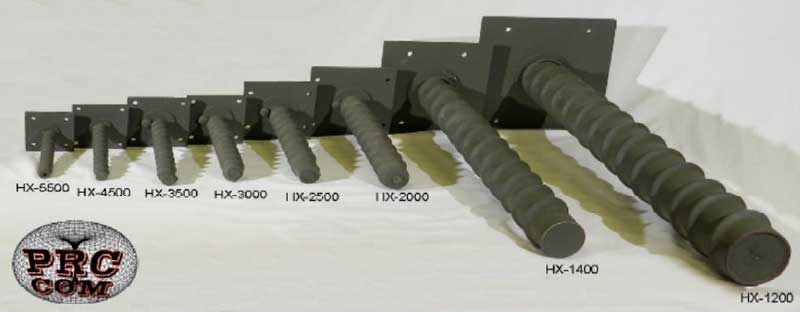

PRC COM Helical (Helix) Antennas

Custom Lower Frequency Helical Antennas Available

HX-1400 Helical Antenna Covers Entire GPS L1, L2, L3, L4 & L5 Frequency Bands

Available in RHCP (Standard) and LHCP (No Added Cost Option)

PRC COM Helical Antennas

Model pdf

Frequency (MHz)

Gain (dB)

Beam Width

(degrees)

Max Power

(watts)

HX-0700-06-R

540 - 855

8.2

45

Type-N:200

HX-0800-06-R

625 - 975

8.4

44

Type-N:200

HX-0900-06-R

700 - 1100

8.5

44

Type-N:200

HX-0900-08-R

700 - 1100

8.7

38

Type-N:200

HX-0900-10-R

700 - 1100

11.5

34

Type-N:200

HX-0900-13-R

700 - 1100

13.2

30

Type-N:200

HX-1000-06-R

780 - 1220

8.2

45

Type-N:200

HX-1000-08-R

780 - 1220

9.5

39

Type-N:200

HX-1000-10-R

780 - 1220

11

35

Type-N:200

HX-1200-06-R

940 - 1470

8.5

44

Type-N:200

HX-1200-08-R

940 - 1470

9.7

38

Type-N:200

HX-1200-10-R

1000 - 1500 11 35

Type-N:200

HX-1200-12-R

1000 - 1500 12 32

Type-N:200

HX-1200-13-R

1000 - 1500 14.2 31

Type-N:200

HX-1200-14-R

1000 - 1500 15.2 30

Type-N:200

HX-1400-06-R

1100 - 1700

8.2

45

Type-N:200

HX-1400-08-R

1100 - 1700

9.5

39

Type-N:200

HX-1400-10-R

1100 - 1700

10.4

35

Type-N:200

HX-1400-13-R

1100 - 1700

11.6

31

Type-N:200

HX-2000-10-R

1500 - 2440

10.4

35

Type-N:200

HX-2500-06-R

1950 - 3000

8.5

42.5

Type-N:200

HX-2500-08-R

1950 - 3000

9.7

36.8

Type-N:200

HX-2500-10-R

1950 - 3000

11.5

32.9

Type-N:200

HX-2500-13-R

1950 - 3000

13

28.9

Type-N:200

HX-3500-06-R

2900 - 4200

8.5

42.5

Type-N:200

HX-3500-08-R

2900 - 4200

9.7

36.8

Type-N:200

HX-3500-10-R

2900 - 4200

11

32.9

Type-N:200

HX-3500-13-R

2900 - 4200

13

28.9

Type-N:200

HX-4500-10-R

3800 - 5200

10.2

37

SMA:50

HX-5500-10-R

4800 - 6000

10.2

36

SMA:50
