Biconical Antennas (20MHz - 600MHz)

Schwarzbeck Logo

TDK RF Solutions

Biconical Antennas have dipole like characteristics (e.g. circular directional pattern in the H-plane,"8"-shaped in the E-plane, fixed phase center, comparable gain), with an enormous wide bandwidth achieved by the double cone elements. One of the earliest and worldwide most popular biconical antenna designs is the BBA 9106 with balun VHA 9103 B. During the last years a growing need for expanded frequency ranges arised, which led to the design of biconical antennas reaching down to frequencies of 20 MHz and up to 18 GHz and above. A further increase of bandwidth was achieved with qualified 4:1 baluns, providing a typical gain increase of approx. 6 dB at the lower frequency range. The biconical elements can be mounted and dismounted within a few seconds providing perfect contact repeatability thanks to special clamping fixtures. A small wrench made of insulating material is supplied with the balun, it is tied to the balun head and thus always available whenever needed. Biconical antennas can be used for many applications, in which half-wave dipoles have been used traditionally. An enormous reduction of measurement time can be achieved, because the time consuming tuning of the antenna elements to the half wavelength is not needed, an important condition for sweeped broadband measurements. In typical dipole applications several discrete frequencies are measured, in contrast the biconical antenna allows continuous sweeps, where site anomalies are discovered much easier.

Typical applications for biconical antennas are:

  • Broadband RX-antenna for emission testing (20-300 MHz)
  • TX-antenna for immunity testing, especially at low frequencies
  • Measurements of shielding effectiveness
  • Evaluation of test sites e.g. anechoic rooms (FAC) and open area test sites (OATS)
  • Passive field probe for immunity testing





Schwarzbeck Biconical Antennas (15MHz to 6GHz)

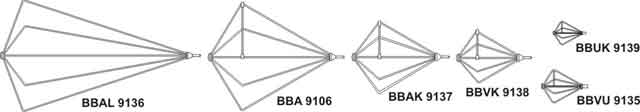

biconel


pdficon large Overview Biconical Antennas


BBA 9106 + VHA 9103 B




BBA 9106 biconical elements in combination with the VHA 9103B antenna holder/balun.

30 - 300 MHz

10 W

RX



Datasheet BBA9106 + VHA9103



VSWR BBA9106 + VHA9103


BBA 9106 + VHBB 9124

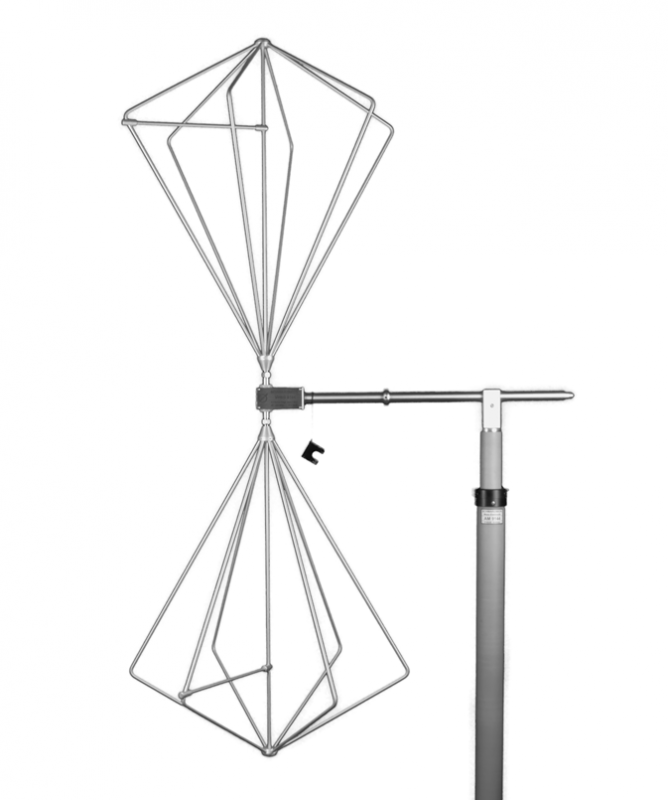

Schwarzbeck BBA 9106 elements with VHBB 9124 Antenna Holder

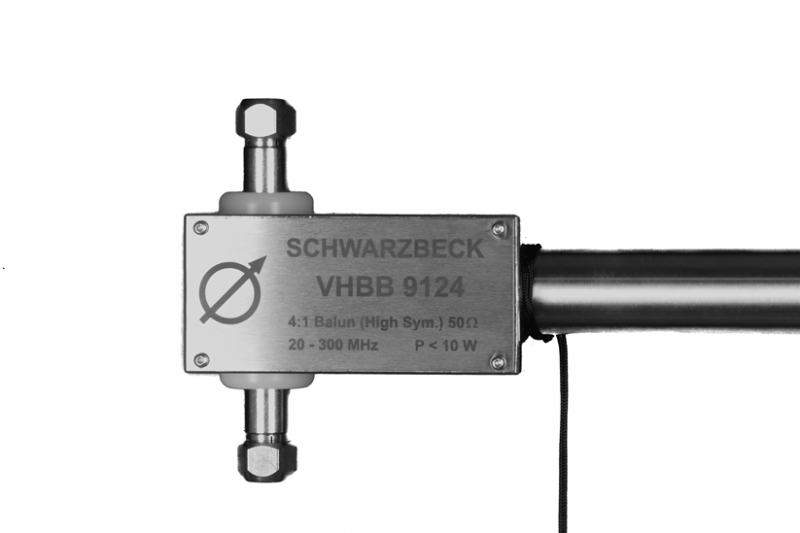

Schwarzbeck VHBB 9124

BBA 9106 biconical elements in combination with the VHBB 9124 antenna holder/balun.

30 - 300 MHz

10 W

RX



Datasheet BBA9106 + VHBB9124


BBA 9106 + HFBA 9122




HFBA 9122 broadband balun/holder with BBA 9106 biconical elements especially to measure very high field strength.

(0.1) 0.15 - 300 (500) MHz



Datasheet BBA9106 + HFBA9122


BBA 9106 + VHBA 9123




VHBA 9123 broadband balun/holder with BBA 9106 biconical elements.

30 - 300 MHz

TX

100 W



Datasheet BBA9106 + VHBA9123


BBA 9106 + VHBC 9133




VHB 9133 broadband balun/holder with BBA 9106 biconical elements.

30 - 300 MHz

TX

1 KW



Datasheet BBA 9106+VHBC 9133


BBA 9106 + VHBD 9134




VHBD 9134 broadband balun/holder with BBA 9106 biconical elements.

30 - 200 MHz

TX

2.5 KW



Datasheet BBA9106+VHBD9134


BBAL 9136 + VHA 9103 B




BBAL 9136 biconical elements in combination with the VHA 9103B antenna holder/balun.

20 - 200 MHz

10 W

RX



Datasheet BBAL 9136+VHA9103



VSWR BBAL 9136 + VHA9103


BBAL 9136 + VHBB 9124

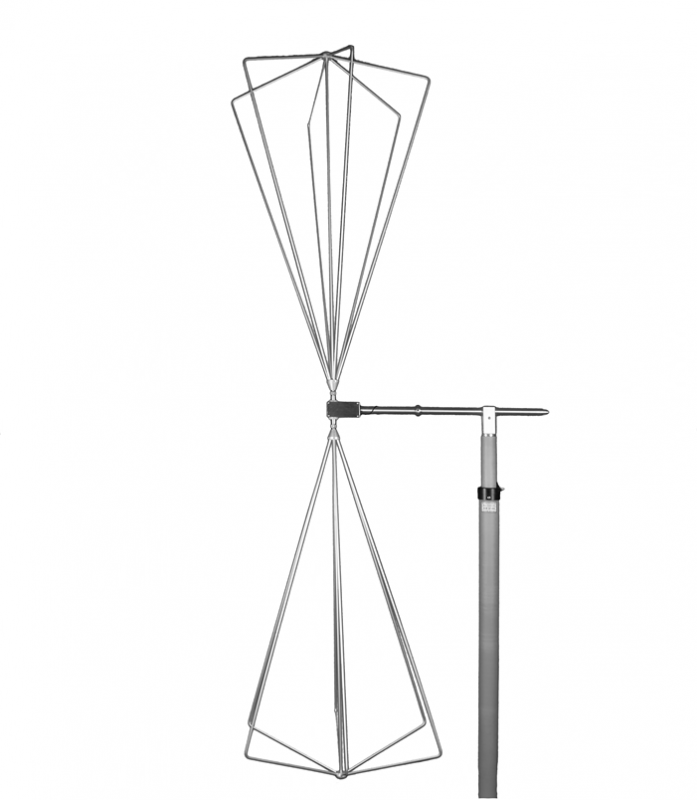

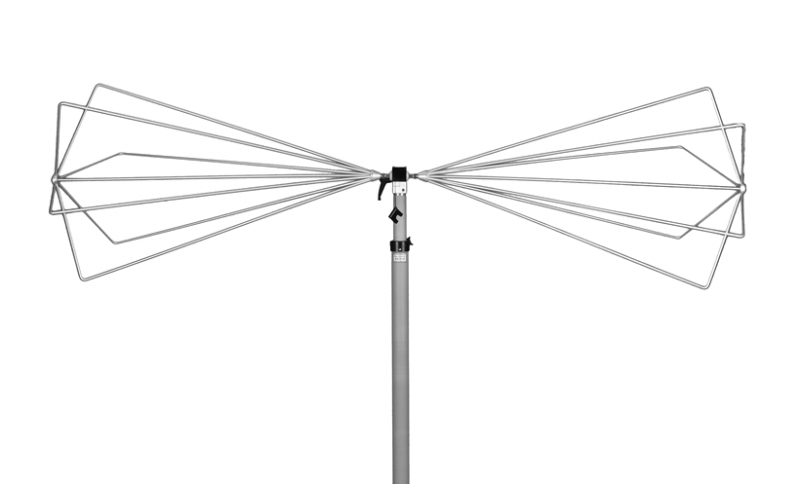

Schwarzbeck BBAL 9136 biconical elements in combination with the VHBB 9124 Antenna Holder





Schwarzbeck BBAL9136 biconical elements in combination with the VHBB9124 Antenna Holder





Schwarzbeck VHBB 9124

BBAL 9136 biconical elements in combination with the VHBB 9124 antenna holder/balun.

20 - 200 MHz

10 W

RX



Datasheet BBAL 9136+VHBB9124


BBAL 9136 + HFBA 9122




HFBA 9122 broadband balun/holder with BBAL 9136 biconical elements especially to measure very high field strength.

(0.1) 0.15 - 300 (500) MHz

10W



Datasheet BBAL 9136+HFBA9122


BBAL 9136 + VHBA 9123




VHBA 9123 broadband balun/holder with BBAL 9136 biconical elements.

20 - 200 MHz

TX

100 W



Datasheet BBAL 9136+VHBA9123


BBAL 9136 + VHBC 9133




VHB 9133 broadband balun/holder with BBAL 9136 biconical elements.

20 - 200 MHz

TX

1 KW



Datasheet BBAL 9136+VHBC9133


BBAL 9136 + VHBD 9134




VHBD 9134 broadband balun/holder with BBAL 9136 biconical elements.

20 - 200 MHz

TX

2.5 KW



Datasheet BBAL 9136+VHBD 9134



new: Booster Coils

The booster coils are used to generate highest field strengths in conjunction with a high power balun (e.g. VHBD 9134-4 or VHBD 9134) and radiating elements (e.g. BBAL 9136 or BBAE 9179) in the frequency range from 20 MHz to approx. 60 MHz.

Datasheet BCOI 9180


BBAK 9137 + VHA 9103 B




BBAK 9137 biconical elements in combination with the VHA 9103B antenna holder/balun.

45 - 450 MHz

10 W

RX



Datasheet BBAK 9137+VHA9103


BBAK 9137 + HFBA 9122




HFBA 9122 broadband balun/holder with BBAK 9137 biconical elements especially to measure very high field strength.

(0.1) 0.15 - 300 (500) MHz

10W



Datasheet BBAK 9137+HFBA9122


BBAK 9137 + VHBB 9124

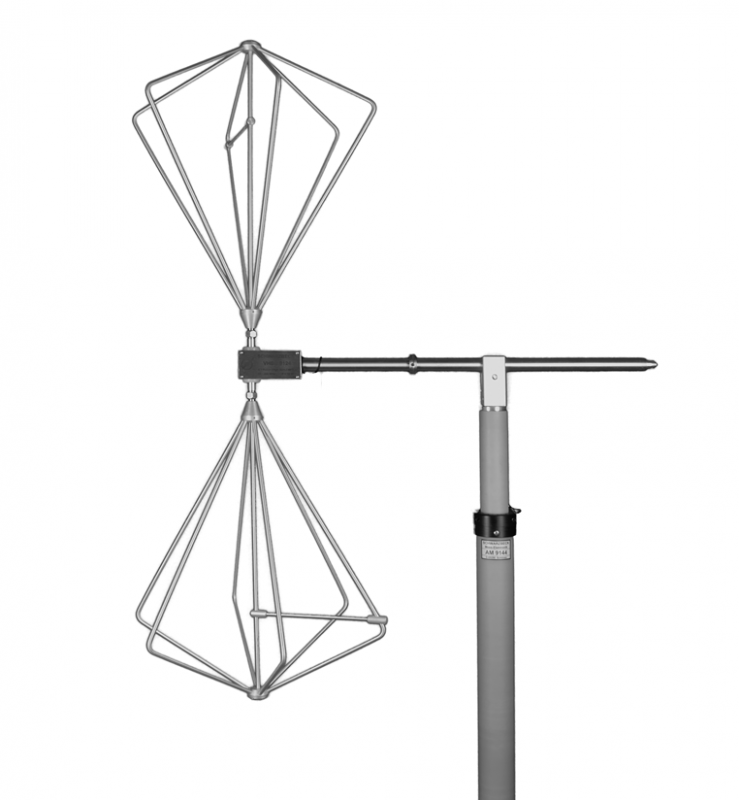

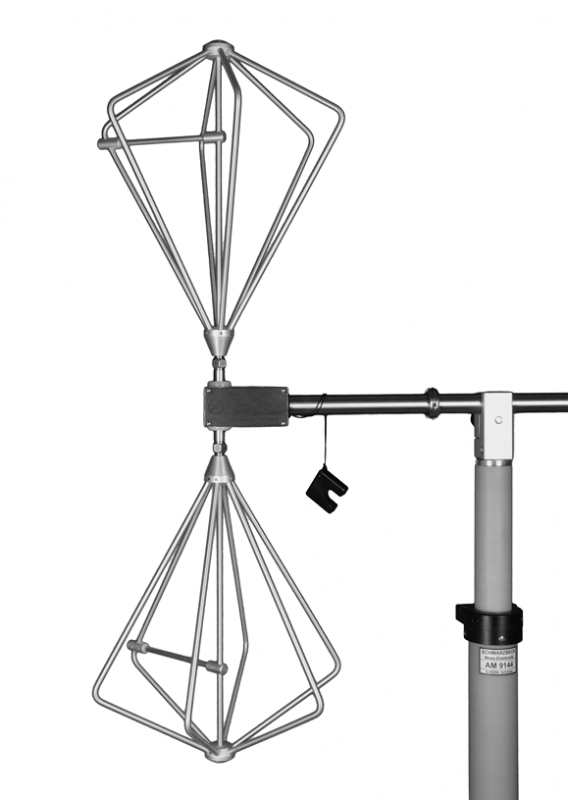

Schwarzbeck BBAK 9137 Biconical Elements with the VHBB 9124 Antenna Holder





Schwarzbeck VHBB 9124

BBAK 9137 biconical elements in combination with the VHBB 9124 antenna holder/balun.

45 - 450 MHz

10 W

RX

Datasheet BBAK 9137+VHBB 9124


BBVK 9138 + VHA 9103 B




BBVK 9138 biconical elements in combination with the VHA 9103B antenna holder/balun.

60 - 600 MHz

10 W

RX



Datasheet BBVK 9138+VHA9103


BBVK 9138 + HFBA 9122




HFBA 9122 broadband balun/holder with BBVK 9137 biconical elements.

(0.1) 0.15 - 300 (500) MHz

10W



Datasheet BBVK 9138 + HFBA9122


BBVK 9138 + VHBB 9124



Schwarzbeck BBVK 9138 Biconical Elements with VHBB 9124 Antenna Holder

BBVK 9138 biconical elements in combination with the VHBB 9124 antenna holder/balun.

60 - 600 MHz

10 W

RX



Datasheet BBVK 9138+VHBB9124


BBVU 9135 + UBAA 9114

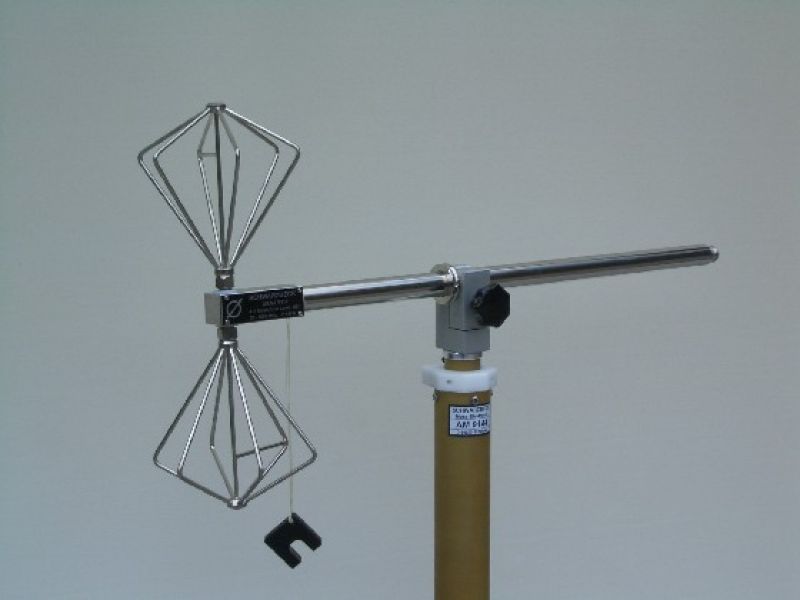

Schwarzbeck UBAA 9114 Broadband Balun_Holder with BBUK 9139 Biconical Elements

BBVU 9135 biconical elements in combination with the UBAA 9114 antenna holder/balun.

low-loss

30 - 1000 MHz

5 W

RX



Datasheet BBVU 9135+UBAA9114


BBVU 9135 + UBAA 9115




BBVU 9135 biconical elements in combination with the UBAA 9115 antenna holder/balun.

extremely high symmetry

30 - 1000 MHz

5 W

RX



Datasheet BBVU 9135+UBAA9115


BBUK 9139 + UBAA 9114




BBUK 9139 biconical elements in combination with the UBAA 9114 antenna holder/balun.

low-loss

30 - 1200 MHz

5 W

RX



Datasheet BBUK 9139+UBAA9114



Radiation Pattern



Datasheet UBAA9114


BBUK 9139 + UBAA 9115




BBUK 9139 biconical elements in combination with the UBAA 9115 antenna holder/balun.

extremely high symmetry

30 - 1200 MHz

5 W

RX



Datasheet BBUK9139+UBAA 9115


SBA 9113 B




Small biconical antenna

80 MHz - 3 GHz

for harmonics measurements acc. to IEC61000-4-3



Datasheet SBA 9113 B



Fieldstrength

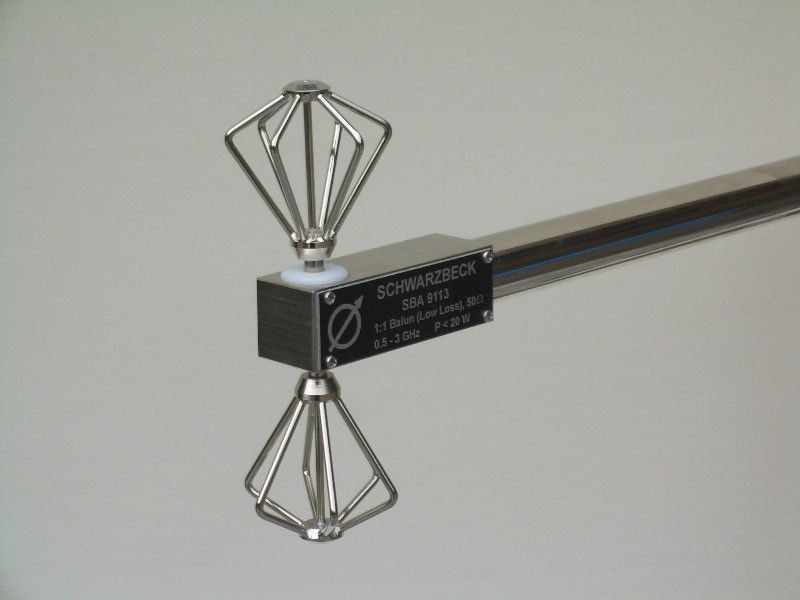

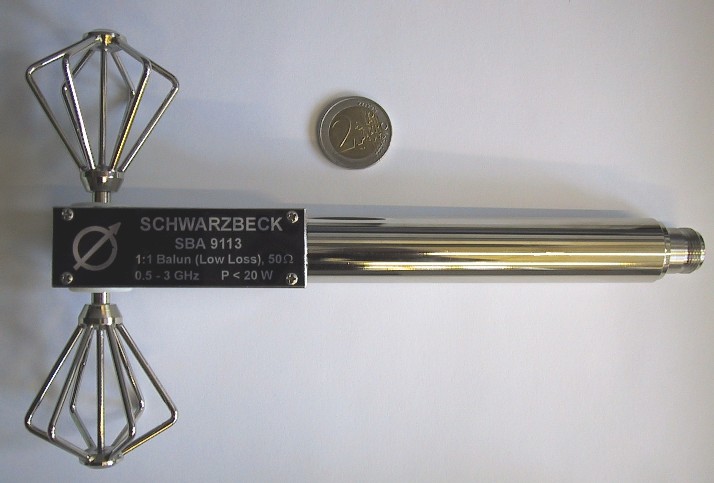

 SBA 9113



9113

Small biconical microwave antenna

0.5 - 3 GHz

20 W

miniversion on request

CISPR16-1-4:2007-02 Ed. 2.0

Site validation above 1 GHz



Datasheet SBA 9113



Radiation Pattern



VSWR



Fieldstrength


420 NJ

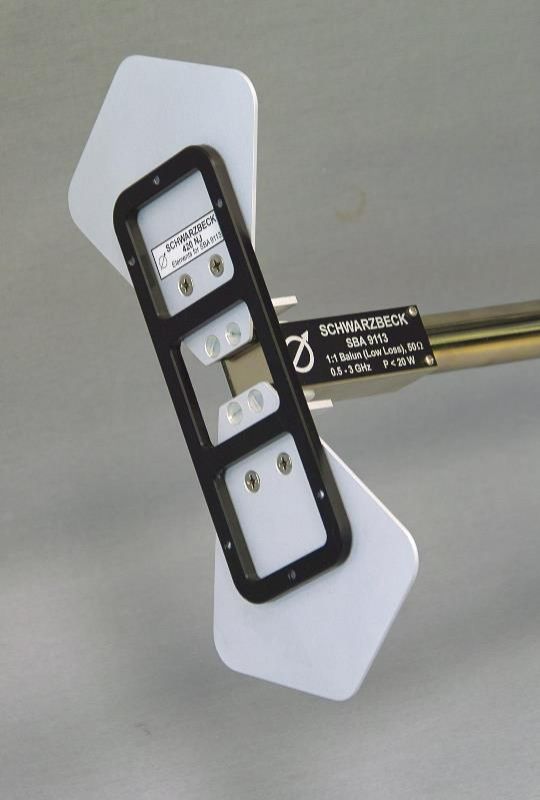

Schwarzbeck 420NJ

420 NJ

Elements for radiated immunity caused by hand portable transmitters

with SBA 9113 or SBA 9113 mini version for the Ford standard RI115 (Ford EMC CS 2009)

Option:

Opt: Spacer 50

Spacer made of Polystyrene to set the 420 NJ elements test distance to 50 mm.



Datasheet 420 NJ


SBA 9112

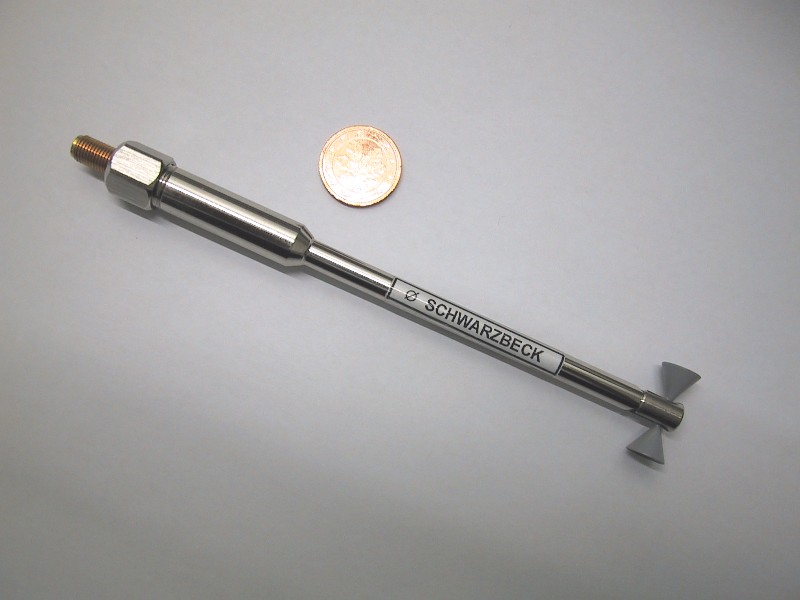

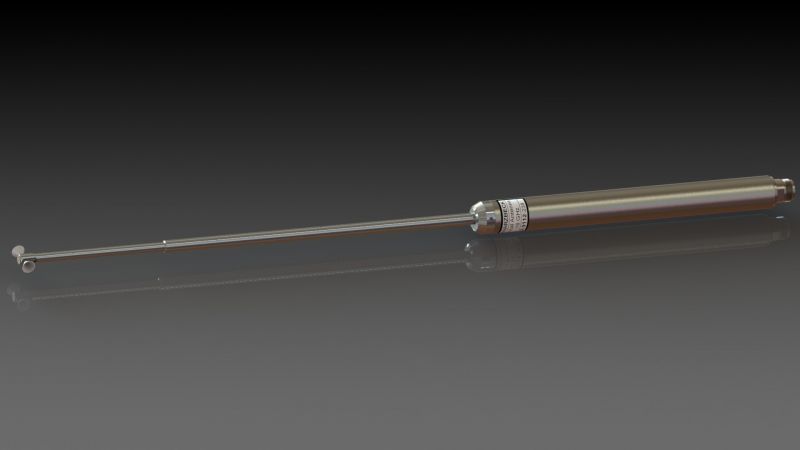

Schwarzbeck SBA9112 small biconical antenna for site validation above 1 GHz

Small biconical microwave antenna

(1) 3 - 18 GHz

10 W

including transport case

CISPR16-1-4:2007-02 Ed. 2.0

The SBA 9112 are compliant to CISPR 16-1-4 for site validation above 1 GHz.

Site validation above 1 GHz

(Site-VSWR)

mini version on request



Datasheet SBA 9112



E-plane pattern



H-plane pattern



VSWR



Fieldstrength


SBA 9119

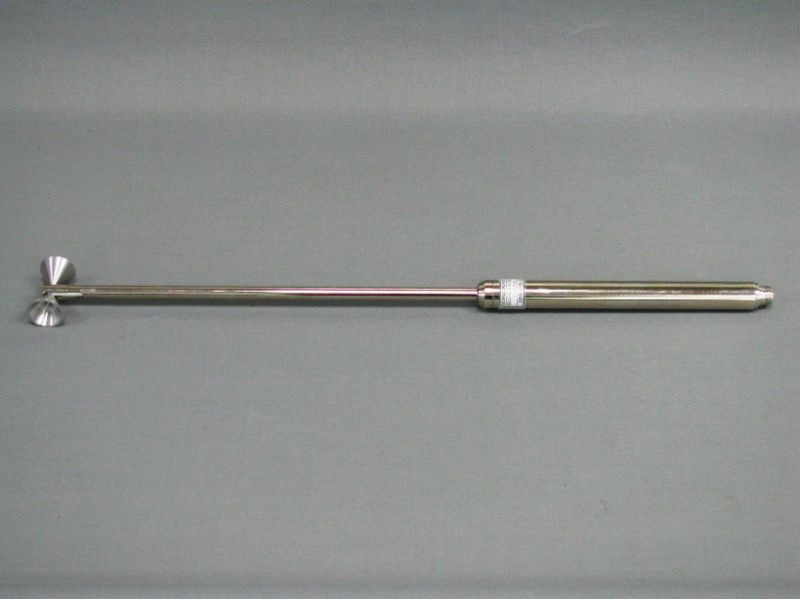

Schwarzbeck SBA9119 small biconical broadband antenna  for site validation above 1 GHz

Small biconical microwave antenna

1 - 6 GHz

20 W

The SBA 9119 are compliant to CISPR 16-1-4 for site validation above 1 GHz.

Including transport case.



Datasheet SBA 9119



Radiation Pattern



Fieldstrength.pdf


UBA 9116

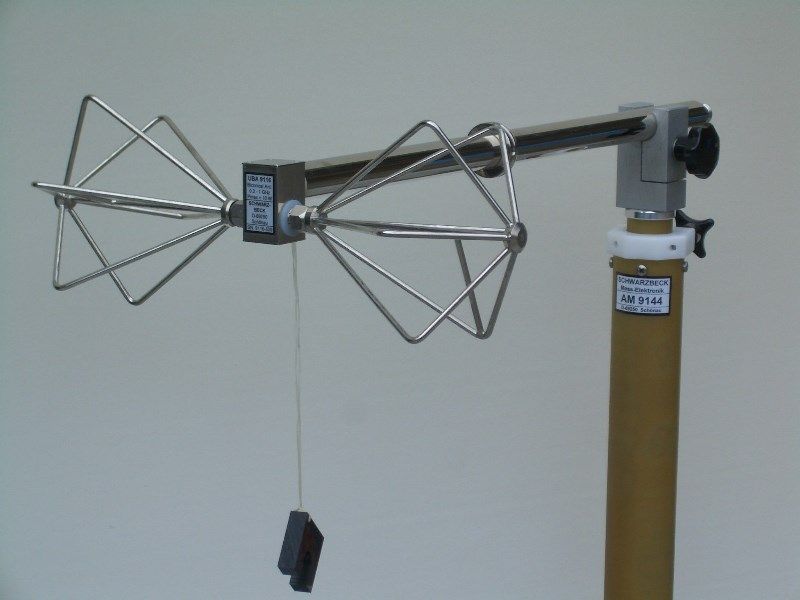

Schwarzbeck UBA 9116

Biconical UHF broadband antenna

(160) 300 -1000 (1100) MHz



Datasheet UBA 9116.pdf



VSWR.pdf



Radiation Pattern



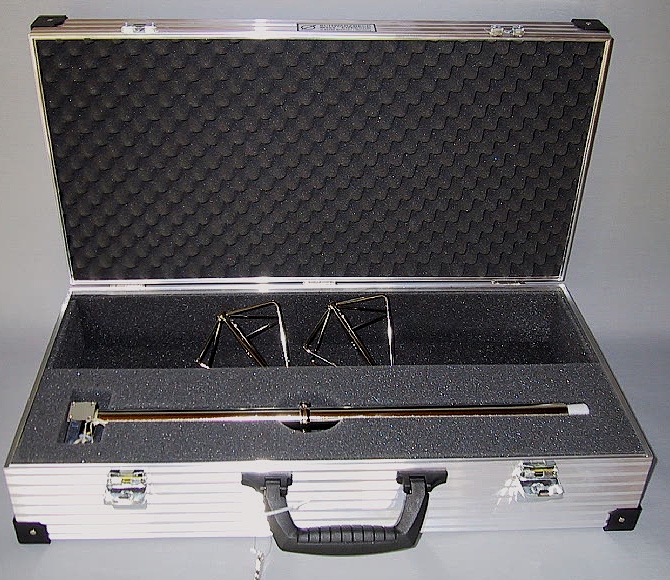

[Picture with CCA]


VUBA 9117

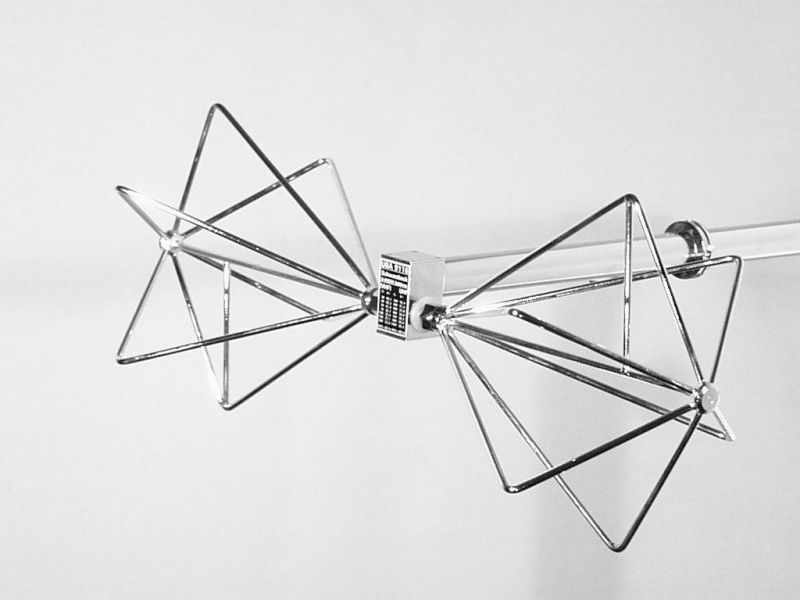

Schwarzbeck  VUBA9117 biconical broadband antenna

Biconical VHF-UHF broadband antenna

(30) 150 -1000 MHz



Datasheet VUBA 9117



Radiation Pattern


RS 16

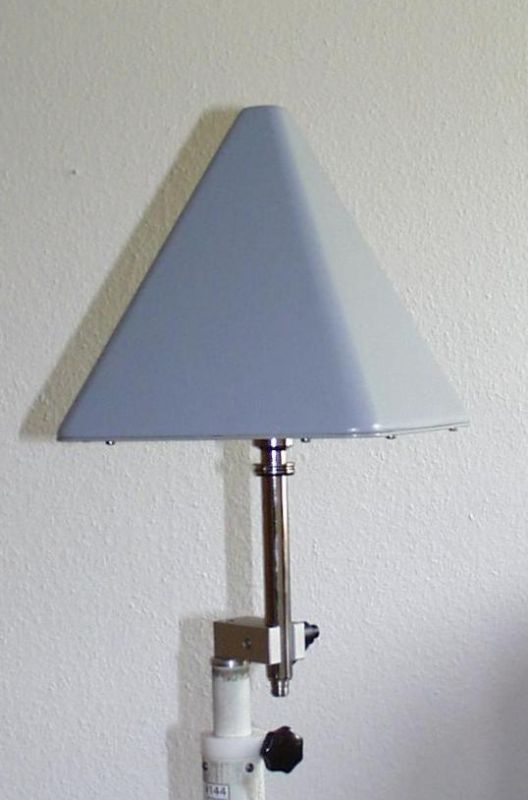

Schwarzbeck RS16 vertical polarized microwave biconical antenna

Vertical polarized microwave biconical antenna

(0,5) 1 - 6 (8,5) GHz

with omni directional H-plane pattern



Datasheet RS 16



Radiation Pattern


RE 1790



Schwarzbeck RE 1790

Vertical polarized VHF- UHF biconical antenna

(170) 230 - 1000 (1100) MHz

with omni directional H-plane pattern



Datasheet RE 1790



Radiation Pattern


RE 4590



Schwarzbeck RE 4590

Vertical polarized VHF- UHF biconical antenna

(330) 450 - 1000 (1100) MHz

with omni directional H-plane pattern



Datasheet RE 4590


RS 0460



Schwarzbeck RS0460 Vertically Polarised Symmetrical Biconical Antenna

Vertically polarised symmetrical biconical antenna

0,4 - 6 GHz

omnidirectional in the H-plane.



Datasheet RS 0460



TDK Biconical EMC Test Antennas (20MHz to 600MHz)





 Precision Biconical Antenna


PBA-2030



TDK PDA-2030 Antenna



20 MHz - 300 MHz



300 Watts CW



Data





The TDK RF Solutions PBA-2030 Precision Biconical Antenna features a patent pending design that provides optimum performance over the frequency range of 20 MHz to 300 MHz.

  • Improved balun provides superior patterns and balance

  • Improved biconical element design (patent pending)

  • Effective internal choke provides immunity to externally induced imbalance

  • VSWR: 2.5:1 average

  • Power Handling: 300 W maximum

  • Size: 138 cm x 53 cm x 72 cm (L x W x H)

  • Feed-point Impedance: 50 ohms nominal

  • Weight: 3 kg

  • Construction: Painted aluminum

  • RF Connector: N type female or SC

  • Warranty: 1 year

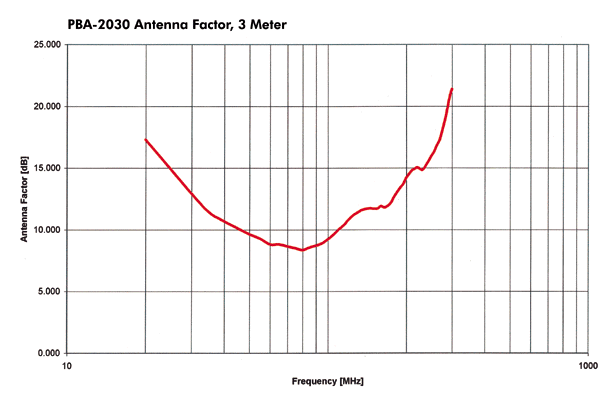

PBA-2030 Antenna Factors, 3 Meter

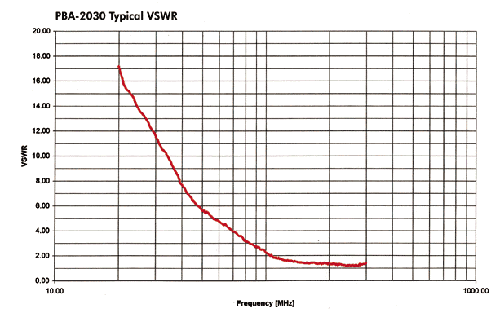

PBA-2030 Typical VSWR










 High Power Biconical Antenna


HBA-2030



TDK HBA-2030 Antenna

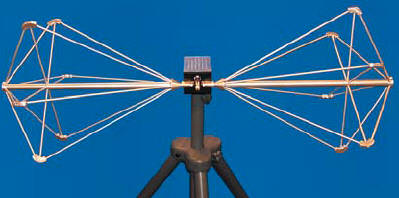

TDK HBA-2030 Antenna Blue Background





20 MHz - 300 MHz



3,500 Watts CW



Data



The TDK RF Solutions HBA-2030 High Power Biconical Antenna is a new generation biconical dipole that covers the operating frequency range of 20 MHz to 300 MHz. The HBA-2030 offers an unprecedented combination of high power handling, balance, and pattern control, which makes it an excellent choice for immunity measurements.

  • Improved balun provides superior patterns and balance

  • Improved cage design provides enhanced low frequency performance and mode-free operation to 300 MHz and higher

  • Individually calibrated with signed certificate of calibration.

  • VSWR: 2.5:1 average

  • Power Handling: 3500 W continuous

  • Feedpoint Impedance: 50 ohms nominal

  • Size: 138 cm x 56 cm x 56 cm (56" W x 22" D x 22" H)

  • Weight: 4 kg (9lbs)

  • Construction: Aluminum

  • RF Connector: SC

  • Warranty: 1 year

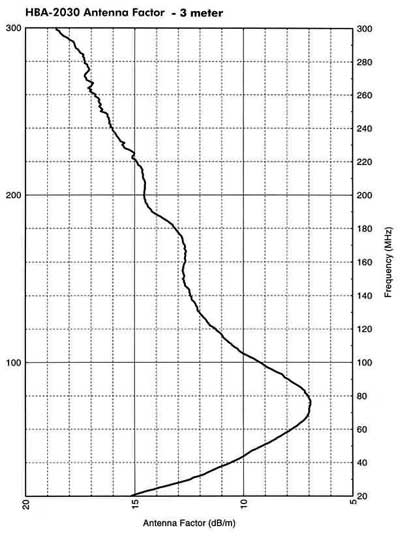

High Power Biconical Antenna (HBA-2030)










 Metrology Biconical Antennas



MBA-2060     20 MHz - 600MHz





TDK MBA-2060 Antenna





TDK MBA-2060 Antenna white background





Data





The MBA Series features an improved biconical element and improved balun design, which provides superior patterns and balance. Also, the design of the MBA Series allows the polarization to be changed without moving the phase center. Improved balun provides superior patterns and balance

  • Effective internal choke provides immunity to externally induced imbalance

  • Fits common antenna mounts;
    EMC Automation mounts are also available

  • Individually calibrated according to ANSI C63.5 with signed certificate of calibration

  • VSWR: 2.5:1 average

  • Polarization: Linear

  • Feedpoint Impedance: 50 ohms nominal

  • Size: 75 cm x 27.5 cm x 27.5 cm (L x W x H)

  • Weight: <1 kg

  • Construction: Aluminum

  • RF Connector: SMA or APC 3.5

  • Warranty: 1 year

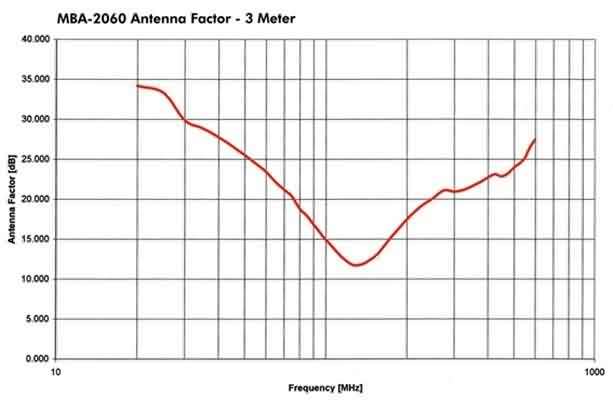

MBA-2060 Antenna Factor - 3 Meter
