Automotive Optical Transmission of Data

mk messtechnik logo

Since 1999, mk-messtechnik GmbH has developed and produced electronic test and measuring systems with a high immunity against electromagnetic fields.
mk-messtechnik GmbH core strengths are:
camera and audio systems
• optical transmission of “automotive” signals
• optical transmission of analog and digital signals
• optical transmission of industry interfaces
• special developments and productions
Our high in-house production depth lets us generate the best solutions for affordable prices at short notice. We either can adapt our existing equipment to your needs or we develop and produce a new system according to your requirements.

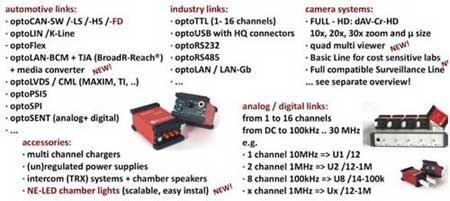

mk messtechnik product overview

MK-Messtechnik Automotive Optical Data Transmission
For EMC Immunity Testing

Optical Analog & Digital Signals

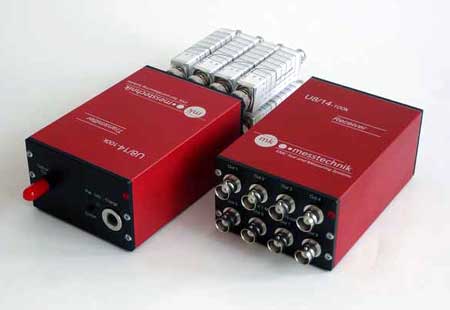

mk messtechnik 1 Channel Analog mk messtechnik 8 Channel Analog mk messtechnik 8 Channel Analog

Analog & Digital links basics:
– One fiber, no matter how many signals
– Both signal directions possible with additional output filter
– digital transmission – no calibration (gain and offset) necessary
– standard +/-15V input/output range, others on request
– min. accuracy of 1% full range
– voltage dividers available (higher input ranges)
– higher frequencies on request
– standard both devices shielded with batteries, optional 19“

The Analog transmission links of the “U-series” can be used to transmit Analog or Digital signals 1:1.

They can be used to optically transmit signals from inside to the outside of the ALC (Absorber-Lined Chamber) or to transmit a stimulus inside the chamber (with optional output filter).

One link typically exists of a battery supplied transmitter and an also battery supplied receiver connected to each other with an optical fiber (standard: 62,5/125µm).

With the optical transmission, the shielded case and the external filter, the system is well equipped for EMI and EME tests.

Our systems are available with different numbers of channels, resolutions, band widths, and input voltage levels. Up to 16 channels can be integrated in one device, the receivers can be implemented as shielded (standard), 19” or plastic table top housing.

Since we develop and build the devices in house, we can adapt to many different needs, varying from the standard setups.

 mk-messtechnik U1/12-1M and U2/12-1M Analog Transmitter Users Manual

 mk-messtechnik U1/12 and U2/12 Analog Transmitter Users Manual

 mk-messtechnik U8/12-1M Analog Transmitter Users Manual

 mk-messtechnik U16/14-100k Analog Transmitter Users Manual

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnic Optical Fiber Component Cleaning Instruction

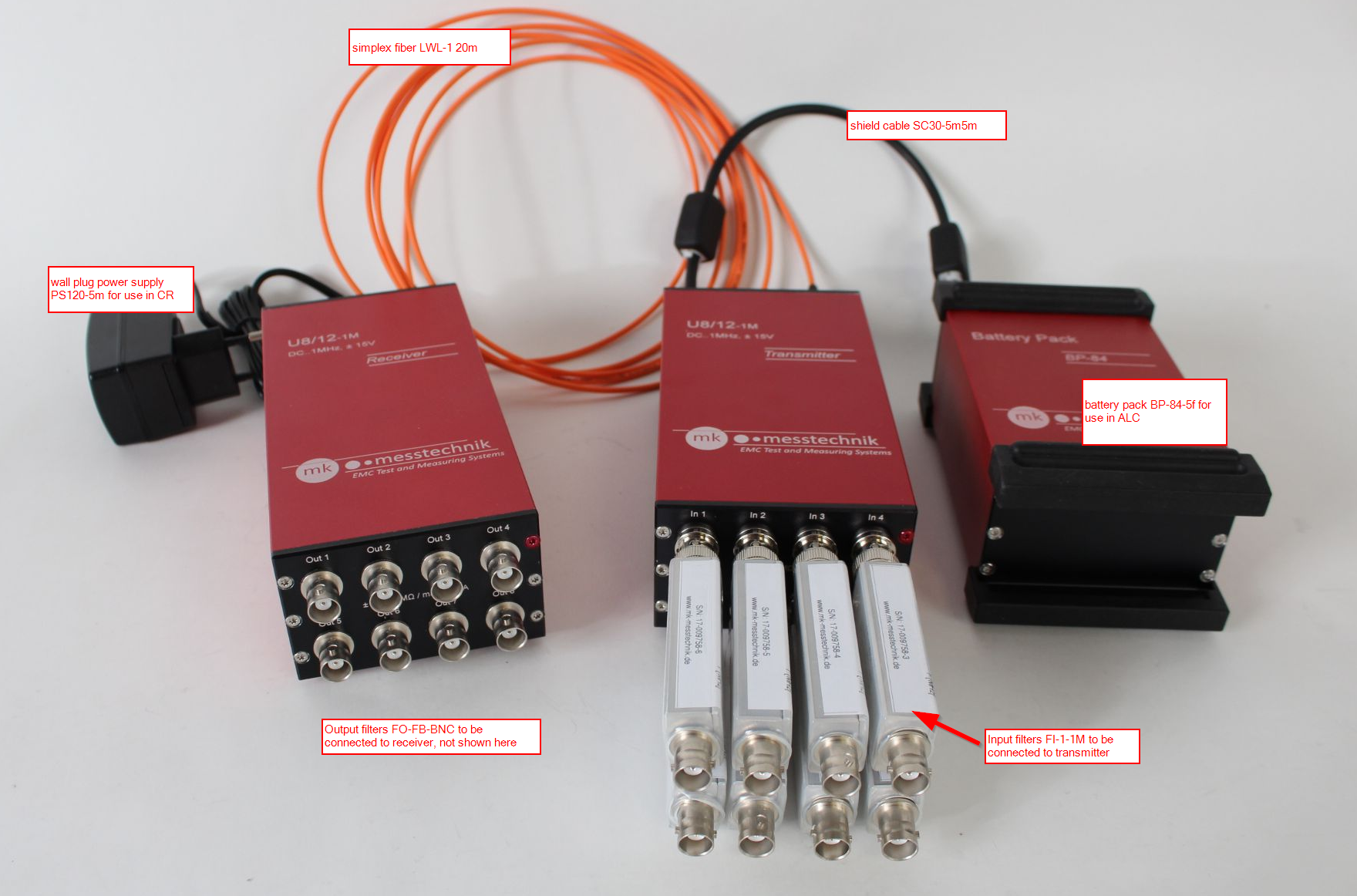

mk-messtechnik U8/12-1M Setup Explanation

U8/12-1M Setup Explanation


Automotive Products Index

Automotive Products

· optoA2B for the optical transmission of A2B signals

· mkConfigSW

Optical Transmission of CAN-signals

· optoCAN-FD – 10Mbit/s bidirectional

· optoCAN-HS – 1Mbit/s bidirectional

· optoCAN-LS – 125kbit/s bidirectional

· optoCAN-SW – 33kbit/s (max. 83kbit/s) single wire CAN signals

Optical transmission of Flexray, K-Line, Ethernet, LIN, PSI5, SENT, SPI
:

· optoFlex – 10 MBit/s Flexray signals

· optoK – 30kbit/s K-Line signals

· optoLAN-3xBCM89811- 3 Channel Broadcom BCM89811

· optoLAN-88Q1010 – Marvell 88Q1010 chipset Ethernet

· optoLAN-88Q2112 – Marvell 88Q2112 chipset Ethernet

· optoLAN-88Q2112 – Marvell 88Q2112 chipset Ethernet

· optoLAN-GB 88Q2112 – Marvell 88Q2112 chipset 1GB Ethernet

· optoLAN-GB 88Q2112-MC – Marvell 88Q2112 chipset 1GB Ethernet with built in Media Converter

· optoLAN-GB 88Q2112-MATEnet STP – Marvell 88Q2112 chipset Ethernet & MATEnet STP plug

· optoLAN-GB 88Q2112-MATEnet STP – MC – Marvell 88Q2112 chipset Ethernet & Media Converter

· optoLAN-BCM89810 – Broadcom BCM89810 chipset Ethernet

· optoLAN-BCM89811 – Broadcom BCM89811 chipset Ethernet

· optoLAN-TJA1100-MAX – NXP© TJA1100 chipset (twisted pair UTP Ethernet) Ethernet

· BroadR-Reach GB media converter HSD => media converter from 1000BaseT1 : 1000BaseTx

· Rosenberger HSD cable Z – open end

· optoLIN – 20kbit/s LIN signals

· optoLVDS – Digital Optical Transmitter for LVDS signal

· optoPSI5 – 50 MS/s PSI5-signals

· optoSENT – SENT signals (Single Edge Nibble Transfer)

· optoSPI – 1Mbit/s SPI signals


mk messtechnik Automotive Products
Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik Automotive Products Data Sheet

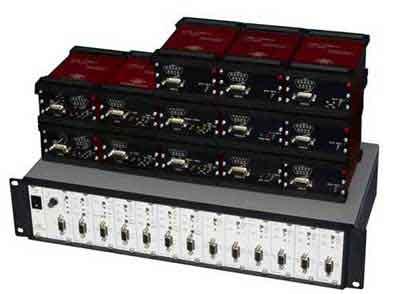

Option 19″

The receiving side of the automotive links can be integrated in a 19″-rack. On the picture below there are CAN-HS, CAN-LS, and LIN, all integrated in the 19″-case. On top of the 19″-receiver you can see the usual shielded aluminum cases for use in an anechoic chamber.
 mk messtechnik Automotive Products Option 19 inch



optoA2B

optoA2B for the optical transmission of A2B signals
The optoA2B can be used for the optical transmission of A2B signals. It consists of master and slave which are supplied by internal batteries and which are connected with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. optical transmitter for A2B signals: optoA2B One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoA2B Data Sheet



mkConfigSW

Windows application for setting of options/registers (of the internal μ-controller) on USB stick version (stated in delivery note) on USB stick

mk-messtechnik mkConfigSW



optoCAN-FD

mk-messtechnik optoCAN-FD
The optoCAN-FD system can be used for the bidirectional optical transmission of CAN-signals with transmission rates of up to 10 Mbit/s. It consists of two identical battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoCAN-FD Data Sheet

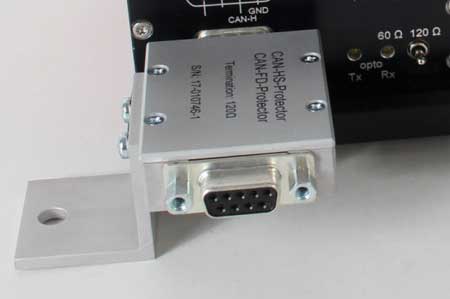

External CAN-HS/FD protector – termination 120Ohm (metal) to be used for EMS/EME-testing metal housing with connection plate enables GND connection if wanted/needed

 mk-messtechnik optoCAN External CAN-HS FD Protector



optoCAN-HS

mk-messtechnik optoCAN-HS
optical system for high speed CAN signals: optoCAN-HS The optoCAN-HS system can be used for the bidirectional optical transmission of CAN-signals with transmission rates of up to 1Mbit/s. It consists of two identical battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoCAN-HS Data Sheet



optoCAN-LS

mk-messtechnik optoCAN-LS
The optoCAN-LS system can be used for the bidirectional optical transmission of CAN optical transmitter for low speed-CAN signals: optoCAN-HS signals with transmission rates of up to 125kbit/s. It consists of two identical battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoCAN-LS Data Sheet



optoCAN-SW

mk-messtechnik optoCAN-SW
The optoCAN-SW system can be used for the optical transmission of single wire CAN signals with transmission rates of up to 33kbit/s (max. 83kbit/s). It optical transmitter of single wire CAN signals: optoCAN-SW consists of two identical battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoCAN-SW Data Sheet



optoFlex

mk-messtechnik optoFlex
This system is used for the optical transmission of Flexray-signals and allows the transmission in both directions with a sampling rate of 10 MBit/s. It consists of two identical transceivers, supplied by batteries, and a simplex-62,5/125µm-multimode optical cable (1-fiber-version available on demand). Due to its insensitivity against strong electromagnetic fields, the optoFlex is fit for tests of susceptibility and interference emission in EMC-test chambers, TEM cells, and for striplines. One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can help reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

There are two models of the optoFlex:

optoFlex-S

optical link for FlexRay-signals (bidirectional) with up to 10Mbit/s. Separate transmission of diverse signals (to avoid timing issues) Optional available external power supplies – prices on request:
BP60-5f (4Ah shielded battery pack to power optical device inside ALC) OR
BP60-5f/10Ah (10Ah shielded battery pack to power optical device inside ALC)
SC-30-55m (shielded connection cable)
PS75-5m (standard non shielded wall plug power supply to be used outside ALC)

optoFlex-NT

optical link for FlexRay-signals (bidirectional) with up to 10Mbit/s. separate transmission of diverse signals (to avoid timing issues) Optional available external power supplies – prices on request:
BP60-5f (4Ah shielded battery pack to power optical device inside ALC) OR
BP60-5f/10Ah (10Ah shielded battery pack to power optical device inside ALC)
SC-30-5m5m (shielded connection cable)
PS75-5m (standard non shielded wall plug power supply to be used outside ALC)

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoFlex Data Sheet



optoK

mk-messtechnik optoK optical transmitter for K-line signals
The optoK system can be used for the optical transmission of K-Line signals with transmission rates of more than 30kbit/s at supply voltages of up to 24V. It consists of two identical battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on. The system is also available with an integrated LVDS transmission (unidirectional).

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoK Data Sheet

mk-messtechnik-optoLAN-BCM-8981x-TJA1100-and-88Q1010-Schematic

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet optoLAN-BCM89810,optoLAN-BCM89811, optoLAN-TJA1100-MAX & optoLAN-88Q1010 Schematic

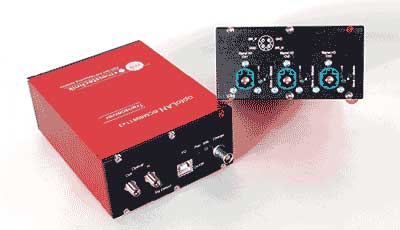

optoLAN-3xBCM89811

New 3 Channel Product!

mk-messtechnik-optoLAN-3xBCM89811-Setup

The optoLAN-3xBCM89811 system can be used for the optical transmission of automotive ethernet signals with Broadcom BCM89811 and other 100BaseT1 chipsets.
There are two setups available, T1 to T1 (standard) or T1 to Tx (with integrated media converter => optoLAN-BCM89811 -MC), see separate setup document.
The standard connector is Rosenberger HSD (Z-coded). With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests and has proven its functionality in many automotive emc labs already.



optoLAN-BCM89810

mk-messtechnik optoLAN-BCM89810
The optoLAN-BCM89810 system can be used for the optical transmission of automotive Ethernet signals with Broadcom© BCM89810© chipset (unshielded twisted pair UTP Ethernet). The two identical transceivers are supplied by internal batteries and connected with an optical fiber. The standard connector is Rosenberger HSD (Z-coded). With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests.

Alternatives and options


The optoLAN-3xBCM8981x includes 3 independent channels in one device.
mk-messtechnik-optoLAN-3xBCM89811-Setup

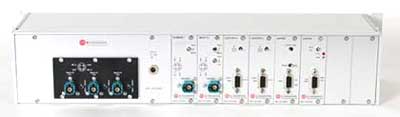

Optional 19″ rack case: The optoLAN-3xBCM89810 can be ordered in a 19″ rack case

mk-messtechnik-optoLAN-3xBCM89811-in-19-inch-rack-case

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLAN-BCM89810 Data Sheet



optoLAN-BCM89811

mk-messtechnik optoLAN-BCM89810
The optoLAN-BCM89811 system can be used for the optical transmission of automotive Ethernet signals with Broadcom© BCM89811© chipset (unshielded twisted pair UTP Ethernet).
The two identical transceivers are supplied by internal batteries and connected with an optical fiber. The standard connector is Rosenberger HSD (Z-coded). With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests.

 images/product images/mk-messtechnik/mk-messtechnik-optoLAN-BCM89811-Application

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLAN-BCM89811 Data Sheet



optoLAN-88Q1010

mk-messtechnik optoLAN-88Q1010
The Marvell® 88Q1010 solution is a single pair Ethernet physical layer transceiver (PHY). Our optoLAN-88Q1010 is suitable for EMC tests of devices with this kind of chipset. The standard connector is a 4 pole Rosenberger HSD to minimize the emission of our optical link. With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLAN-88Q1010 Data Sheet



optoLAN-88Q2112

mk-messtechnik optoLAN-88Q2112
The optoLAN-Gb 88Q2112 system can be used for the optical transmission of automotive Ethernet signals with Marvell© 88Q2112© chipset (unshielded single pair Ethernet).
The two identical transceivers are supplied by internal batteries and connected with an optical fiber.
The standard connector is Rosenberger HSD (Z-coded). With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests.

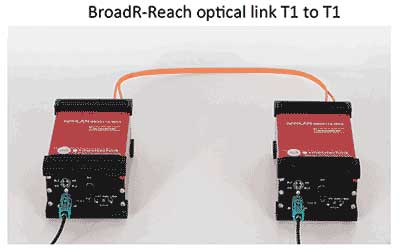

 mk-messtechnik-Automotive-1000BaseT1-setup

 mk-messtechnik schematic for 100BaseT1 automotive setup1 optical link T1 to T1 BroadR-Reach media converter HSD T1 to Tx

  mk-messtechnik Setup of an optoLAN-88Q2112 with optical fibers and optional available Rosenberger HSD open end cables
Setup of an optoLAN-88Q2112 with optical fibers and optional available Rosenberger HSD open end cables

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLAN-Gb 88Q2112 Data Sheet

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLAN-Gb 88Q2112 Setup and Accessories Data Sheet

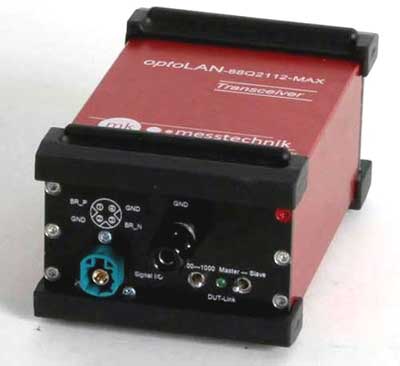

optoLAN-GB 88Q2112

mk-messtechnik optoLAN-GB 88Q2112
optical link for 1GBase-T1 automotive ethernet signals with Marvell 88Q2112 chipset. Includes:
optoLAN-GB 88Q2112 Transceiver optical transceiver for GBit automotive Ethernet, Marvell 88Q2112 integrated
Modes: 100BaseT1 and 1000BaseT1, switchable
CM choke: ACT12010G-800
88Q2112 A2 implemented
optical connector: FSMA
BRReach connector: Rosenberger HSD => use adpater cable
Shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, prepared for external supply; documentation CM CHOKE: ACT12010G-800 HAS TO BE PROVIDED BY CUSTOMER!!!

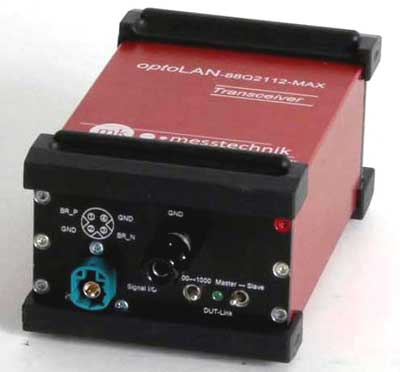

optoLAN-GB 88Q2112-MC

mk-messtechnik optoLAN-GB 88Q2112-MC
optical link for 1GBase-T1 automotive ethernet signals with Marvell 88Q2112 chipset and built-in media converter Includes:
optoLAN-GB 88Q2112 Transceiver optical transceiver for 1 GBit automotive Ethernet, Marvell 88Q2112 integrated
Modes: 100BaseT1 and 1000BaseT1, switchable
CM choke: ACT12010G-800
88Q2112 A2 implemented
optical connector: FSMA
BRReach connector: Rosenberger HSD => use adpater cable
Shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, prepared for external supply; documentation CM CHOKE: ACT12010G-800 HAS TO BE PROVIDED BY CUSTOMER!!! optoLAN-GB T1Tx Transceiver optical transceiver to realize built-in media converter for GBit automotive Ethernet Modes: 1000BaseTx electrical connector: RJ45

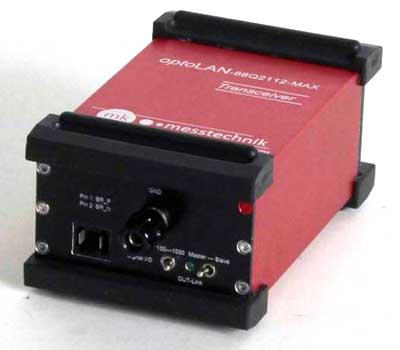

optoLAN-GB 88Q2112 – MATEnet STP

mk-messtechnik optoLAN-GB 88Q2112 - MATEnet STP
optical link for 1GBase-T1 automotive ethernet signals with Marvell 88Q2112 chipset
optical transceiver for GBit automotive Ethernet, Marvell 88Q2112 integrated Modes: 100BaseT1 and 1000BaseT1, switchable CM choke: ACT12010G-800 88Q2112 A2 implemented optical connector: FSMA BRReach connector: MATEnet STP, internally shielded against rest of the electronics shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, prepared for external supply; documentation CM CHOKE: ACT12010G-800 HAS TO BE PROVIDED BY CUSTOMER!!

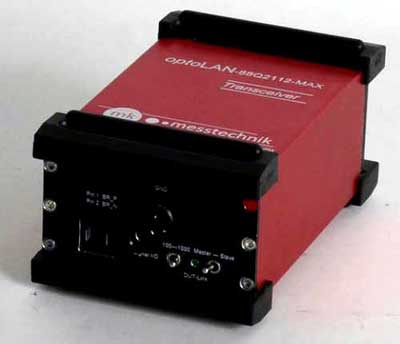

optoLAN-GB 88Q2112 – MATEnet STP-MC

mk-messtechnik optoLAN-GB 88Q2112 - MATEnet STP -MC
optical link for 1GBase-T1 automotive ethernet signals with Marvell 88Q2112 chipset and built-in media converter.
optical transceiver for GBit automotive Ethernet, Marvell 88Q2112 integrated Modes: 100BaseT1 and 1000BaseT1, switchable CM choke: ACT12010G-800 88Q2112 A2 implemented optical connector: FSMA BRReach connector: MATEnet STP, internally shielded against rest of the electronics shielded metal housing with integrated NiMH batteries, 5-pole female charge plug, prepared for external supply; documentation CM CHOKE: ACT12010G-800 HAS TO BE PROVIDED BY CUSTOMER!!!

BroadR-Reach GB media converter HSD
media converter to be able to connect a automotive ethernet device with 1000Base-T1 to a standard 1000Base-Tx network. Setup: HSD pinout of Media converter and optical automotive ethernet links are fitting to original Rosenberger HSD cables with crossed pinout.



optoLAN-TJA1100

mk-messtechnik optoLAN-TJA1100
The optoLAN-TJA1100 system can be used for the optical transmission of automotive Ethernet signals with NXP© TJA1100© chipset (unshielded twisted pair UTP Ethernet). The system can be set up wit two identical transceivers or one side automotive Ethernet and the other 100BaseT. With this setup the link could be used as media converter too. The devices are supplied by internal batteries and connected with an optical fiber. The standard connector is Metz Connect M12 4 pole. With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLAN-TJA1100 Data Sheet



optoLAN-TJA1100

mk-messtechnik optoLAN-BCM89810
The optoLAN-TJA1100 system can be used for the optical transmission of automotive Ethernet signals with NXP© TJA1100© chipset (unshielded twisted pair UTP Ethernet). The system can be set up with two identical transceivers or one side automotive Ethernet and the other 100BaseT. With this setup the link could be used as media converter too. The devices are supplied by internal batteries and connected with an optical fiber. The standard connector is Metz Connect M12 4 pole. With the optical transmission, the shielded case and the high quality connector, the system is well equipped for EMI and EME tests.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLAN-TJA1100 Data Sheet

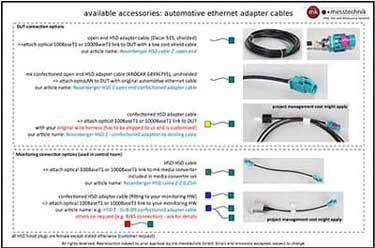

mk-messtechnik-optoLAN-Automotive-Ethernet-Adapter-Cables

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLAN Automotive Ethernet Adapter Cables Data Sheet



Rosenberger HSD cable Z – open end

Cable with Rosenberger HSD universal coded connector – open end for self configuration
Length: ~2m
Color coding
Side A: 1: blue 2: orange 3: green 4: brown color coding
Side B: 1: brown 2: green 3: orange 4: blue



optoLIN

mk messtechnik optical transmitter for LIN signals: optoLIN
The optoLIN system can be used for the optical transmission of LIN signals with transmission rates of up to 20kbit/s. It consists of two identical battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests. One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on. The system is also available with an integrated LVDS transmission (unidirectional).

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLIN Data Sheet

optoLVDS – TIA/EIA-644

Examples of LVDS links with different chipsets:

Maxim chipsets:

Maxim chipsets:
MAX9275/76: optical link for GMSL signals with chipset MAX9275/76 data rate up to 3,12Gbps (oLDI interface) setting of options/registers by switches or USB-interface (internal µ-controller with Windows-application)
MAX9259/60:
 optical link for CML signals with chipset MAX9259/60 data rate (video) up to 2.5 GBit/s, bidirectional control channel, setting of options/registers by switches or USB-interface (internal µ-controller with Windows-application)
MAX9247/48: optical link for single channel LVDS signals with chipset MAX9247/48 data rate up to 1.5 GBit/s (direct), CLK-rate 2,5-42 MHz

Texas Instruments/National chipsets:


DS90UR905/906:
 optical link for LVDS signals with chipset DS90UR905/906 for data rates up to 1,5Gbit/s (direct mode), PCLK 5-65MHz

DS90UR905/916:
 optical link for LVDS signals with chipset DS90UR905/916 for data rates up to 1,82Gbit/s (direct mode), PCLK 5-65MHz

DS90UR907/916:
 optical link for LVDS signals with chipset DS90UR907/916 for data rates up to 1,82Gbit/s (direct mode), PCLK 5-65MHz

DS90UB913/914:
 optical link for LVDS signals with chipset DS90UB913/914 integrated bidirectional control channel, setting of options/registers by switches / USB-interface (internal µ-controller with Windows application)

DS90UB925/926:
 optical link for LVDS signals with chipset DS90UB925/926 (Non-HDCP!); data rate (video) up to 2,5GB/s bidirectional control channel, setting of options/registers by switches / USB-interface (internal µ-controller with Windows application)

DS90UB927/928:
 optical link for LVDS signals with chipset DS90UB927/928 (Non-HDCP!); data rate (video) up to 2,5GB/s bidirectional control channel, setting of options/registers by switches / USB-interface (internal µ-controller with Windows application), downwards compatible to DSUB925/926 chipset

DS90UB947/948:
 optical link for LVDS signals with chipset DS90UB947/948 (Non-HDCP!); data rate (video) up to 2x 3GB/s, bidirectional control channel, setting of options/registers by switches / USB-interface (internal µ-controller with Windows application).

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optosLVDS Project Sheet

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoLVDS Users Manual



optoPSI5

mk-messtechnik optoPSI5
This system is used for the optical transmission of PSI5-signals and allows the transmission in both directions with a sampling rate of 50 MS/s. It consists of a transceiver, supplied by batteries, for the connection of a sensor, a simplex-62,5/125µm-multimode optical cable, and a receiver with internal batteries as well. Due to its insensitivity against strong electromagnetic fields, the optoPSI5 is fit for tests of susceptibility and interference emission in EMC-test chambers, TEM cells, and for striplines. optoPSI5 One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoPSI5 Data Sheet



PSI5-Simulyzer

The PSI5-Simulyzer by SesKion GmbH is an interface box which can be used to read data at PSI5 systems and to generate simulation data.



optoSENT

mk-messtechnik optoSENT
optical transmitter for SENT signals: optoSENT-2d
The optoSENT system was developed for the transmission of asynchronous SENT signals (Single Edge Nibble Transfer) and exists in two different versions: The asynchronous system can be used for the optical transmission (1 or 2 channels) with a resolution of min. 8Bit per channel and a maximal bandwidth of approx. 1MHz. In the synchronous version the sampling is digital and the system can transmit a sync pulse to a sensor (1 or 2 channels). The connected sensor is powered by our transmitter (standard is 5V) and does not need any further wiring. The system consists of a battery supplied transmitter and receiver which are connected via optical cables. With the optical transmission and the shielded case the devices are well equipped for EMI and EME tests. One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoSENT (analog) Data Sheet

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoSENT-2-d (digital) Data Sheet

optoSPI-HS

mk-messtechnik optoSPI-HS
The optoSPI-HS system can be used for the bidirectional optical transmission of SPI signals with transmission rates of up to 1Mbit/s. It consists of two battery supplied transceivers connected to each other with an optical fiber. With the optical transmission the shielded case and the external filter, the system is well equipped for EMI and EME tests. optical transmitter for SPI signals: optoSPI-HS One side of the system can be integrated in a 19″ rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19″ case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnik optoSPI-HS Data Sheet

Aaronia_AG_BicoLOG_5070_Biconical_Antenna_Data_Sheet mk-messtechnic Optical Fiber Component Cleaning Instruction


Copyright © 2001-2021  R. A. Mayes Company, Inc.
An Electro Mechanical Research and Development (EMRAD) Corporation, Company
See our Privacy Policy    All the data files on our website require Adobe Acrobat Reader!
