Diamond Engineering Family of Antenna Measurement Systems

Diamond Engineering  D6050  2-axis 25lbs (11.5kg)

ANTENNA MEASUREMENT SYSTEMS & PRODUCTS

Diamond Engineering D6050 Series

Diamond Engineering D6050 Side View Diamond Engineering D6025 Series Angle

The D6050 Series is a highly versatile multi-axis antenna measurement system suited for devices up to 25 pounds (11.5 kg). The non-metallic, belt-driven head provides a low-reflection environment ideal for electrically small or omni-directional antennas.

What’s Included?

The standard D6050 package features:

  •  2-axis positioner

  •  DAMS Antenna Measurement Studio

  •  Precision RF cables

  •  Precision dual rotary joints

  •  DUT mounting hardware

  •  Tools and documentation

  •  3-year warranty

Key Features and Functions

2D & 3D Spherical Measurements (AZ over EL, EL over AZ, XYZ planes and more)

Far Field Parameters (gain, beamwidth, efficiency, directivity, polarization, isolation, and more)

OTA Measurements (TRP/TIS)

Phase Center Measurements

Spherical Near Field (optional)

Highlights

Dual rotary joints

Multiple configuration options

Indexable mast offset up to 23” from center

Non-metallic DUT mounting axis

Ultra-high precision (up to 0.02Ί)

Ideal for most antennas up to 25 pounds


Specifications

Dimensions

Footprint:

24” x 24” (609 mm x 609 mm)

Total Height:

61.475” (1561.4 mm)

Clearance Radius:

35” (1320 mm) surrounding clearance required for full 360Ί rotation

Total Weight:

99 lbs (44.9 kg)

Positioner Turntable

Frequency Ranges (GHz):

Coax: DC to 6, 18, 40, 50, or 67 GHz



mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz

Resolution:

0.02Ί

Drivetrain:

Precision worm gear table with 1.8Ί stepper motor

Gear Ratio:

90:1

Movement Range:

0-360Ί or ± 180Ί (re-indexable hardware limits)

Slip Ring:

12-channel slip ring (standard, other options available)

Position Feedback:

Optional encoder (default open loop, position tracked by software)

Weight (positioner only):

76 lbs (34.5 kg) with slide railsils)

Positioner Max Speed:

4 RPM (24Ί per second)

AUT Mounting Options: Ή

24” (610 mm) diameter acrylic plate, 0.750” thick, 1/4”-20 hole array



(M6 hole array available upon request)

Through-bore Diameter:

Standard: 1.4” (35.5 mm)



mmW: 3.25” (82.5 mm)

Weight Capacity:

Centered: 150 lbs (45.5 kg); distributed: 250 lbs (113.6 kg)

RF Rotary Joint:

Precision (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide)

Roll / Phi Axis

Frequency Ranges:

Coax: DC to 6, 18, 40, 50, or 67 GHz



mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz

Resolution:

0.05Ί

Drivetrain:

Belt driven with 1.8Ί stepper motor

Gear Ratio:

36:1 with precision planetary reducer

Movement Range:

360Ί continuous or ± 180Ί

Positioner Max Speed:

4 RPM (24Ί per second)

Position Feedback:

Optional encoder (default open loop, position tracked by software)

Weight (mast only):

22 lbs (10 kg)

AUT Mounting Options: Ή

4.5” (115 mm) diameter PVC mounting plate with 10-32 hole array



(Larger plate and/or M5 hole array available upon request)

Through-bore Diameter:

1.75” (44.5 mm)

Weight Capacity:

25 lbs (11.4 kg)

Axial Moment Capacity:

20 ft-lbs (27 Nm, 2.75 m-kg)

Lateral Moment Capacity:

10 ft-lbs (13.5 Nm, 1.35 m-kg)

RF Rotary Joint:

Precision (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide)

Custom mounting solutions available upon request

Z-Axis

Movement travel:

Up to 11” (279.5 mm)

Drive Type:

Precision ground C7 steel ball-screw

Motor:

NEMA 17 stepper motor (with manual control knob)

Max speed:

4 in/s (100 mm/s)

Movement resolution:

0.008” (0.2 mm)

Minimum travel:

0.008” (0.2 mm)

Position feedback:

None (default open loop, position tracked by software)

Electrical & Communications

Controller type:

Internal 3-axis microprocessor-based controller

Resolution:

Up to 1/32nd microstepping

Motor current:

3.125A per motor phase

Cooling:

24V fan

Communication interface:

9-pin D-Sub RS-232 (USB-to-Serial adapter included)

Included cable length:

10 feet (3 meters)

Input voltage:

24VDC 5A – 2.5 mm DC barrel connector

Power supply:

24VDC 5A, 110V / 220V input (included)

Models

Unless otherwise specified, all standard model packages include the positioner, software, all RF components, AUT mounting hardware, and tools and documentation.

D6050-00

No RF Components

D6050-06

6 GHz SMA RF Components

D6050-18

18 GHz SMA RF Components

D6050-40

40 GHz 2.92 mm RF Components

D6050-50

50 GHz 2.4 mm RF Components

D6050-67

67 GHz 1.85 mm RF Components

D6050-75

50 to 75 GHz mmW V-Band RF Components

D6050-90

60 to 90 GHz mmW E-Band RF Components

D6050-110

75 to 110 GHz mmW W-Band RF Components

D6050-MMW-CFX

No RF components; configured with mounts for Copper Mountain FX series mmW adapters (up to 110 GHz)

Options

OPT-SR

12-channel slip ring (for unlimited 360Ί rotations)

OPT-WGDH

Worm-gear driven head

OPT-AZ

Automated linear Z-axis

OPT-AZXY

Automated linear Z- and X-axis with pseudo Y-axis

OPT-ENC

Encoder feedback capability

DPA-PDK

DAMS Platform Development Kit

OPT-SMA

Software maintenance agreement

Accessories

DEPC-D

Pre-configured PC (desktop)

DEPC-L

Pre-configured PC (laptop)

DE-SIM

DAMS Antenna & Network Simulator software add-on

DPA-SW-N2F

Spherical nearfield processing

DPA-AUTOPOL

18 GHz SPDT RF switch auto-polarizer with cables/adapters

DPA-AUTOPOL-40

40 GHz SPDT RF switch auto-polarizer with cables/adapters

DE-05xx

Broadband reference horn 500 MHz to 18, 26, 30 or 40 GHz

DE-07xx

Broadband reference horn 700 MHz to 18, 26, 30 or 40 GHz


Product documents

pdf Diamond Engineering D6050 Series Multi Axis Positioner Data Sheet

pdf Diamond Engineering D6050 Series Installation and Configuration Guide

pdf DAMS Software Suite Users Manual and Setup Guide

pdf Diamond Engineering DAMS Antenna Measurement Systems Guide

Part Drawings

pdf Diamond Engineering D6050 24″ Turntable (SAE, standard) Diagram

pdf Diamond Engineering D6050 24″ Turntable (Metric) Diagram

pdf Diamond Engineering D6025 & D6050 Series 10″ Roll Plate Diagram


Diamond Engineering  D6025  2-axis 25lbs (11.5kg)

ANTENNA MEASUREMENT SYSTEMS & PRODUCTS

Engineering D6025

Diamond Engineering DAMS 5250 6250 7250 SeriesD6025D6025

The D6025 Series is a highly versatile multi-axis antenna measurement system suited for devices up to 25 pounds (11.5 kg). The non-metallic, belt-driven head provides a low-reflection environment ideal for electrically small or omni-directional antennas.

What’s Included?

The standard D6025 package features a 2-axis positioner, our powerful DAMS Antenna Measurement Studio, precision RF cables and rotary joints, all tools and documentation, plus DUT mounting hardware.

Everything is backed by 3-year warranty.

Key Features and Functions

2D & 3D Spherical Measurements (AZ over EL, EL over AZ, XYZ planes and more)

Far Field Parameters (gain, beamwidth, efficiency, directivity, polarization, isolation, and more)

OTA Measurements (TRP/TIS)

Phase Center Measurements

Spherical Near Field (optional)

Highlights

Dual rotary joints

Multiple configuration options

Indexable mast offset up to 17” from center

Non-metallic DUT mounting axis

Ultra-high precision (up to 0.02Ί)

Ideal for most antennas up to 25 pounds


Specifications

Dimensions

Footprint: 18” x 18” (457 mm x 457 mm)
Total Height: 60.2″ (1529 mm)
Clearance Radius: With wheels: 45” (1150 mm) maximum recommended extension
Secured: 60″ (1524 mm)
(surrounding clearance required for unimpeded 360Ί rotation)
Total Weight: 99 lbs (44.9 kg)

Positioner Turntable

Frequency Ranges (GHz): Coax: DC to 6, 18, 40, 50, or 67 GHz
mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz
Resolution: 0.02Ί
Drivetrain: Precision worm gear table with 1.8Ί stepper motor
Gear Ratio: 72:1
Movement Range: 0-360Ί or ± 180Ί (re-indexable hardware limits)
Slip Ring: Optional 12-channel slip ring
Position Feedback: Optional encoder (default open loop, position tracked by software)
Weight (positioner only): 40 lbs (18 kg, with slide rails)
Positioner Max Speed: 4 RPM (24Ί per second)
AUT Mounting Options: Ή 18” (460 mm) diameter acrylic plate, 0.750” thick, 1/4”-20 hole array
(M6 hole array available upon request)
Through-bore Diameter: Standard: 1.4” (35.5 mm)
mmW: 3.25” (82.5 mm)
Weight Capacity: Centered: 75 lbs (34 kg); distributed: 100 lbs (45.4 kg)
RF Rotary Joint: Precision (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide)

Roll / Phi Axis

Frequency Ranges: Coax: DC to 6, 18, 40, 50, or 67 GHz
mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz
Resolution: 0.05Ί
Drivetrain: Belt driven with 1.8Ί stepper motor
Gear Ratio: 36:1 with precision planetary reducer
Movement Range: 360Ί continuous or ± 180Ί
Positioner Max Speed: 4 RPM (24Ί per second)
Position Feedback: Optional encoder (default open loop, position tracked by software)
Weight (mast only): 22 lbs (10 kg)
AUT Mounting Options: Ή 4.5” (115 mm) diameter PVC mounting plate with 10-32 hole array
(Larger plate and/or M5 hole array available upon request)
Through-bore Diameter: 1.75” (44.5 mm)
Weight Capacity: 25 lbs (11.4 kg)
Axial Moment Capacity: 20 ft-lbs (27 Nm, 2.75 m-kg)
Lateral Moment Capacity: 10 ft-lbs (13.5 Nm, 1.35 m-kg)
RF Rotary Joint: Precision (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide)

Custom mounting solutions available upon request

Electrical & Communications

Controller type: Internal 3-axis microprocessor-based controller
Resolution: Up to 1/32nd microstepping
Motor current: 3.125A per motor phase
Cooling: 24V fan
Communication interface: 9-pin D-Sub RS-232 (USB-to-Serial adapter included)
Included cable length: 10 feet (3 meters)
Input voltage: 24VDC 5A – 2.5 mm DC barrel connector
Power supply: 24VDC 5A, 110V / 220V input (included)

Models

Unless otherwise specified, all standard model packages include the positioner, software, all RF components, AUT mounting hardware, and tools and documentation.

D6025-00 No RF Components
D6025-06 6 GHz SMA RF Components
D6025-18 18 GHz SMA RF Components
D6025-40 40 GHz 2.92 mm RF Components
D6025-50 50 GHz 2.4 mm RF Components
D6025-67 67 GHz 1.85 mm RF Components
D6025-75 50 to 75 GHz mmW V-Band RF Components
D6025-90 60 to 90 GHz mmW E-Band RF Components
D6025-110 75 to 110 GHz mmW W-Band RF Components
D6025-MMW-CFX No RF components; configured with mounts for Copper Mountain FX series mmW adapters (up to 110 GHz)

Options

OPT-SR 12-channel slip ring (for unlimited 360Ί rotations)
OPT-WGDH Worm-gear driven head
OPT-AZ Automated linear Z-axis
OPT-AZXY Automated linear Z- and X-axis with pseudo Y-axis
OPT-ENC Encoder feedback capability
DPA-PDK DAMS Platform Development Kit
OPT-SMA Software maintenance agreement

Accessories

DEPC-D Pre-configured PC (desktop)
DEPC-L Pre-configured PC (laptop)
DE-SIM DAMS Antenna & Network Simulator software add-on
DPA-SW-N2F Spherical nearfield processing
DPA-AUTOPOL 18 GHz SPDT RF switch auto-polarizer with cables/adapters
DPA-AUTOPOL-40 40 GHz SPDT RF switch auto-polarizer with cables/adapters
DE-05xx Broadband reference horn 500 MHz to 18, 26, 30 or 40 GHz
DE-07xx Broadband reference horn 700 MHz to 18, 26, 30 or 40 GHz

Product documents

pdf Diamond Engineering D6025 Series Multi Axis Positioner Data Sheet

pdf Diamond Engineering D6025 Series Installation and Configuration Guide

pdf DAMS Software Suite Users Manual and Setup Guide

pdf Diamond Engineering DAMS Antenna Measurement Systems Guide

Part Drawings

pdf Diamond Engineering D6025 18″ Turntable (SAE, standard) Diagram

pdf Diamond Engineering D6025 & D6050 Series 10″ Roll Plate Diagram

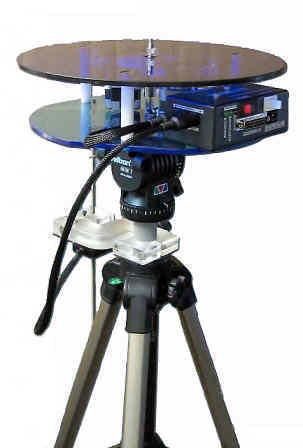

  DAMS 5000/6000/7000 2-axis 10lbs (4.5kg) or 20lbs (9kg)

 Diamond Engineering DAMS 5000/6000/7000

Diamond Engineering DAMS 5000 6000 7000 Series

The DAMS x000 (5000/6000/7000) Series is a highly versatile multi-axis antenna measurement system suited for devices up to 10 pounds (4.5 kg) for DAMS 5000, or 20 pounds (9 kg) for DAMS 6000 or 7000. The non-metallic, belt-driven head provides a low-reflection environment ideal for electrically small or omni-directional antennas.

What’s Included?

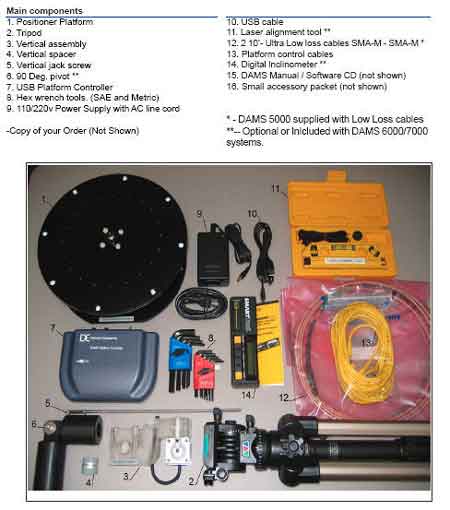

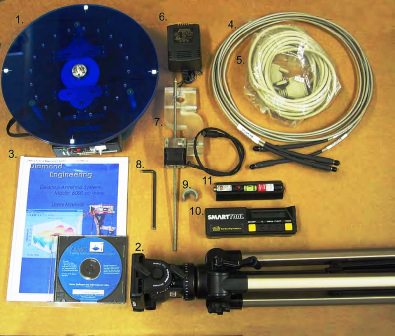

• The standard D6050 package features:

• 2-axis positioner

• DAMS Antenna Measurement Studio

• Precision RF cables

• Precision dual rotary joints

• DUT mounting hardware

• Tools and documentation

• 1-year warranty (model dependent)

Key Features and Functions

• 2D & 3D Measurements (DAMS 5000 will perform partial 3D without Pro software upgrade)

• Far Field Parameters (gain, beam width, efficiency, directivity, polarization, isolation, and more)

• OTA Measurements (TRP/TIS)

• Phase Center Measurements

• Spherical Near Field (optional)



Highlights

• Dual-axis movement

• Precision rotary joint

• Extremely high resolution (up to 0.0625Ί steps azimuth and 0.10Ί steps elevation)

• 20 pound weight capacity

• Complete 1+ year warranty (model dependent)


Specifications

Frequency Ranges: DC to 6 GHz (DAMS 5000)
  DC to 18 GHz (DAMS 6000)
  DC to 40 GHz (DAMS 7000)
Platform Movement: Horizontal 1.8 degree precision stepper motor with low-noise belts
  Up to 0.125Ί azimuth resolution (DAMS 5000)
  Up to 0.0625Ί azimuth resolution (DAMS 6000/7000)
  360Ί continuous azimuth range
  ± 45Ί elevation range at 0.10Ί per step
  Vertical precision hybrid linear actuator
Platform Max Speed: 30 R.P.M. azimuth
  120Ί per minute elevation
Platform Mounting: Velbon tripod with fluid pan head
  Standard 1/4″-20 tripod threads (horizontal or vertical)
Weight Capacity: 20 lbs. maximum @ level position (capacity decreases with angle)
Drive train: Azimuth: stepper motor with belt transmission
  Elevation: stepper hybrid non-captive lead screw
Cable Interface: Ultra-high quality cable with SMA connectors (all “K” connectors on model 7000)
  Ultra-precision, ultra-low noise rotary joint with SMA (female)
Special Options(*): Acrylic thrust plate (additional cost for aluminum)
  Digital level for precise setup
  Ultra-high resolution option
  Positioning laser for long range alignment
  Vertical alignment tool
  DAMS Software Studio Pro
  Advanced processing module
  Technical support (all systems)
Warranty: 1-year on parts and labor (DAMS 5000)
  3-year on parts and labor (DAMS 6000/7000)

(*) = included with DAMS 6000/7000 models

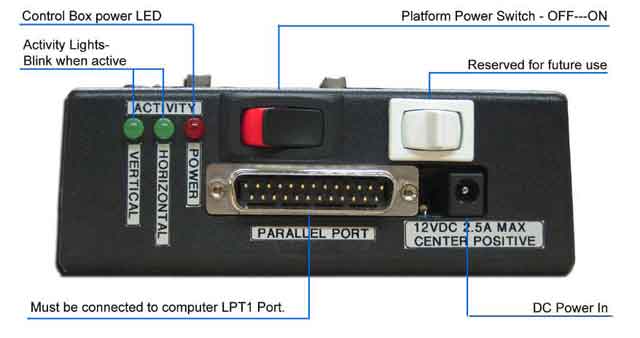

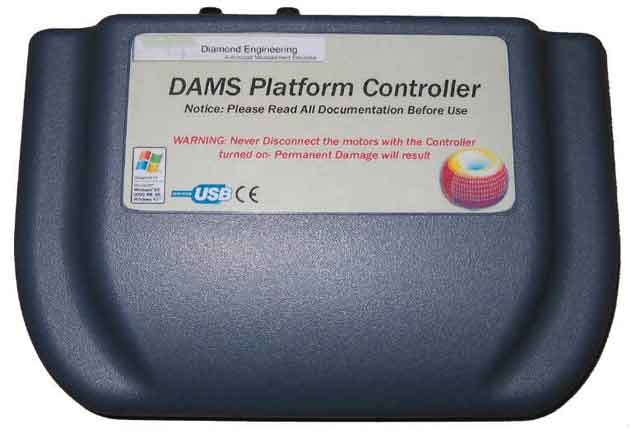

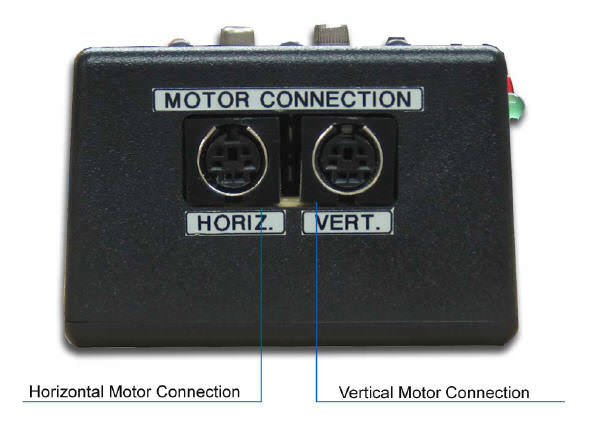

Controller Operating Specifications

Control Methods: DAMS Antenna Measurement Software
  Customer written software with serial communication (requires Platform Development Kit)
Interface: Hybrid USB/serial
Input Power: 24V 1.6A switched power supply
Analyzer Interface: GPIB controller card (not included)

Physical Properties

Width: 12” (30.5 cm) without tripod
Height: 5” (12.5 cm) turntable only
  Min: 35” (88.9 cm) with vertical movement assembly and tripod
  Max: 72” (182.88 cm) with vertical movement assembly and tripod
Weight: 5 lbs. (2.2 kg) (without tripod and vertical assembly)
  9 lbs. (4.1 kg) (with tripod and vertical assembly)
Positioner Composition: Acrylic 87%
  Stainless steel 5%
  Aluminum 5%
  Misc. plastics/metals 3%
Tripod Composition: Aluminum and plastic

Environmental Specifications

Operating Temp: 0Ί C to 45Ί C (32Ί F to 104Ί F) (with no condensation)
Transport Temp: -40Ί C to 60Ί C (-40Ί F to 140Ί F) (no condensation within 72 hours)

Models

Unless otherwise specified, all standard model packages include the positioner, software, all RF components, AUT mounting hardware, and tools and documentation.

Model

Frequency Range

DAMS 5000

 DC to 6 GHz

DAMS 6000

 DC to 18 GHz

DAMS 7000

 DC to 40 GHz

Options

DFSM5-xx Full Spherical Mount (5 pound capacity)
(xx = available ranges from DC to 18, 40 or 50 GHz)
DFSM10-xx Full Spherical Mount (10 pound capacity)
(xx = available ranges from DC to 18, 40 or 50 GHz)
DFSM25-xx Full Spherical Mount (25 pound capacity)
(xx = available ranges from DC to 18, 40 or 50 GHz)
DPA-LASERTOOL-B Laser alignment tool
DPA-DIGILEVEL Digital level
PT-DMS-THRUSTP-ACR Larger thrust plate (12″ acrylic, 0.350″ thick)
PT-DMS-THRUSTP-ALM Larger thrust plate (12″ aluminum, 0.25″ thick)
OPT-ENC Encoder feedback capability
DPA-PDK DAMS Platform Development Kit
OPT-SMA Software maintenance agreement

Accessories

DEPC-D Pre-configured PC (desktop)
DEPC-L Pre-configured PC (laptop)
DE-SIM DAMS Antenna & Network Simulator software add-on
DPA-SW-N2F Spherical near field processing
DPA-AUTOPOL 18 GHz SPDT RF switch auto-polarizer with cables/adapters
DPA-AUTOPOL-40 40 GHz SPDT RF switch auto-polarizer with cables/adapters
DE-05xx Broadband reference horn 500 MHz to 18, 26, 30 or 40 GHz
DE-07xx Broadband reference horn 700 MHz to 18, 26, 30 or 40 GHz

Product documents

pdf Diamond Engineering DAMS 5000, 6000, 7000 Data Sheet

pdf DAMS Software Suite Users Manual and Setup Guide

pdf Diamond Engineering DAMS Antenna Measurement Systems Guide


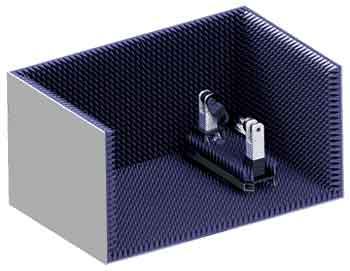

  Diamond Engineering DC402 Compact 2-axis 40lbs (18.15kg)

Diamond Engineering DC402 Compact Positioner Series

Diamond Engineering DC402 Precision Dual-Axis Compact Positioner
Diamond Engineering DC402 Precision Dual-Axis Compact Positioner

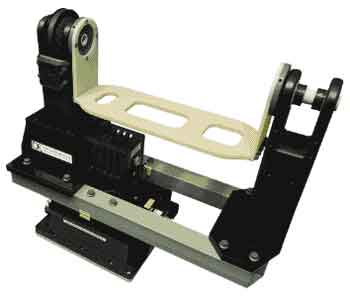

The DC402 is a compact positioner using both worm and belt drive components to offer high precision with low reflectivity for loads up to 40 pounds. This positioner is specifically designed for compact test ranges and enclosures for testing 5G, mmW and radar components and assemblies.

What’s Included?

The standard D6050 package features:

• 2-axis positioner

• DAMS Antenna Measurement Studio

• Precision RF cables

• Precision dual rotary joints

• DUT mounting hardware

• Tools and documentation

• 3-year warranty

Key Features and Functions

• 2D & 3D Spherical Measurements (AZ over EL, EL over AZ, XYZ planes and more)

• Far Field Parameters (gain, beamwidth, efficiency, directivity, polarization, isolation, and more)

• OTA Measurements (TRP/TIS)

• Phase Center Measurements

• Spherical Near Field (optional)



Highlights

• Dual rotary joints

• Multiple configuration options

• Indexable mast offset up to 17” from center

• Non-metallic DUT mounting axis

• Ultra-high precision (up to 0.02Ί)

• Ideal for most antennas up to 25 pounds


SPECIFICATIONS

Gerneral

Footprint: 12” x 12” (304 mm x 304 mm)
Total Height: 22.5” (571.5 mm)
Clearance Radius: 18” (914 mm) clearance radius required for full 360Ί rotation
Total Weight: 42 lbs (19 kg)

Positioner Turntable

Frequency Ranges (GHz): Coax: DC to 6, 18, 40, 50, or 67 GHz
  mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz
Resolution: 0.02Ί full step
  0.00125Ί microstep
Drivetrain: 3.0A/phase bipolar stepper motor with worm drive
Holding Torque: 25 ft-lb
Movement Range: 360Ί continuous or indexed
Position Feedback: 800-line encoder
Limits: Home & Limit (hardware & software)
Weight (positioner only): 16 lbs (7.27 kg)
Positioner Max Speed: 24Ί per second
AUT Mounting Options: Ή 3/8”-16 or M6 4-hole pattern for general mounting
Composition: Acrylic turntable with aluminum base
Weight Capacity: 100 lbs (45 kg)
RF Rotary Joint: Optional (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide)

Gimbal (phi)

Frequency Ranges: Coax: DC to 6, 18, 40, 50, or 67 GHz
  mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz
Resolution: 0.05Ί full step
  0.00250Ί microstep
Drivetrain: 2.0A/phase bipolar stepper motor with belt drive
Holding Torque: 20 ft-lb
Movement Range: 360Ί continuous or indexed
Position Feedback: 800-line Encoder
Limits: Home (hardware & software)
Weight (gimbal only): 26 lbs (11.7 kg)
Gimbal Max Speed: 24Ί per second
AUT Mounting Options: Ή 3.625” (92 mm) diameter PVC mounting plate with 10-32 hole array
Composition: Delrin, ABS, PLA+, fiberglass
Weight Capacity: 40 lbs (18 kg)
RF Rotary Joint: Optional (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide)

Electrical & Communications

Controller type: 3 axis microprocessor based controller
Resolution: Full step through 1/32 microstep
Motor Current: 3.125A per motor phase max
Cooling: Dual 40mm 24V fans
Motor Connector: M12 axial 5-pin connector + 5-pin encoder connector
Communication Interface: DB9 RS232 serial port with external USB adapter
Communication cable length: 1 meter
Input Voltage: 24VDC 3A
Power Supply (included): 24VDC 5A – 110/220v input
Motor cable length: 1 meter

Models

Unless otherwise specified, all standard model packages include the positioner, software, all RF components, AUT mounting hardware, and tools and documentation.

DC402-00 No RF Components
DC402-06 6 GHz SMA RF Components
DC402-18 18 GHz SMA RF Components
DC402-40 40 GHz 2.92 mm RF Components
DC402-50 50 GHz 2.4 mm RF Components
DC402-67 67 GHz 1.85 mm RF Components
DC402-75 50 to 75 GHz mmW V-Band RF Components
DC402-90 60 to 90 GHz mmW E-Band RF Components
DC402-110 75 to 110 GHz mmW W-Band RF Components

Options

DPA-PDK DAMS Platform Development Kit
OPT-SMA Software maintenance agreement

Accessories

DEPC-D Pre-configured PC (desktop)
DEPC-L Pre-configured PC (laptop)
DE-SIM DAMS Antenna & Network Simulator software add-on
DPA-SW-N2F Spherical nearfield processing
DPA-AUTOPOL 18 GHz SPDT RF switch auto-polarizer with cables/adapters
DPA-AUTOPOL-40 40 GHz SPDT RF switch auto-polarizer with cables/adapters
DE-05xx Broadband reference horn 500 MHz to 18, 26, 30 or 40 GHz
DE-07xx Broadband reference horn 700 MHz to 18, 26, 30 or 40 GHz

Product documents

pdf Diamond Engineering DC402 Precision Dual-Axis Compact Positioner Data Sheet

pdf Diamond Engineering DC402 Series Installation and Configuration Guide

pdf DAMS Software Suite Users Manual and Setup Guide

pdf Diamond Engineering DAMS Antenna Measurement Systems Guide


Diamond Engineering DCP252 EL/AZ

Positioner for Radar Module Calibration

Precision Positioners

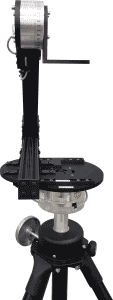

The DCP252A is a precision 2-axis EL/AZ positioner primarily designed for radar module calibration

DCP252

The DCP252A is a precision 2-axis EL/AZ positioner primarily designed for radar module calibration. AZ and EL stages are stepper motor-powered worm-gear tables with 0.025 degree native resolution. Each axis has a home sensor which can be used to set pre-calibrated home positions. A high capacity tripod provides stability and increases weight capacity for the positioner.

What’s Included?

The standard D6050 package features:

• 2-axis positioner

• DAMS Antenna Measurement Studio

• Precision RF cables

• Precision dual rotary joints

• DUT mounting hardware

• Tools and documentation

• 3-year warranty

Key Features and Functions

• 2D & 3D Spherical Measurements (AZ over EL, EL over AZ, XYZ planes and more)

• Far Field Parameters (gain, beamwidth, efficiency, directivity, polarization, isolation, and more)

• OTA Measurements (TRP/TIS)

• Phase Center Measurements

• Spherical Near Field (optional)



Highlights

• Dual rotary joints

• Multiple configuration options

• Ultra-high precision (up to 0.02Ί)

• Ideal for most antennas


Specifications

Gerneral

Footprint: 12” x 12” (304 mm x 304 mm)
Total Height: 22.5” (571.5 mm)
Clearance Radius: 18” (914 mm) clearance radius required for full 360Ί rotation
Total Weight: 42 lbs (19 kg)

Positioner Turntable

Frequency Ranges (GHz): Coax: DC to 6, 18, 40, 50, or 67 GHz
  mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz
Resolution: 0.02Ί full step
  0.00125Ί microstep
Drivetrain: 3.0A/phase bipolar stepper motor with worm drive
Holding Torque: 25 ft-lb
Movement Range: 360Ί continuous or indexed
Position Feedback: 800-line encoder
Limits: Home & Limit (hardware & software)
Weight (positioner only): 16 lbs (7.27 kg)
Positioner Max Speed: 24Ί per second
AUT Mounting Options: Ή 3/8”-16 or M6 4-hole pattern for general mounting
Composition: Acrylic turntable with aluminum base
Weight Capacity: 100 lbs (45 kg)
RF Rotary Joint: Optional (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide)

Gimbal (phi)

Frequency Ranges: Coax: DC to 6, 18, 40, 50, or 67 GHz
  mmW: 50-75 (V-Band), 60-90 (E-Band) or 75-110 (W-Band) GHz
Resolution: 0.05Ί full step
  0.00250Ί microstep
Drivetrain: 2.0A/phase bipolar stepper motor with belt drive
Holding Torque: 20 ft-lb
Movement Range: 360Ί continuous or indexed
Position Feedback: 800-line Encoder
Limits: Home (hardware & software)
Weight (gimbal only): 26 lbs (11.7 kg)
Gimbal Max Speed: 24Ί per second
AUT Mounting Options: Ή 3.625” (92 mm) diameter PVC mounting plate with 10-32 hole array
Composition: Delrin, ABS, PLA+, fiberglass
Weight Capacity: 40 lbs (18 kg)
RF Rotary Joint: Optional (SMA, 2.92 mm, 2.4 mm, 1.85 mm or waveguide)

Electrical & Communications

Controller type: 3 axis microprocessor based controller
Resolution: Full step through 1/32 microstep
Motor Current: 3.125A per motor phase max
Cooling: Dual 40mm 24V fans
Motor Connector: M12 axial 5-pin connector + 5-pin encoder connector
Communication Interface: DB9 RS232 serial port with external USB adapter
Communication cable length: 1 meter
Input Voltage: 24VDC 3A
Power Supply (included): 24VDC 5A – 110/220v input
Motor cable length: 1 meter

Models

Unless otherwise specified, all standard model packages include the positioner, software, all RF components, AUT mounting hardware, and tools and documentation.

DCP252A-00 No RF Components
DCP252A-06 6 GHz SMA RF Components
DCP252A-18 18 GHz SMA RF Components
DCP252A-40 40 GHz 2.92 mm RF Components
DCP252A-50 50 GHz 2.4 mm RF Components
DCP252A-67 67 GHz 1.85 mm RF Components
DCP252A-75 50 to 75 GHz mmW V-Band RF Components
DCP252A-90 60 to 90 GHz mmW E-Band RF Components
DCP252A-110 75 to 110 GHz mmW W-Band RF Components
DCP252A-MMW-CFX No RF components; configured with mounts for Copper Mountain FX series mmW adapters (up to 110 GHz)

Options

OPT-ENC Encoder feedback capability
DPA-PDK DAMS Platform Development Kit
OPT-SMA Software maintenance agreement

Accessories

DEPC-D Pre-configured PC (desktop)
DEPC-L Pre-configured PC (laptop)
DE-SIM DAMS Antenna & Network Simulator software add-on
DPA-SW-N2F Spherical nearfield processing
DPA-AUTOPOL 18 GHz SPDT RF switch auto-polarizer with cables/adapters
DPA-AUTOPOL-40 40 GHz SPDT RF switch auto-polarizer with cables/adapters
DE-05xx Broadband reference horn 500 MHz to 18, 26, 30 or 40 GHz
DE-07xx Broadband reference horn 700 MHz to 18, 26, 30 or 40 GHz

Product documents

pdf Diamond Engineering DCP-252A Seris of Dual-Axis Precision Positioners Data Sheet

pdf Diamond Engineering DCP-252A Series Installation and Configuration Guide

pdf DAMS Software Suite Users Manual and Setup Guide

pdf Diamond Engineering DAMS Antenna Measurement Systems Guide

Part Drawings

pdf  DCP252A 12″ Turntable (SAE, standard)

pdf  DCP252A Series 4″ x 4.75″ Mounting Plate

 Diamond Engineering Reflection-Less Spherical Antenna Mount (RSAM)

FSM-5-18

DC to 18 GHz



FSM-5-40

DC to 40 GHz



10 lb Load Rating



FSM-5-40



Brochure

Discounts


DAMS Layout

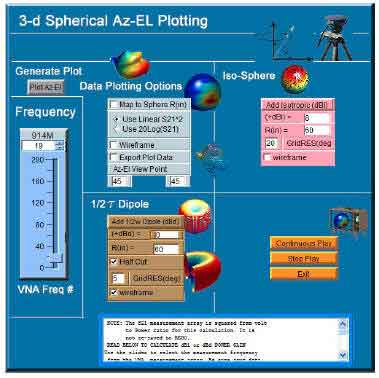

System Screenshot

The new Diamond Engineering Full Spherical Mount is now a DAMS platform option that may be added to any DAMS platform.

The mount utilizes delrin for ball bearings and structure, plus it enables full spherical measurements to resolutions as low as 0.1 degrees.

The mount is ideal for unobstructed gain data and efficiency.

The belt driven system is a plug and play substitution to the DAMS elevation motor.

Features include:

Low reflection - 90% delrin construction

DC - 18 GHz or DC - 40 GHz

6-inch horizontal adjustment for centring

12-inch vertical height

0.1 degree movement resolution

5-pound load capacity (option 5)

10-pound load capacity (option 10)

CTIA and general efficiency software

Runs from existing platform elevation plug



Copyright © 2001-2021  R. A. Mayes Company, Inc.
An Electro Mechanical Research and Development (EMRAD) Corporation, Company

See our Privacy Policy    All the data files on our website require Adobe Acrobat Reader!
