3m & 5m EMC Test Chambers



Frankonia fully compliant and state-of-the-art, with carbon free absorbers, 3m & 5m EMC Test Compliance Chambers with Quiet Zone (QZ) up to ø3.0m.

With 30 years of in customized EMC chambers solutions, combined with our unique Frankosorb® absorber technology, we definitely provide a perfect combination of technology and quality, to meet our customers’ needs for a future-proof partnership.





 Frankonia SAC-5 Plus EMC Test Chamber



Frankonia Logo





5 Meter EMC Test Chamber

30MHz to 40GHz



Image result for SAC-5 plus



Data



Features



Cost-effective and high-performance solution for a 5,0 m measuring distance

Full compliant EMI/EMS

Adapted steel structure and optimized RF-shielding with dome-shaped roof

Upgradeable for E-Drive (load machine, BlueBox, battery test system)

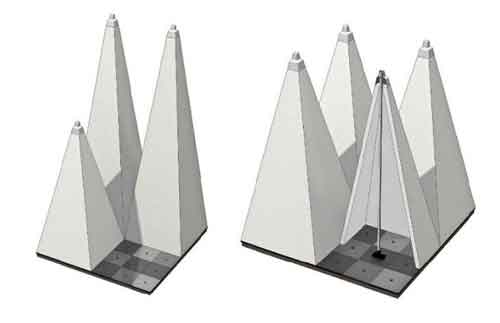

Ingenious absorber lining with Frankosorb®

Outstanding performance with long-lasting Frankosorb® non-combustible absorbers

Turnkey solution

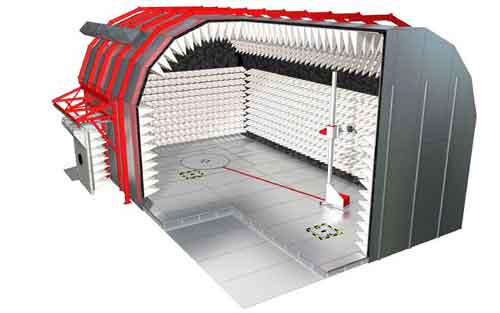

SAC-5 Plus

The SAC-5 Plus L is Frankonia’s full compliant EMC testing solution at 3,0m & 5,0m measuring distance with a Quiet Zone (QZ) of ø3,0m.

It is adapted for full compliant emissions and immunity testing.

The innovatively shaped roof, called dome design, with its optimized absorber layout leads to minimized reflections and offers outstanding performance for NSA, SVSWR and FU.



Typical Product Standards

Emissions

CISPR 11
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461

Immunity

IEC/EN 61000-4-3
ISO 11452
MIL-STD 461



Technical Specifications



Chamber Type SAC-5 Plus SAC-5 Plus L
External dimension 12.680 x 7.730 x 6.000 mm 12.680 x 8.180 x 6.000 mm
Version Dome design
Quiet Zone ø2,0 m ø3,0 m
Measuring distance 5,0 m
Load capacity up to 5,0 tons; special turntable systems possible
Frequency range 30 MHz to 18 GHz (option 40 GHz)





Frankonia SAC-3 Plus EMC Test Chamber



Frankonia Logo





3 Meter EMC Test Chamber

30MHz to 40GHz



Image result for SAC-3 plus



Data



Features

Cost-effective and high-performance solution for a 3,0 m measuring distance

Full compliant EMI/EMS

Adapted steel structure and optimized RF-shielding with dome-shaped roof

Upgradeable for E-Drive (load machine, BlueBox, battery test system)

Ingenious absorber lining with Frankosorb®

Outstanding performance with long-lasting Frankosorb® non-combustible absorbers

Turnkey solution

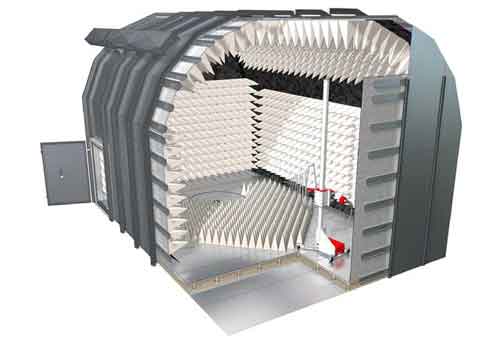

SAC-3 Plus



The SAC-3 Plus is Frankonia’s most versatile full compliant EMC testing solution at 3,0 m measuring distance with a Quiet Zone (QZ) up to ø2,0 m.

It is adapted for full compliant emission and immunity testing.

The innovatively shaped roof, called dome design, with its optimized absorber layout leads to minimized reflections and offers outstanding performance for NSA, SVSWR and FU.



Typical Product Standards

Emissions

CISPR 11
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461

Immunity

IEC/EN 61000-4-3
ISO 11452
MIL-STD 461



Technical Specifications

Chamber Type SAC-3 Plus S SAC-3 Plus M SAC-3 Plus L SAC-3 Plus
External dimension 8.480 x 6.530 x 6.000 mm 8.780 x 6.530 x 6.000 mm 9.230 x 6.530 x 6.000 mm 9.680 x 6.530 x 6.000 mm
Version Dome design
Quiet Zone ø1,2 m ø1,5 m ø2,0 m ø2,0 m
Measuring distance 3,0 m
Load capacity up to 5,0 tons; special turntable systems possible



Frankonia FAC-3 EMC Test Chamber



Frankonia Logo





3 Meter EMC Test Chamber

30MHz to 40GHz



Image result for frankonia FAC-3



Data



Features



Test site for table top EUT’s

Full compliant EMI/EMS

Cost effective solution for free-space measurements

Compact chamber design with advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Turnkey solution

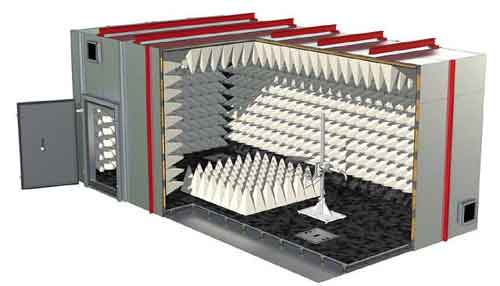

FAC-3



The FAC-3 is Frankonia’s fully anechoic chamber solution at 3,0m measuring distance for EMC tests on table top positioned EUT’s.

It is designed as full compliant chamber for measurements under free-space conditions and is based on CISPR 16-1-4 as a test site without ground plane.

Without the reflections from the floor, a height scan is no longer necessary. With its specific requirements for the test site, Frankonia’s FAC-3 is supremely prepared to meet our customers’ demands.



Typical Product Standards

Emissions

CISPR 14
CISPR 32
ETSI

Immunity

IEC/EN 61000-4-3



Technical Specifications

Chamber FAC-3
External dimension 8.705 x 4.655 x 3.750 mm
EUT Table-top EUT’s
Quiet Zone CISPR 16-1-4 ø1,5 m; height 1,5 m
Quiet Zone IEC/EN 61000-4-22 ø1,5 m; height 1,5 m (30 MHz -1 GHz)
ø1,0 m; height 1,0 m (1 GHz -6 GHz)
Measuring distance 3,0m
Load capacity up to 2,0 tons; special turntable systems possible
Frequency range 30 MHz to 18 GHz (option 40 GHz)





Frankonia FAC-3 L EMC Test Chamber



Frankonia Logo





3 Meter EMC Test Chamber

30MHz to 40GHz



Image result for frankonia FAC-3 L



Data



Features



Test site for table top and floor-standing EUT’s

Full compliant EMI/EMS

Cost effective solution for free-space measurements

Compact chamber design with advanced absorber lining with long-lasting Frankosorb® absorbers (Frankonia technology)

Turnkey solution

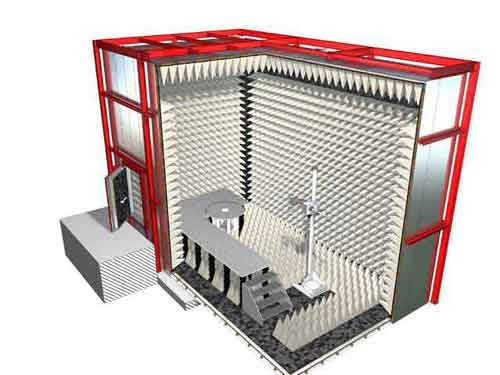

FAC-3 L



The FAC-3 L is the extended version of Frankonia’s fully anechoic chamber solution at 3,0m measuring distance for EMC tests on table top positioned EUT’s as well as on floor-standing EUT’s.

It is designed as full compliant chamber for measurements under free-space conditions and is based on CISPR 16-1-4 as a test site without ground plane. Without the reflections from the floor, a height scan is no longer necessary.

With its specific requirements for the test site, Frankonia’s FAC-3 L is supremely prepared to meet our customers’ demands.



Typical Product Standards

Emissions

CISPR 14
CISPR 32
ETSI

Immunity

IEC/EN 61000-4-3



Technical Specifications

Chamber FAC-3 L
External dimension 9.380 x 5.780 x 5.550 mm
EUT able-top and Floor-standing EUT’s
Quiet Zone CISPR 16-1-4 ø1,5 m; height 2,0 m
Quiet Zone IEC/EN 61000-4-22 ø1,5 m; height 2,0 m
Measuring distance 3,0m
Load capacity up to 2,0 tons; special turntable systems possible
Frequency range 30 MHz to 18 GHz (option 40 GHz)





Frankonia SAC-3 / FAC-3 Transformer EMC Test Chamber



Frankonia Logo





3 Meter EMC Test Chamber

30MHz to 40GHz



Image result for frankonia SAC-3 / FAC-3 transformer



Data



Features



Transformable from SAC to FAC test site

Cost-effective solution combining an SAC with an FAC chamber

High-performance for a 3,0 m measuring distance

Full compliant EMI/EMS

Adapted steel structure and optimized RF-shielding with traditional rectangular design

Ingenious absorber lining with Frankosorb®

Outstanding performance with long-lasting Frankosorb® non-combustible absorbers

Turnkey solution

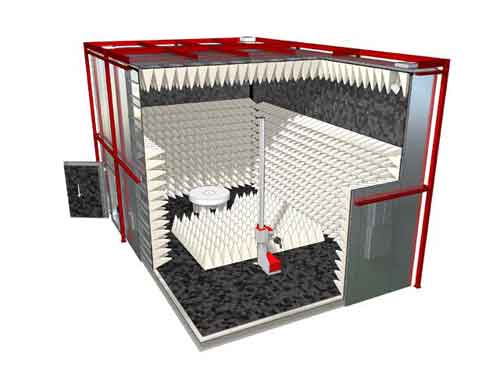

SAC-3 / FAC-3 Transformer



The SAC-3/FAC-3 Transformer is Frankonia’s full compliant EMC testing solution at 3,0m measuring distance offering semi as well as fully conditions.

The SAC configuration provides a Quiet Zone (QZ) of ø2,0m and is compliant with CISPR 16-1-4 as well as ANSI C63.4.

The FAC configuration provides a Quiet Zone (QZ) of ø1,5m and is compliant with CISPR 16-1-4 as well as IEC/EN 61000-4-22.

The SAC-3/FAC-3 Transformer chamber is adapted for full compliant emissions and immunity testing with a traditional “square design”.



Typical Product Standards

Emissions

CISPR 11
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461
ETSI

Immunity

IEC/EN 61000-4-3
ISO 11452
MIL-STD 461



Technical Specifications

Chamber Type SAC-3 / FAC-3 Transformers
External dimension 9.680 x 6.530 x 6.000 mm
Version Square design
Quiet Zone  ø2,0 m; height 1,5 m (SAC)
ø1,5 m; height 1,5 m (FAC)
Quiet Zone IEC/EN 61000-4-22 ø1,5 m; height 1,5 m (30 MHz -1 GHz)
ø1,0 m; height 1,0 m (1 GHz -6 GHz)
Measuring distance 3,0 m
Load capacity up to 5,0 tons; special turntable systems possible
Frequency range 30 MHz to 18 GHz (option 40 GHz)





Frankonia SAC-3 Square EMC Chamber



Frankonia Logo





3 Meter EMC Test Chamber

30MHz to 40GHz



Image result for frankonia SAC-3 square



Data



Features

Cost-effective and high-performance solution for a 3,0 m measuring distance

Full compliant EMI/EMS

Adapted steel structure and optimized RF-shielding with traditional rectangular design

Upgradeable for E-Drive (load machine, BlueBox, battery test system)

Ingenious absorber lining with Frankosorb®

Outstanding performance with long-lasting Frankosorb® non-combustible absorbers

Turnkey solution

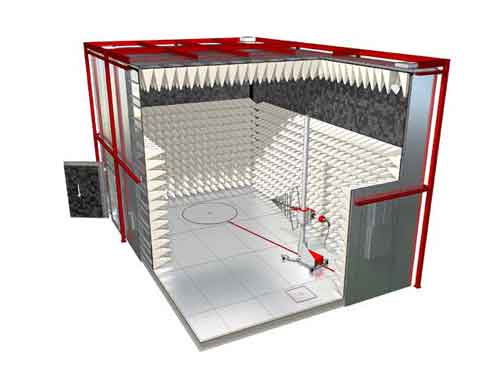

SAC-3 Square



he SAC-3 Square is Frankonia’s full compliant EMC testing solution at 3,0m measuring distance with a Quiet Zone (QZ) of ø2,0m or ø3,0m.

It is adapted for full compliant emissions and immunity testing with a traditional “square design” of the chamber.



Typical Product Standards

Emissions

CISPR 11
CISPR 14
CISPR 15
CISPR 25
CISPR 32
MIL-STD 461

Immunity

IEC/EN 61000-4-3
ISO 11452
MIL-STD 461



Technical Specifications

Chamber Type SAC-3 Square SAC-3 Square L
External dimension 9.680 x 6.530 x 6.000 mm 10.880 x 6.980 x 6.000 mm
Version Square design
Quiet Zone ø2,0 m ø3,0 m
Measuring distance 3,0 m
Load capacity up to 5,0 tons; special turntable systems possible
Frequency range 30 MHz to 18 GHz (option 40 GHz)
