RF & Microwave Test Boxes - Small Size

Ramsey Electronics, LLC



Manufactured and Serviced in Victor, NY USA

RF TIGHT TESTING... MADE EASY!
Wired & Wireless Device Testing!

Perfect for 802.11a, b, g, Wireless LAN, WiFi, WiMax, Cellular, Paging, PCS, GPS, GSM 3G, RFID, Zigbee, Bluetooth®, Blade Servers, Cards, WAP’s, Production Testing, Quality Assurance and other Wireless Devices Testing or just as a RF Shielded Enclosure



Wide Variety Of I/O Options!    Great Isolation Up To 18GHZ!    Models To Fit Any Application!



All STE Standard Models are Temperature Rated from - 40° C to + 90° C

(- 40° F to + 194° F)

(-55° to +100° C Avalable)

ALL STE Models are "In the Field" Serviceable



CUSTOM ORDERS...ARE STANDARD!
We realize that the connectors, options and actual test procedures of one customer are entirely different from that of another.  In fact over the past 5 years we have never had an identical connector and option configuration between customers!  We made it easy with our precision machined I/O output panels to get standard delivery of your "custom configured" enclosure!  It goes beyond connectors and options.  If you need a special configuration, a different size or door configuration, talk to us!  The entire line of STE enclosures has evolved from just that, the needs of people like you!

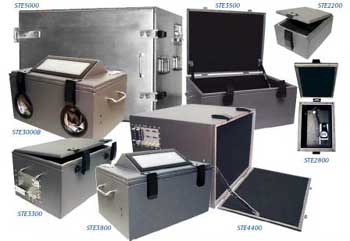

THE RF SCREEN ROOM ON YOUR BENCH!
In 1997 Ramsey took the technician out of the large expensive shielded screen room and put his hands and eyes into a portable bench top RF Shielded Test Enclosure. With thousands placed in service worldwide the patented STE technology became the standard for efficient and cost effective RF isolation testing. That legacy has continued with a wide variety of STE’s to suit every RF test application, and size requirements you have today. Our exclusive double lip gasket technology assures an RF tight seal each and every time. Steady-hold hinges maintain the opening at any location and prevent gasket compression due to prolonged closure pressure when not in use. Our STE2800 and STE3800 STE’s feature our RTF Radiating Test Fixture with a built-in broadband antenna to properly test wireless telephones with guaranteed repeatability. All of the STE’s feature a wide variety of available I/O connection and interface options and RF filtered feedthroughs.

All available to fit your custom requirements with the pricing and delivery of a stock unit!

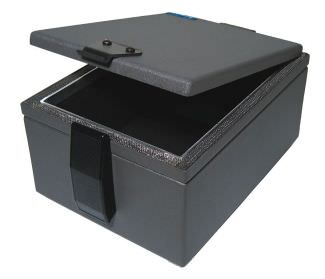

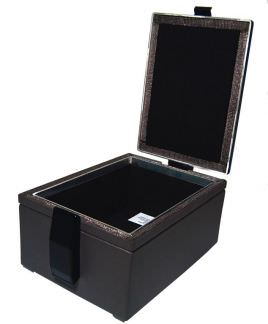

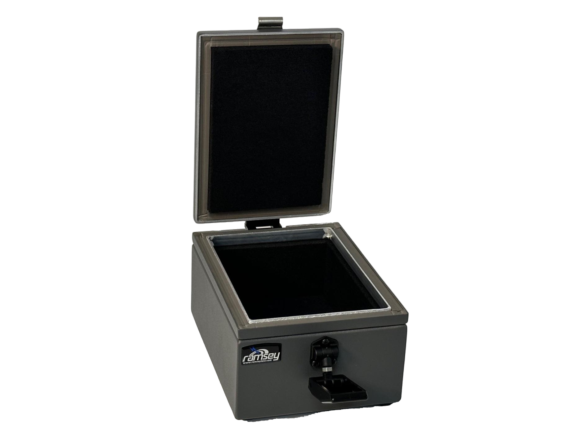

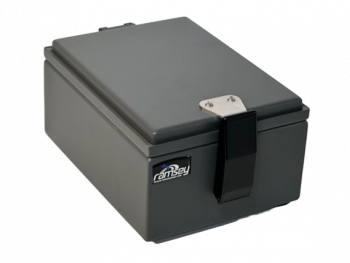

STE2200


Model

Features



STE2200



Base Model Price $475.00



Microwave RF Shielded Test Box



RF Isolation: 20 MHz to 10 GHz





4½" H x 7¼" W x 9¾" D


3¼” H x 6” W x 8½” D
(Nom. Inside Dimensions)



24 dB Attenuation Absorber



DATA



Shielding Effectiveness



Get Quote   I/O Connectors

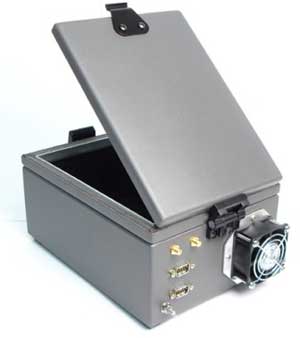

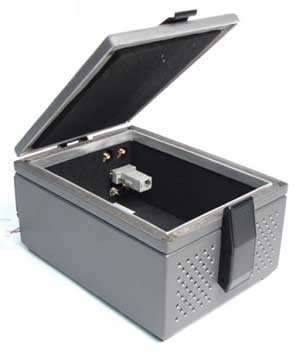

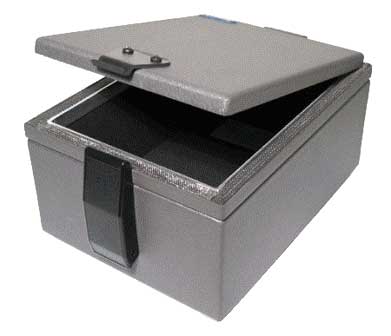

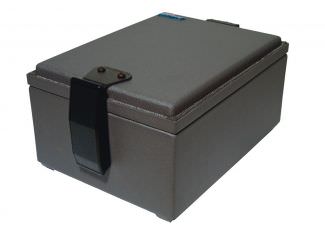

STE2200 Microwave RF Shielded Test Fixture

  • Interference Free Testing FOR YOUR 802.11 EQUIPMENT!

  • Same quality design as its patented big brother - the STE3000 Test Enclosure

  • Designed for 2.4 GHz and 5.6 GHz wireless services

  • Great isolation beyond 8 GHz!

  • Heavy duty construction

  • Portable and easy to use



THE "PORTABLE TEST BOX"
The STE2200 evolved from its big brother the STE3000B. Designed specifically for TDMA, CDMA, AMPS, PCS, GSM and other small communication devices, it is constructed to the same precision-machined tolerances as our patented STE3000B to maintain an exceptionally well shielded environment. Heavy duty, rugged .090 and .125 aluminum is used throughout and our double lip double high performance gaskets are used at all joint locations assuring a reliable RF tight closure. Oversized hinges and latches are used to provide a physically tight seal every time. RF absorbent foam lines the interior to provide a typical RF attenuation of -90dB @ 3GHz! Perfect for 2.4GHz testing. Input/output connections and options can be configured to match your needs.



RF TIGHT TO 8 GHz AND BEYOND!
The STE2200 is constructed to the same precision machined tolerances of our patented STE3000 to maintain an exceptionally well shielded environment. Heavy duty, rugged .090 and .125 aluminum is used throughout. Then we went to work to assure an RF-tight seal up to 8 GHz. First, we engineered the box with a special double lip to provide better attenuation at higher frequencies. Then we embedded double woven monel flexible gaskets throughout the lip at all joint locations. In addition, all inside surfaces are lined with microwave absorbent foam to attenuate stray RF signals during your test. The results? Better than -75dB attenuation at 8 GHz, and greater than 90 dB down at 2 GHz! This is one tight RF enclosure!



SPECIFICATIONS

RF Isolation:

(Typical without Connectors)

≥ 100 dB from 20 MHz to 1 GHz

> 90 dB at 3 GHz

> 80 dB at 6 GHz

> 65 dB at 8 GHz

> 60 dB at 10 GHz

> 55 dB at 18 GHz

> 50 dB at 20 GHz

Finish:

Mist gray epoxy powder coat with black hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel

There is NO connector panel, I/Os are machined directly into case.

Connectors:

The STE2200 is provided standard without filtered input/output connectors for your custom applications.
Filtered connector options are available in many configurations (See Connector & I/O Options).

Overall Dimensions:

Exterior: 4.5"H x 7.2"W x 9.8"D    Interior: 3.2"H x 6.0"W x 8.5"D

Weight (shipping):

7lbs. / 3.18kg

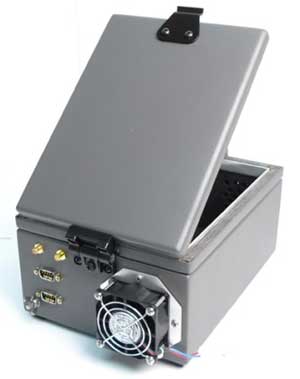

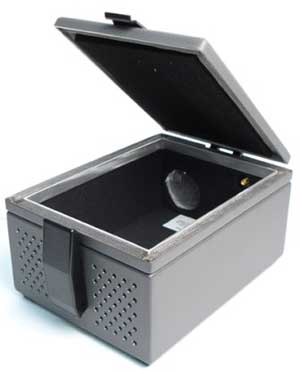

EXAMPLES OF CUSTOMIZED STE2200 ENCLOSURES





STE2300


Model

Features

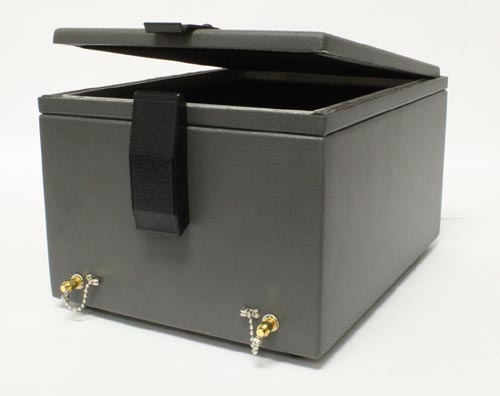

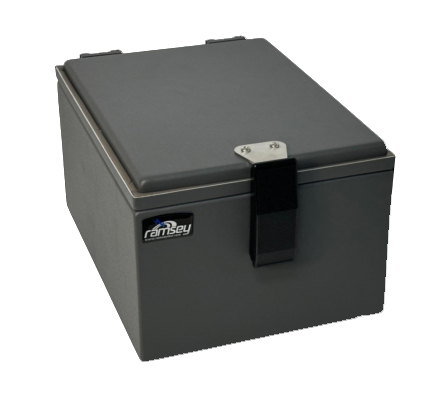

STE2300 Front

(shown with optional SMA connectors)

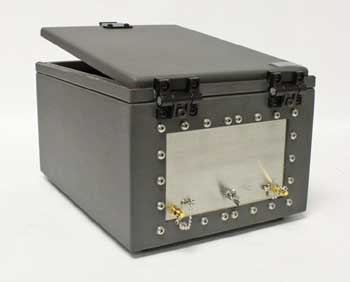

STE2300 Rear

(shown with optional SMA connectors)

STE2300



Base Model Price $745.00



Microwave RF Shielded Test Box



RF Isolation: 20 MHz to 10 GHz





 6.5" (H) x 9.0" (W) x 12.0" (D) External

5.0" (H) x 8.0" (W) x 11" (D) Internal



24 dB Attenuation Absorber



DATA



Shielding Effectiveness



Get Quote   I/O Connectors

STE2300 Microwave RF Shielded Test Fixture

  • Interference Free Testing FOR YOUR 802.11 EQUIPMENT!

  • Same quality design as its patented big brother - the STE3000 Test Enclosure

  • Designed for 2.4 GHz and 5.6 GHz wireless services

  • Great isolation beyond 8 GHz!

  • Heavy duty construction

  • Portable and easy to use

RF TIGHT TO 8 GHz AND BEYOND!
The STE2300 is constructed to the same precision machined tolerances of our patented STE2200 to maintain an exceptionally well shielded environment. Heavy duty, rugged .090 and .125 aluminum is used throughout. Then we went to work to assure an RF-tight seal up to 8 GHz. First, we engineered the box with a special double lip to provide better attenuation at higher frequencies. Then we embedded double woven monel flexible gaskets throughout the lip at all joint locations. In addition, all inside surfaces are lined with microwave absorbent foam to attenuate stray RF signals during your test. The results? Better than -75dB attenuation at 8 GHz, and greater than 90 dB down at 2 GHz! This is one tight RF enclosure! New small size with a standard removable I/O panel!



SPECIFICATIONS

RF Isolation:

(Typical without Connectors)

≥ 100 dB from 20 MHz to 1 GHz

> 90 dB at 3 GHz

> 80 dB at 6 GHz

> 65 dB at 8 GHz

> 60 dB at 10 GHz

> 55 dB at 18 GHz

> 50 dB at 20 GHz

Finish:

Mist gray epoxy powder coat with black hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Connector Panel

Blank Removable panel is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

The STE2300 is provided standard without filtered input/output connectors for your custom applications.
Filtered connector options are available in many configurations (See Connector & I/O Options).

Overall Dimensions:

6.5" (H) x 9.0" (W) x 12.0" (D) External, 5.0" (H) x 8.0" (W) x 11" (D) Internal

Weight (shipping):

(8.0 lbs)



STE2800


Model

Features

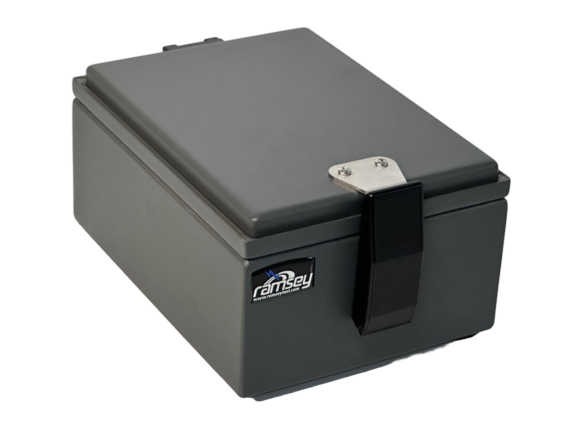

Ramsey RF Shielded Test Enclosure STE2800

Ramsey RF Shielded Test Enclosure with RTF STE2800 Closeup of RTF Old Version (Click to Enlarge)   Closeup of New RTF (Click to Enlarge)

STE2800



Base Model Price $995.00



Microwave RF Shielded Test Box

with RTF (Radiating Test Fixture)



RTF: 700 MHz to 8 GHz



RF Isolation: 20 MHz to 10 GHz







4½" H x 7¼" W x 9¾" D


3¼” H x 6” W x 8½” D
(Nom. Inside Dimensions Above RTF)



24 dB Attenuation Absorber



DATA



Shielding Effectiveness



Get Quote   I/O Connectors

STE2800 Microwave RF Shielded Test Fixture

  • Integral RF radiating test fixture (RTF)

  • Flat Coupling Factor 700MHz - 8 GHz

  • Provides absolute repeatability testing

  • Exclusive double lip RF tight gasket

  • RF absorbent foam liner

  • Easy release handle

  • Steady-hold hinge

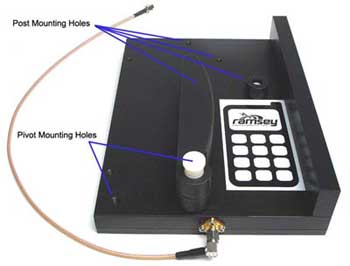

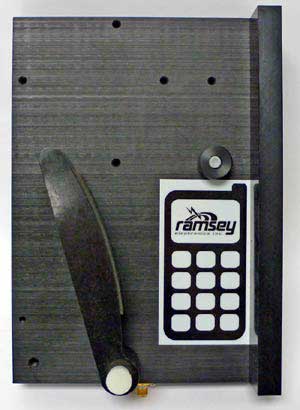

Radiating Test Fixture (Built in Antenna)



Radiating Test Fixture (RTF) with a built-in broadband antenna to properly test wireless telephones with guaranteed repeatability.

THE "PORTABLE TEST BOX"
Designed around the STE2200, we took the task of repeatability testing of TDMA, CDMA, AMPS, PCS and GMS phones, and other wireless communications to a new level! For more than a decade Ramsey's RTF Radiating Test Fixture was the standard in pager testing and alignment. Now, designed specifically for such communications devices, the RTF has a built-in embedded antenna to cover 800 MHz to 8 GHz.
A heavy duty universal clamp system allows any phone to be securely clamped into position for testing. Once clamped in, the flat coupling response, together with the high RF Isolation factor, gives you guaranteed repeatability testing. Phone to phone, the measurements will be exact, and will be taken under the identical conditions. A Type-N connector is provided standard on the STE2800 for the RTF antenna connection. Other I/O connector options may be ordered separately.



RF TIGHT TO 8 GHz AND BEYOND!
The STE2200 is constructed to the same precision machined tolerances of our patented STE3000 to maintain an exceptionally well shielded environment. Heavy duty, rugged .090 and .125 aluminum is used throughout. Then we went to work to assure an RF-tight seal up to 8 GHz. First, we engineered the box with a special double lip to provide better attenuation at higher frequencies. Then we embedded double woven monel flexible gaskets throughout the lip at all joint locations. In addition, all inside surfaces are lined with microwave absorbent foam to attenuate stray RF signals during your test. The results? Better than -75dB attenuation at 8 GHz, and greater than 90 dB down at 2 GHz! This is one tight RF enclosure!



SPECIFICATIONS

RF Isolation:

(Typical without Connectors)



≥ 100 dB from 20 MHz to 1 GHz

> 90 dB at 3 GHz

> 80 dB at 6 GHz

> 65 dB at 8 GHz

> 60 dB at 10 GHz

> 55 dB at 18 GHz

> 50 dB at 20 GHz

Finish:

Mist gray epoxy powder coat with black hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Test Fixture

Integral RF radiating test fixture (RTF) with a built-in broadband antenna, Flat Coupling Factor 800MHz - 8 GHz

Connector Panel

Two (2) SMA Connectors are Standard, There is no connector panel, I/Os are machined directly into case

Connectors:

The STE2800 is provided standard with Two (2) SMA filtered connectors, One (1) for the RTF & One (1) for output.
Filtered connector options are available in many configurations (See Connector & I/O Options).

Overall Dimensions:

External: 4½" H x 7¼" W x 9¾" D (including handle)   Internal: 3¼” H x 6” W x 8½” D (Nom. Inside Dimensions Above RTF)

Weight (shipping):

3.5 lb/1.6kg  (6.0 lbs)



STE2900


Model

Features

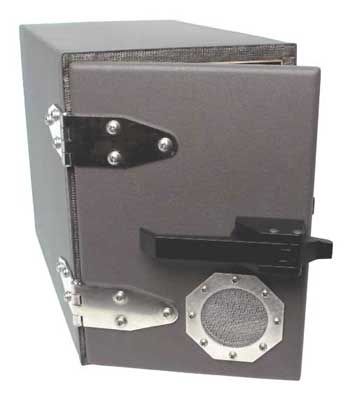

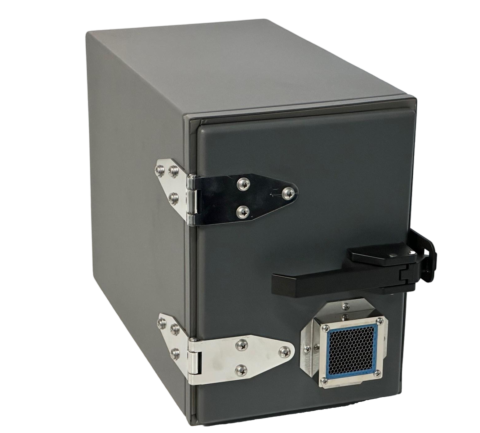

Ramsey STE2900 Shielded Enclosure

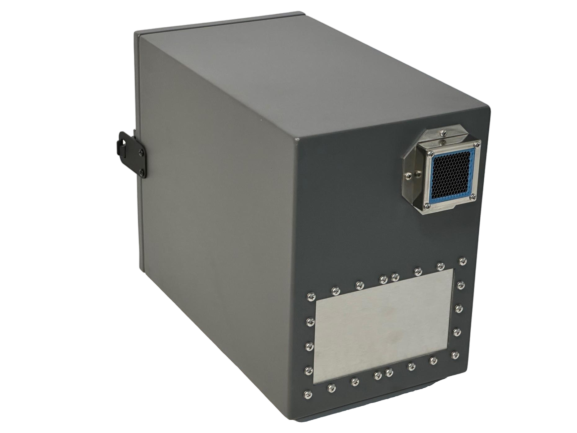

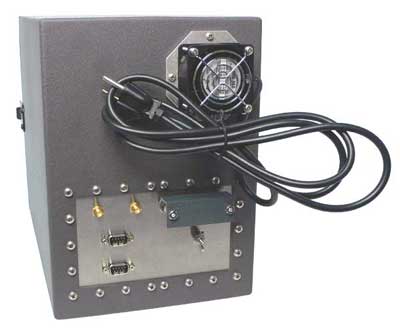

Ramsey STE2900F Rear View

STE2900 (Optional Fan)



STE2900



Base Model Price $1,095.00





STE2902

(Rack Mounted)



Base Model Price $2,195.00





STE2902C

(STACKABLE 8 RACK UNIT SHOCK MOUNTED ROAD CASE)



Base Model Price $2,495.00





Blade Server EMI Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz





11.0" H x 8.0" W x 14.0" D


10” H x 7” W x 13” D
(Nom. Inside Dimensions)





24 dB Attenuation Absorber

from 700 MHz to 6 GHz





DATA



Shielding Effectiveness



Get Quote   I/O Connectors

STE2900 Microwave RF Shielded Test Fixture

The STE2900 is designed to be dual rack mounted in a standard 19” EIA rack enclosure. The 7 R/U dual enclosure is designed for multiple simultaneous testing of blade servers, cards, WAP’s and other wireless devices.

RF isolation is greater than -75dB at 6GHz and fan forced cooling is provided for devices under test. Like other Ramsey STE’s, a universal I/O plate is provided for rapid modification and customization of customer requirements.

The STE2900 is available as a single enclosure, or a dual enclosure set installed on the matching 19” rack shelf.

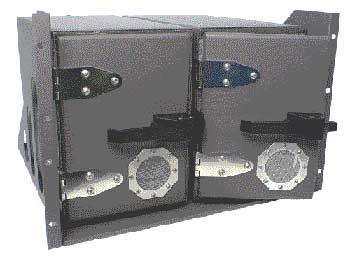

Ramsey STE2902 Shielded Enclosure

STE2902



Ramsey STE2900C Shielded Enclosure



SPECIFICATIONS

RF Isolation:

(Typical without Connectors)



≥ 100 dB from 20 MHz to 1 GHz

> 90 dB at 3 GHz

> 80 dB at 6 GHz

> 65 dB at 8 GHz

> 60 dB at 10 GHz

> 55 dB at 18 GHz

> 50 dB at 20 GHz

Finish:

Mist gray epoxy powder coat with black hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Ventilation

Two (2) vents, one in the door and one in the rear wall. Optional 24 CFM AC or DC vent fan available

Connector Panel

Blank Removable panel is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard. Please specify connector requirements from Connector & I/O Options

Overall Dimensions:

External: 11.0" H x 8.0" W x 14.0" D (including handle)   Internal: 10¼” H x 7¼” W x 13¼” D (Nom. Inside Dimensions)

Weight (shipping):

11.2 lbs (5.1kg)



STE2950


Model

Features

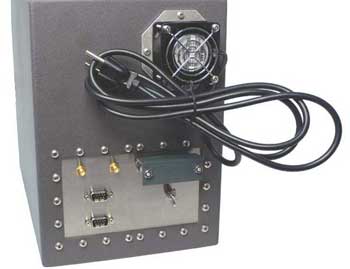

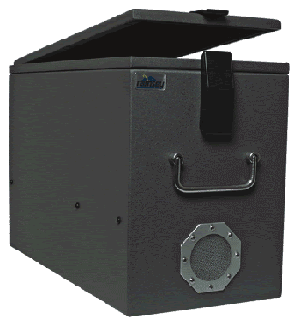

STE2950 (Optional Fan)







STE2950



Base Model Price $1,195.00









WLAN & MIMO RF Shielded Test Box



RF Isolation: 20 MHz to 18 GHz





11.7" H x 8.325" W x 18.0" D


10.5” H x 7.125” W x 16.8” D
(Nom. Inside Dimensions)





24 dB Attenuation Absorber

from 700 MHz to 18 GHz





DATA





Get Quote   I/O Connectors

STE2950 Microwave RF Shielded Test Fixture



The “Top Load version of the STE2900! Also designed for individual bench top or dual rack mount installations, the STE2950 makes it simple to load and unload the device under test with its top load access door. The dual rack mount configuration allows multiple installations for dense pack environment testing.



To allow proper cooling of the DUT each STE2950 includes a built-in passive 60mm vent option. Optional forced-air fans can be ordered for additional cooling. Like other Ramsey STE’s our universal I/O panel on the back wall is included and ready for your custom configuration to meet your application. Heavy duty, rugged .090 and .125 aluminum is used throughout and our double lip, high performance gaskets are used at all joint locations assuring a reliable RF tight closure. RF absorbent foam lines the interior to provide a typical RF attenuation of -90dB @ 3GHz! If you are looking for an off-the-shelf RF enclosure system providing enough room to test any size wireless device, from Cellular phones to MIMO access points, you can count on the STE2950 to keep the device isolated.

  • Designed for WLAN and MIMO testing

  • Top loading swing up door for easy loading

  • Dual ventilation or fan forced cooling

  • Exclusive double lip RF tight gasket

  • Universal I/O connector interface plate

  • RF absorbent foam liner

  • Optional security locking latch available











SPECIFICATIONS

RF Isolation:

(Typical without Connectors)



≥ 100 dB from 20 MHz to 1 GHz

> 90 dB at 3 GHz

> 80 dB at 6 GHz

> 65 dB at 8 GHz

> 60 dB at 10 GHz

> 55 dB at 18 GHz

> 50 dB at 20 GHz

Finish:

Mist gray epoxy powder coat with black hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Ventilation

Two (2) vents, one in the door and one in the rear wall. Optional 24 CFM AC or DC vent fan available

Connector Panel

Blank Removable panel is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard. Please specify connector requirements from Connector & I/O Options

Overall Dimensions:

External: 11.7" H x 8.325" W x 18.0" D (including handle)   Internal: 10½” H x 7⅛” W x 16.8” D (Nom. Inside Dimensions)

Weight (shipping):

18 lbs (8.2 kg)



STE2952


Model

Features

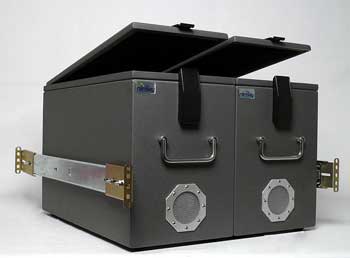

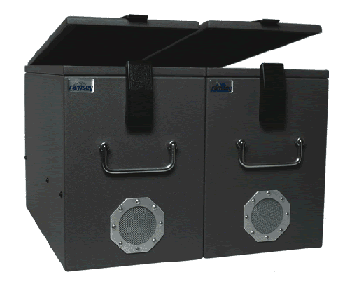

STE2952 (Standard Rack Mount Slides)







STE2952



Base Model Price $2,395.00









WLAN & MIMO Rack Mounted

RF Shielded Test Enclosure



RF Isolation: 20 MHz to 18 GHz





11.7" H x 16.65" W x 18.0" D


10.5” H x 7.125” W x 16.8” D
(Nom. Inside Dimensions per chamber)





24 dB Attenuation Absorber

from 700 MHz to 18 GHz





DATA





Get Quote   I/O Connectors

STE2952 Microwave RF Shielded Test Fixture



The “Top Load version of the STE2900! Also designed for individual bench top or dual rack mount installations, the STE2950 makes it simple to load and unload the device under test with its top load access door. The dual rack mount configuration allows multiple installations for dense pack environment testing.



The dual rack version STE2952 includes a custom rack slide allowing the entire enclosure to be pulled out for top access.


To allow proper cooling of the DUT each STE2950 includes a built-in passive 60mm vent option. Optional forced-air fans can be ordered for additional cooling. Like other Ramsey STE’s our universal I/O panel on the back wall is included and ready for your custom configuration to meet your application. Heavy duty, rugged .090 and .125 aluminum is used throughout and our double lip, high performance gaskets are used at all joint locations assuring a reliable RF tight closure. RF absorbent foam lines the interior to provide a typical RF attenuation of -90dB @ 3GHz! If you are looking for an off-the-shelf RF enclosure system providing enough room to test any size wireless device, from Cellular phones to MIMO access points, you can count on the STE2950 to keep the device isolated.



The STE2952 includes dual STE2950’s mounted on a custom 19” rack mount slide ready for installation into your rack. Access to the DUT is easy by the pull-out slide giving you full access to the hinged top mounted shielded doors. If you don’t have available rack space or need high density testing in the field, our STE2952C has dual STE2950’s pre-mounted and configured in a custom shock mounted road case. Great for field service trips.



  • Dual 19” rack mount configuration
  • Easy top loading access and doors
  • Pull-out slide included for standard racks
  • Designed for WLAN and MIMO testing
  • Top loading swing up door for easy loading
  • Dual ventilation or fan forced cooling
  • Exclusive double lip RF tight gasket
  • Universal I/O connector interface plate
  • RF absorbent foam liner
  • Optional security locking latch available







SPECIFICATIONS

RF Isolation:

(Typical without Connectors)



≥ 100 dB from 20 MHz to 1 GHz

> 90 dB at 3 GHz

> 80 dB at 6 GHz

> 65 dB at 8 GHz

> 60 dB at 10 GHz

> 55 dB at 18 GHz

> 50 dB at 20 GHz

Finish:

Mist gray epoxy powder coat with black hardware

Rack Mount: Standard rack slides

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

Ventilation

Two (2) vents, one in the door and one in the rear wall. Optional 24 CFM AC or DC vent fan available

Connector Panel

Blank Removable panel is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

None standard. Please specify connector requirements from Connector & I/O Options

Overall Dimensions:

External: 11.7" H x 16.65" W x 18.0" D (including handle)   Internal: 10½” H x 7⅛” W x 16.8” D (Nom. Inside Dimensions per chamber)

Weight (shipping):

31 lbs (14 kg)












 Last Updated: March 9, 2017

  Copyright © 2001- 2017  R. A. Mayes Company, Inc.

An Electro Mechanical Research and Development (EMRAD) Corporation, Company





All the Data Sheets on our site require Adobe Acrobat Reader! Get Abode Reader
