Rigid Aluminum Foil Panels for RF Shielding








Ask About Other Foils Available

Aluminum Alloys, Copper Alloys, Stainless Steel

Tempers:            All tempers

Gauges:             .0002" to .012"

Widths:              .100" to 48.000"

Manufactured and Serviced in Cleveland, OH USA



 Ultra Lightweight Rigid Aluminum Foil Panels (Cardboard Backed) for EMI / RFI Shielding


Model

Features





Rigid Aluminum Foil Panels for Shielding











5 mil Aluminum Foil Panels

Cardboard Backing



Rigid Foil Sheets for EMI / RFI shielding


Aluminum .005” x 48.00” x 96.00”



1 sheet weighs approx 10lbs


.25” thick cardboard, 1 side laminated .005 foil


0.0050" (0.127 mm) (5 mil) Thick

1235 Aluminum



Standard Panel Size



5/16" x 48" x 96" (32 ft²)



Ideal for large coverage areas,

Cuts you labor cost by 30%



DATA

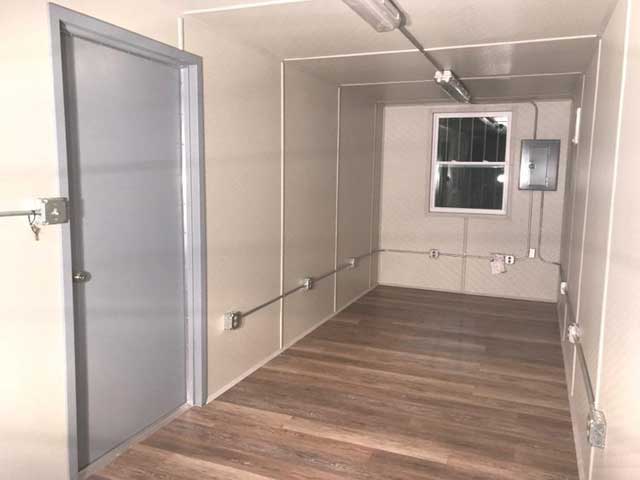

EMI-Shield RGD AL5 is applied like lightweight paneling, covering all surfaces: walls and ceiling. Other than normal cleanliness, and dust free, no special preparation is required.



The rigid foil may be screwed, stapled or glued in-place.



For maximum effectiveness, seams should be taped with 5 mil Aluminum electrically conductive adhesive foil tape.



We recommend  a minimum of 3″ overlap (6" wide) using non-conductive adhesive foil tape or a minimum 1.5" (3' wide) using conductive adhesive foil tape. 4" wide for government projects.



Do not solder or weld EMI-Shield RGD AL5





Wear correct gloves when installing the foil, the edge is like a razor blade



Installation Methods



6" Non-Conductive Tape



3" or 4" Electrically Conductive Tape (Recommended)





Close-up of Rigid Panel                       Cardboard Backing



Lightweight & Rigid (One person can install)

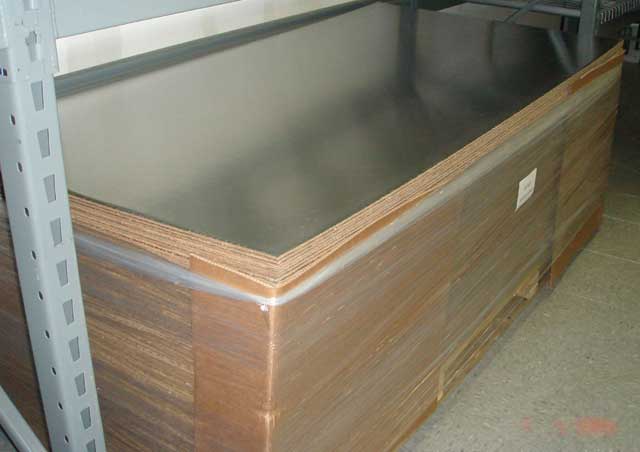

Up to 100 sheets per pallet

TYPICAL SHIELDING EFFECTIVENESS

1235 Aluminum

5 mil Rigid Aluminum Foil Panel Pricing

TYPICAL SHIELDING EFFECTIVENESS

5 mil

(Insertion Loss per MIL STD 285)

FREQUENCY

dB

10 KHz, Magnetic Field

  20

100 KHz, Magnetic Field

  30

1 MHz, Magnetic Field

  40

10 KHz, Electric Field

  50

100 KHz, Electrical Field

  60

1 MHz, Electrical Field

  80

10 MHz, Electrical Field

  80

100 MHz, Plane Wave

  60

400 MHz, Plane Wave

  60

10 GHz Plane Wave

  60

Aluminum (Al)

99.35%

Iron (Fe)

-

Copper (Cu)

0.05%

Manganese (Mn)

0.05%

Magnesium (Mg)

0.05%

Chromium (Cr)

-

Zinc (Zn)

0.10%

Titanium (Ti)

0.06%

Silicon (Si)

0.65% (Si+Fe)







Must be Shipped Palletized by Truck





If you need to order any quantity greater than one,

 please email us with your request!



PayPal does not apply discount pricing



Please Email Us for All Quantity Pricing Requests

EMI-Shield RDG AL5

4' x 8' Sheet

(10 lbs / Sheet)

Delivery: Stock to 3 Weeks

$135.00

QUANTITY DISCOUNTS

EMI-Shield RDG AL5

4' x 8' Sheet

(10 lbs / Sheet)

Delivery: Stock to 3 Weeks

10 sheets

$135.00

25 sheets

$90.00

50 sheets

$80.00

100 sheets

$56.00

200 sheets

$47.00

400 sheets

$40.00

1000+ sheets

$37.00



 Ultra Lightweight Rigid Aluminum Foil Panels (Plastic Backed) for EMI / RFI Shielding


Model

Features

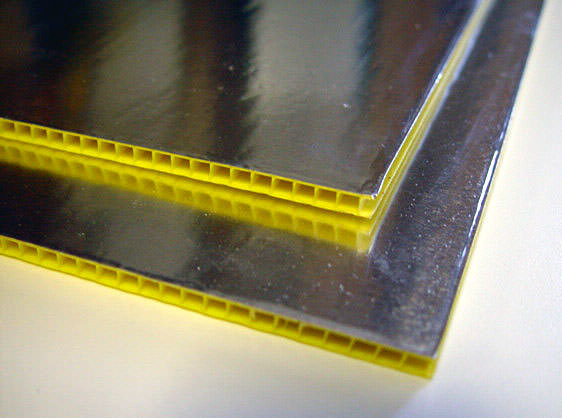

Plastic Backed Rigid Aluminum Panel

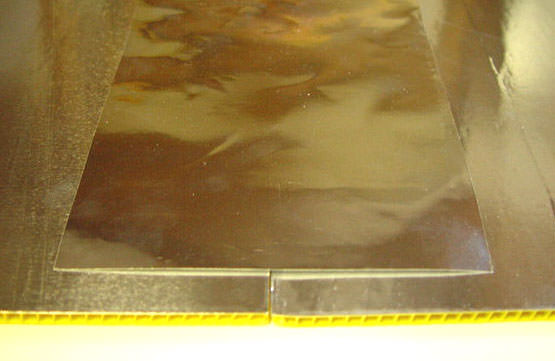

4" Tape Butt Joint (Click to Enlarge)

Butt Joint with 4" tape





5 mil Aluminum Foil Panels

Fluted Plastic Backing



Rigid Foil Sheets for EMI/RFI shielding


Aluminum .005” x 48.00” x 96.00”



1 sheet weighs approx 9lbs


.1875” thick fluted plastic, 1 side laminated .005 foil


0.0050" (0.127 mm) (5 mil) Thick



1235 Aluminum



Standard Panel Size



0.196" (5mm) x 48" x 96" (32 ft²)





DATA





Color vary by order

EMI-Shield RGDP AL5 is applied like lightweight paneling, covering all surfaces: walls and ceiling. Other than normal cleanliness, and dust free, no special preparation is required.



The rigid foil may be screwed, stapled or glued in-place.



For maximum effectiveness, seams should be taped with 5 mil Aluminum electrically conductive adhesive foil tape.



We recommend  a minimum of 3″ overlap (6" wide) using non-conductive adhesive foil tape or a minimum 1.5" (3' wide) using conductive adhesive foil tape.



Do not solder or weld EMI-Shield RGDP AL5



Ideal for:

Large coverage areas,

Cuts you labor cost by 30%



Areas with High Humidity or Moisture







Wear correct gloves when installing the foil, the edge is like a razor blade



Installation Methods



6" Non-Conductive Tape



3" or 4" Electrically Conductive Tape (Recommended)



TYPICAL SHIELDING EFFECTIVENESS

1235 Aluminum

5 mil Rigid Aluminum Foil Panel Pricing

TYPICAL SHIELDING EFFECTIVENESS

5 mil

(Insertion Loss per MIL STD 285)

FREQUENCY

dB

10 KHz, Magnetic Field

  20

100 KHz, Magnetic Field

  30

1 MHz, Magnetic Field

  40

10 KHz, Electric Field

  50

100 KHz, Electrical Field

  60

1 MHz, Electrical Field

  80

10 MHz, Electrical Field

  80

100 MHz, Plane Wave

  60

400 MHz, Plane Wave

  60

10 GHz Plane Wave

  60

Aluminum (Al)

99.35%

Iron (Fe)

-

Copper (Cu)

0.05%

Manganese (Mn)

0.05%

Magnesium (Mg)

0.05%

Chromium (Cr)

-

Zinc (Zn)

0.10%

Titanium (Ti)

0.06%

Silicon (Si)

0.65% (Si+Fe)



Must be Shipped Palletized by Truck



If you need to order any quantity greater than one,

 please email us with your request!



PayPal does not apply discount pricing



Please Email Us for All Quantity Pricing Requests

QUANTITY DISCOUNTS

EMI-Shield RDGP AL5

4' x 8' Sheet

(9 lbs / Sheet)

Delivery: Stock to 3 Weeks

100 sheets

$68.00

200 sheets

$59.00

400 sheets

$53.00

600 sheets

$49.00
1000+ sheets $48.00



5 mil Aluminum Foil Tape for EMI / RFI Shielding


Model

Features







Aluminum Foil Tape





5 mil Aluminum Foil Tape





0.0050" (0.127 mm) (5 mil) Thick

1235 Aluminum



2 mil conductive adhesive



Contact Resistance (Alum to Alum): < .02Ω





Electrically Conductive PSA

1" x 180' (15 ft²)

3" x 180' (45 ft²)

4" x 180' (60 ft²)

6" x 180' (90 ft²)



Non-Conductive PSA

6" x 180' (90 ft²)



TYPICAL SHIELDING EFFECTIVENESS

5 mil

(Insertion Loss per MIL STD 285)

FREQUENCY

dB

10 KHz, Magnetic Field

  20

100 KHz, Magnetic Field

  30

1 MHz, Magnetic Field

  40

10 KHz, Electric Field

  50

100 KHz, Electrical Field

  60

1 MHz, Electrical Field

  80

10 MHz, Electrical Field

  80

100 MHz, Plane Wave

  60

400 MHz, Plane Wave

  60

10 GHz Plane Wave

  60

EMI-Shield AL5 Tape is applied like any tape with a release. The tape is used to RF seal the seams of foil or foil panels.



The 3" and 4" (some government projects require this width) electrically conductive PSA is ideal for sealing the seams of the RGD AL5 panels.



The 6" wide non-conductive PSA is used to frame out all the corners and intersections between walls, ceiling and floor, before the foil rolls are applied.



The 1" wide electrically conductive tape is used to electrically bond all foil rolls, if they were applied with non-conductive PSA.





Wear correct gloves when installing the foil tape, the edge is like a razor blade





Installation Methods



Non-Conductive Tape





3" or 4" Electrically Conductive Tape (Recommended)



Non-Electrically Conductive PSA Tape

1235 Aluminum

Electrically Conductive PSA Tape

EMI-Shield AL5 Tape

6" x 180' Roll

Non Conductive PSA (5 lbs / Roll)

Delivery: Stock to 3 Weeks

$115.00



Please Email Us for All Quantity Pricing Requests



Aluminum (Al)

99.35%

Iron (Fe)

-

Copper (Cu)

0.05%

Manganese (Mn)

0.05%

Magnesium (Mg)

0.05%

Chromium (Cr)

-

Zinc (Zn)

0.10%

Titanium (Ti)

0.06%

Silicon (Si)

0.65% (Si+Fe)







Can be shipped by UPS, FedEx or Palletized





If you need to order any quantity greater than one,

 please email us with your request!



PayPal does not apply discount pricing

EMI-Shield AL5 Tape

1" x 180' Roll

With Conductive PSA (1 lbs / Roll)

Delivery: Stock to 3 Weeks

$56.00

EMI-Shield AL5 Tape

3" x 180' Roll

With Conductive PSA (3 lbs / Roll)

Delivery: Stock to 3 Weeks

$169.00

EMI-Shield AL5 Tape

4" x 180' Roll

With Conductive PSA (4 lbs / Roll)

Delivery: Stock to 3 Weeks

$225.00

EMI-Shield AL5 Tape

6 x 180' Roll

With Conductive PSA (6 lbs / Roll)

Delivery: Stock to 3 Weeks

$338.00

Pricing above is for quantity 1 - 5 rolls

Please Email Us for All Quantity Pricing Requests
