Forensics Enclosure & Pouches

Designed specifically for forensic wireless device isolation and data retrieval





Ramsey Electronics, LLC



Manufactured and Serviced in Victor, NY USA

STE2200F222



STE2200F2

RF Shielded Test Enclosure (Forensics Edition)


Base Model Price: $495.00



Dimensions/Weight

Exterior: 4.5"H x 7.2"W x 9.8"D

Interior: 3.2"H x 6.0"W x 8.5"D

Weight: 7lbs. / 3.18kg.

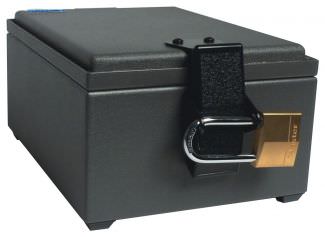

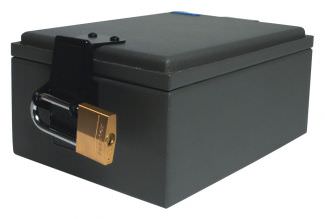

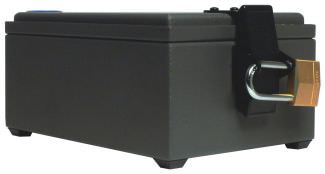

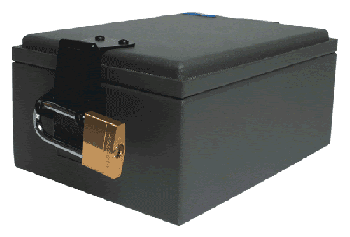

Ramsey STE2200F2



Ramsey STE2200F2 Forensic Enclosure

Data





Quote    Input Output Connectors





Tamper-proof hardware and a padlockable latch prohibits unauthorized access and maintains the chain of custody for the devices collected. When opened, the steady-hold hinge maintains the cover position where it was left, making it easy to load, unload, and latch the enclosure. And don't be confused by its small size, once on-site, nearly two dozen smart phones can fit inside one single STE2200F2! That's something the average pouch can't say!

If you or your department is looking for an economical and compact highly isolated first tier collection or storage system, the STE2200F2 is your best choice. Thousands of departments can't be wrong!



The STE2200F2 is designed specifically for securing and isolating cell phones and other small communications devices on-site for transport to your lab for evaluation and interrogation. Its small size also makes it perfect for compact yet secured storage of one or more wireless devices.

The moment the device is secured into the STE2200F2 it is isolated from the carrier's network, regardless of the carrier or the frequency bands in use by them. The device is also fully isolated from WiFi signal sources, including both 2.4 GHz and 5.0 GHz and therefore covering any combination of 802.11a/b/g/n/ac protocols. Once secured from outside signals, the device is protected from remote kill commands, remote lock commands, remote self-destruct commands, as well as being protected from GPS and location tracking.

If a device is collected on site with our STE2200F2, when you return to your lab, it can easily be transferred into one of our larger forensics enclosures for a full forensics evaluation and interrogation. And while the STE2200F2 is primarily utilized for collection, our high speed USB2.0 Interface can be easily installed giving you direct connection to the device for both data access and battery charging while maintaining >80 dB isolation. This can be particularly useful to maintain device power to eliminate the threat of a power-down lockout or self-destruct script being executed.

While compact in size, the STE2200F2 is constructed to the same precision-machined tolerances as our larger models in order to assure an exceptionally well shielded environment. Heavy duty, rugged .090" and .125" aluminum is used throughout the enclosure. New for 2014 it also features our custom engineered GEN-2 RF gaskets. With over a year in the R&D lab, these new gaskets provide a previously unheard of and flawless RF seal while being immune to the fixed compression set of typical stainless gaskets. Likewise, also new for 2014 the STE2200F2 also features our GEN-2 RF absorbent and reflective foam lining. This foam was designed from the ground up, to our demanding specifications to provide maximum performance over all operating frequencies and bands. What does all this mean? A total isolation effectiveness greater than 110 dB, and the assurance that you're confiscated devices WILL be isolated from any network carrier out there!

SPECIFICATIONS

RF Isolation:

(Typical without Connectors)

>120dB @ 918MHz
>110dB @ 2.4GHz
>100dB @ 5.8GHz

Finish:

Mist gray epoxy powder coat with black hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 20 - 30dB attenuation.

Connector Panel

There is NO connector panel, I/Os are machined directly into case.

Connectors:

The STE2200F2 is provided standard without filtered input/output connectors for your custom applications.
Filtered connector options are available in many configurations (See Connector & I/O Options).

Overall Dimensions:

External: 4½" H x 7¼" W x 9¾" D (including handle)   Internal: 3¼” H x 6” W x 8½” D

Weight:

7lbs. / 3.18kg.



STE3000F2



STE3000F2



Base Model Price $2,395.00



Microwave &  RF Shielded Enclosure

Designed for Forensics Testing



Dimensions/Weight

Exterior: 12.8"H x 18.0"W x 12.0"D

Interior: 8.0"H x 17.0"W x 10.5"D

Weight: 25lbs. / 11.34kg.

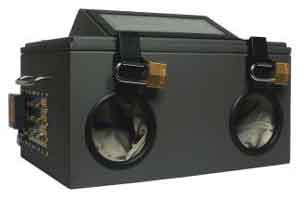

Ramsey STE3000F Forensic Enclosure







Ramsey RF Shielded Test Enclosure STE3000B





Data





Quote    Input Output Connectors





Tamper-proof hardware and dual padlockable latches prohibit unauthorized access and maintains the chain of custody for the devices collected.

If your department is looking to join the countless others that have made the STE3000F2 the standard RF Test Enclosure in the forensics industry, give us a call. If you are interested an electronic documentation version of the STE3000F2, check out our STE3000FAV2. We provide the same visual and hands-on access, but add a high resolution video/audio recording system to record and time stamp your entire device interrogation. Just like today's public safety dashcams, the evidence is in the video!



For nearly two decades, the patented Ramsey Electronics® STE3000 series RF Test Enclosure has been the wireless industry standard for a benchtop RF test chamber that provide both visual and hands-access to the device under test. As the term “cellular forensics” entered all of our vocabulary, it was natural that we also became the standard for that industry.

The STE3000F2 was designed to give the forensics technician the equivalent of a highly isolated screen room right on his bench to perform electronic device interrogations. The term “cell phone” has long been replaced with “smartphone” and with that, hands-on access and control of the device became essential. The smart phone is now a communications command console that incorporates email, text and SMS messages, document storage, picture, image, and media storage, notepad, journal, and a host of other functions and services. And each of those services has a history that is critical to access during a device interrogation.

Once the device is inside the STE3000F2, you can view it through the LED illuminated RF tight window. You then have hands-on access to the device through our silver mesh RF tight gloves. Whether you need to open a device, swipe it, turn it on, touch screen icons, change pages… whatever you need to do, you can do, just as though the phone was in your own hands. After all, it is! This also allows you to connect power, chargers, and USB data communications to the device for connection to your interrogation hardware and software... all while the device is maintaining isolation from the carrier’s network regardless of the carrier or the frequency bands in use by them. The device is also fully isolated from WiFi signal sources, including both 2.4 GHz and 5.0 GHz and therefore covering any combination of 802.11a/b/g/n/ac protocols. Just like our other forensics RF Test Enclosures, once secured from outside signals, the device is protected from remote kill commands, remote lock commands, remote self-destruct commands, as well as being protected from GPS and location tracking.

Once the device is transferred from the field to the STE3000F2, it can be charged with a standard 110VAC device charger using the built in RF filtered AC power strip. This can be particularly useful to maintain device power to eliminate the threat of a power-down lockout or self-destruct script being executed. As mentioned above, with hands-on access and real-time viewing, you can easily plug the device into an RF filtered USB interface to access it with your interrogation software. The STE3000F2 comes standard with our STEUSB2071 USB2.0 High Speed Interface, giving you full speed access to the device while maintain full RF isolation from the outside world.

The RF filtered AC power interface as well as the USB2.0 interface are located on the spacious universal removable I/O panel. This leaves plenty of room for a host of other I/O options that you may need to suit your specific test applications. From international power options to virtually every data and RF interconnect, we have the option available that you require.

The STE3000F2 is designed around the same heavy duty, rugged .090" and .125" aluminum used throughout all of our enclosures. New for 2014 it also features our custom engineered GEN-2 RF gaskets. With over a year in the R&D lab, these new gaskets provide a previously unheard of and flawless RF seal while being immune to the fixed compression set of typical stainless gaskets. Likewise, also new for 2014 the STE3000F2 also features our GEN-2 RF absorbent and reflective foam lining. This foam was designed from the ground up, to our demanding specifications to provide maximum performance over all operating frequencies and bands.

SPECIFICATIONS

RF Isolation:

>90dB @ 918MHz
>85dB @ 2.4GHz
>80dB @ 5.8GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 20 - 30dB attenuation.

AC Power:

6 outlet filtered 120VAC outlet strip; 6 pole filtered barrier strip feed-through is standard

Interior Lighting:

RF tight illuminated viewing of your device

Connector Panel:

6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

RF isolated 6-outlet 110VAC power strip
RF isolated 6-pole feed-though terminal block
RF isolated USB2.0 high speed interface

 Connector & I/O Options

Overall Dimensions:

Exterior: 12.8"H x 18.0"W x 12.0"D  Interior: 8.0"H x 17.0"W x 10.5"D

Weight:

25lbs. / 11.34kg.



STE3000FAV2



STE3000FAV2



Base Model Price $3,495.00



Microwave &  RF Shielded Enclosure

Designed for Forensics Testing



Dimensions/Weight

Exterior: 12.8"H x 18.0"W x 12.0"D

Interior: 8.0"H x 16.8"W x 10.5"D

Weight: 27lbs. / 12.25kg.

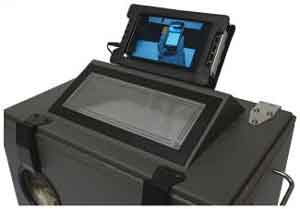

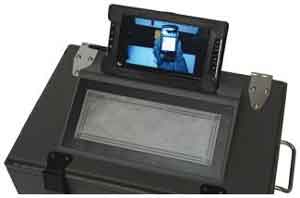

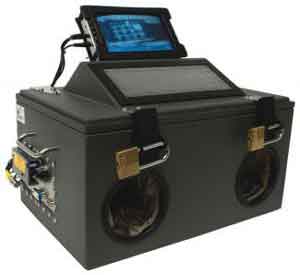

Ramsey STE3000FAV2 Forensic Enclosure



STE3000FAV2 Forensic Box



Ramsey STE3000FAV2 Enclosure



Ramsey RF Shielded Forensic Box





Data





Quote    Input Output Connectors



Features

Designed to record audio/video and time-stamp all forensics interrogations in your lab

Patented design

RF tight hands-on access to your device

RF tight illuminated viewing of your device

Built-in high-res OSD color video camera with audio

Built-in 500GB law enforcement DVR

1/2" GEN-2 high efficiency RF foam liner

GEN-2 high efficiency RF gaskets

Exclusive double lip RF seal

Universal removable I/O panel





Tamper-proof hardware and dual padlockable latches prohibit unauthorized access and maintains the chain of custody for the devices collected.

Today they say video is evidence and there can be no question. If you can provide time stamped documentation of every action you take with a suspect device… there can be no question. Whether your application is routine forensics interrogations, training your investigators, or hosting a forensics seminar, the STE3000FAV2 is your forensics RF Test Enclosure solution. Contact Ramsey Electronics® today for more information



To stay one step ahead of technology, we’ve added law enforcement quality video and audio recording to the forensics RF Test Enclosure, creating the extremely popular STE3000FAV2! Just like its sister, once the device is inside the STE3000FAV2, you can view it through the LED illuminated RF tight window. You then have hands-on access to the device through our silver mesh RF tight gloves. Whether you need to open a device, swipe it, turn it on, touch screen icons, change pages… whatever you need to do, you can do, just as though the phone was in your own hands. After all, it is! This also allows you to connect power, chargers, and USB data communications to the device for connection to your interrogation hardware and software... all while the device is maintaining isolation from the carrier’s network regardless of the carrier or the frequency bands in use by them. The device is also fully isolated from WiFi signal sources, including both 2.4 GHz and 5.0 GHz and therefore covering any combination of 802.11a/b/g/n/ac protocols. Just like our other forensics RF Test Enclosures, once secured from outside signals, the device is protected from remote kill commands, remote lock commands, remote self-destruct commands, as well as being protected from GPS and location tracking. None of this has changed. Except now there is a time-stamped recording of the whole procedure!

A high resolution color camera captures all activity inside the RF Test Enclosure, with a resolution designed to even view the smallest font text message on the device’s screen! Coupled with video, ambient audio from the device, as well as any narration by the examiner is also recorded. And of course, the entire recording is time stamped to help document procedures and chain of custody.

The internal video is RF filtered back out of the chamber and interfaced with a professional law enforcement high resolution touch screen DVR. The image from the internal camera, as seen on the large 5” DVR touch screen, is recorded, with an integral time-stamp for future evidentiary use. And don’t be afraid of running “out of space”, the capacity of the DVR is 500GB! Once recorded, or at any time, content from the internal DVR HDD can be transferred to a SD card for distribution within the agency or court.

The DVR also features a HD HDMI output to connect an external large screen monitor to assist in real-time viewing of the device interrogation as well as recorded playback. All controls are via the built-in touch screen display or IR remote control. Whether the interrogator wishes to share his work with his lab mates on a desktop monitor, or is making a large screen presentation at a seminar or in court, the video/audio output of the STE3000FAV2 DVR is compatible. Output resolutions include 320x240, 720x480, 1024x768, 1280x960, and 1920x1080.

Once the device is transferred from the field to the STE3000FAV2, it can be charged with a standard 110VAC device charger using the built in RF filtered AC power strip. This can be particularly useful to maintain device power to eliminate the threat of a power-down lockout or self-destruct script being executed. As mentioned above, with hands-on access and real-time viewing, you can easily plug the device into an RF filtered USB interface to access it with your interrogation software. The STE3000FAV2 comes standard with our STEUSB2071 USB2.0 High Speed Interface, giving you full speed access to the device while maintain full RF isolation from the outside world.

The RF filtered AC power interface as well as the USB2.0 interface are located on the spacious universal removable I/O panel. This leaves plenty of room for a host of other I/O options that you may need to suit your specific test applications. From international power options to virtually every data and RF interconnect, we have the option available that you require.

The STE3000FAV2 is designed around the same heavy duty, rugged .090” and .125” aluminum used throughout all of our enclosures. New for 2014 it also features our custom engineered GEN-2 RF gaskets. With over a year in the R&D lab, these new gaskets provide a previously unheard of and flawless RF seal while being immune to the fixed compression set of typical stainless gaskets. Likewise, also new for 2014 the STE3000FAV2 also features our ¾” GEN-2 RF absorbent and reflective foam lining. This foam was designed from the ground up, to our demanding specifications to provide maximum performance over all operating frequencies and bands.

SPECIFICATIONS

RF Isolation:

>90dB @ 918MHz
>85dB @ 2.4GHz
>80dB @ 5.8GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 20 - 30dB attenuation.

AC Power:

6 outlet filtered 120VAC outlet strip; 6 pole filtered barrier strip feed-through is standard

Interior Lighting:

RF tight illuminated viewing of your device

Connector Panel:

6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

RF isolated 6-outlet 110VAC power strip
2ea RF isolated 4-pole feed-through terminal blocks
RF isolated USB2.0 high speed interface

 Please specify additional connector requirements from Connector & I/O Options

Overall Dimensions:

Exterior: 12.8"H x 18.0"W x 12.0"D   Interior: 8.0"H x 16.8"W x 10.5"D

Weight:

27lbs. / 12.25kg.



STE3300F2



STE3300F2



Base Model Price $1,195.00



Microwave &  RF Shielded Enclosure

Designed for Forensics Testing



Dimensions/Weight

Exterior: 9.8"H x 18.0"W x 12.0"D

Interior: 8.2"H x 16.8"W x 10.8"D

Weight: 18lbs. / 8.16kg.

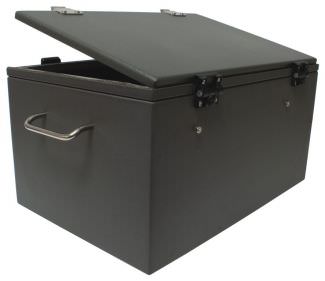

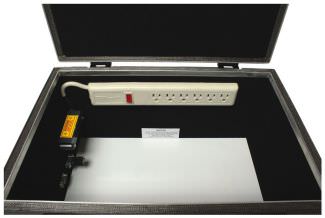

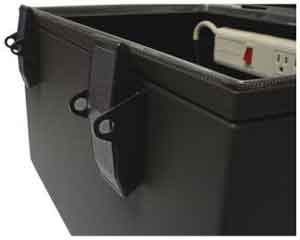

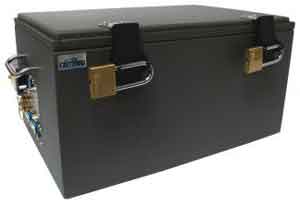

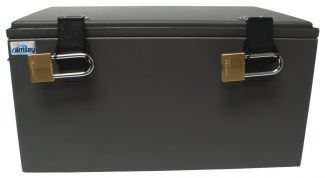

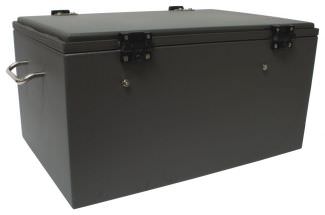

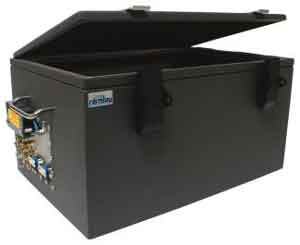

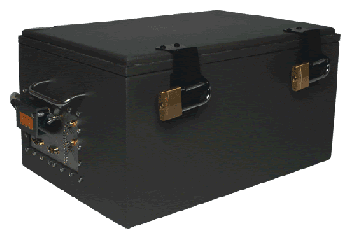

Ramsey STE3300F2 Enclosure



Ramsey STE3300F2 Forensic Test Enclosure



Ramsey STE3300F2 Forensic Enclosure



Ramsey STE3300F2 RF Shielded Box



Ramsey Forensic Test Box



Ramsey STE3300F2 Forensic Box





Data





Quote    Input Output Connectors










The STE3300F2 is designed specifically for storing multiple wireless devices in their powered-on state while keeping them isolated from the network carrier. Its larger size makes it ideal for extended storage of department confiscated devices both before and after the forensics examination for what could be an extended period of time.

Let’s follow a typical forensics time line.

1. A suspect wireless device is confiscated on-site. To protect it from real-time on-line executable booby traps (remote kill commands, remote lock commands, remote self-destruct commands, etc.) as well as device GPS tracing back to your location, the device needs to be immediately isolated from the carrier’s network. It also needs to be isolated from any available WiFi source. That can be easily accomplished with the use of our STE2200F2 forensics enclosure or STP1100 series forensics pouch.

2. Once the wireless device has reached your lab, it needs to be made ready for your forensics examination. However, the device still needs to be totally isolated from the carrier’s network and WiFi sources. But now the device needs to remain powered up to eliminate the liability of a very possible power-down lockout, power-down self-destruct script, or other power-down loss of integrity. Therefore, the device needs to be plugged into a charger to maintain its powered-up status. If a forensics interrogation is scheduled soon, the device can be transferred to, and plugged into a charger in our STE3000F2 series RF Test Enclosures. If the interrogation cannot be scheduled soon, and the device needs to be stored, it can be transferred into our STE3300F2 RF Test Enclosure, and connected to a charger to maintain its powered-up state until an interrogation can be scheduled.

3. Whenever the interrogation is completed, if the device is to remain in custody, it can be transferred into our STE3300F2 enclosure, connected to a charger to maintain its powered-up status, and can be stored until further needed. At no time during this time line, was the wireless device exposed to the carrier’s network, a WiFi source, and was never in jeopardy of being blocked, locked out, or otherwise compromised by a network received or powered-down script.

Enclosure wise, the STE3300F2 is a twin to our STE3000F2 and STE3000FAV2, without the visual and hands-on capabilities, and without the video/audio recording system. It is designed to provide you ample room for multiple device storage, while keeping them in a powered-on state for as required. Like its twins, it comes standard with a 6-outlet 110VAC outlet strip to accommodate any combination of device chargers and multiple port USB based device chargers. Six of our optional 4-port USB chargers can be easily plugged in to charge 24 various formatted wireless devices! Also like its twins, a USB2.0 high speed interface is also provided as standard equipment with the STE3300F2. This gives you a fully RF isolated I/O at full 480mbps USB2.0 speed to interconnect with any device inside the enclosure. This is perfect for connecting a suspect device, already in your possession, to your forensics software tools for further investigation and data dumps, all of which can be done without relocating the device in question.

The RF filtered AC power interface as well as the USB2.0 interface are located on the spacious universal removable I/O panel. This leaves plenty of room for a host of other I/O options that you may need to suit your specific test applications. From international power options to virtually every data and RF interconnect, we have the option available that you require.

The STE3300F2 is designed around the same heavy duty, rugged .090” and .125” aluminum design of its STE3000F2 series twins. New for 2014 it also features our custom engineered GEN-2 RF gaskets. With over a year in the R&D lab, these new gaskets provide a previously unheard of and flawless RF seal while being immune to the fixed compression set of typical stainless gaskets. Likewise, also new for 2014 the STE3300F2 also features our ¾” GEN-2 RF absorbent and reflective foam lining. This foam was designed from the ground up, to our demanding specifications to provide maximum performance over all operating frequencies and bands. Therefore, you can be confident that any device in your possession will remain totally isolated from the carrier’s network, regardless of the carrier, make or model, operating system, or the frequency bands used. Likewise, the device will also remain fully isolated from any WiFi signal sources, including both 2.4 GHz and 5.0 GHz, and therefore covering any combination of 802.11a/b/g/n/ac protocols.

SPECIFICATIONS

RF Isolation:

>110dB @ 918MHz
>100dB @ 2.4GHz
>90dB @ 5.8GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

3/4" Standard RF reflective attenuation foam provides 20 - 30dB attenuation.

AC Power:

6 outlet filtered 120VAC outlet strip; 6 pole filtered barrier strip feed-through is standard

Connector Panel:

6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

RF isolated 6-outlet 110VAC power strip
RF isolated 6-pole feed-through terminal strip
RF isolated USB2.0 high speed interface

Please specify additional connector requirements from Connector & I/O Options

Overall Dimensions:

External: 9¾" H x 18" W x 12" D   Internal: 8¼” H x 16¾” W x 10¾” D

Weight:

18lbs. / 8.16kg.



STE4500F



STE4500F



Base Model Price $2,395.00



Microwave RF Shielded Test Enclosure



RF Isolation: 20 MHz to 10 GHz


19" H x 22½" W x 15½" D


18” H x 21¼” W x 14” D
(Nom. Inside Dimensions)



24 dB Attenuation Absorber



STE4500 Shileded Test Enclosure

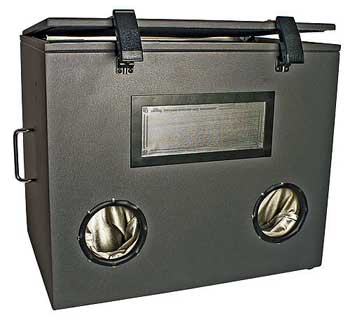

STE4500 Front (Click to Enlarge)

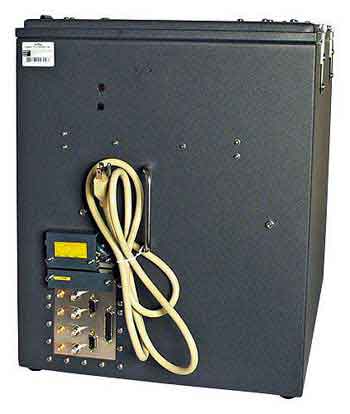

STE4500 Side (Click to Enlarge)





Data





Quote    Input Output Connectors



Interference Free Testing FOR YOUR wireless equipment



Designed for hands-on manipulation of
larger devices under test

Exclusive double lip RF tight gasket

Universal I/O connector interface plate

RF tight “hands-on” silver mesh gloves

RF tight illuminated viewing window

Dual gas filled cover struts

Removable White colored MDF (Medium Density Fiberboard), 1/8" Thick on top of floor absorber

Optional Stainless Steel Tray

Ideal for in the Laboratory or in the Field

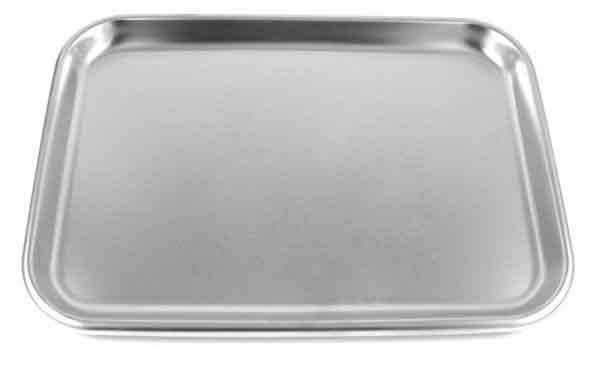

Stainless Steel Tray (Click to Enlarge)

STE4500F
The popularity of the STE4400’s larger size along with the patented hands-on manipulability of the STE3000B brought you the STE4500! The exclusive RF tight hands-on silver mesh gloves and illuminated viewing window are integral to the large 22.5”W x 18” H wide front of the enclosure. Dual gas filled struts hold the hinged top open for easy access for the largest devices, including laptops! Like other STE series enclosures, a universal stainless steel I/O connecter interface plate is used to provide you any combinations of “custom” milled connectors and I/O’s that you may require.

SPECIFICATIONS

RF Isolation:

≥ 100 dB from 20 MHz to 1 GHz

> 90 dB at 2 GHz

> 80 dB at 4 GHz

> 70 dB at 6 GHz

> 60 dB at 10 GHz

Finish:

Mist gray epoxy powder coat with black/brass hardware

RF Reflective Foam:

Standard RF reflective attenuation foam provides 24 dB attenuation.

View Window:

9.5"W x 3.5"H Shielded View Window in Front Wall

Connector Panel:

Blank Removable is standard, 6.0" wide x 3.5" high, 0.090" thick, Stainless Steel

Connectors:

4 Terminal Filtered AC, 20 Amp Max. is standard. Please specify connector requirements from Connector & I/O Options

Overall Dimensions:

External: 19" H x 22½" W x 15½" D  Internal: 18” H x 21¼” W x 14” D (Nom. Inside Dimensions)

Weight (shipping):

(45 lbs)



 Small Electronic Device RF Shielded Pouches



STP1100

 RF Shielded Evidence Pouch

Flexible RF shielded construction
Double fold RF shield lock

3" x 5" evidence tag window

Replacement evidence tags (10 included with each pouch)

Big enough for the largest wireless devices.

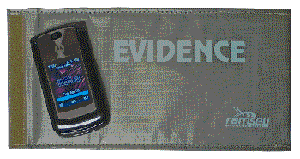

Ramsey STP1100





STP1100



QUANTITY DISCOUNTS
QUANTITY POUCH PRICE
1 $49.00
2 - 9 $45.00
10 - 24 $42.00
25 - 49 $40.00
50 - 99 $38.00
100 - 249 $36.00
250 - 499 $36.00
500 - 999 $30.00
1000+ $28.00

The STP1100 is specifically designed to rapidly collect and secure wireless devices at the scene by law enforcement personnel. Cellular phones and other wireless devices have quickly become one of the most important and valuable sources of investigative data. But that data has the high risk of being overwritten, deleted, locked-out, or corrupted unless the device is immediately RF shielded from the carrier's network, or even powered down. If a phone is "receiving service" it is vulnerable to remote access, remote data dumps, and remote lockdowns. If the phone is powered off, it is also vulnerable to auto lockdowns and authentication code changes for re-access.



The small size and low cost of the STP1100 puts rapid and secure collection of wireless devices in the hands of every officer in the field for transport to their lab for further investigation. An evidence tag window and tags assure proper ID and chain of custody. Check out the STE3000F for a hands-on shielded environment to release and investigate the device. Agency and quantity pricing is available as are replacement evidence tags (Part STPET1).





CONNECTORS ISOLATION DIMENSIONS
None, RF shielded collection pouch only -100dB @ 1GHz
-90dB @ 3GHz
5.5" H x 10.5" W (open)

5.5" H x 8.25" W
(Secure Double Fold Sealed)
