RF Shielded Tent - PVC Frame

PVC External Frame Tents


Model

Description / Features

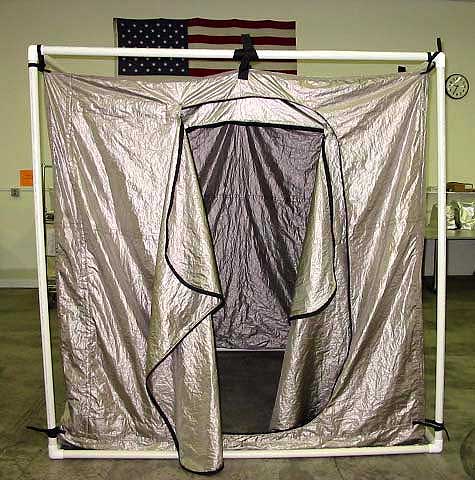

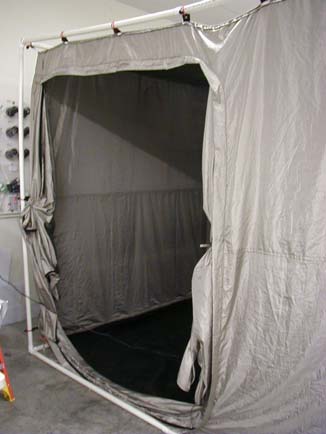

RF Shielded Tent with External PVC Frame

PVC Plastic External Frame

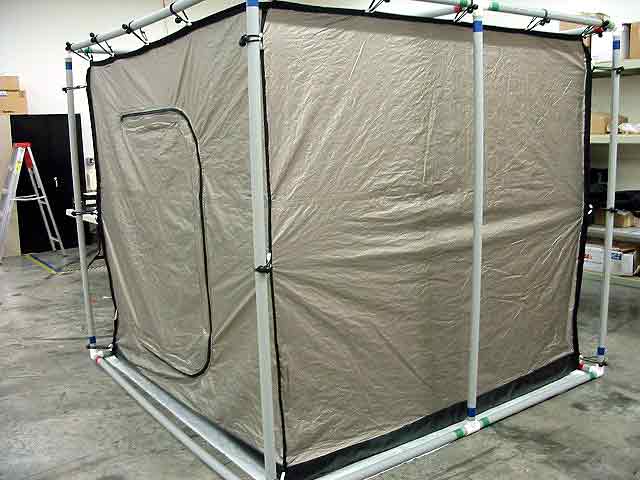

Series 200 Single Layer Tent

≥ 60 dB Attenuation 14 MHz to 10 GHz

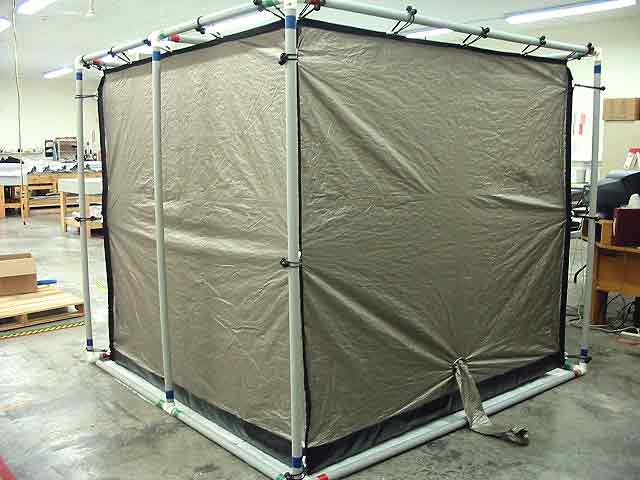

Series 200 Double Layer Tent

≥ 70 dB Attenuation 1 MHz to 10 GHz

≥ 90 dB Attenuation 26 MHz to 10 GHz

For structures up to 8.0’ x 8.0’ x 8.0’h

EMI Shielded Tent with External PVC Frame

Tent Features

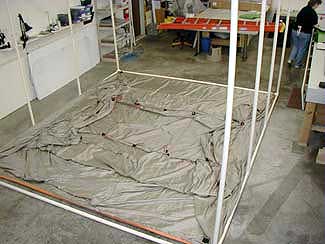

Basic tent has a floor which is 1 layer of conductive fabric sandwiched between 2 layers of heavy duty black vinyl. It is very durable
Storage / Transport Bag
Filtered or Unfiltered Power via Shielded Sleeve
Conductive Tent fabric is not rated for flame resistance

RF Shielded Accessories

Quick Connect Fasteners

Filtered Power & I/O's

EMI / RF Shielded Fluorescent Lighting



If you need to have any metallic AC or DC Power or I/O lines inside the RF shielded tent
You Will Need an RF Shielded I/O Box

24" Fluorescent Light

One to Twenty Lights on one circuit

RF Shielded Tent Door and Air Circulation Fan

More Filtered Power & I/O's

Honeycomb Air Vent





RF Shielded Tent Door

Unfiltered Input / Output Sleeve

LED Rope Lighting

Double Layer Shielded Door
Pictured with optional ESD outer layer

Shielded Tent Attenuation Levels - Average (Single Layer & Double Layer)

Shielding Effectiveness (dB)

Attenuation Ratio

Percentage of Signal Attenuation

20

                 10 : 1

                90.0

40

                 100 : 1

                99.0

60

                 1,000 : 1

                99.9

80

                 10,000 : 1

                99.99

100

                 100,000 : 1

                99.999

120

                 1,000,000 : 1

                99.9999
