RF Shielded Rooms - Copper Screen


Universal Shielding Corp.

Universal Shielding Corp.

Manufactured and Serviced in Deer Park, NY USA

Universal Shielding Corp. (USC) was established in 1972 and during this time span has provided in excess of 20,000 pre-fabricated  modular RF shielded enclosures to Government, Military, Commercial and Medical facilities. USC is proud to be the only company in the industry to have maintained its original ownership since its inception.


  • Copper Screen Enclosures are designed to eliminate ambient EMI/RFI inside and contain RF signals from interfering with systems outside.

  • USC designs, manufactures, installs, and tests its RF shielded enclosures nationally and internationally.

  • USC's reliability, scope and quality of their services have earned them a well deserved reputation.

  • Both USC-26 and USC-44 series panels are interconnected with a framing system to form the enclosure.

  • Enclosures are completely erected from the interior and thus can be placed in proximity to parent room walls.

  • Can be dismantled, transported, re-erected, and still maintain their attenuation capabilities.

  • Parts are all numbered to enable customer to install chamber rapidly.

 Standard Rooms    Same Day Quotes on Standard Shield Rooms    Request Quote



 Modular Copper Screen RF Shielded Rooms


Model

Description

USC Series 44

Copper Screen



RF Screen Room

Standard

&

Custom-Designed



Modular Enclosures to ANY Size



STANDARD ROOMS



Shield Room FAQ's

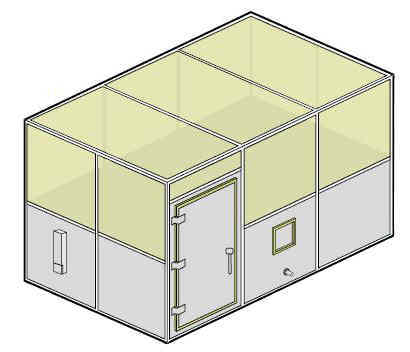

Sample Drawing



Framing Drawing

Frames with copper screening adhered to each frame surface. Advantages of this type of construction:



  • Communication easily transmitted between interior and exterior.

  • Special ventilation is not required.

  • VISUAL observations of testing are possible from exterior of enclosure.

  • Upper vertical wall panels and ceiling are copper screen panels.

  • In most cases fire protection sprinklers above the enclosure meet code



FIELD TYPE

USC-44 TYPICAL ATTENUATION

Magnetic

15 dB at 1 kHz, 40 dB at 15 kHz, 70 dB at 100kHz

Electric

>80 dB at 1kHz, 100 dB from 15 kHz to 10 MHz

Plane Wave

100 dB at 400 MHz

 >85 dB at 1 GHz

 >75 dB at 2 GHz

Microwave

60 dB at 10 GHz

USC Series 44

Copper Screen







Applications:

Neuromuscular Biomechanics Labs

Research & Development Lab

Neuroscience Laboratories

Wireless Development Lab

Software Development Lab

Electronics Repair Room

Immunity Test Chambers

Cell Phone Repair

EMC Test Labs

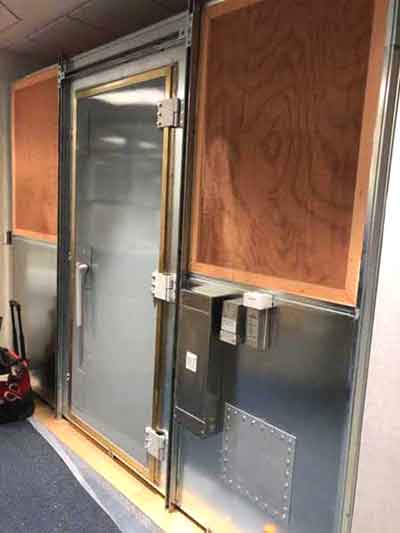

Series-44 Copper Screen Room

Benefits

  • Ventilation

    • Using Parent room HVAC system

  • Communicate

    • You can talk through the copper screen

  • Fire Sprinkler

    •  Outside the room in most cases

  • Lighting

    • Inside or Outside

  • Visual

    • You can see through the screen

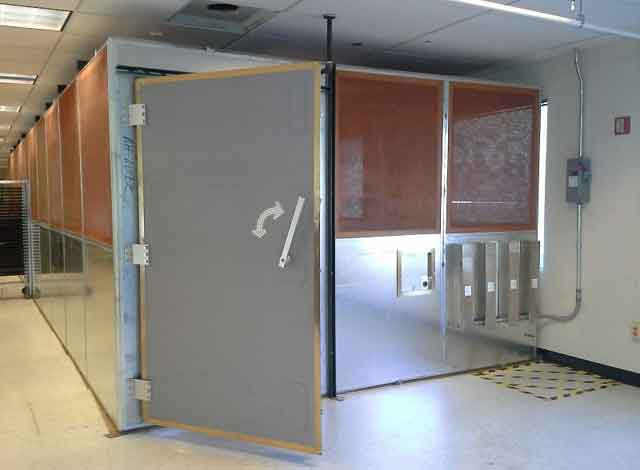

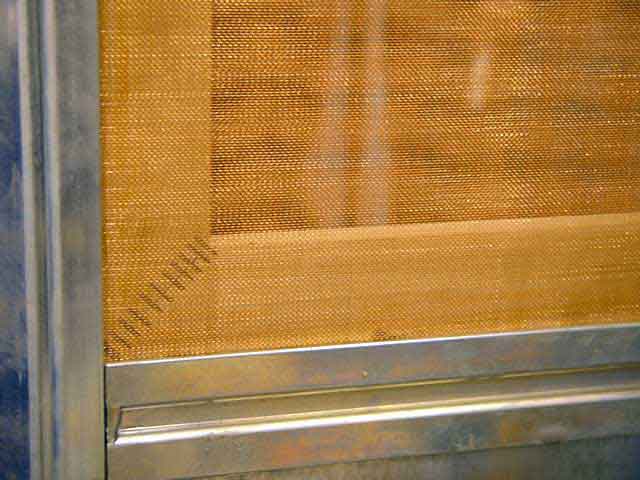

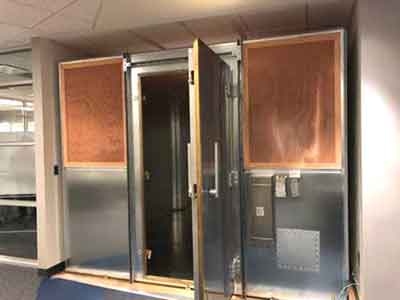

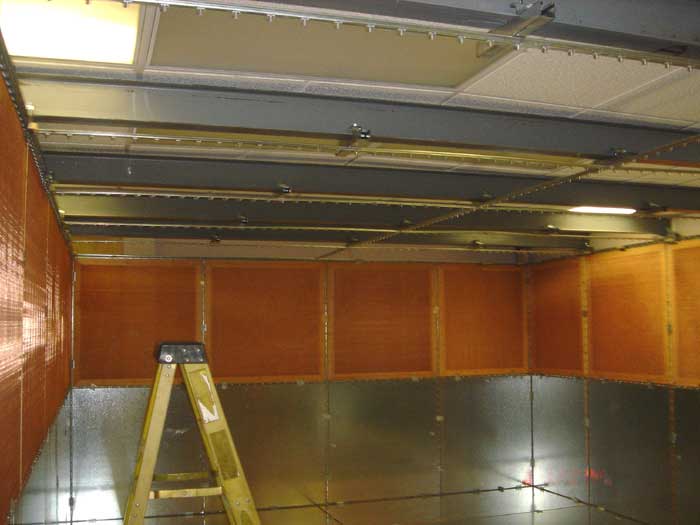

    Close Up of Screen Panel (Click to Enlarge)   Universal Copper Screen Room being Installed (Click to Enlarge)



RF Shielded Doors


Model

Description

Universal enclosures provide extraordinary shielding attenuation. This is attributed to the shielded enclosure door design.





RCM-154 Door with optional wood trim

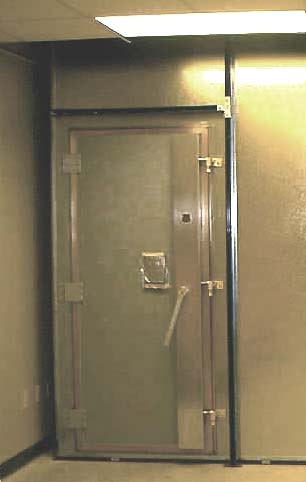

RCM-154 Door 3' x 7'

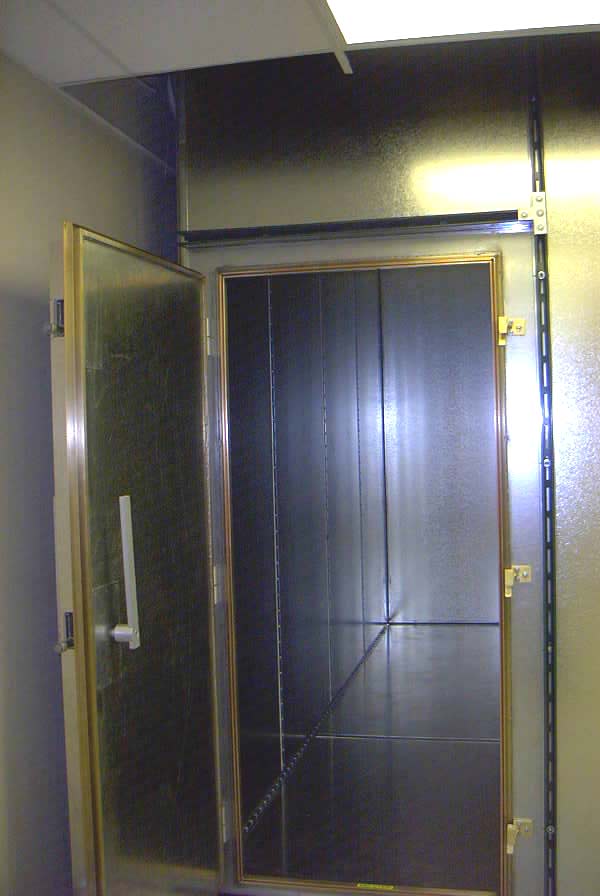

RCM-154 Door 3' x 7' door open



Standard Manual

&

Automatic

RF Shielded Doors

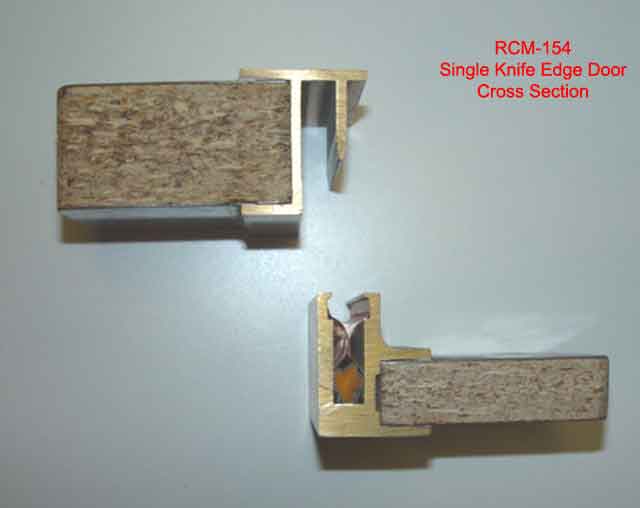

Single Knife Edge

 100 dB



&



Double Knife Edge

 120 dB







Single

&

Double

Leaf Doors

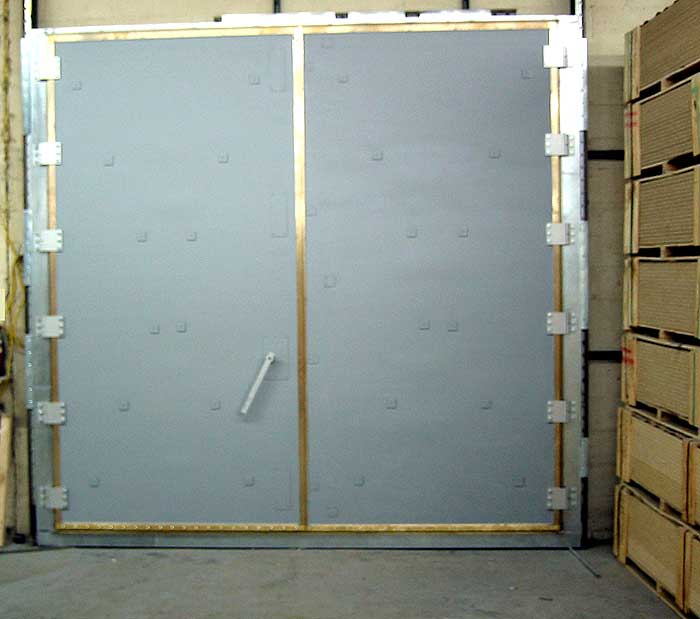

Large Double Leaf Door (Click to Enlarge)

Latching Mechanism

USC enclosure doors are equipped with a 3-point latching mechanism for tight, RFI-EMI-secure closing. Bearing surfaces, rollers and door cams are of case-hardened tool steel, designed to provide years of trouble-free operation with no loss of attenuation capability due to friction and wear. Our doors are extremely easy to operate; they require less than 20 pounds of force on the handle.



Door Construction

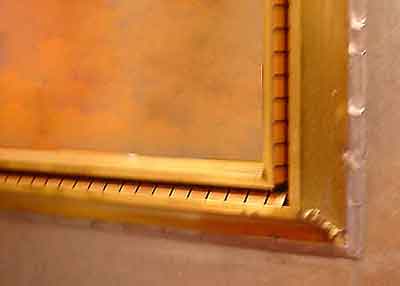

To achieve the attenuation levels required, our doors are equipped with a minimum of two rows of beryllium copper "fingers" around the periphery of the door. In the closed position, the fingers contact the door frame to assure an RFI/EMI leak-proof seal. The following is a type of door/frame construction offered by USC:


Model RCM-154 Door design encompasses:

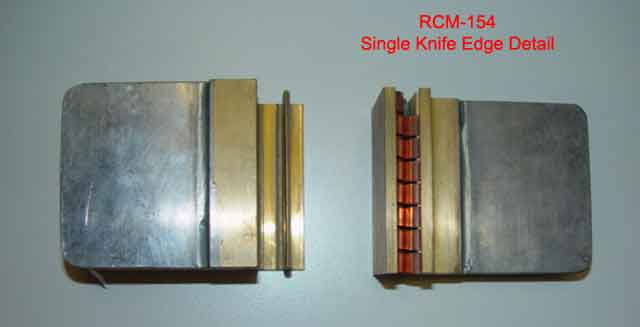

  • Single Knife Edge (MIL-STD-285) 100 dB

  • Concealed finger stock - This design results in a damage free closure seal

  • Three point latch system

  • Three adjustable hinges

  • Standard door clear opening 36" X 84"

  • All sizes are available, single and double doors

  • Optional - Outdoor MIL-STD Approved







Door Drawing





 RF Shielded Accessories


Model

Description

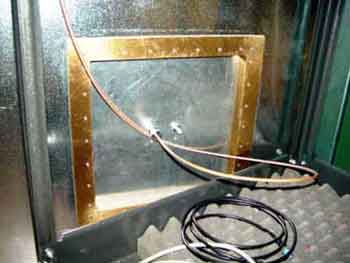

12" x 12" Removable Setup Panel

Removable Setup Panels



I/O Penetration Panels



<<< 12" x 12" | 12" x 24" >>>



DATA

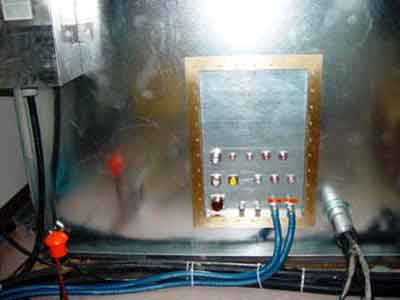

12" x 24" I/O Panel

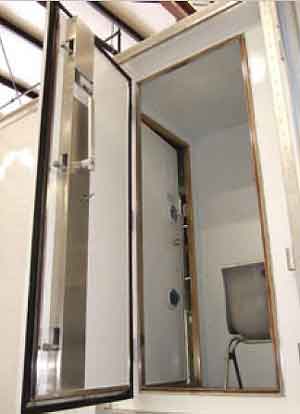

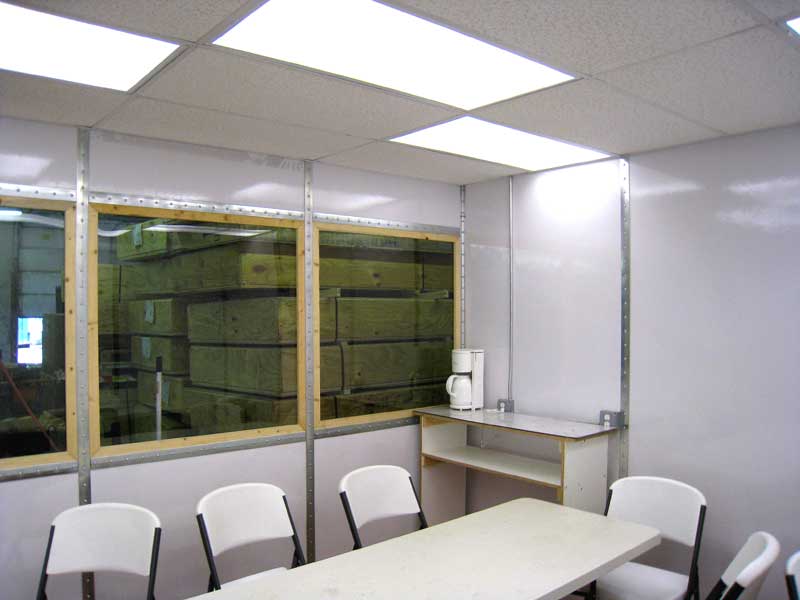

White Wall Panels

White Wall Panels
White Fiberglass Wall Panels

Can be installed on the inside or outside

Brightens the Room
Easy Clean Wall Finish
Reduces Lighting Wattage

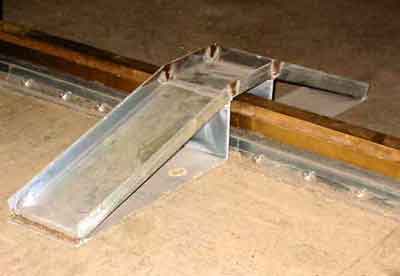

Unfinished Door Sill Threshold Ramp

Door Sill Threshold

Equipment Ramps

Works with all types of shielded doors



Protect your single and double knife edge door

 sills from getting crushed or bent

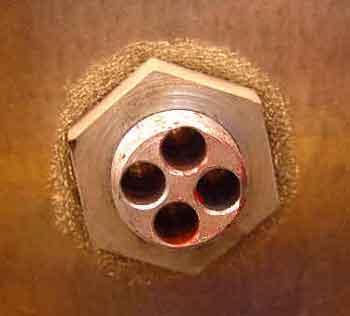

Fiber-Optic Feed-through



Model: WGF-4



All Metal Construction

Four - " Lines



DATA

Works with all types of shielding

  • Modular, Welded, Pan & Setup Panels

  • Meets TEMPEST, MIL-STD-285 & NSA 65-6

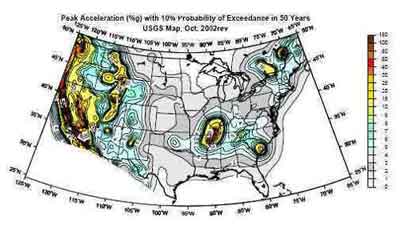

Earthquake Zone Map

US Geological Survey, 1997



http://earthquake.usgs.gov/eqcenter/



Earthquake Zones



Universal Shielding Corp. can build your new shielded enclosure to meet any of the earthquake code requirements.



Building code maps using numbered zones, 0, 1, 2, 3, 4, are practically obsolete. 1969 was the last year such a map was put out by this staff.

The 1997 Uniform Building Code (UBC) (published in California) is the only building code that still uses such zones.

Generally, over the past two decades, building codes have replaced maps having numbered zones with maps showing contours of design ground motion. These maps in turn have been derived from probabilistic ground motion maps. Probabilistic ground motion maps have been included in the seismic provisions of the most recent U.S. model building codes, such as the new "International Building code," and in national standards such as "Minimum Design Loads for Buildings and Other Structures," prepared by the American Society of Structural Engineers.




Enclosure Shielding Attenuation Characteristics

Model

Magnetic

15KHz

Electric/Plane Waves

15KHz   400MHz   1GHz

Microwave

10GHz

USC - 26

58dB

120dB   120dB   120dB

110dB

USC - 44

>40dB

100dB   100dB    >85dB

60dB

These are maximum values with optional components

Shielding effectiveness values are expressed in logarithmic, not linear, terms. Therefore, 80 dB of shielding effectiveness is not double the 40 dB level, but 100 times greater. Another way to express effectiveness is attenuation ratio, which compares the attenuation signal strength outside and inside the shield as shown below.

Shielding Effectiveness (dB)

Attenuation Ratio

Percent Attenuation

20



                 10 : 1



                90.0

40



                 100 : 1



                99.0

60



                 1,000 : 1



                99.9

80



                 10,000 : 1



                99.99

100



                 100,000 : 1



                99.999

120



                 1,000,000 : 1



                99.9999
