Biconical Monopole Antennas
Antenna Catalog
TMC Logo

        ...reasonable and timely solutions



Manufactured and Serviced in Las Cruces, NM

At the TMC Design Antenna Division, we are committed to providing the finest antennas available to meet your requirements. We specialize in high power, airborne and ground based military Electronic Warfare antennas but produce a wide variety of commercial and industrial antennas as well. If you do not find an antenna for your application in our catalog, call or email us for a fast friendly quote on a custom design. TMC Design has antenna design engineers on staff and our own fabrication and test facilities, custom antennas can be designed and fabricated with reasonable delivery times and low NRE costs.



 TITAN v2 Wideband Electronic Warfare Antenna


Model

Features

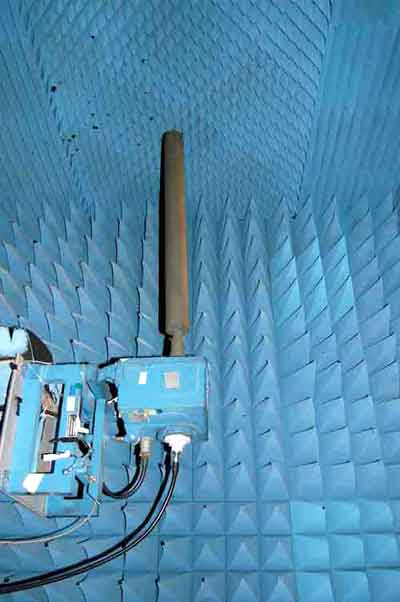

TITAN v2 Wideband Antenna

TITAN v2



25-6000 MHz



Electrically Small
Wideband Communications
Wideband Electronic Warfare

SINCGARS mounted for quick installation on HMMWV vehicles



Data





All TMC Design antennas are designed and manufactured under with the auspices of our AS9100/ISO9000-certified quality management program

TMC Design’s newest electronic warfare antenna, the Titan V2, offers coverage from 25 to 6000 MHz. The Titan v2 antenna is a tri-band, high-power and Omni-directional antenna with a wide bandwidth spanning nearly 6 GHz that is divided among three overlapping bands.
The antenna is designed to operate on rugged terrain vehicles, like the HMMWV, and is manu-factured with a sturdy radome. This robust design makes the Titan an ideal solution for out-door applications and harsh environments.
The Titan v2 is also conveniently attached to a SINCGARS Antenna Vehicle Mount for quick and easy deployment. Customization options are available for the antenna’s mating, mounting, power and color characteristics.

Electrical Specifications

Model:

TITAN v2

Frequency:

25-6000 MHz

Gain (see gain plot):

> -2 dB (25-1000 MHz)

Power Handling:

100 watts CW

Polarization:

Linear (vertical)

VSWR:

3.5:1 maximum

Beamwidth:

360 x 65 degrees (Fo)

Mechanical Specifications

Dimensions:

36.75" x 4.0” diameter

Weight:

5.25 lbs.

Temperature:

-40° to +51° C

Environmental:

full mil-810 tested - temperature, shock and vibration

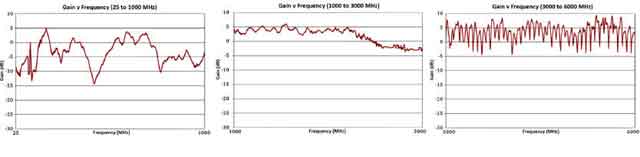

TITAN v2 VSWR



 TITAN v3 Wideband Electronic Warfare Antenna


Model

Features

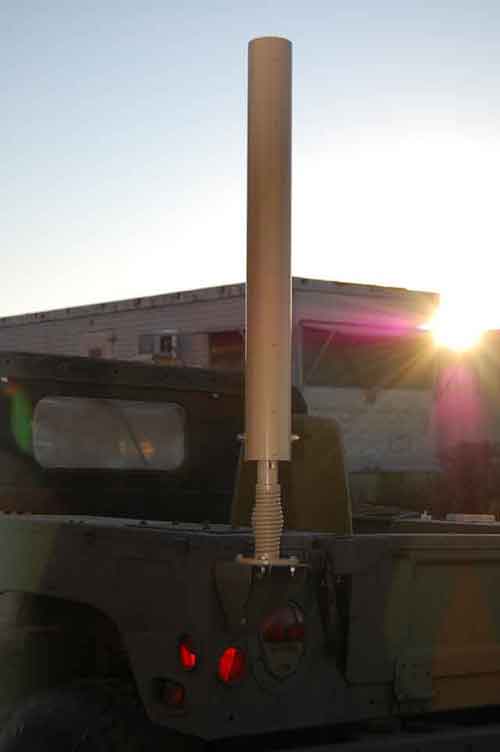

TITAN v3 Antenna

TITAN v3



25-2000 MHz



Electrically Small
Wideband Communications
Wideband Electronic Warfare

SINCGARS mounted for quick installation on HMMWV vehicles



Data





All TMC Design antennas are designed and manufactured under with the auspices of our AS9100/ISO9000-certified quality management program

TMC Design’s newest electronic warfare antenna, the Titan v3, offers coverage from 25 to 2000 MHz. The Titan v3 antenna is a tri-band, high-power and Omni-directional antenna with a wide bandwidth spanning nearly 2 GHz that is divided among three overlapping bands.
The antenna is designed to operate on rugged terrain vehicles, like the HMMWV, and is manu-factured with a sturdy radome. This robust design makes the Titan an ideal solution for out-door applications and harsh environments.
The Titan v3 is also conveniently attached to a SINCGARS Antenna Vehicle Mount for quick and easy deployment. Customization options are available for the antenna’s mating, mounting, power and color characteristics.

Electrical Specifications

Model:

TITAN v3

Frequency:

25-6200 MHz

Gain (see gain plot):

0 dB (25-2000 MHz)

Power Handling:

100 watts CW

Polarization:

Linear (vertical)

VSWR:

3.5:1 maximum

Beamwidth:

360 x 65 degrees (Fo)

Mechanical Specifications

Dimensions:

36.75" x 4.0” diameter

Weight:

5.25 lbs.

Temperature:

-40° to +51° C

Environmental:

full mil-810 tested - temperature, shock and vibration

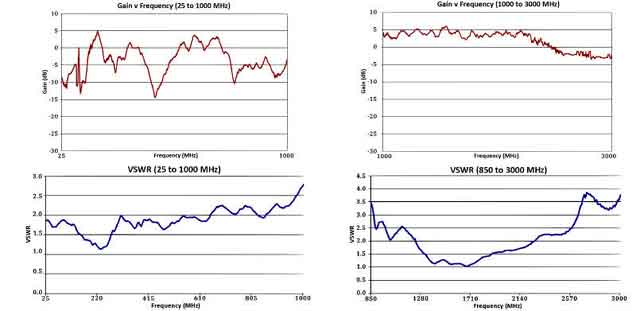

TITAN v3 VSWR Gain





 BM-02 Biconical Monopole Antenna


Model

Features

BM-02



25-1000 MHz



Electrically Small
Passive Transmit
Wideband Communications
Wideband Test
Wideband Electronic Warfare



Data

The BM-02 antennas are very
wide band, electrically small
biconical monopole antenna
designed for low frequency
testing and wideband
communications systems or
electronic warfare without
requiring large antennas or
tuning systems. The antenna is
housed and sealed in a rugged
radome to insure long life and
electrical repeatability.

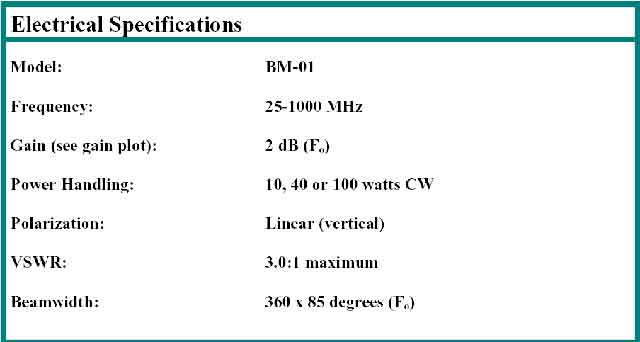

Electrical Specifications

Model:

BM-02

Frequency:

25-1000 MHz

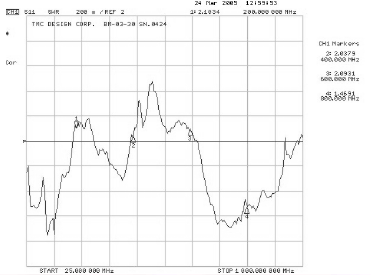

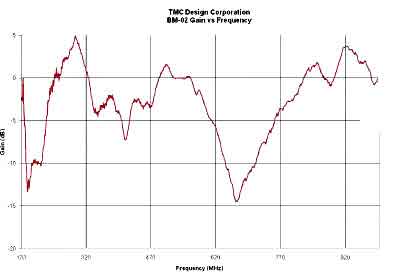

Gain (see gain plot):

> -2 dB (25-1000 MHz)

Power Handling:

100 watts CW

Polarization:

Linear (vertical)

VSWR:

3.0:1 maximum

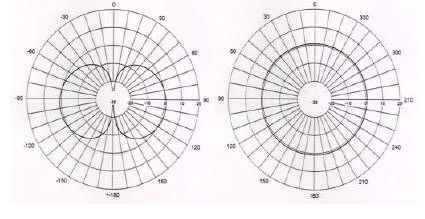

Beamwidth:

360 x 85 degrees (Fo)

Mechanical Specifications

Dimensions:

12.7" x 3.0” diameter

Weight:

4 lbs.

Temperature:

-40° to +51° C

Environmental:

full mil-810 tested - temperature, shock and vibration







 BM-03MM Biconical Monopole Antenna


Model

Specifications

BM-03MM



500-2000 MHz



Wide Band Electronic Warfare Antenna



Multi-Octave Bandwidth
Linear Polarization
Rugged Construction





Data





The BM-03MM is a wide-band, small bi-conical transmit and receive antenna contained within a rugged, sealed fiberglass dome.

The antenna is manufactured to be mounted to an HMMWV and connected to a vehicle-based jammer. Different mounting options are available.



Electrical Specifications

Model:

BM-03MM

Frequency:

500-2000 MHz

Gain (see gain plot):

4 dB (center frequency)

Power Handling:

100 watts CW

Polarization:

Linear (vertical)

VSWR:

3.0:1 maximum

Beamwidth:

360 x 85 degrees (Fo)
Mechanical Specifications

Dimensions:

5 1/2”l x 5 1/2”w x 64 5/6”h

Weight:

12 lbs. (with mount)

Temperature:

-40° to +51° C

Environmental:

full mil-810 tested - temperature, shock and vibration









 BM-03A & BM-3MM Biconical Monopole Antenna


Model

Specifications



   BM-03A                                                    BM-03MM

BM-03A



BM-03MM



500-2000 MHz



Wide Band Electronic Warfare Antenna



Wide Bandwidth
Linear Polarization
Rugged Construction



 Data

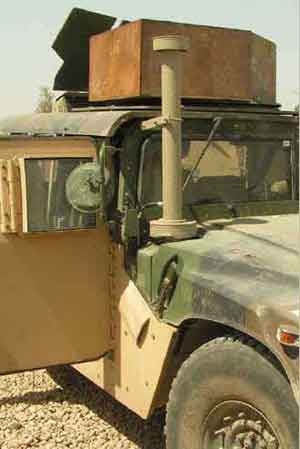

The BM-03A is a wide-band, small
biconical transmit and receive
antenna contained within a rugged,
sealed fiberglass radome. The
antenna shown at left is attached to
a HMMWV and vehicle based
jammer but is available with a
magnetic mount or as required for
your application. Call for
information on complete systems
design and fabrication.

Electrical Specifications

Model:

BM-03A & BM-3MM

Frequency:

500-2000 MHz

Gain:

4 dB (Fo)

Power:

100 watts (CW)

Polarization:

Linear (vertical)

VSWR:

3.0:1 maximum

Beamwidth:

360 x 85 degrees (Fo)

Mechanical Specifications

Dimensions:

3 1/4”l x 3 1/4”w x 13 1/2” h  BM-03A Antenna

Dimensions:

 5 1/2”l x 5 1/2”w x 64 5/6”h  BM-03MM Unit Assembly

Weight:

3.0 lbs. Antenna   12.0 lbs. Assembly

Temperature:

-40° to +50° C

Environment:

full 810 military environmental shock, temp and vibe testing performed

Connector:

Type-N





 BM-04 Biconical Monopole Antenna


Model

Specifications

BM-04-A-L Antenna

BM-04



30-500 MHz



Wide Band HPM Antenna



Wide Bandwidth
Linear Polarization
Rugged Construction



 Data

The BM-04 is a very wide band,
electrically small biconical
antenna designed to allow
coverage of the VHF/FM
communications band (30-88
MHz) without need of tuning
systems. The very wide
bandwidth will also transmit
fast rise pulses with high fidelity
for HPM operations. This
rugged antenna is portable
easily shipped/stored and can be
set up and operational in a
matter of minutes. Guy kit
included for outdoor operation
in high winds.

Electrical Specifications

Model:

BM-04-A-L

Frequency:

30-500 MHz

Gain:

4 dB (center frequency)

Polarization:

Linear (typically vertical)

VSWR:

2.8:1 maximum (30-100 MHz)

3.0:1 maximum (25-500 MHz)

Beamwidth:

360 x 85 degrees (center frequency)

Power Handling:

to 100 watts continuous

(higher power versions available)

Mechanical Specifications

Dimensions:

72.5"x 38.2"

Weight:

28.6 lbs.

Temperature:

-20 to +150 F

Winds:

to 45 mph (with optional guy kit)

Environment:

Commercial / Industrial (MIL Spec available)
