Antenna Mounts, Tripods and Accessories



Schwarzbeck Logo
TDK RF Solutions Logo



Model

Features







Antenna Mounts

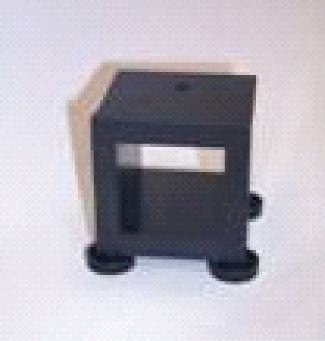

Model AM-PIVOT







Top of AM-PIVOT (Click to Enlarge)



Side View of AM-PIVOT (Click to Enlarge)



 Side View of AM-PIVOT (Click to Enlarge)



Model AM-PIVOT-FLAT

 (top is flat, not machined)









Data



Pivots from Horizontal to Vertical Polarity

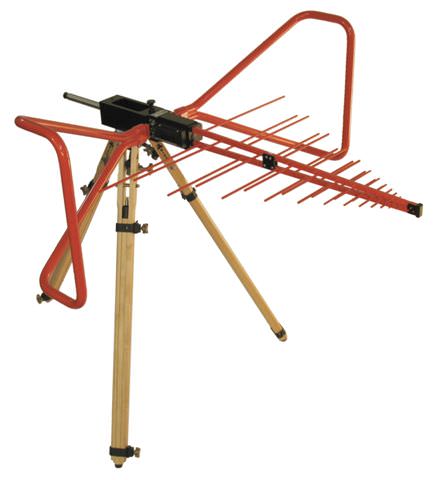

  • The AM-PIVOT mount is designed for large antennas

  • Designed for tripods (TRI-150R Above)

  • Other antenna stands or others with 1/4"-20 threads

  • Commercial Grade Plastic (Delron / Delrin)






















Video Camera Positioning Mount



Model: VCWM-TILT







Video Camera Manual Pan Tilt Mount

Designed for Fixed Position Cameras

Position Camera without motorized Pan & Tilt

360° Rotation in X/Y plane

180° Rotation in Z axis

Also works for lightweight antennas






Non-Conductive & RF Invisible



Adjustable

Tripod



Model: TRI-150R



Supports 100 lbs







Data



The TDK RF Solutions TRI-150R tripod is designed specifically for mounting antennas and video cameras in EMC test environments. The tripod is constructed of durable, non-conductive, commercial grade fiberglass and plastic that provide the necessary stability while allowing for portability.



The sturdy, fixed-length fiberglass legs feature adjustable foot pads to accommodate uneven floor surfaces. The legs fold inward for storage or transportation between test sites.



1/4 - 20 screw mount adapter



Adjusts from 100 cm to 150 cm in height (Custom Available)



Integrated level to allow quick and accurate positioning



Custom antenna mount adapters available



Custom video camera mount adapters available



Supports up to 45 kg (100 lbs.)






Non-Conductive & RF Invisible


Adjustable Tripod

Model TRI-350R

TDK TRI-350R Tripod



Supports 33 lbs



Data



The TDK TRI-350R tripod is a sturdy, lightweight, portable, non-conductive tripod designed specifically for mounting antennas and video cameras in EMC test environments.

The tripod is constructed of light but strong fiberglass and plastic to provide the necessary stability while allowing for lightweight portability.

The tripod easily adjusts from 65 cm to 160 cm in height and supports equipment up to 15 kg. The sturdy, fixed-length fiberglass legs feature smooth-rolling lockable caster wheels for easy maneuverability. If preferred, fixed adjustable rubber foot pads can be optioned to accommodate uneven floor surfaces. The tripod legs fold inward for storage or transportation between test sites.

The TRI-350R is available with a variety of antenna and video camera mount adapters to meet your requirements.




Antenna Mounts

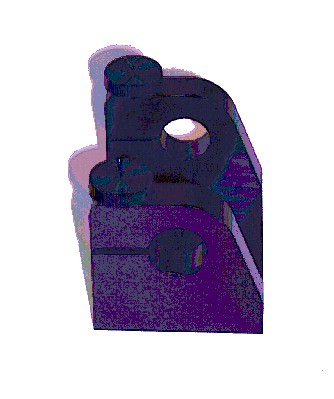

The standard 3" AM-Series mounts are designed for small antennas and accept our own tripods & antenna stands or others with 1/4"-20 threads.





AM-58

Mount with 5/8" Collar

AM-78

Mount with 7/8" Collar

AM-1

Mount with 1" Collar

AM-22M

Mount with 22mm Collar

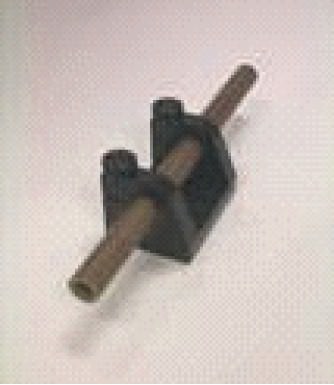

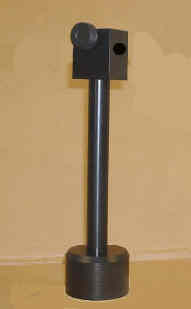

Phenolic Tube

(shown with the mount)







Phenolic tubes are sized to match the mounts listed above.



Required for Dipoles, EFB's and other small antennas.





AMPT-58  Phenolic tube 5/8" dia.

AMPT-78  Phenolic tube 7/8" dia.

AMPT-1    Phenolic tube 1" dia.

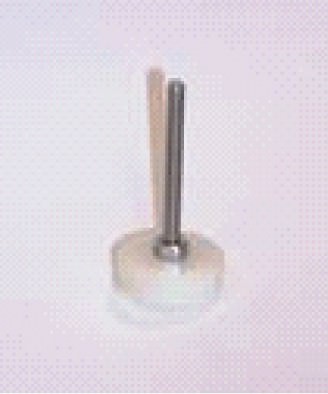

Antenna Mounting Bolt







Antenna mounting bolt is used to attach the mounts above to our antenna masts & tripods or others that have a 2" mounting.





AMB-Q20x3 Bolt 1/4"-20 x 3" L




Antenna Mount Clamp







Antenna mount 2" clamp assembly is used to attach large antennas to our masts and others.



Fits TDK RF Solutions, Sunol Sciences, EMCO and ETS mast booms.





AM-2CA-xx  Clamp Assembly 2"

(xx - Represents antenna model number)


Schwarzbeck Logo

Modular Antenna Masts




Modular Antenna Mast - AM 9144

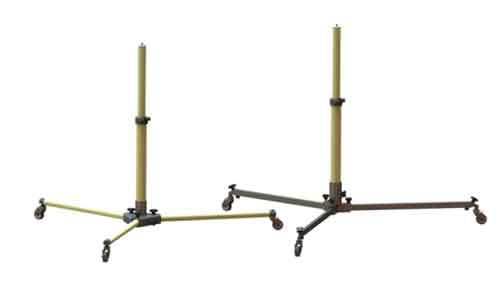

Modular Antenna Tripod Mast AM9144


Data

The double telescopic antenna mast / tripod is continuously height-adjustable. The mast rods are made of glass fibre to avoid unwanted reflexions. The modular design makes it possible to use different telescope parts and it can be mounted on a mast foot made of stainless steel or one made out of low-reflective fiberglass. Both of them provide a secure stand and easy adjustment on uneven ground. Antennas or adapters can be mounted on the 3/8" male thread.

Specifications:
 Overall height adjustmeint:
 (depending on configuration)
0.53 m - 3 m
 Antenna or adapter mount: 3/8" (male)
 Material mast: GFK / fibre glass
 Diameter of circle around foot: aprrox. 1.5 m

 Weight:
 (depending on configuration)

5 ~ 7 kg

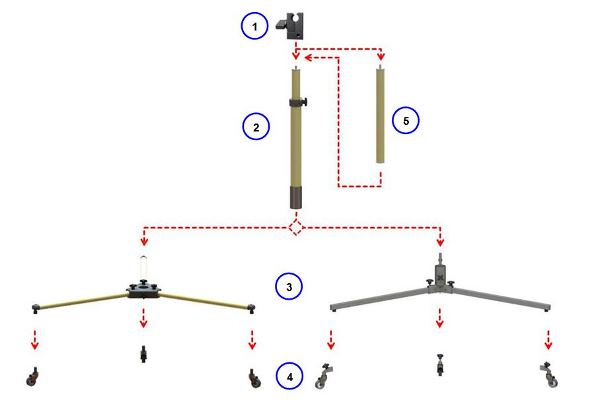

AM 9144 Overview


Mast Adapter

Suitable for adapters with 3/8” female thread. AA 9202, AA9202 POM, AA 9203, PDG 9211, RA 9215, AA 9205, AA 9209, KG 9201


Telescope

Interchangeable telescopic part in different sizes.


Mast Foot

Available in 3 different versions: Stainless steel, GF or tiltable mast foot


Wheels

These wheels are optionally available. Depending on the foot, they have a different mounting-system.


Extender

To increasing the maximum height of the telescopic part.



Schwarzbeck Logo

1. Mast Adapter

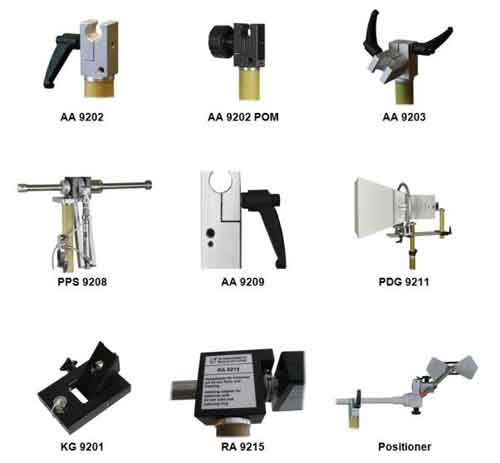

Antenna Mast Adapters

2. Telescope

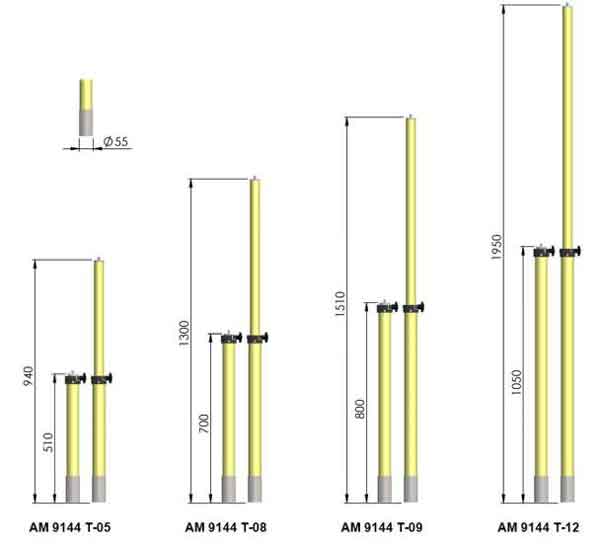

Telescope

The modular telescopic parts are interchangeable. So different height adjust-ments can be realized. When selecting the telescope, please make sure that an additional vertical offset may be caused by the mast foot and the optional wheels. The modular telescopic parts are interchangeable. So different height adjust-ments can be realized. When selecting the telescope, please make sure that an additional vertical offset may be caused by the mast foot and the optional wheels.


3. Mast Foot

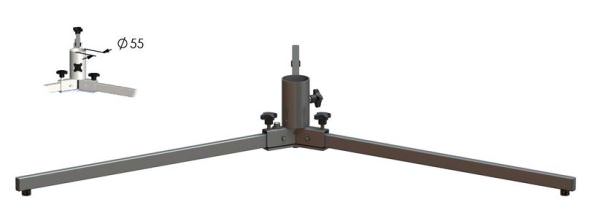

Mast Foot k

AM 9144 M-VA

 Height offset:

+ 10 cm

The mast made of stainless steel fits for all AM 9144 T - models. With its adjustment screws strongly uneven ground can be compensated. A rotating star can lock the legs.

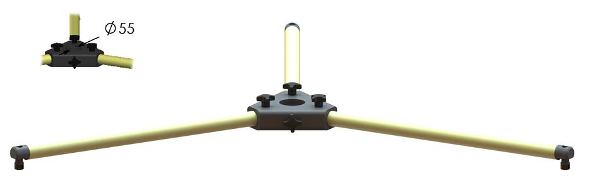

Mast Foot GFK

AM 9144 M-GFK

 Height offset:

+ 5 cm

The low-reflection mast foot made of fiberglass is suitable for all AM 9144 T models. With its adjustable rubber feet slightly uneven ground can be compensated. Due to the simple plug-in system the mast foot set up is quick and easy.

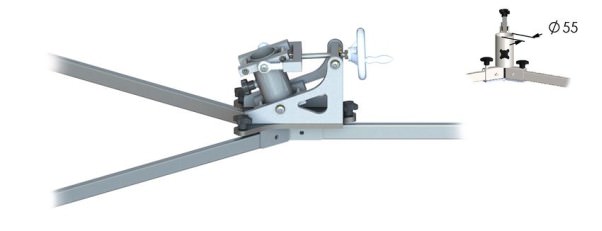

Tilt Foot

AM 9144 M-TILT

 Height offset:

+ 14 cm

 The tiltable mast is suitable for all AM 9144 T – models. With the hand wheel, the entire mast ca be tilted. This is necessary as otherwise a polarization change of the antenna, due to the an-tenna elements, would not be possible.

Tilt angle: > 20°

With its adjustment screws strongly uneven ground can be compensated. A rotating star can lock the legs.

STLP9128C Tilt Foot


4. Wheels

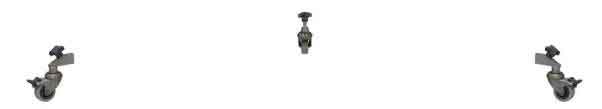

Wheels

AM 9144 W-VA

 Height offset:

+ 5 cm

The wheel are suitable for the stainless steel mast foot AM 9144 M-VA. They are simply attached instead of the end caps into the legs and are locked with the star handle screw. With the parking brake the mast remains in position.



WheelsGFK



AM 9144 W-GFK

 Height offset:

+ 5 cm

These wheels are suitable for the GFK mast foot AM 9144 M-GFK. The wheels are simply assembled instead of the rubber feet. With the parking brake the mast remains in position.


5. Extender

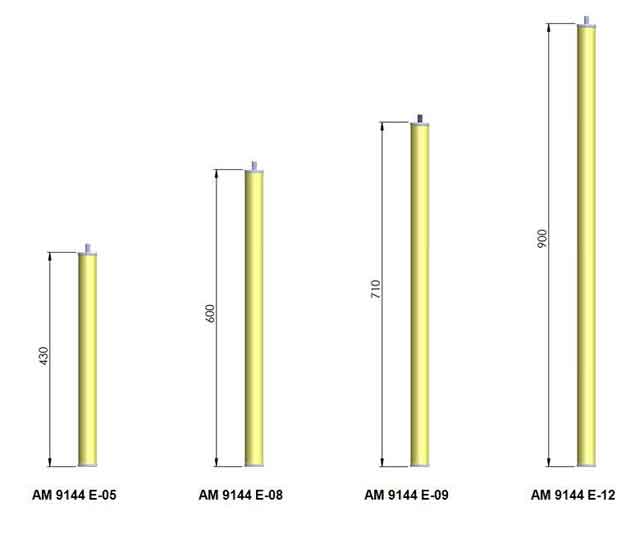

Extender

The Extender is screwed by its 3/8 "female threads on top of the telescopic part and extends it. The length of the extender is made in a way so that a stepless height adjustment remains possible. The resulting height of a retracted telescope with extender corresponds to the height of a completely extended telescope.

Overall height adjustment in different configurations



Mast Foot Wheels Telescope
AM 9144 T-05 AM 9144 T-08  AM 9144 T-09 AM 9144 T-12
min. max. min. max. min. max. min. max.
VA no wheels 61 104 80 140 90 160 115 205
wheels 66 109 85 145 95 165 120 210
GFK no wheels 56 99 75 135 85 155 110 200
wheels 61 104 80 140 90 160 115 205



 When using an extender, the height adjustment range is increased depending on the length. This should be considered when calculating the total height adjustment range.


AM 9104 - Antenna Mast

Schwarzbeck AM 9104 opt GFK-Fuss



Schwarzbeck AM9104 Antenna Mast



Data

Detachable Antenna Mast System (glass-fibre tubing) for VHF-UHF Antennas

Manual height scanning 0.4 m to 4 m

Insulated mast and antenna box with 0°/90° detents

Zinc-plated / stainless steel 3-leg mast foot




Options:



AM 9104 Opt. Rollen:

Caster Wheels and Brakes for zinc-plated/ stainless steel 3-leg mast foot



AM 9104 Opt. GFK-Fuß:

Non metallic (glass-epoxy) mast foot for AM 9104










Last Updated: April 26, 2018
