Aluminum Foil Electromagnetic Shielding








Ask About Other Foils Available

Aluminum Alloys, Copper Alloys, Stainless Steel

Tempers:            All tempers

Gauges:             .0002" to .012"

Widths:              .100" to 48.000"

Manufactured and Serviced in Cleveland, OH USA



2.5 mil Aluminum Foil for EMI / RFI Shielding


Model

Features





AL2.5 Aluminum Foil Shielding











2.5 mil Aluminum Foil



0.0025" (0.0635 mm) (2.5 mil) Thick



1235 Aluminum



Standard Rolls



48" x 150' (600 ft²) No PSA



 Without PSA:  30 lbs per roll





DATA   Installation







Pricing











Can be shipped by UPS, FedEx or Palletized

LEED
USGBC

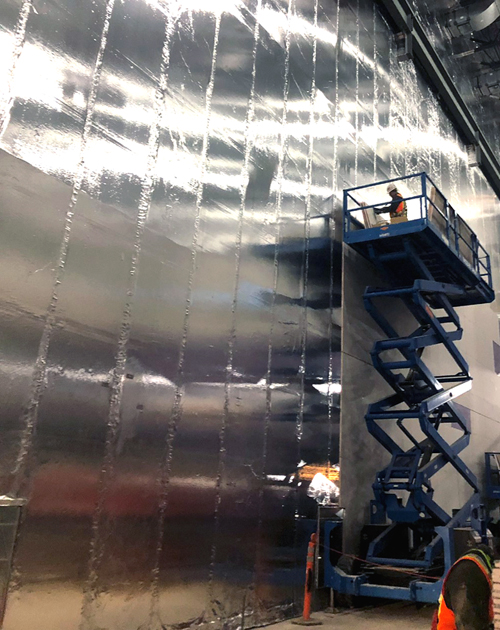

EMI-Shield AL2.5 is applied like wallpaper, covering all surfaces: floor, walls and ceiling. Other than normal cleanliness, and dust free, no special preparation is required.



The foil may be stapled or glued in-place.



Special ordered with a Non-Conductive Pressure Sensitive Adhesive (PSA).



For maximum effectiveness, seams may be taped with electrically conductive adhesive foil tape.



We recommend  a minimum of 3″ overlap (6" wide) using non-conductive adhesive foil tape or a minimum 1.5" (3' wide) using conductive adhesive foil tape.



Do not solder or weld EMI-Shield AL2.5



Wear correct gloves when installing the foil, the edge is like a razor blade



Installation Methods



Non-Conductive Tape





4" Electrically Conductive Tape (Recommended)

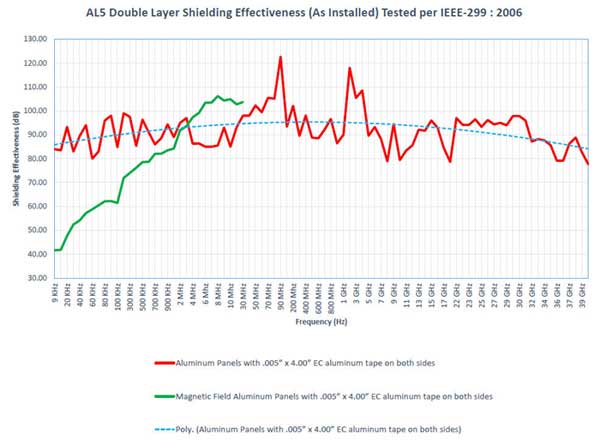

Shielding Performance

1235 Aluminum

TYPICAL SHIELDING EFFECTIVENESS

2.5 mil

(Insertion Loss per MIL STD 285)

FREQUENCY

dB

10 KHz, Magnetic Field

10

100 KHz, Magnetic Field

20

10 KHz, Electric Field

≥60

100 KHz, Electrical Field

≥60

1 MHz, Electrical Field

≥65

10 MHz, Electrical Field

≥45

100 MHz, Plane Wave

≥45

400 MHz, Plane Wave

≥40

10 GHz Plane Wave

≥40

Aluminum (Al)

99.35%

Iron (Fe)

-

Copper (Cu)

0.05%

Manganese (Mn)

0.05%

Magnesium (Mg)

0.05%

Chromium (Cr)

-

Zinc (Zn)

0.10%

Titanium (Ti)

0.06%

Silicon (Si)

0.65% (Si+Fe)










5 mil Aluminum Foil for EMI / RFI Shielding


Model

Features





AL5 Aluminum Foil Shielding









5 mil Aluminum Foil



0.0050" (0.127 mm) (5 mil) Thick



1235 Aluminum



Standard Rolls



24" x 150' (300 ft²)



 Without PSA:  24 lbs per roll

With PSA:  27 lbs per roll



48" x 150' (600 ft²) No PSA



 Without PSA:  47 lbs per roll

With PSA:  58 lbs per roll





DATA   Installation







Pricing





AL5 On Sale

AL5 - 48" x 150' Roll

with NO PSA

$180.00 Per Roll

Any Quantity





Can be shipped by UPS, FedEx or Palletized

LEED
USGBC



EMI-Shield AL5 is applied like wallpaper, covering all surfaces: floor, walls and ceiling. Other than normal cleanliness, and dust free, no special preparation is required.



The foil may be stapled, glued in-place or ordered with a Non-Conductive Pressure Sensitive Adhesive (PSA).



For maximum effectiveness, seams may be taped with electrically conductive adhesive foil tape.



We recommend  a minimum of 3″ overlap (6" wide) using non-conductive adhesive foil tape or a minimum 1.5" (3' wide) using conductive adhesive foil tape.



Do not solder or weld EMI-Shield AL5



Wear correct gloves when installing the foil, the edge is like a razor blade



Installation Methods



Non-Conductive Tape





4" Electrically Conductive Tape (Recommended)

Shielding Performance

1235 Aluminum

TYPICAL SHIELDING EFFECTIVENESS

5 mil

(Insertion Loss per MIL STD 285)

FREQUENCY

dB

1 KHz, Magnetic Field 12
10 KHz, Magnetic Field

20

100 KHz, Magnetic Field

25

10 KHz, Electric Field

≥80

100 KHz, Electrical Field

≥80

1 MHz, Electrical Field

≥80

10 MHz, Electrical Field

≥80

100 MHz, Plane Wave

≥60

400 MHz, Plane Wave

≥60

10 GHz Plane Wave

≥60

Aluminum (Al)

99.35%

Iron (Fe)

-

Copper (Cu)

0.05%

Manganese (Mn)

0.05%

Magnesium (Mg)

0.05%

Chromium (Cr)

-

Zinc (Zn)

0.10%

Titanium (Ti)

0.06%

Silicon (Si)

0.65% (Si+Fe)











10 mil Aluminum Foil for EMI / RFI Shielding


Model

Features

Aluminum Foil Floor Shielding





Installation Methods



6" Non-Conductive Tape (2 layers of 5 mil)



4" Electrically Conductive Tape (2 layers of 5 mil)





10 mil Aluminum Foil



0.010" (0.254 mm) (10 mil) Thick



Standard Rolls





24" x 100' (200 ft²)  No PSA

31 lbs per roll





1100 Aluminum





DATA   Installation



Pricing



We recommend the AL20 for EMI/RF shielding of the floor

SEE BELOW

Two layers of AL5 has the same shielding effectiveness as the AL10

EMI-Shield AL10 is not recommended for floor covering. Other than normal cleanliness, and dust free, no special preparation is required.



The foil may be mechanically fastened or glued in-place.



Pressure Sensitive Adhesive (PSA) is NOT available for AL10.



For maximum effectiveness, we recommend butt jointing the AL10 and taping the seams with electrically conductive adhesive foil tape.



We recommend 3" or 4" electrically conductive adhesive Aluminum or Copper foil tape.





Do not solder or weld EMI-Shield AL10





Wear correct gloves when installing the foil, the edge is like a razor blade



Shielding Performance

1100 Aluminum



TYPICAL SHIELDING EFFECTIVENESS

AL10 (10 mil)

(Insertion Loss per MIL STD 285)

Electrically Conductive Tape

2 Layers 5 mil Aluminum or 1 Layer 5 mil Copper

1 Layer 5 mil Aluminum

FREQUENCY

dB

dB

10 KHz, Magnetic Field

≥  25

12

100 KHz, Magnetic Field

≥  45

20

200 KHz, Magnetic Field

≥  50

25

200 KHz, Electrical Field

≥  100

≥80

1 MHz, Electrical Field

≥  100

≥80

10 MHz, Electrical Field

≥  100

≥80

400 MHz, Plane Wave

≥  100

≥60

1 GHz Plane Wave

  100

≥60

10 GHz Plane Wave

≥  100

≥60

AL10 does take a coil set, which makes it difficult to install on large floor areas

We recommend the AL20 panels, below for floor shielding



1100 Aluminum

Aluminum (Al)

99.0%

Iron (Fe) + Silicon (Si)

0.95%

Copper (Cu)

0.12%



Conductivity (%IACS)



57.00 - 61.80

Conductivity (Siemens/m)



3.445E+07

Resistivity (Ωm)



2.99E-08

Melting Point



1200 °F





 Lightweight Semi Rigid Aluminum Foil Panels for EMI / RFI Shielding


Model

Features





Semi Rigid Aluminum Foil Panels for Shielding





We recommend AL20 being cut or shaped with electric or pneumatic metal nibbler



Must be Shipped Palletized by Truck



Ideal for covering concrete floors



Final flooring can be glued directly on top of the AL20







20 mil Aluminum Foil Panels





Semi Rigid Foil Sheets for EMI / RFI shielding


Aluminum .020” x 48.00” x 96.00”



Ideal for covering the floor



1 sheet weighs approx 9.5lbs





0.020" (0.508 mm) (20 mil) Thick

1100 Aluminum



Standard Panel Size



48" x 96" (32 ft²)



Ideal for large coverage areas,

Cuts you labor cost by 30%



DATA



Pricing

EMI-Shield AL20 is applied like lightweight paneling, covering all surfaces: walls and ceiling. Other than normal cleanliness, and dust free, no special preparation is required.



The panels are not self supporting.



The foil panels may be screwed (self drilling screw recommended) (wall systems) or glued in-place (floor systems).



For maximum effectiveness, seams should be taped with 5 mil Aluminum or 5 mil Copper electrically conductive adhesive foil tape.



We recommend  butt jointing the panels and taping the seams with 4" wide electrically conductive foil tape. 6" wide non-conductive adhesive foil tape can also be used, but not recommended.









Wear correct gloves when installing the foil, the edge is like a razor blade



Installation Methods



6" Non-Conductive Tape



4" Electrically Conductive Tape (Recommended)





AL20 Semi Rigid Panel



Lightweight & Semi Rigid (One person can install)



Palletized for Shipping

Shielding Performance

1100 Aluminum

TYPICAL SHIELDING EFFECTIVENESS
AL20 (20 mil)
(Insertion Loss per MIL STD 285)

Electrically Conductive Tape

2 Layers 5 mil Aluminum or1 Layer 5 mil Copper 1 Layer 5 mil Aluminum

FREQUENCY

dB

dB

10 KHz, Magnetic Field

≥  25

12

100 KHz, Magnetic Field

≥  45

20

200 KHz, Magnetic Field

≥  50

25

200 KHz, Electrical Field

≥  100

≥80

1 MHz, Electrical Field

≥  100

≥80

10 MHz, Electrical Field

≥  100

≥80

400 MHz, Plane Wave

≥  100

≥60

1 GHz Plane Wave

  100

≥60

10 GHz Plane Wave

≥  100

≥60



Aluminum (Al)

99.35%

Iron (Fe)

-

Copper (Cu)

0.05%

Manganese (Mn)

0.05%

Magnesium (Mg)

0.05%

Chromium (Cr)

-

Zinc (Zn)

0.10%

Titanium (Ti)

0.06%

Silicon (Si)

0.65% (Si+Fe)





5 mil Aluminum Foil Tape for EMI / RFI Shielding


Model

Features







Aluminum Foil Tape





Can be shipped by UPS, FedEx or Palletized







5 mil Aluminum Foil Tape





0.0050" (0.127 mm) (5 mil) Thick

1235 Aluminum



2 mil conductive adhesive



Contact Resistance (Alum to Alum): < .02Ω





Electrically Conductive PSA

1" x 180' (15 ft²)

3" x 180' (45 ft²)

4" x 180' (60 ft²)

6" x 180' (90 ft²)



Non-Conductive PSA

6" x 180' (90 ft²)





Pricing

EMI-Shield AL5 Tape is applied like any tape with a release. The tape is used to RF seal the seams of foil or foil panels.



The 4" wide, electrically conductive PSA is ideal for sealing the seams.



The 6" wide, non-conductive PSA is used to frame out all the corners and intersections between walls, ceiling and floor, before the foil rolls are applied.



The 1" wide electrically conductive tape is used to electrically bond all foil rolls, if they were applied with non-conductive PSA.





Wear correct gloves when installing the foil tape, the edge is like a razor blade





Installation Methods



Non-Conductive Tape





4" Electrically Conductive Tape (Recommended)



Shielding Performance

1235 Aluminum

TYPICAL SHIELDING EFFECTIVENESS

5 mil

(Insertion Loss per MIL STD 285)

FREQUENCY

dB

1 KHz, Magnetic Field 12
10 KHz, Magnetic Field

20

100 KHz, Magnetic Field

25

10 KHz, Electric Field

≥80

100 KHz, Electrical Field

≥80

1 MHz, Electrical Field

≥80

10 MHz, Electrical Field

≥80

100 MHz, Plane Wave

≥60

400 MHz, Plane Wave

≥60

10 GHz Plane Wave

≥60

Aluminum (Al)

99.35%

Iron (Fe)

-

Copper (Cu)

0.05%

Manganese (Mn)

0.05%

Magnesium (Mg)

0.05%

Chromium (Cr)

-

Zinc (Zn)

0.10%

Titanium (Ti)

0.06%

Silicon (Si)

0.65% (Si+Fe)











Spray Adhesive


Model

Features





Recommended Bare Foil Adhesive



Spray Adhesive for Foil



3M™ Super 77™ Multipurpose Adhesive Aerosol



24 fl oz Net Wt 16 3/4 oz, 12 per case





Available Nationwide



MSDS Sheet

Data Sheet

3M Brochure

Application



Find 3M Distributor





High tack, high coverage and fast drying for permanently attaching foils, carpeting, lightweight foams, paper, cardboard, felt and, cloth to painted or unpainted metals, wood and hardboard.

Low VOCs. Does not contain ozone-depleting CFCs.

 If you can think it up, 3M™ Super 77™ Multipurpose Adhesive can probably glue it down. It's like "can do" in a can: a strong-bonding, fast-drying glue that you just spray on.

From paper, cardboard, fabric and cushion foam to plastic, metal, wood and much more, 3M™ Super 77™ Multipurpose Adhesive sticks to just about anything. And it helps give your projects the professional touch. So start thinking… and get gluing!




Mechanical Adhesive


Model

Features







Recommended Bare Foil Adhesive



 Adhesive for Foil



3M™ Fastbond™ Adhesives



3M™ Scotch-Weld™ 1357 Adhesives





Available Nationwide





Fastbond



Scotch-Weld



MSDS Sheet



MSDS Sheet



Data Sheet



Data Sheet



3M Brochure



3M Brochure




Find 3M Distributor











3M™ Fastbond™ 2000NF


Water-Dispersed, High Solids Activated Adhesive Provides Immediate Bonding Capabilities and Handling Strength without Forced Drying Equipment.


3M™ Scotch-Weld™ Neoprene High Performance Contact Adhesive 1357


Ideal for the AL10 & AL20 floor

A Gray-Green or Light Yellow colored, high performance contact adhesive that provides a long bonding range and excellent initial strength.

Adheres exceptionally well to many decorative plastic laminates, paper honeycomb, rubber, cloth, metal, wood and foamed glass.
