 A4001 High Bandwidth ESD Target

A4001



High Bandwidth ESD Target



Gold Plated



Test voltage up to 30KV



A4001 ESD Target



A4001 ESD Target with Cable

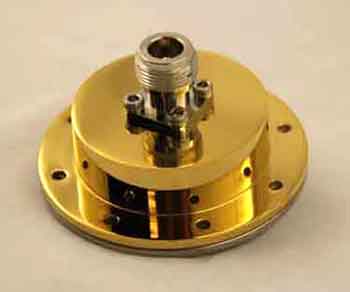

A4001 01

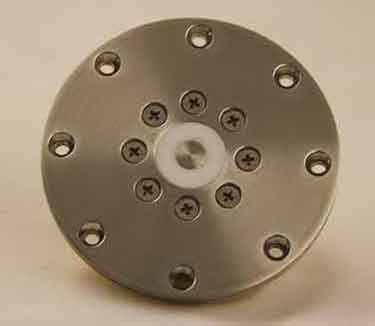

A4001 02




DATA



Default Configuration:

A4001-N Gold Plated Wide-band ESD Target with N Type Connector
AT2WN-20 N Type Attenuator, DC-18 GHz, 2W , 20 dB
RG4-NS-8 RG400 Coaxial Cable, N-SMA Connectors, 0.8 meter
A4001-SMA2BNC High Precision SMA-BNC Adapter
A4001-CAL NIST Traceable Factory Calibration Report







A4001 ESD Target is designed by David Pommerenke (The designer and writer of the ESD Target in standard comittee) a wideband ESD Target for calibration of ESD Simulators A4001 ESD Target is designed by David Pommerenke (The designer and writer of the ESD Target in standard comittee) a wideband ESD Target for calibration of ESD Simulators to the Latest IEC 61000-4-2 Edition and ISO 10605.

Meets the requirements of IEC 61000-4-2 Edition 2 Annex B (Normative) for a coaxial current target required for the calibration of ESD Simulators. This new current sensor designed by David Pommerenke is designed to measure the ESD discharge current with high precision and is a large improvement over previous designs.requency ringing and noise that might exist. Now that higher bandwidth oscilloscopes are readily available, an improved current becomes necessary otherwise measurements are still limited by the older target design.

This new target is available either with or without a 6 dB or 20dB attenuator and a cable, both of which are necessary for connection to the oscilloscope. The attenuator provides return loss and the cable is be used as the connection to the oscilloscope. The frequency response specifications below are taken with the complete assembly.

Connectors are N type. The cable provided will be either RG-400 or inch semi-flex.



Specifications

Frequency response:
+/- 0.5 dB DC - 1 GHz+/- 1.2 dB DC - 4 GHz

Input impedance:
2.08 Ω (2 Ωif loaded by 50 Ω

Test voltage:
30KV

Option Accessories:
6 dB or 20 dB attenuator
RG400 or inch semi-flex N type to SMA coax cable
50ohm target adapter line A4002





Optional Accessories:

A4001-SMA Gold Plated Wide-band ESD Target with SMA Connector
AT2WN-6 N Type Attenuator, DC-18 GHz, 2W, 6 dB
(Use in addition with 20 dB ATT for up to 30 kV calibration)
AT2WN-30  N Type Attenuator, DC-18 GHz, 2W, 30 dB
(Use instead of default 20 dB ATT for up to 30 kV ESD calibration)
AT2WS-20 SMA Type Attenuator, DC-18 GHz, 2W, 20 dB
RG4-SS-8 RG400 Coaxial Cable, SMA-SMA Connectors, 0.8 meter
A4001-Repair ESD target repair (will work with other brands ESD Targets)
A4001-ReCal Re-Calibration of ESD Target (NIST Traceable)
A4001-TP ESD Current Calibration Shielding Plane
A4001-TSC ESD Current Calibration Shielding Cabinet with EMI Filter



 A4002 ESD Current Target Adapter Line

 A4002

ESD Current Target Adapter Line



A4002 Current Target Adapter Line for Calibration



A4002 Current Target Calibration

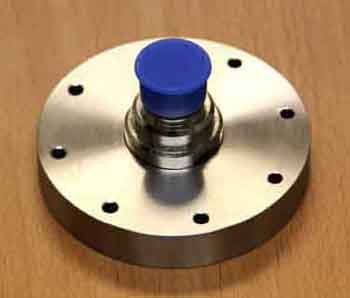

A4002-N




DATA

Applications:

Calibration kit for the measurement of the frequency response of ESD current targets

Features:

  • Per EN/IEC61000-4-2-2009 ver.3
  • 50ohm +/-2% from DC to 4GHz
  • Reflection coefficient < -30dB up to 1GHz and < -20dB up to 4GHz
  • Insertion

Operation Conditions:

  • Temperature 32 F. 122 F
    (0 to + 50 C)
  • Humidity 0 - 70% RH

Dimension / Weight:

  • 0.6 kg (1.3 lb)

Supports:

  • Lifetime technical support
  • Free standard test consulting
  • Free test plan review

Service:

  • 1 year warranty (extendable)
  • Anytime return in warranty
  • Trade in available for upgrade





 A4003 ESD Current Adapter/Target Adapter Line Set



A4003

ESD Current Target/Adapter Line Set



A4003

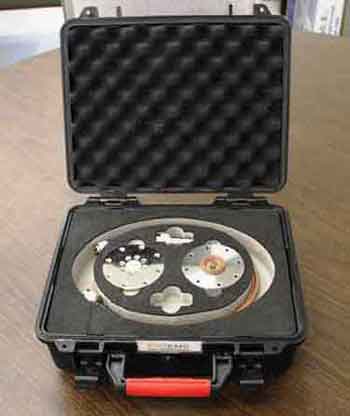

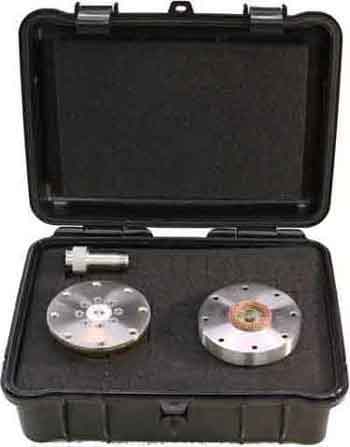

A4003 ESD Current Target/Adapter Line Set

Data

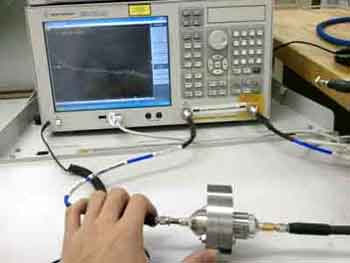

TN0001-3





A4003 ESD Current Target/Adapter Line is a complete calibration kit for ESD simulators, current targets, and target adapter lines per the standard IEC61000-4-2.

The set includes one ESD Current Target, one ESD Current Adapter Line, cable, and choice of 6dB or 20db attenuator. The set also comes with a calibration certificate and storage case.

Features:

Per EN/IEC61000-4-2-2009 ver.3

Test voltage up to 30kV IEC ESD

Reflection coefficient < -30dB up to 1GHz and < -20dB up to 4GHz

Insertion loss <= 0.3dB up to 4GHz

Applications:

Calibration kit for ESD simulators per IEC61000-4-2

Calibration kit for ESD current targets per IEC61000-4-2

Calibration kit for ESD target adapter line per IEC61000-4-2

Specifications:

Frequency response (meets IEC6100-4-2 standard)

< 0.5 dB DC - 1 GHz

< 1.2 dB DC - 4 GHz

Input impedance: 2.08 Ω (2 Ω if loaded by 50 Ω)

Test voltage up to 30KV
