At the TMC Design Antenna Division, we are committed to providing
the finest antennas available to meet your requirements. We specialize in high
power, airborne and ground based military Electronic Warfare antennas but
produce a wide variety of commercial and industrial antennas as well. If you do
not find an antenna for your application in our catalog, call or email us for a
fast friendly quote on a custom design. TMC Design has antenna design engineers
on staff and our own fabrication and test facilities, custom antennas can be
designed and fabricated with reasonable delivery times and low NRE costs. |
See Biconical Monopole Antennas for Ultra Wide Band
Communications Antennas
|
BC-7350 Very Wideband Communications Antenna |
|
Picture |
Model |
Features |
|
 |
BC-7350
25 to 1200 MHz
Multi-Octave Bandwidth
Linear Polarization
Rugged Construction
Wideband Communications
Wideband Test
 |

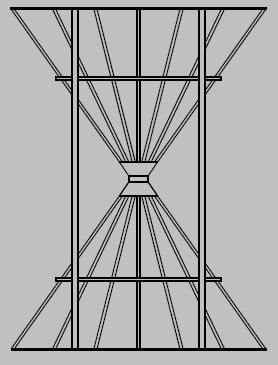

The BC-7350 is a very
wide band, biconical transmit/receive antenna. The welded
structure makes for a very rugged, outdoor, biconical antenna.
The result is a commercially priced antenna with the toughness
and performance of a military antenna.
|
|
Electrical Specifications |
|
Model: |
BC-7350 |
|
Frequency: |
25
- 1200 MHz |
|
Gain: |
4 dB (center
frequency) |
|
Power Handling: |
1,000 watts CW
|
|
Polarization: |
Linear (vertical) |
|
VSWR: |
2.0:1 typical 3.0:1 maximum |
|

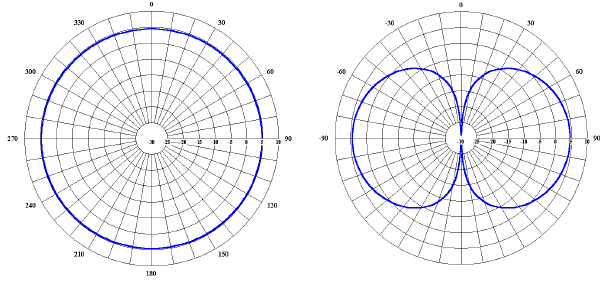

Beamwidth: |
360
x 85 degrees (center frequency) |
|
|
Mechanical
Specifications |
|
Dimensions: |
73.5”x 48” |
|
Weight: |
32.6
lbs. |
|
Temperature: |
-20° to
+150° F (-28.8° to 65.5° C) |
|
Environmental: |
Commercial / Industrial Harsh |
|
Connector: |
TNC
or Type-N |
| Winds: |
to 45 mph
(with optional guy kit) |
| |
|
|
|
 |
 |
|
BC-0375-B Wideband Communications Antenna |
|
Picture |
Model |
Features |
|
 |
BC-0375-B
550 to 900 MHz
Bi-Conical Antenna
Linear Polarization
360 Degree HPBW
Wideband Communications
Wideband Test
|
The BC-0375-B is a
wide band (550—900 MHz), small biconical transmit and receive
antenna contained within a rugged, sealed radome. The result is
a commercially priced antenna with the toughness and performance
of a military antenna. The antenna is both electrically superior
and easily deployable with a variety of different connectors
available.
|
|
Electrical Specifications |
|
Model: |
BC-0375-B |
|
Frequency: |
550
- 900 MHz |
|
Gain: |
3 dB (center
frequency) |
|
Power Handling: |
50 watts CW
|
|
Polarization: |
Linear (vertical) |
|

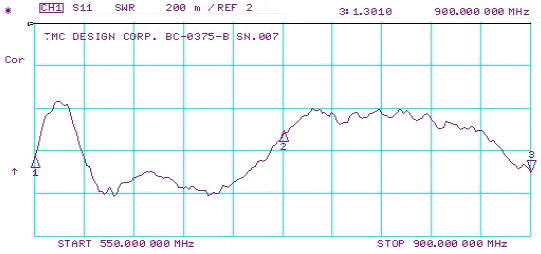

VSWR: |
2.0:1 maximum |
|

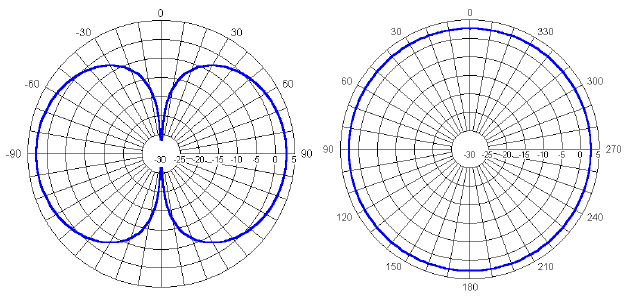

Beamwidth: |
360
x 85 degrees (center frequency) |
|
|
Mechanical
Specifications |
|
Dimensions: |
8.2” X 2.875” |
|
Weight: |
1.2
lbs. |
|
Temperature: |
-20° to
+150° F (-28.8° to 65.5° C) |
|
Environmental: |
Commercial / Industrial Harsh |
|
Connector: |
TNC
or Type-N |
| |
|
| |
|
|
|
 |
 |
|
BC-0300 Wideband Communications Antenna |
|
Picture |
Model |
Features |
|
 |
BC-0300
50 Watts CW
BC-0300-HP
200 Watts CW
850 - 3000 MHz
3 Octave Bandwidth
Linear Polarization
Rugged Construction
Wideband Communications
Wideband Test
|

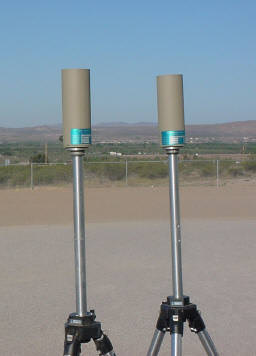

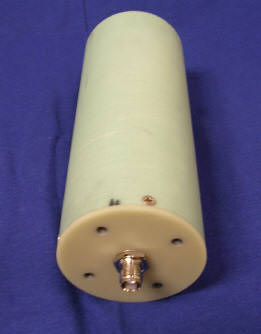

The BC-0300 is a wide
band, small biconical transmit and receive antenna contained
within a rugged, sealed radome. The result is a commercially
priced antenna with the toughness and performance of a military
antenna.
The antenna is available in a high power version and in
a wide variety of mounting options including vehicular magnetic
mount.
|
|
Electrical Specifications |
|
Model: |
BC-0300 |
|
Frequency: |
850-3000 MHz |
|
Gain: |
4 dB (center
frequency) |
|
Power Handling: |
50
watts (CW), 200 watt version available (-HP) |
|
Polarization: |
Linear (vertical) |
|

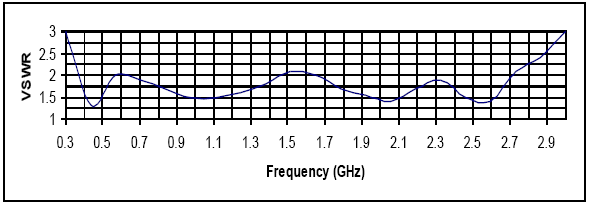

VSWR: |
2.0:1 typical (in any 1 GHz band of interest)
3.0:1 maximum (otherwise) |
|

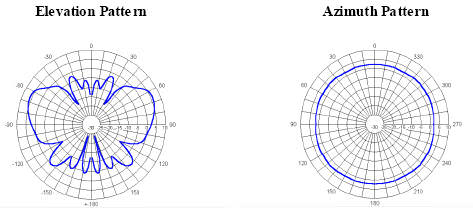

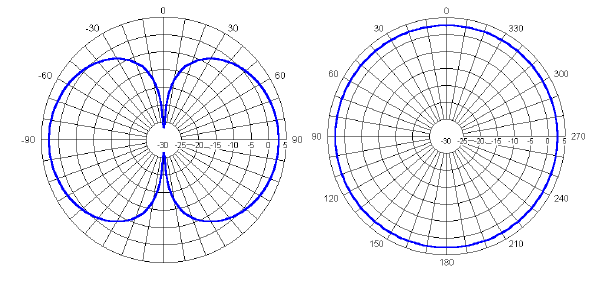

Beamwidth: |
360
x 85 degrees (center frequency) |
|
|
Mechanical
Specifications |
|
Dimensions: |
8.1” X 3.5” (20.57 cm X 8.89 cm) |
|
Weight: |
1.8 lbs. ( .816 kg) |
|
Temperature: |
-20° to +150° F (-28.8° to 65.5° C) |
|
Environmental: |
Commercial / Industrial (MIL-Spec available) |
| Connector: |
SMA, BNC, TNC
or Type-N available |
| |
|
| |
|
|
|
 |
 |
|
BC-0150 Wideband Communications Antenna |
|
Picture |
Model |
Features |
|
 |
BC-0150
1.2 to 1.6 GHz
GPS Band Coverage
Linear Polarization
Rugged Construction
Wideband Communications
Wideband Test
|
The BC-0150 is a very
wide band, small biconical transmit and receive antenna
contained within a rugged, sealed radome.
The result is a
commercially priced antenna with the toughness and performance
of a military antenna.
|
|
Electrical Specifications |
|
Model: |
BC-0150 |
|
Frequency: |
1.2 -
1.6 GHz |
|
Gain: |
4 dB (center
frequency) |
|
Power Handling: |
50 watts CW
|
|
Polarization: |
Linear (vertical) |
|

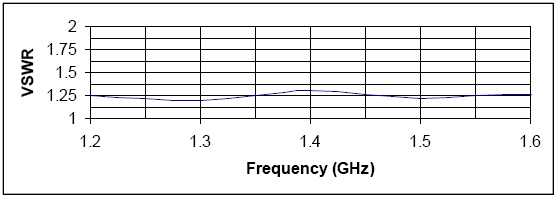

VSWR: |
2.8:1 maximum |
|

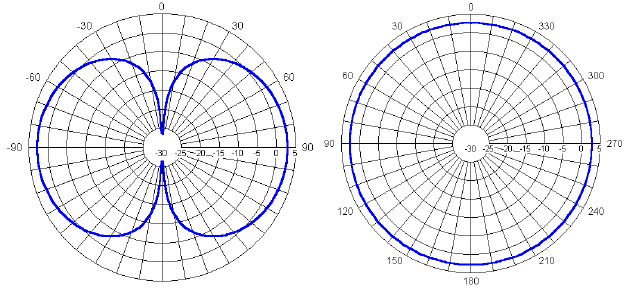

Beamwidth: |
360
x 85 degrees (center frequency) |
|
|
Mechanical
Specifications |
|
Dimensions: |
7.5”
X 1.75” (19.05 cm X 4.44 cm) |
|
Weight: |
1.8
lbs. ( .816 kg) |
|
Temperature: |
-20° to
+150° F (-28.8° to 65.5° C) |
|
Environmental: |
Commercial / Industrial (MIL-Spec available)
|
|
Connector: |
SMA, BNC, TNC or
Type-N available |
| |
|
| |
|
|
|
 |
 |
|
BC-06r Wideband Communications Antenna |
|
Picture |
Model |
Features |
|
 |
BC-06r
1.1 to 1.7 GHz
Wide Bandwidth
Linear Polarization
120 Degree HPBW
Wideband Communications
Wideband Test
|

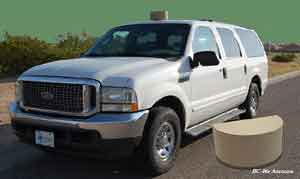

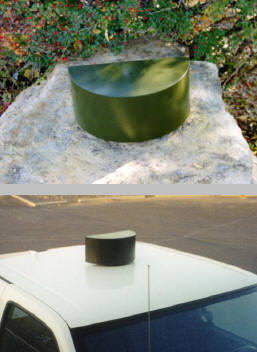

The BC-06r is a
wide-band antenna ideal for applications requiring a wide
azimuth beamwidth but not omni-directional coverage. This small,
mobile transmit and receive antenna is contained within a
rugged, sealed fiberglass radome and can be provided with a
magnetic mount for mobile applications (also available with
optional tripod).
|
|

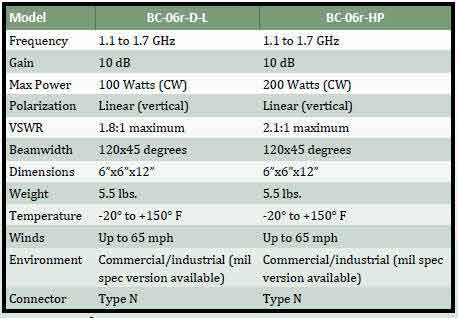

Electrical Specifications |
|
Model: |
BC-06r-D-L |
|
Frequency: |
1.1-
1.7 GHz |
|
Gain: |
10 dB (center
frequency) |
|
Power Handling: |
100 watts CW
|
|
Polarization: |
Linear (vertical) |
|

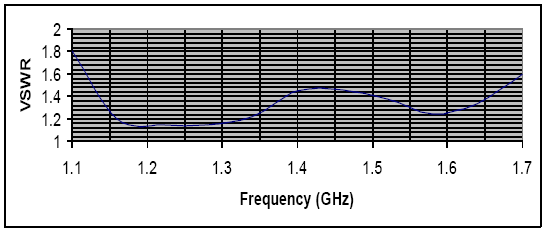

VSWR: |
1.8:1 maximum |
|

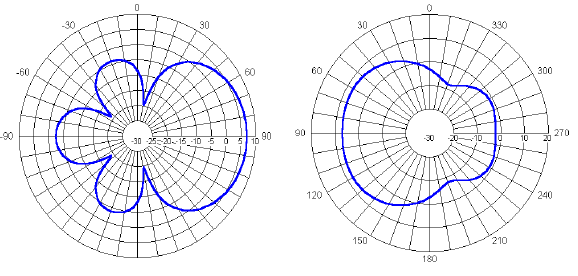

Beamwidth: |
120
x 45 degrees (center frequency) |
|
|
Mechanical
Specifications |
|
Dimensions: |
6”x 6”x 12” |
|
Weight: |
5.5
lbs. |
|
Temperature: |
-20° to
+150° F (-28.8° to 65.5° C) |
|
Environmental: |
Commercial / Industrial (MIL-Spec available)
|
|
Connector: |
Type-N |
| Winds: |
to 65 mph |
| |
|
|
|
 |
 |
|

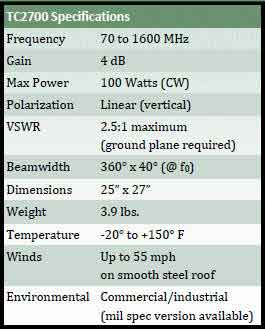

TC2700 Wideband Communications Antenna |
|
Picture |
Model |
Features |
|
 |
TC2700
70 - 1000 MHz
Mobile Applications
Linear Polarization
Rugged Construction
Wideband Communications
|
The TC2700 is a very
wide band, mobile communications antenna designed for both
transmit (100 watts CW) and receive applications. The powerful
magnetic base firmly attaches to any steel surface (sufficient
ground plane required). The unit is housed in a sealed radome
with replaceable elements.
|
|
Electrical Specifications |
|
Model: |
TC2700 |
|
Frequency: |
70
- 1000 MHz |
|
Gain: |
4 dB |
|
Power Handling: |
100 watts CW
|
|
Polarization: |
Linear (vertical) |
|

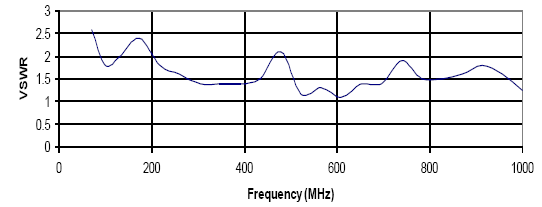

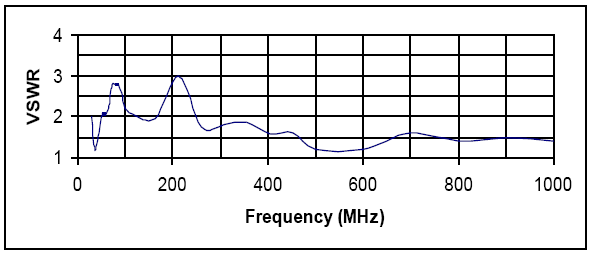

VSWR: |
2.5:1 maximum (ground plane required) |
|
Beamwidth: |
360
x 40 degrees (center frequency) |
|
|
Mechanical
Specifications |
|
Dimensions: |
8”x 3.5” (Base) 25” (height) x 27” (diameter
of elements) |
|
Weight: |
3.9
lbs. |
|
Temperature: |
-20° to
+150° F (-28.8° to 65.5° C) |
|
Environmental: |
Commercial / Industrial (mil-spec available)
|
|
Connector: |
SMA, BNC, TNC or
Type-N available |
| Winds: |
to 55 mph (on
smooth steel roof) |
| |
|
|
|
 |
 |
|
