At the TMC Design Antenna Division, we are committed to providing the finest antennas available to meet your requirements. We specialize in high power, airborne and ground based military Electronic Warfare antennas but produce a wide variety of commercial and industrial antennas as well. If you do not find an antenna for your application in our catalog, call or email us for a fast friendly quote on a custom design. TMC Design has antenna design engineers on staff and our own fabrication and test facilities, custom antennas can be designed and fabricated with reasonable delivery times and low NRE costs.



 Dish Antennas (1.12 - 18.0 GHZ)



BF Series



Wide Bandwidth
Rugged Construction


1.12 to 18 GHz







Right Hand Circular

Left Hand Circular

Polarization

Vertical

Horizontal

 Polarization

from

 a Single Feed



Antenna Feed Boxes Below





At TMC Design our dish antennas are custom designed and fabricated to meet customer specifications. TMC Design manufactures several types of dish feeds (see Antenna Box Feeds Below) that are available for custom dish orders. Owing to our many years of experience in this area and available dish feeds TMC Design can often
complete a dish antenna within a fraction of the time and cost of our competition.
In addition to our dish fabrication, design and alignment capabilities, TMC Design can also provide test and validation services or can suggest alternate test facilities, for our customers that prefer independent test and validation of performance.
Our dish antennas are currently in use by several U.S. Government agencies for communications systems, EW systems (both airborne and ground based) and for a wide variety of test applications.



 Installation and focusing are also available



Ideal to antenna range calibration

&

bore sighting

(Very Directional with Dish)



Dish Diameter Sizes Available:

24", 48" 10', 3m & 5.5m



 Dish Antenna (2.0 - 3.0 GHz)

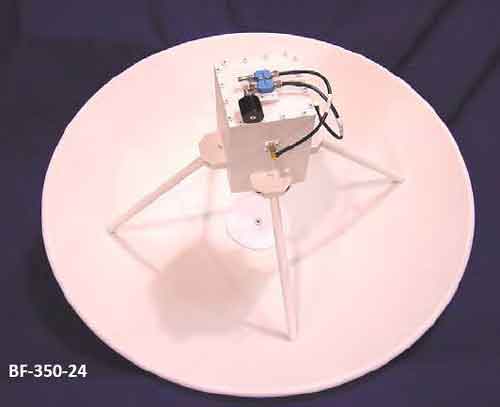

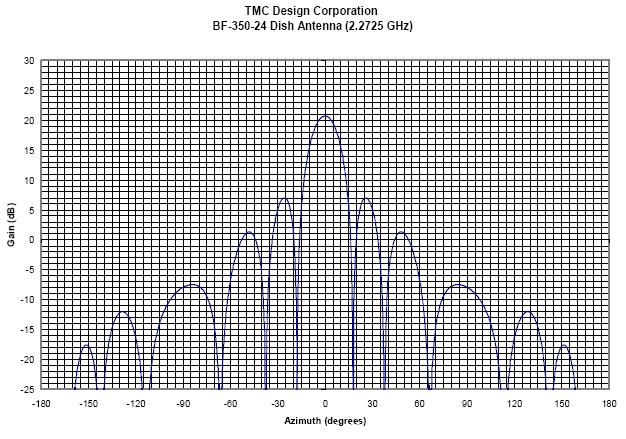

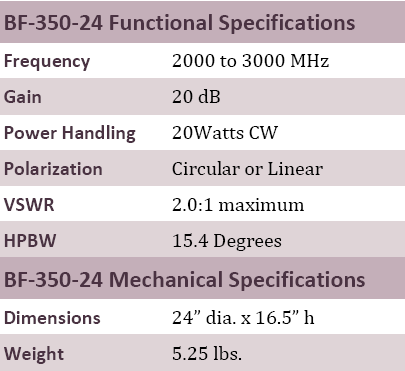

BF-350-24 Dish Antenna



2.0 GHz - 3.0 GHz





L-Band Frequency


Circular or Linear Polarization





Data



The BF-350-24 antenna is a polarization diverse dish feed with a 24” diameter prime focus parabolic antenna designed to be both electrically superior and allow
for any desired polarization.








 Dish Antenna (1.4 - 2.0 GHz)

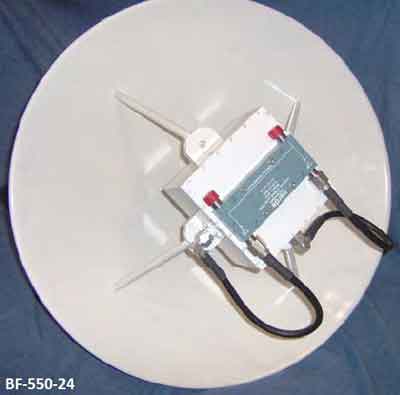

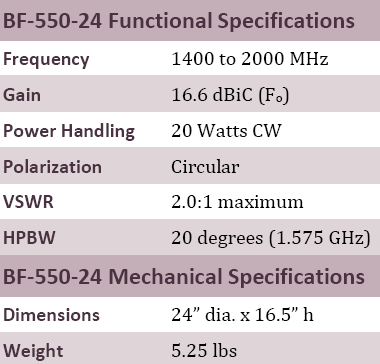

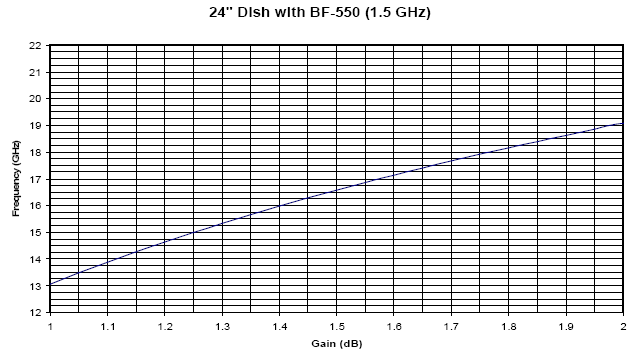

BF-550-24 Dish Antenna



1.4 GHz - 2.0 GHz





L-Band Frequency


Circular or Linear Polarization





Data



The BF-550-24 antenna is a polarization diverse dish feed with a 24” diameter prime focus parabolic antenna designed to be both electrically superior and allow
for any desired polarization.








 Dish Antenna (1.0 - 2.0 GHz)



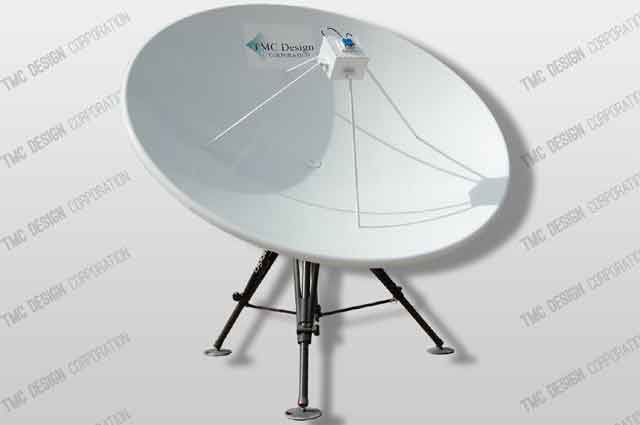

BF-550-72 Dish Antenna



1.0 GHz - 2.0 GHz



folder



L-Band Frequency


Circular or Linear Polarization





Data



TMC Design’s newest dish antenna, the BF-550-72 is an ideal directive L-band solution. This antenna’s design includes a vari-pol feed that allows it to operate in either left-hand or right-hand circular polarization. The dish is approximately 5 feet in diameter and is available with a variety of mounting options.


Frequency        1 to 2 Ghz
Gain                  24 dB @ 1.5 GHz
Polarization     Circular or Linear
HPBW              8.28°
Max. Power     20 Watts, CW
Max. VSWR    2:1
Connector       SMA
Dimensions     27” (h) x 68" (w)
Weight             20 lbs

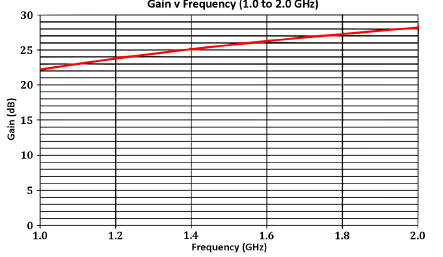

BF-550-72 Gain

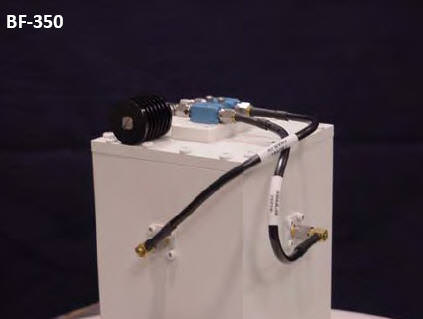

 Antenna Box Feeds



BF Series



Wide Bandwidth
Rugged Construction


1.12 to 18 GHz



TMC Design Vari-Pol Antenna





Right Hand Circular

Left Hand Circular

Polarization

Vertical

Horizontal

 Polarization

from

 a Single Feed



Data

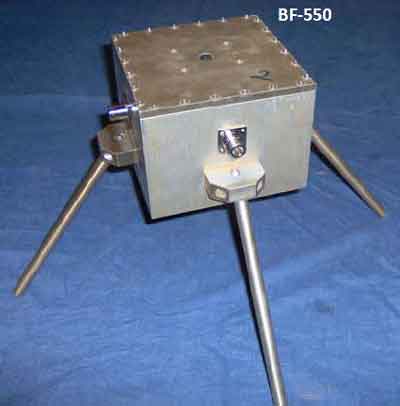

TMC Design Corporation has many years experience in the design and fabrication of dish feeds. We are now pleased to offer the highly flexible dish feed which allows operation in either right or left hand circular polarization as well as vertical or horizontal linear from a single feed without refocusing the dish. Available in wide band widths from 1.12 to 18 GHz.

 Installation and focusing are also available



Ideal to antenna range calibration

&

bore sighting

(Very Directional with Dish)



Dish Diameter Sizes Available:

24", 48" 10', 3m & 5.5m

Model

BF-675

BF-550

BF-475

BF-375

BF-275

BF-225

BF-175

BF-162

BF-150

BF-125

BF-100

BF-075

BF-062

Frequency GHz

1.12-1.70

1.40-2.00

1.60-2.40

2.14-3.00

2.90-4.00

3.50-5.00

4.50-6.50

4.94-7.00

5.20-7.50

6.50-8.90

7.6-11.50

10.20-15.00

12.40-18.00

Beamwidth (-10dB)

148

148

148

148

148

148

148

148

148

148

148

148

148

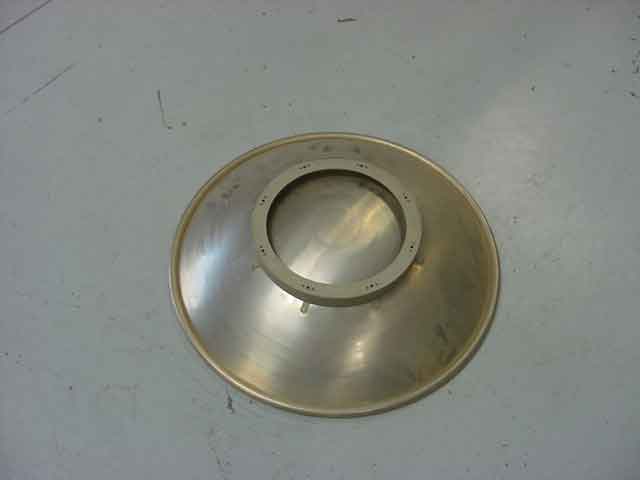

24" Vari-Pol Dish (Front)

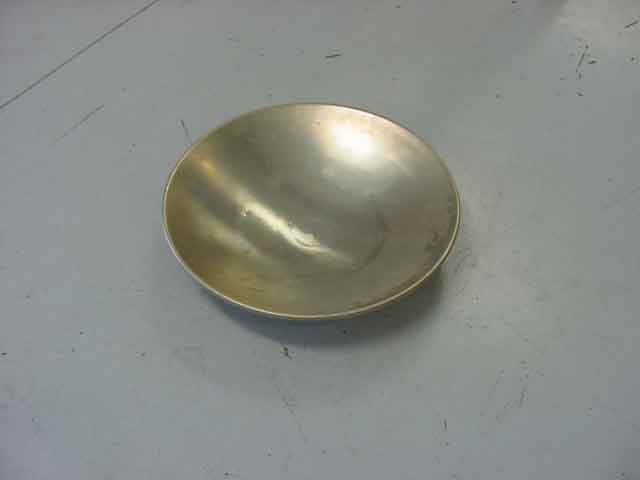

24" Dish

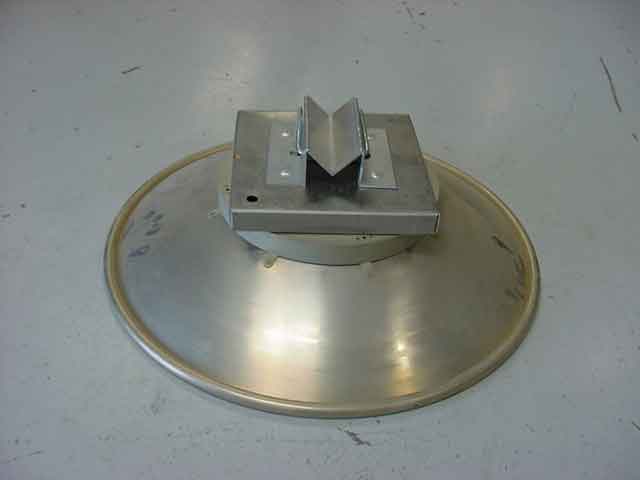

     Pole Mount             Rotating Assembly

Model

Dimension A (inches)

Dimension B (inches)

Dimension L (inches)

Weight in pounds

BF-675

7

7

10

7.2

BF-550

6

6

10

5.3

BF-475

5

5

8

4.3

BF-375

4

4

6

3.6

BF-275

3

3

6

2.92

BF-225

2.5

2.5

5

2.33

BF-175

2

2

4

2.27

BF-162

2

2

4

2.25

BF-150

1.75

1.75

3

1.15

BF-125

1.5

1.5

3

1.89

BF-100

1.25

1.25

3

1.65

BF-075

1

1

3

1.45

BF-062

1

1

3

1.45
