TDK RF Solutions  Q-par

Q-par, TDK RF Solutions and TMC Design Antenna Division, are committed to providing the finest antennas available to meet your requirements. They specialize in high power, airborne and ground based military Electronic Warfare antennas but produce a wide variety of commercial and industrial antennas as well.

If you do not find an antenna for your application, call or email us for a fast friendly quote on a custom design.





 Microwave Horn Antennas Index

Double-Ridge Horns (0.5 - 5 GHz, 1 - 18 GHz & 18 - 40 GHz)

Optimum Gain Microwave Horns

Wide Band Microwave Horns




 Wide Band Horn Antennas



Q-par



Ultra High Gain Horns



Q-par Horn Antenna



The Ultra High Gain horns feature gains of over 20 dBi and are ideal for projects that require that little bit more.



Ultra High Gain Horn Features

  • Ideal for precision measurements
  • Protective radomes are available on our horn antennas for full weatherproofing
  • Centre of Gravity brackets for easy and secure mounting for all high gain horns
  • Full report provided with each Ultra High Gain Horn.



Frequency

(GHz)

WG / WR Catalogue Number

Gain

(dBi)

Power

c. w. (W)

VSWR

(Typical)

*Connector
0.17 to 4.0  -- QWH-SL0.17-4-A-SG 3.6 to 15.9 1400 <1.5:1 7:16 DIN
0.37 to 0.47 00 / 2300 QSH-SL-0.37-0.47-N-10 9.4 to 11.5 500 <1.6:1 N
0.40 to 1.6  -- QWH-SL-0.4-1.6-N-SG-R 12.5 to 14.5 500 <1.7:1 N
0.50 to 0.75 2 / 1500 QSH-SL-0.5-0.75-N-15 12.5 to 15.5 400 <1.5:1 N
0.50 to 2.0  -- QWH-SL-0.5-2-N-SG 7.4 to 14.5 250 <1.8:1 N
0.60 to 1.0 3 / 1150 QSH-SL-0.6-1-N-10 7.7 to 12.2 400 <1.5:1 N
0.75 to 1.1 4 / 975 QSH-SL-0.7-1.1-N-15 13.6 to 17.1 400 <1.6:1 N
0.80 to 4.0  -- QWH-DL-0.8-4-N-SG-L 7.2 to 13.5 40 <2.3:1 x2 N
0.80 to 18.0 -- QWH-SL-0.8-18-N-SG 2.8 to 18.0 500 <2.0:1 N
0.90 to 1.4 5 / 770 QSH-SL-0.9-1.4-N-20 18.0 to 22.0 400 <1.6:1 N
0.90 to 18.0  -- QWH-DL-0.9-18-S-SG-R 0.3 to 13.3 40 <2.5:1 x2 SMA
1.0 to 4.2  -- QWH-SL-1-4.2-A-HG 13.6 to 18.4 1200 <2.0:1 7:16
1.0 to 8.0  -- QWH-SL-1-8-B-SG 6.0 to 17.0 1500 <1.4:1 7/8
1.0 to 18.0  -- QWH-SL-1-18-S-SG-R 1.3 to 12.8 40 <2.0:1 SMA
1.1 to 1.7 6 / 650 QSH-SL-1.1-1.7-N-20 18.8 to 21.7 300 <1.4:1 N
1.4 to 2.2 7 / 510 QSH-SL-1.4-2.2-A-20 18.0 to 20.5 1800 <1.3:1 7/16
1.7 to 2.6 8 / 430 QSH-SL-1.7-2.6-A-20 18.4 to 21.8 1800 <1.3:1 7/16
2.0 to 4.0  -- QWH-SL-2-4-C-SG-R 16.4 to 18.1 750 <1.6:1 SC
2.0 to 8.0  -- QWH-SL-2-8-N-SG-R 10.9 to 14.3 500 <1.5:1 N
2.0 to 18.0  -- QWH-DL-2-18-S-SG 3.9 to 15.9 40 <3.0:1 x2 SMA
2.0 to 18.0  -- QWH-SL-2-18-S-SG-R 5.0 to 12.0 20 <2.5:1 SMA
2.0 to 18.0  -- QWH-SL-2-18-S-HG-R 10.0 to 22.0 20 <2.5:1 SMA
2.0 to 18.0  -- QWH-SL-2-18-N-SG-R 5.0 to 12.0 50 <2.5:1 N
2.0 to 18.0  -- QWH-SL-2-18-N-HG-R 10.0 to 22.0 80 <2.5:1 N
2.0 to 18.0  -- QWH-DL-2-18-N-SG-R 10.0 to 22.0 40 <2.5:1 x2 N
2.0 to 18.0  -- QWH-DL-2-18-S-HG-R 10.0 to 22.0 40 <2.5:1 x2 SMA
2.2 to 3.3 9A / 340 QSH-SL-2.2-3.3-N-20 18.6 to 21.6  200 <1.4:1 N
2.5 to 7.5 WRD250 QWH-SL-2.5-7.5-F-SG-R 10.0 to 14.0 2000 <1.3:1 WRD250
2.6 to 4.0 10 / 284 QSH-SL-2.6-4-N-20 18.0 to 21.0 200 <1.4:1 N
3.3 to 5.0 11A / 229 QSH-SL-3-5-N-15 14.8 to 17.8 180 <1.4:1 N
3.9 to 5.9 12 / 187  QSH-SL-4-6-N-20 18.0 to 21.0 200 <1.6:1 N
4.0 to 8.0 WRD350 QWH-SL-4-8-F-HG 18.0 to 20.0 2000 <1.3:1 WRD350

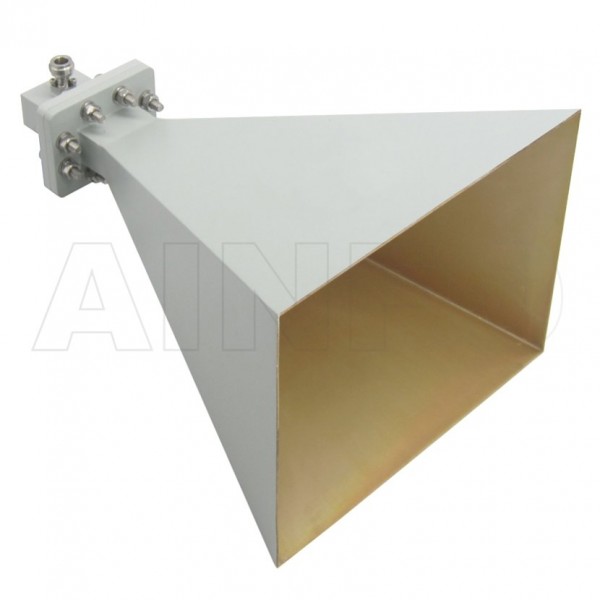

4.9 to 7.1 13 / 159 QSH-SL-5-7-N-20 18.0 to 21.0 60 <1.4:1 N
5.8 to 8.2  14 / 137 QSH-SL-6-8-S-20-R 18.0 to 21.0 50 <1.6:1 SMA

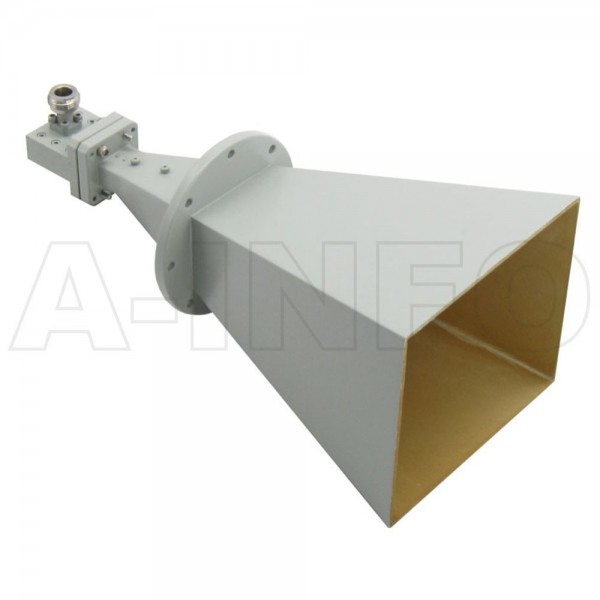

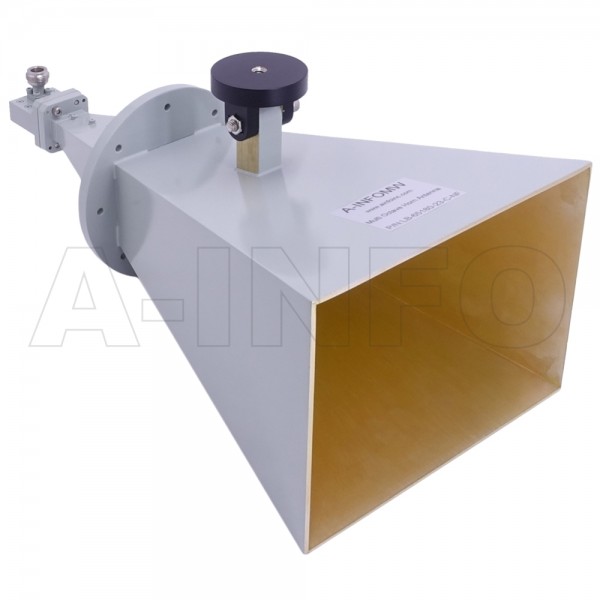

6.5 to 18.0  WRD650 QWH-SL-6.5-18-F-HG-CS 9.6 to 17.1 4000 <1.3:1 WRD650
7.0 to 10.0  15 / 112 QSH-SL-7-10-S-20-R 18.0 to 21.0 50 <1.4:1 SMA

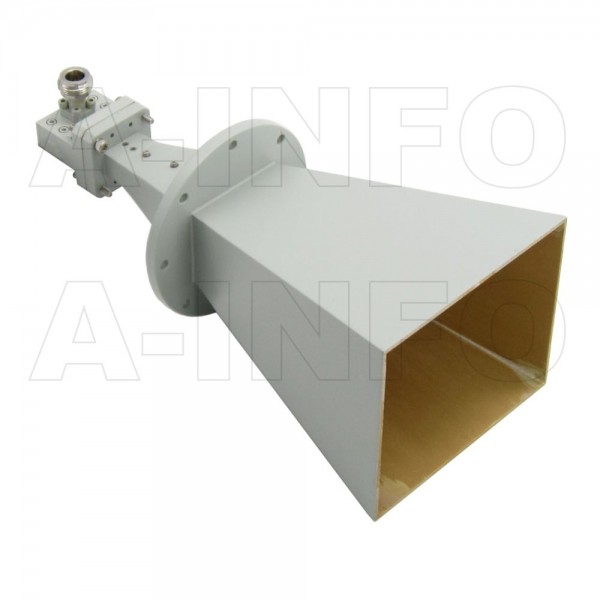

7.5 to 18.0  WRD750 QWH-SL-7.5-18-F-20 19.0 to 21.0 2000 <1.3:1 WRD750
8.2 to 12.4  16 / 90 QSH-SL-8-12-N-20 18.2 to 21.5 100 <1.3:1 N
10.0 to 15.0 17 / 75  QSH-SL-10-15-N-20 18.3 to 21.5 100 <1.4:1 N
12.4 to 18.0 18 / 62 QSH-SL-12-18-F-20 18.0 to 21.0 1400 <1.15:1 UBR140
15.0 to 22.0 19 / 51 QSH-SL-15-22-S-20-R 17.0 to 21.0 20 <1.6:1 SMA
18.0 to 26.5 20 / 42 QSH-SL-18-26-S-20-R 18.0 to 20.9 20 <1.4:1 SMA

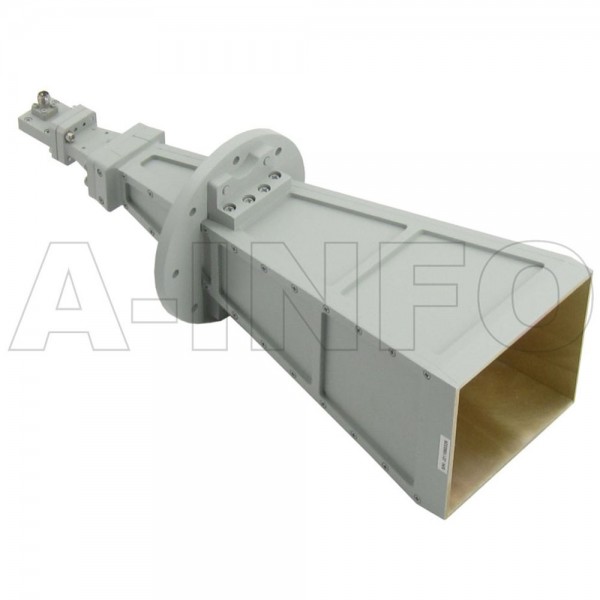

18.0 to 40.0 -- QWH-SL-18-40-K-SG 12.3 to 14.8 20 <1.7:1 K
18.0 to 40.0  -- QWH-DL-18-40-K-SG-R 12.0 to 16.9  20 <2.5:1 x2 K
22.0 to 33.0 21 / 34 QSH-SL-22-33-K-20-R 18.0 to 21.0 20 <1.4:1 K
26.5 to 40.0 22 / 28 QSH-SL-26.5-40-K-20 18.0 to 21.0 20 <1.2:1 K
33.0 to 50.0 23 / 22 QSH-SL-33-50-V-20 18.0 to 21.0 5 <1.4:1 V
40.0 to 60.0 24 / 19 QSH-SL-40-60-V-20 18.0 to 21.0 10 <1.6:1 V
50.0 to 75.0 25 / 15 QSH-SL-50-75-V-20 18.0 to 21.0 5 <1.6:1 V
60.0 to 90.0  26 / 12 QSH-SL-60-90-F-20 20.0 to 22.0 200 <1.2:1 WG F
75.0 to 110.0 27 / 10 QSH-SL-75-110-F-20 20.0 to 22.0 200 <1.2:1 WG F
90.0 to 140.0 28 / 8 QSH-SL-90-140-F-20 20.0 to 22.0 100 <1.2:1 WG F
110.0 to 170.0 WR6.5 QSH-SL-110-170-F-20 25.0 to 27.0 50 <1.15:1 WG F
140.0 to 220.0 WR5.1 QSH-SL-140-220-F-20 25.0 to 27.0 50 <1.2:1 WG F
170.0 to 260.0 WR4.3 QSH-SL-170-260-F-20 25.0 to 27.0 20 <1.25:1 WG F
220.0 to 330.0 WR3.4 QSH-SL-220-330-F-20 25.0 to 27.0 10 <1.3:1 WG F
260.0 to 400.0 WR2.8 QSH-SL-260-400-F-20 25.0 to 27.0 5 <1.35:1 WG F
330.0 to 500.0 WR2.2 QSH-SL-330-500-F-20 25.0 to 27.0 5 <1.4:1 WG F




 Optimum Gain Horn Antennas





HO Series



Optimum Gain Horn Antennas









Wide & Narrow Bandwidth
Rugged Construction


Gain to 24 dB


Linear Polarization

VSWR 2:1

TMC Design Corporation offers optimum gain horn antennas covering the frequency spectrum from 1.12 GHz to 18 GHz in wave guide bandwidths. These antennas offer high gain in a very durable horn antenna. Many are available with the optional tripod mounts and the lower frequency horns as highly portable (HP) designs with removable side panels.



Power Handling:

500  watts CW with N-Type connector (standard)

1500 watts CW with waveguide connector



Model

Frequency - GHz

Gain - dB

Beamwidth (degrees)

HO-650-S

1.12-1.70

10

30x90

HO-650-18

1.12-1.70

18

20x20

HO-650-20

1.12-1.70

20

15x15

HO-650-24

1.12-1.70

24

10x10

HO-430-S

1.70-2.60

10

30x90

HO-430-18

1.70-2.60

18

20x20

HO-430-20

1.70-2.60

20

15x15

HO-430-24

1.70-2.60

24

10x10

HO-284-S

2.60-3.95

10

30x90

HO-284-18

2.60-3.95

18

20x20

HO-284-20

2.60-3.95

20

15x15

HO-284-24

2.60-3.95

24

10x10

HO-187-S

3.95-5.85

10

30x90

HO-187-20

3.95-5.85

20

15x15

HO-187-24

3.95-5.85

24

10x10

HO-137-RH

5.85-8.20

8

30x120

HO-137-S

5.85-8.20

10

30x90

HO-137-20

5.85-8.20

20

15x15

HO-137-24

5.85-8.20

24

10x10

HO-112-RH

7.05-10.0

8

30x120

HO-112-S

7.05-10.0

10

30x90

HO-112-18

7.05-10.0

18

20x20

HO-112-20

7.05-10.0

20

15x15

HO-112-24

7.05-10.0

24

10x10

HO-90-RH

8.20-12.40

8

30x120

HO-90-S

8.20-12.40

10

30x90

HO-90-18

8.20-12.40

18

20x20

HO-90-20

8.20-12.40

20

15x15

HO-90-24

8.20-12.40

24

10x10

HO-75-24

10.0-15.0

24

10x10

HO-62-24

12.40-18.00

24

10x10





Model

Dimension A (inches)

Dimension B (inches)

Dimension L (inches)

Weight (Pounds)

HO-650-18

28

24

46

37.7

HO-650-20

38

33

64

67.6

HO-650-24

60

52

105

166 (HP-108)

HO-430-18

18

16

30

15.8

HO-430-20

25

22

42

28.2

HO-430-24

40

34

72

72.3

HO-284-18

12

10

20

7.0

HO-284-24

16

14

28

11.9

HO-284-24

26

22

47

32.3

HO-187-20

11

10

19

5.8

HO-187-24

18

15

32

15.1

HO-137-20

8

7

13

2.89

HO-137-24

12

11

22

6.7

HO-112-24

10

8.5

18

4.5

HO-90-20

5

4

9

1.2

HO-90-24

8

7

15

3.0

HO-75-24

7

6

12

2.1

HO-62-24

6

5

10

1.5



Double-Ridge Waveguide Horns





Double-Ridge Horn Antenna



HRN-5005



HRN-5005 (500 MHz to 5 GHz Horn)



500 MHz to 5 GHz



500 Watts



Data



TDK RF Solutions’ HRN-5005 Horn Antenna is designed specifically for radiated emissions and immunity measurements in EMC test environments. The HRN-5005 provides optimal performance over the frequency range of 500 MHz to 5 GHz.

  • VSWR: <1.5:1 average

  • Polarization: Linear

  • Power handling: 500 W

  • Feed point Impedance: 50 ohm (nominal)



Double-Ridge Horn Antenna



HRN-0118





Swivel Mount Bracket







1 GHz to 18 GHz



300 Watts



Data



TDK RF Solutions’ HRN-0118 Horn Antenna is designed specifically for radiated emissions and immunity measurements in EMC test environments. The HRN-0118 provides optimal performance over the frequency range of 1 GHz to 18 GHz.

  • VSWR: <1.5:1 average

  • Polarization: Linear

  • Power handling: 300 W

  • Feed point Impedance: 50 ohm (nominal)

  • Width: 25 cm (9.8 in.)

  • Depth: 30 cm with mounting bracket (11.8 in.); 21 cm without bracket

  • Height: 15 cm (5.9 in)

  • Weight: 1.8 kg (4 lbs.)

  • Construction: Aluminum with a gold chromate finish

  • RF Connector: Type N female

  • Warranty: 1 year



Q-par





Double-Ridge Horn



Model: QWH-SL-18-40-K-SG









18 GHz to 40 GHz



20 Watts CW (with K adapter)



200  Watts (K adapter removed)



Data



QWH-SL-18-40-K-SG  is designed for emissions and immunity testing for the EMC test market. The horn provides optimal performance over the frequency range of 18 GHz to 40 GHz.
  • Frequency Range of 18 GHz to 40 GHz

  • Receive and Transmit

  • Individually Calibrated or Typical Calibration Data

  • FCC, MIL-STD, VDE and TEMPEST Testing


Model

QWH-SL-18-40-K-SG

Frequency:

18-40 GHz

Impedance:

 50

VSWR:

< 1.3 : 1, (< 1.8 : 1 with K adapter)

Connector:

Type K female and WRD-180 Flange

Polarization:

Linear

Max. Power:

200 watts (without K adapter)

20 watts (with K adapter)

Length:

1.4 in. (35 mm)

Width:

1.1 in. (28 mm)

Height:

1.5 in (38 mm)

2.87 in. (73 mm) with K adapter

Weight:

0.18 lb. (80g)

0.31 lb. (140 g)

Mount:

WRD-180 or Mounting Plate
