High Power TWT Amplifiers







CPI is ISO9001 Registered

Amplifiers for High Power Microwave Immunity or Susceptibility Testing

CPI is the only supplier that manufactures both the traveling wave tube (TWT) and the TWT amplifier.
Complete line of instrumentation amplifiers available in octave and multi-octave bandwidths, covering the 1 to 50 GHz frequency range in power levels from 20 to 2000 Watts. Power combined systems up to 1000 Watts are also available.
All TWT amplifiers are supported by CPI's worldwide 24-hour customer support network.

CPI has your High Power, High Field Strength, Microwave Immunity Testing Solution.

Amplifiers - 20, 100, 200, 250, 500, 1000, 2000 & 4000 Watts.



World Wide Support

CPI Worldwide Support Locations

(click Globe)



Earth Station SATCOM Satellite Dish Communications and Power Industries Inc. (CPI) -formerly known as Varian Electron Device Business, originated in 1948 as the founding technology group of Varian Associates. From it's inception in 1948 until August 1995, this group established itself under the Varian name as the world's technological leader in microwave and x-ray generating devices and in electronic equipment to drive these devices. In August 1995, the Varian Electron Device Business and it's six Divisions became CPI Inc., with the mandate to continue to grow it's tradition of technology, leadership, and manufacturing excellence.



 High Power TWT Amplifiers

 CE Certified

 * Power and Gain measured without any options

Model

Tech. Data File

Nominal Power (Watts)*

Frequency (GHz)

Gain (dB)*

RF Connectors

Power Combined System L - Ku Bands 500 1 - 18 50
Power Combined System TECH 1000 1 - 18 50

VZL-6943J2

TECH

250

1 - 2.5

54

N

VZL-2780C2

L-Band

500 1 - 2.5 57 N
VZL-2780P2

L-Band

900 1 - 2.5 60 N

K3S

S-Band Klystron

2500

1.7 - 2.5

74

N

VZS/C-6963J2

TECH

250

2 - 8

54

N

VZS/C-6963J2

S & C-Band

320

2 - 8

54

N

VZS/C-2780C2

S & C-Band

500 2 - 8 57 N
VZS/C-2778C1 S & C-Band 1000 2 - 8 50 SC

TE05SCI-C

S,C-Band Rack

535

2.5 - 7.5

53.5

N

VZS/X-2776L1

C & X-Band

100

4 - 10

55

N

VZS/X-2777L1

C & X-Band

200

4 - 10

55

N

TE03MO-C

C,X,Ku-Band ODU

265

6 - 18

53.5

N

TE03MI-C

C,X,Ku-Band Rack

250

6 - 18

53.5

SMA

VZX-6993J4-POBO

X-Band

400

7.5 - 12

58

WR-112

VZM-6993J5

X-Band

500

8 - 10

58

WR-113

VZX-2783C1

X-Band

1000 8 - 12.4 63 WRD-650
VZM-2780C2

X & Ku-Band

500 8 - 18

57

WRD-750

VZM-2780P2

X & Ku-Band

900 8 - 18 50

WRD-750

VZK-6901J1

TECH

40

18 - 26.5

46

WR-42

VZK-2790J1 K-Band 150

18 - 26.5

50

WR-42

TE01KO-C K-Band ODU 50

18 - 26.5

46

K

TE01AKI-C K-Band Rack 50

18 - 26.5

46

K

VZA-6902J1

TECH

40

26.5 - 40

46

WR-28

VZA-2790J1 Ka-Band 150

26.5 - 40

50

WR-28

TE01AO-C Ka-Band ODU 50

26.5 - 40

46

K

TE01AI-C Ka-Band Rack 50

26.5 - 40

46

K

VZQ-2791J1  Q-Band 50 40 - 50 50 WR-32G

Options

* These options will reduce the output power

A

C*

H

R

V

Input Isolator

Harmonic Filter

Interconnect Cables to 12 meters

Remote Control Panel

115 VAC External Step-Up Transformer



 MIL-STD-461E Amplifier System

RS103 (200 V/m 1 - 40 GHz)

* Power and Gain measured without any options

Model

Tech. Data File

Nominal Power (Watts)*

Frequency (GHz)

Gain (dB)*

RF Connectors

VZL-6943J2

TECH

250

1 - 2.5

54

N

VZS/C-6963J2

TECH

250

2 - 8

54

N

VZM-6993J4

TECH

250

8 - 18

53.5

WRD-750

VZK-6901J1

TECH

40

18 - 26.5

46

WR-42

VZA-6902J1

TECH

40

26.5 - 40.0

46

WR-28

J Series Options

* These options will reduce the output power

A

C*

H

R

V

Input Isolator

Harmonic Filter

Interconnect Cables to 12 meters

Remote Control Panel

115 VAC External Step-Up Transformer



 1.0 GHz to 18 GHz

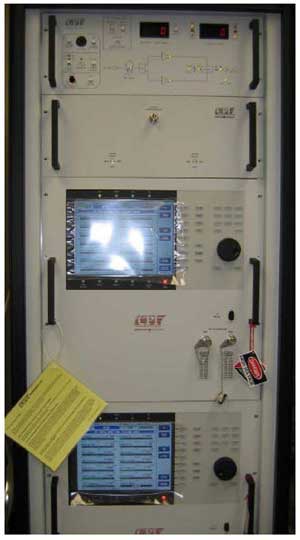

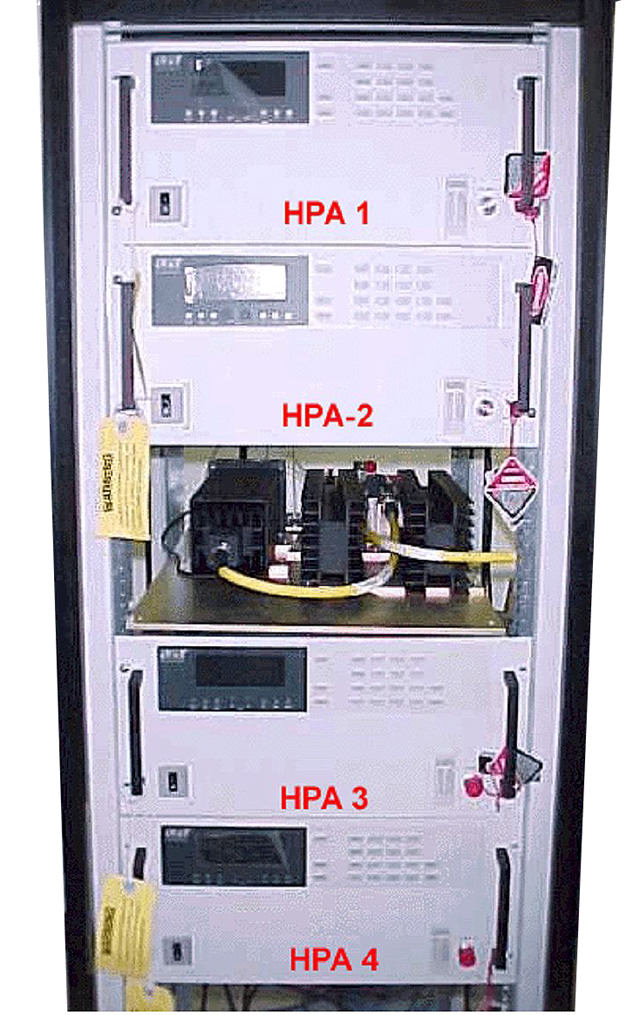

 1000 Watt Power/Phase Combined System





1.0 GHz to 18.0 GHz



>1000 Watts CW



Power/Phase Combined System







Data



1000-Watt Power/Phase “Combined System” Electrical Specification

·         Frequency

VZL2778C1

1.0 – 2.5 GHz

VZS/C2778C1

2.0 – 8.0 GHz

VZM2778C1

8.0 – 18.0 GHz

·         Output power

TWT Flange

500 Watts minimum

“RF Combining System”

1000 Watts typical (see Figure 4)

·         Instantaneous Bandwidth

VZL2778C1

1.5 GHz

VZS/C2778C1

6.0 GHz

VZM2778C1

10.0 GHz

·         Gain

50 dB typical at rated power

·         RF attenuator adjust range

0 to 20 dB

·         Gain stability

Typically ±0.2dB max.

·         Small signal gain variation

Typically 12 dB peak – to – peak

·         Input VSWR

2.5:1 max, 1.5max with optional input isolator

·         Output VSWR

2.5:1 typical

·         Load VSWR

Full spec. Compliance

1.5 max.

Operation w/o damage

Any value

Continuous operation

2.0:1 max. For full O/P power

·         Harmonic output

-10dBc typical at lower band edge, decreasing to –15dBc typical at upper band edge.

·         Primary power

220 – 240 ±10%, single phase 47 – 63 Hz

·         Power factor

0.95 min. (meets requirements of EN60555-2, total harmonic distortion)

·         Power consumption

VZM2778C1

13.5 kVA typical 16.5 kVA max.

VZS/C2778C1

13.5 kVA typical 16.5 kVA max.

VZM2778C1

13.5 kVA typical 16.5 kVA max.

·         Inrush current

200% maximum.
