TDK Microwave Absorber

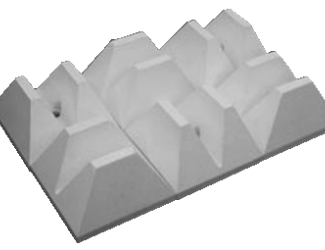

ICM Absorber Series

TDK RF Solutions



Microwave Absorber

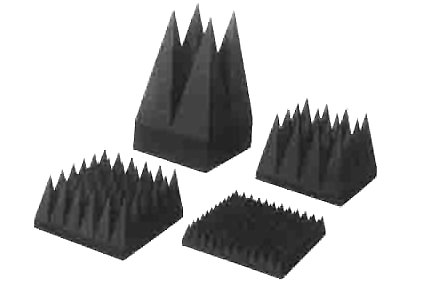

TDK IS Microwave Absorber

TDK is the only company that manufactures both the ferrite tile and the engineered foam absorber

TDK offers unique advantages over competing products


• TDK absorber is the original polystyrene based material and is impervious to water and humidity.
• Carbon and fire retardant properties will not wash out or leach out of the absorber if exposed to water or high humidity.
• Our polystyrene absorber does not deteriorate when exposed to the environment.
Competitive absorbers tend to react with environmental moisture and various chemicals over time, which causes degradation of the substrate, and eventual loss of carbon (i.e., carbon falls out of the absorber and performance declines).
Can Your Absorber Survive This?
• TDK absorbers have a proven performance record for 30+ years.
• TDK backs the absorber with an extended warranty for both mechanical stability and electrical performance. TDK backs this warranty with nearly forty (40) years of internally and independently verified empirical data.
• Polystyrene absorber is dimensionally stable. It will not expand and contract in many varying environments and it will not “droop”, “twist”, or “sag” over time.
• Carbon is dispersed more evenly in polystyrene absorber (by nature of the manufacturing process). This means better impedance matching with ferrite tile and more predictable and repeatable performance from very low frequencies to very high frequencies (40GHz+).
• TDK manufactures all of its own absorbers, meaning TDK has better control over quality and delivery schedules. To our knowledge, TDK's absorber manufacturing facility is the only ISO 9001 and ISO 14001 certified facility in the world for production of this type of material.
• TDK absorber meets NRL Class 1,2,3, UL94HBF, UL94-5VB, and DIN 4102 Class B flammability specifications as well as ASTM standards.
• TDK absorber is the only material that is listed by Underwriters Laboratory for EMC and Antenna evaluation test chambers.

ALL TDK Absorber has a 20 Year Warranty



ABSORBER

IP-Material (TDK)

IS-Material (TDK)

Others

Basic Material

Polystyrene

Polyethylene

Polyurethane

Composition

Closed Cell

Closed Cell

Open Cell

Tensile Stability

4 kg / cm²

4 kg / cm²

2 kg / cm²

Chemical Stability

Solved by organic solvent

Only oxidizing agent can
erode

Attacked by acid, alkaline,
petroleum and etc.

Humidity Resistance

No deterioration

No deterioration

Deteriorated by absorbing
water

Product Life

> 20 years

> 20 years

3 - 5 years

Warranty 20 years 20 years 1 year

Space Applications

Excellent

Excellent

Fair

Fire Retardancy

NRL Class 1, 2 and 3
UL94HBF
DIN4102 Class B

UL Approved

NRL Class 1, 2 and 3
UL94HBF

UL Approved

NRL Class 1, 2 and 3

Burning Gas

H2O

CO2

Aromatic compound gas

H2O
CO2
Aromatic compound gas

H2O
CO2
HCN
Aliphatic compound gas

Adhesion Reliability

Epoxy resin may give the
best adhesion.

Epoxy resin and synthetic
rubber adhesive may give
the best adhesion.

Some care may be
needed for thicker one.



 EMC & RF Absorber Index

ICT-Series High Power Microwave Absorber, 1 GHz to 110 GHz

IP-BX Ultra Wideband Absorber, 70 MHz to 40 GHz

IS-Series Pyramidal Absorber, 200MHz to 120GHz



 Broadband Polyethylene Microwave Absorber (200 MHz to 120 GHz)





Microwave

Pyramidal

Absorber


IS-Series





Data



Catalog

200 MHz to 120 GHz



bullet

Up to 120 GHz verified operation

bullet

700 W/m2 power handling

bullet

Clean room rated

bullet

Closed cell polyethylene construction

bullet

Numerically optimized shape & carbon loading

bullet

UL Listed

bullet

Fire retardant

bullet

High tensile strength

bullet

Waterproof

SPECIFICATIONS

   Absorber

Clean Room

Fire

Tensile

Max. Power

Product

Humidity

Absorber

Absorber

Absorber

   Model

Rating

Retardancy

Stability

Density

Life

Resistance

Footprint

Height

Weight

   IS-005A

FS 209E

Class 100



ISO 14644-1

Class 5

UL94HBF



NRL 8093

Test 1, 2 & 3

4 kg/cm2

< 500 V/m,

700 W/m 2



Core Temperature

< 100

>30 years

Closed-cell Polyethylene

No deterioration from water.

No hydrolysis effect.

60 cm

x

 60 cm

5 cm

0.8 kg

   IS-012A

12 cm

1.3 kg

   IS-015A

15 cm

1.8 kg

   IS-023A

23 cm

2.0 kg

   IS-030A

30 cm

3.0 kg

   IS-045

45 cm

4.0 kg

   IS-060

60 cm

6.0 kg

   IS-075

75 cm

8.0 kg

   IS-100

100 cm

10.0 kg

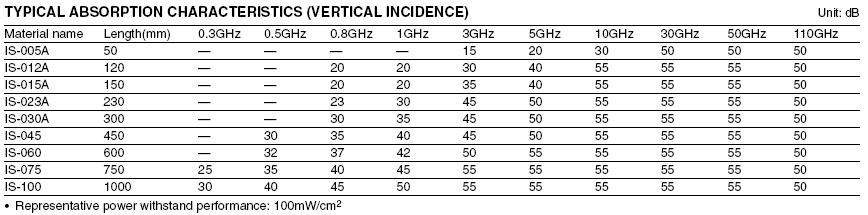

Performance Chart







 High Power Microwave Absorber (1 to 100 GHz)





High Power

Microwave

Pyramidal

Absorber


ICT-
Series





Data

300 MHz to 110 GHz

  • Ultra-wideband electromagnetic absorber

  • Excellent heat radiation for heat generated during high-power irradiation.

  • Constructed of nonflammable materials to withstand the heat generated during high-power irradiation.

  • Lightweight and strong



This is a pyramidal electromagnetic absorber with a corrugated structure that consists of an inorganic base and utilizes the ohmic loss of carbon. The corrugated structure is designed to radiate heat efficiently during power irradiations of 1W/cm2 or greater.
ICT-012
This is a 12-cm long pyramidal electromagnetic absorber with a corrugated structure. It delivers excellent electromagnetic absorption performance over a wide band between 0.8 and 110GHz. Our line up includes ICT-030 that delivers excellent electromagnetic absorption performance starting at low frequency ranges. These products are optimally suited for anechoic chambers and small anechoic dark boxes used in high-power tests.



 High Power Microwave Absorber (70 MHz to 40 GHz)





Microwave



Ultra Wideband Absorber


IP-BX







Data

70 MHz to 40 GHz

  • Ultra-wideband electromagnetic absorber

  • Stable against acids, bases and water vapor, and offers long service life.

  • Uses materials that, when burned, emit gases that are relatively harmless to humans.

  • Fire retardant (NRL Classes 1, 2 and 3; UL-94HF-1).

 This is a composite electromagnetic absorber made by combining the IP-BX electromagnetic absorber, which consists of a styrofoam base and utilizes the ohmic loss of carbon, and an electromagnetic absorber that uses the magnetic loss of ferrite. Each of the loss material are matched for impedance to deliver excellent electromagnetic absorption performance from as low as the 70MHz FM band.
IP-100BX, IP-130BX
These TDK composite electromagnetic absorbers have been praised highly in tests for automobile antennas. IP-100BX delivers excellent electromagnetic absorption performance for vertical incidences starting at the FM band to the microwave range. IP-130BX delivers excellent electromagnetic absorption performance for oblique incidences starting at the FM band to the microwave range. These products are used widely in anechoic chambers for testing automobile antennas and large special purpose anechoic chambers.
