RF Shielded Color Video Camera





TDK RF Solutions

We accept Visa, MasterCard & American Express

Total RF ExpertiseTM  means TDK RF Solutions is your trusted single partner for RF consultation, design, test products, and services.  st systems, software, antennas, and a wide range of products used in electromagnetic compatibility test applications. In North American, TDK RF Solutions is your exclusive source for fully anechoic chambers, Antennas, Cameras and accessories built with TDK’s high performance hybrid absorbers.



RF Shielded HD Color Video Camera

Picture(s)

Model

Features

TDK RF Shielded HD Video Camera



HD EMI / RFI Shielded

Color Video Camera



 Model: VC-06



Designed for EMC, Immunity & Neuroscience Testing

Loaded with Features



High Definition All Digital



EMI Shielded

to >200 V/m



DC - 18 GHz





DATA

The new VC-06 hi-definition, all digital, color video camera was developed for remote monitoring of equipment during EMC testing in a shielded room or anechoic chamber. Designed to operate in harsh electromagnetic environments, it is ideal for anechoic chamber monitoring, shielded access control, and test action archiving.

Camera Features

  • 1920 x 1080 x 30 fps High Definition
  • Zoom: 30x Optical, 12x Digital
  • Low Light Sensitivity: 0.5 lux without ICR (night vision) and 0.095 with ICR
  • EMI Shielded to >200 V/m (DC to 18 GHz)
  • Shielded 12 VDC or universal AC adapter operated
  • Single fiber optic for Audio/Video/Control
  • Pan/Tilt mechanism
  • Remote control for Pan, Tilt, Focus, Zoom, Iris Control
  • Color Enhancement
  • Image Enhancements: E-flip, Black & White, and Mirror Image

Optical Capabilities

  • Resolution: 1920x1979 30p HD
  • Image Sensor: 1/2.8” with approx. 3.27 Mega pixels
  • Zoom: 30x Optical zoom; +12x Digital zoom
  • Angular Field of View: 55.4º wide; 2.9º telephoto
  • Minimum Object Distance: 10 mm (wide); 1000 mm (telephoto)
  • Iris Control: Manual and Automatic
  • Color Balance: Automatic Synchronization
  • Angle of Pan/Tilt: Pan: +/- 150° degrees; Tilt: +/- 30° degrees
  • Fiber Optic Cable: 62.5 u glass fiber
  • Video Output: HDMI
  • Minimum Illumination: 0.5 lux

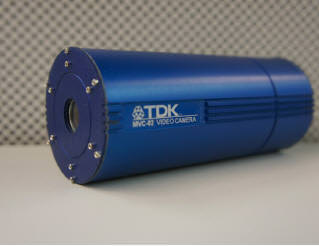

Mini RF Shielded Color Video Camera

RF Shielded Mini Video Camera


Mini Video Camera

Model: MVC-02

EMI Shielded

to >200 V/m



DC - 18 GHz



DATA

Product Overview

The TDK MVC-02 Mini Color Video Camera is a small, light-weight, high performance CCD specifically designed for remote monitoring of equipment under EMC testing. The camera is ideal for monitoring in vehicles and small spaces.

Designed for EMC Testing The MVC-02 is designed to operate in the harsh environments required by EMC testing. The camera is housed in an EMI hardened protective case and the control and video signals use fiber optics to prevent interference caused by high electromagnetic fields present during EMC testing.

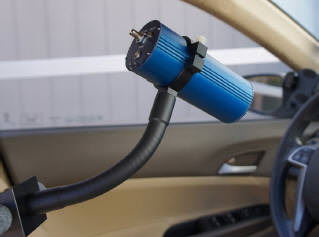

Designed for Vehicle Testing The MVC-02 combines with the VCAP Video Camera Articulating Positioner for convenient placement in vehicles.

Camera Features

  • 1/3" CCD; NTSC and PAL versions
  • EMI shielded to >200 V/m (DC to 18 GHz); Shielded 12V DC battery operated
  • Can be used with the VCAP Video Camera Articulating Positioner for placement in vehicles and small spaces
  • Fixed focal length with automatic focusing

MVC-02 Camera System Components

  • One MVC-02 Mini Color Video Camera
  • Fiber-optic to video converter
  • One set of 25m fiber optic cables
  • Battery charger
  • Clamp mount with 1/4"-20 hole for universal mounting

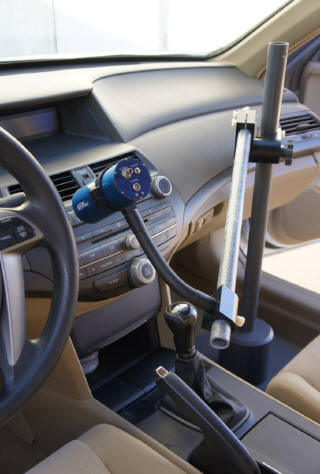

Camera Articulating Positioner


Video Camera Articulating Positioner

Model: VCAP

DATA
RF Shielded Camera Positioner

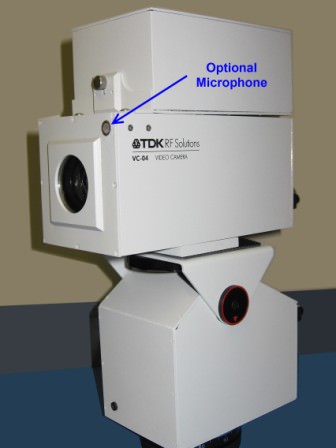

VC-04 Shielded Color Video Camera  VC-04 Camera with Optional Microphone (Click to Enlarge)

Applications for:

Neuromuscular Biomechanics Labs

Electromyography (EMG) Laboratory

Neuroscience Laboratories

Reverberation Chambers

CAT & CT Scanner Rooms

Immunity Test Chambers

MIL-STD-461E Testing

Anechoic Chambers

Neurology Lab

MRI Rooms

RF Shielded

Analog

Color Video Camera



 Model: VC-04



Designed for EMC, Immunity & Neuroscience Testing

Loaded with Features



EMI Shielded

to 200 V/m



DC - 18 GHz



DATA



User Manual



1/3" CCD; high resolution

NTSC and PAL versions

EMI shielded to 200 V/m (DC to 18 GHz)

Meets Mil-Std-461E Requirements

Shielded 12 V DC or universal AC adapter operated

Camera-only option for applications not requiring pan/tilt or remote control

Pan/tilt mechanism

6 Preset positions for zoom and focus

Local and remote zoom/focus controls

Remote control for pan/tilt, focus, zoom, iris control

Camera ID character generation

Computer control with IEEE-488 option

Audio option provides both audio and visual monitoring


             † Not available in camera-only option.



Optical Capabilities

Focal Length: 2.4 - 60 mm

Zoom: 26x Optical zoom; 12x Digital zoom

Angular Field of View: 55º wide angle; 2.3º telephoto

Minimum Object Distance: 35 mm (wide); 800 mm (telephoto)

Fiber Optic Cable: 62.5 u glass fiber

Iris Control: Manual and Automatic

Minimum Illumination: 0.7 lux



Overall Dimensions

With pan/tilt unit: 10.5" H x 6.2" D x 3.0" W

(26.7 cm x 15.8 cm x 7.6 cm)

Without pan/tilt unit: 5.0" H x 6.2" D x 3.0" W

(12.7 cm x 15.8 cm x 7.6 cm)



Environmental Specifications

Ambient Temperature Limits

Operating: 0° to +40° C

Storage: -10° to +50° C



Electrical Specifications

Power Requirements: 12V DC or 100-240 AC

Image: 1/4" IT CCD Active Picture Elements

NTSC: 768 (H) x 494 (V)

PAL: 752 (H) x 582 (V)

Resolution:

NTSC: 470 (H) x 350 (V)

PAL: 460 (H) x 400 (V)

Signal to Noise Ratio: min 50 dB

Video Output: Optically encoded NTSC or PAL

Color Balance: Automatic Synchronization

Wall mount for camera

Camera Wall Mount



Model: VCWM-01



DATA



RF Invisible

Non-Conductive

Custom lengths available

Supports up to 6 kg

Permanent sturdy fixture

Wall mounting of video cameras

Ceiling Mounts Also Available

Stand for camera

Camera Monopod Stand



Model: VCMS



DATA

RF Invisible

Non-Conductive

Makes portable mounting for video camera

Supports up to 6 kg

Mobile mounting for video cameras

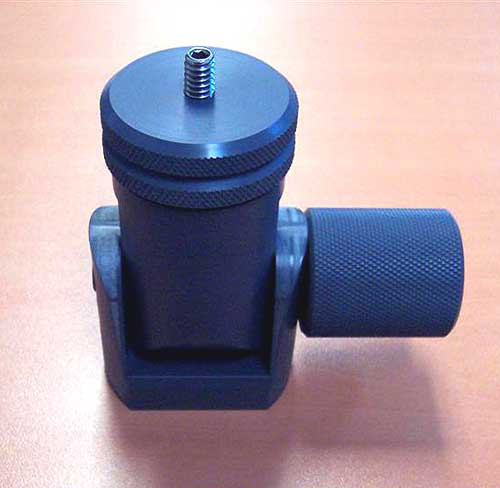

Video Camera Positioning Mount



Model: VCWM-TILT



Video Camera Manual Pan Tilt Mount

Designed for Fixed Position Cameras

Position Camera without motorized Pan & Tilt

360° Rotation in X/Y plane

180° Rotation in Z axis



TDK RF SI-300CC Camera Controller



Four Camera SI-300CC Setup

System Interface



Model: SI-300CC



Camera Controller



Controls 1 to 4 Cameras



Multiple Controllers

 for as many Cameras as you need

on one display screen



DATA



The TDK RF Solutions SI-300CC camera controller is capable of controlling up to four independent camera units. It allows precision manipulation of camera features such as pan, tilt, zoom, and focus with the use of two joysticks. In addition, the SI-300CC comes fully equipped with a graphical LCD, four function keys, four special keys, and twelve numerical keys for user-friendly control.



SI-300CC Controllers can be combined to control as many cameras as you need.

EUT Monitoring System



Model: EUT-TS



DATA

EUT Monitoring, Analysis, Data Recording
TDK RF Solutions’ EUT (Equipment Under Test) Monitoring System combines monitoring instrumentation, video and audio equipment, and software to provide EUT signal monitoring (analog and digital), EUT stimulation, and monitoring for visual or audio interference during testing. Unlike other systems, TDK RF Solutions’ EUT Monitoring System analyzes data for interference or failure conditions during the test, and records test data for retrieval after the test is complete.



Video Capture Software



Model: VDU-01



The TDK RF Solutions VDU-01 is a high-performance machine vision computer that may be used in conjunction with TDK EUT Monitoring Lab to automatically detect EUT failures that are characterized by changes in the video image.


The VDU-01 may be configured to read status indicator lights, indicators on LCD displays, analog gauges, etc.



When the VDU-01 detects
a failure, it notifies TDK EUT Monitoring Lab,
which records the time, date, frequency and
level associated with the failure.



DATA



TDK EUT Monitoring Lab with the Hardware
Video Capture/Compression option allows
you to acquire real-time video from any
composite video source, including the TDK
RF Solutions Shielded Video Camera System (VCS-04)

Features

  • VDU-01 Video Detection Unit

  • 720 X 480 resolution

  • Streaming video stored in MPEG format



Ordering Options

Part Number

 Description

SI-300CC

Camera Controller for VC-04 or VC-06. Controls up to 4 cameras. Includes 1 video port, no audio port standard,

additional audio & video ports may be optioned.

SI-AUD

Audio port option for the SI-300CC (adds a fiber-optic to analog converter with 8 ohm output)

SI-VID

Video port addition to the SI-300CC

VC-06

HD Color Video Camera, Digital format, no audio, no pan/tilt, no power selection, no cables.

VC-04

Color Video Camera, NTSC format (unless otherwise specified), no audio, no pan/tilt, no power selection, no cables.

 MVC-02  Mini Color Video Camera
 VCAP  Video Camera Articulating Positioner

 VC-CABLE-SET

 Cable set consisting of one 25m fiber-optic video, one 25m controller cable, and one 6ft coaxial cable

VC-04-NPT-NTSC-AC

Color Video Camera, NTSC, without pan-tilt, AC power, without microphone

VC-04-NPT-NTSC-DC

Color Video Camera, NTSC, without pan-tilt, battery power, charger, without microphone

VC-04-NPT-PAL-AC

Color Video Camera, PAL, without pan-tilt, AC power, without microphone

VC-04-NPT-PAL-DC

Color Video Camera, PAL, without pan-tilt, battery power, charger, without microphone

VC-04-PT-NTSC-AC

Color Video Camera, NTSC, with pan-tilt, AC power, without microphone

VC-04-PT-NTSC-DC

Color Video Camera, NTSC, with pan-tilt, battery power, charger, without microphone

VC-04-PT-PAL-AC

Color Video Camera, PAL, with pan-tilt, AC power, without microphone

VC-04-PT-PAL-DC

Color Video Camera, PAL, with pan-tilt, battery power, charger, without microphone

VC-AC

AC power for the VC-04

VC-AUD

Audio option for the VC-04

VC-BNC

Audio cable: RG174 coaxial cable, BNC-BNC, 6 meters (goes from controller to speaker).

VC-BOX

Camera shipping box

VC-BP

12V shielded battery pack for VC-04

VC-BP-90403

12V battery module for the VC-04 battery pack

VC-BP-C

12V DC charger for battery for VC-04

VC-BPS

12V shielded battery pack for VC-04 and charger

VC-CRT14

14 inch resolution display (CRT)

VC-CRT20

20 inch CRT high resolution display

VC-CRT21

Chugai 21 inch CRT high resolution display

VC-DC

DC 12V charger for battery, for VC-04

VC-FOAC

Audio cable: Fiber optic, ST-ST simplex, 62.5u, 25 meter (goes from camera to controller)

VC-FOCC

Fiber optic control cable, ST-ST duplex, 62.5 u, 25 meter

VC-FOCC-1

Each additional 1 m control cable (Fiber optic control cable, ST-ST duplex, 62.5 u)

VC-FOCC-5

Additional minimum 5 m control cable, (Fiber optic control cable, ST-ST duplex, 62.5 u)

VC-FOVC

Fiber optic video cable, ST-ST simplex, 62.5u, 25 meter

VC-FOVC-1

Each additional 1 m video cable, (Fiber optic video cable, ST-ST simplex, 62.5u)

VC-FOVC-5

Additional minimum 5 m video cable, (Fiber optic video cable, ST-ST simplex, 62.5u)

VC-LCD15

15 inch LCD display

VC-LCD17

17 inch LCD display

VC-LCD19

19 inch LCD display

VC-LCD20

20 inch LCD display

VC-LCD24

24 inch LCD display

VC-MUX

Video Multiplexer (MUX) to split the signal from up to four cameras to display on a single video display

VC-NTSC

NTSC video format

VC-PAL

PAL option for VC-04 video camera

VC-PSAC

AC power for the VC-04

VC-PT

Pan/Tilt mechanism for VC-04
