ESD & Pulsed EMI Rental



Transient Specialists is your complete source for

EM Test, Solar Electronics, Teseq, HV Technologies, Thermo Fisher KeyTek Electronic Test Systems

(ESD) Electrostatic DischargEM Test, Solar Electronics, Teseq, HV Technologies, Thermo Fisher KeyTek Electronic Test Systems

(ESD) Electrostatic Discharge and (EMC) Electromagnetic Compatibility Immunity Testing



We specialize in EMC test equipment rentals and carry a complete line of ESD guns, surge immunity test equipment, and EFT generators. Providing equipment for military EMC testing, automotive EMC testing, and commercial EMC Testing, we offer flexible terms, accredited calibrations and technical support on our EMC testing equipment. We carry many of the top EMC Test system manufacturers, including Teseq, Thermo Keytek, EM Test and EMC Partner. For automotive EMC Testing, we carry a full line of EM Test automotive EMC immunity test equipment (ex: ISO 7637 tests). EMC Partner and Solar Electronics product lines cover many of the military EMC test standards, such as Mil. Std. 461. Our Teseq products include surge immunity test equipment that can handle current levels of up to 100 amps.

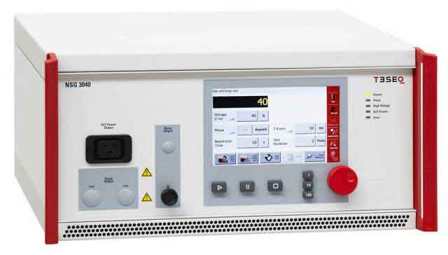

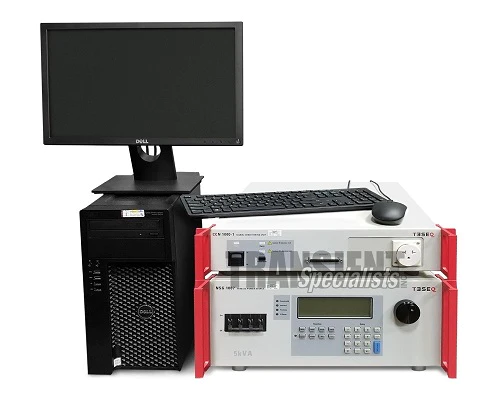

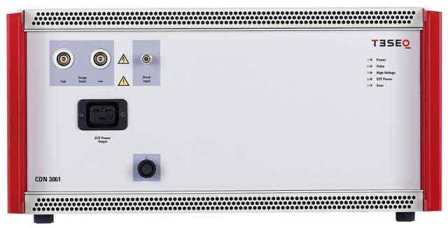

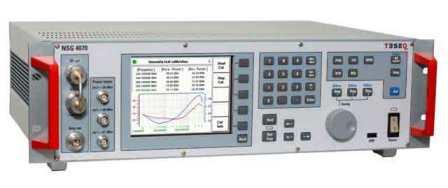

EMC Test system rentals are a great solution when capital funds are limited and the need for EMI test equipment is occasional. Whether you need surge emi test equipment, like the Teseq NSG 3060, a conducted RF Immunity test system, or an ESD simulator, we have the advanced test equipment solution.

Our equipment ships quickly and safely using the carrier of your preference. The equipment will arrive in two days, packed in specialty cases to ensure safe delivery. The equipment will arrive fully calibrated with a NIST traceable calibration.

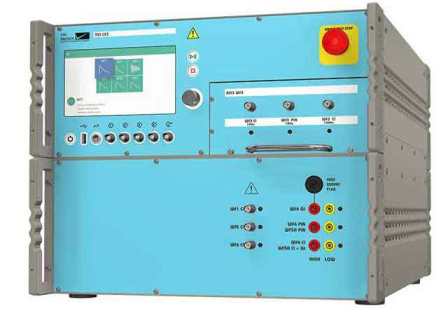

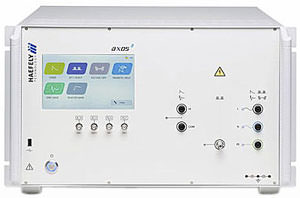

Rent or Lease Pulsed EMI, EFT, Surge, PQF Testers



 ECAT®

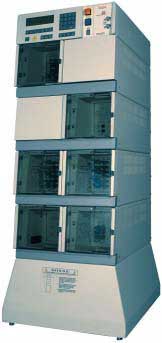

ECAT is the most comprehensive test system, it addresses a broad range of EFT, Surge and Dips and Interrupts testing to meet Bellcore, UL, IEC and ANSI standards



COMPLIANT WITH:

IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-11
ANSI/IEEE C62.41
UL 864
UL 1449
FCC Part 68
CCITT Rec. K.17, K.20, K.21
Bellcore-1089-CORE
British Telecom Standards



DATA



Options



EFT EFT burst testing to 8kV, EFT burst testing to 8kV with built-in three-phase AC mains coupler/decoupler



SURGE Telecom surge waves, Ring waves,  Combination waves,  Lightning surge waveforms,  Voltage ramps,  I/O line coupler/decoupler



Combination Single and three-phase ac line coupler/decouplers for EFT and Surge waves



Dips and Interrupts One phase of a three-phase, five-wire ac power mains for swell, dip and interrupt testing. Swells, dips and interrupts on ac power mains







KeyTek EMCPro® PLUS







Advanced EMC test system for
compliance testing to 6 IEC/EN standards



COMPLIANT WITH:

ESD

IEC 61000-4-2

EFT

IEC 61000-4-4 Ed. 2

EN 61000-4-4

ANSI C62.41

SURGE

IEC 61000-4-5

EN 61000-4-5,

ANSI C62.41 Cat. B

UL 1449

SURGE

RING

ANSI C62.41

Cat. A&B

 UL 864

SURGE

TELECOM

IEC 61000-4-5

EN 61000-4-5

FCC Part 68

ITU K.17, K.20, K.21

ETSI

Power Frequency Magnetic Fields

IEC 61000-4-8

EN 61000-4-8

Pulse Magnetic Fields

IEC 61000-4-9

EN 61000-4-9

Dips and Interrupts

IEC 61000-4-11 Ed. 2

EN 61000-4-11

PQF Waveform Monitoring

Surge Waveform Monitoring



DATA



Options



The newly configured KeyTek EMCPro® PLUS test system features resident capabilities for EMC CE Mark compliance testing to 6 IEC/EN standards, and fully addresses new requirements for a 100 kHz
burst rate per IEC 61000-4-4, Edition 2 (EFT) and 80% dip per IEC 61000-4-11, Edition 2 (PQF™).


Portable and low cost, the KeyTek EMCPro PLUS is the answer to manufacturers’ demand for a mid-range, multi-capability EMC immunity tester.

It’s ideal for companies who require flexibility,
versatility, and the highest test level-to-cost ratio instrument on the market.

  • Addresses ANSI/IEEE, ITU, ETSI & UL standards

  • Surge testing to 6.6kV with the combination, telecom, & ring waves

  • Monitors surge voltage & current at the output terminals

  • Monitors output of the coupling unit & automatically switches connections according to coupling mode

  • Highest test levels, widest selection of tests & lowest in-use costs

  • Upgradeable as standards change





KeyTek CE Master



Description Testing Standards
Base unit with Lightening Surge to 2500 v
Electrical Fast Transients to 2500v
Power frequency magnetic field to 4a/m
Pulsed magnetic field to 1000a/m
Power Quality to 70% and 40% of norm
IEC 61000-4-5
IEC 61000-4-4
IEC 61000-4-8
IEC 61000-4-9
IEC 61000-4-11



DATA





Rent ESD Gun





 dito®

3D-View dito



FOR Direct, Indirect &

Diagnostic ESD Testing



16.5 kV



COMPLIANT WITH:

DATA

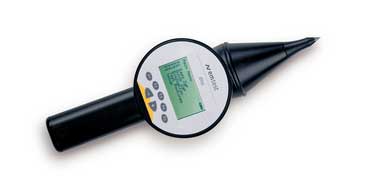

dito is best designed for the different requirements for testing ESD. Its powerful battery allows to generate more than 50,000 pulses at 16.5kV. This is enough for more than a full day's job. Its different menues lead the user through standard tests, helps to evaluate the test points and allows to find susceptibility levels.
It is unlike any other ESD generators. Its ergonomic design is recognised to be more user-friendly. There is no part of dito that hides the discharge tip while watching the display or operating the dito. You see where you point the tip no matter how you direct dito to the DUT.
The discharge voltage is measured and recorded. Discharge is stopped automatically when battery voltage becomes low. The user is informed when dito cannot charge properly. All this helps to assure reliable and reproducible tests without any question mark and doubt.
Discharge tips and discharge networks can easily be changed without disassembling the dito; simply remove one and plug-on another tip or module. The discharge modules are automatically recognised and the R/C configuration is shown in the display. You just can't use a wrong discharge network!

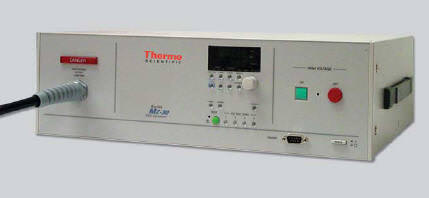

MZ-30





Maximum Test Voltage of ± 30kV



COMPLIANT WITH:

  • IEC 61000-4-2

  • ANSI C63.16

  • IEC 801-2

  • MIL-STD 883C

  • SAE J1113

  • ISO 10605



DATA



Item

Specification

Discharge method

Contact discharge and Air discharge

Set voltage

0.50kV to 30kV

Polarity

Positive and Negative

Energy storage capacitor

150 pF +/- 10% (replaceable)

Discharge resistor

330Ω +/- 10% (replaceable)

Charge resistor

50MΩ

Discharge interval

0.05 / 0.1s to 99.9s

Number of discharges

1 to 999 / Continuous

Trigger

Main panel trigger and Discharge gun trigger

Discharge current waveform

Compliant with the IEC61000-4-2 standard

Interface

RS-232C (Option)

Power supply

100V to 240V AC (50Hz to 60Hz)





 Series 2000









KeyTek 2030 ESD Tester



A Versatile

 Non-Obsolescent

ESD

Simulation System



COMPLIANT WITH:

IEC 61000-4-2

IEC 801-2 1984

ANSI C63.16

NEMA

EIA PN-1361

MIL-STD 883



DATA



Options



Generator

  • 0 to 25 kV, positive and negative

  • Plug-in, interchangeable discharge networks

  • Separate simulations for all six key simulation modes, air discharge and its five components:

  • Actual air discharge, plus:

    • Current injection of standard waves

    • Discharge magnetic field

    • Discharge electric field collapse

    • Pre-discharge electric field

    • Pre-discharge corona-generated RF interference

  • Programmable repetitive operation

  • Interchangeable tips: ball, wedge, point, field generators

Monitors

  • Digital voltage monitor measures and displays:

    • Programmed high voltage before high voltage trigger is depressed

    • Actual, measured high voltage during charge and after discharge

    • Audible beeper to indicate discharge





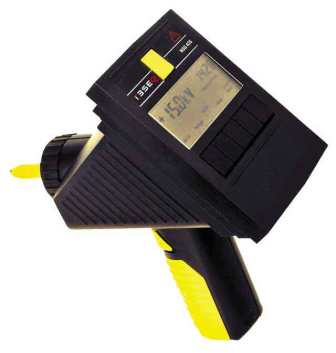

 MiniZap®



FOR Direct, Indirect & Diagnostic ESD Testing



COMPLIANT WITH:

IEC 61000-4-2 ESD

ANSI C63.16 ESD



DATA



Options

AIR-DISCHARGE AND CONTACT-MODE SIMULATIONS



INDIRECT ESD SIMULATION



E AND H FIELD SIMULATION



CALIBRATION ACCESSORIES



ADDITIONAL OPTIONS

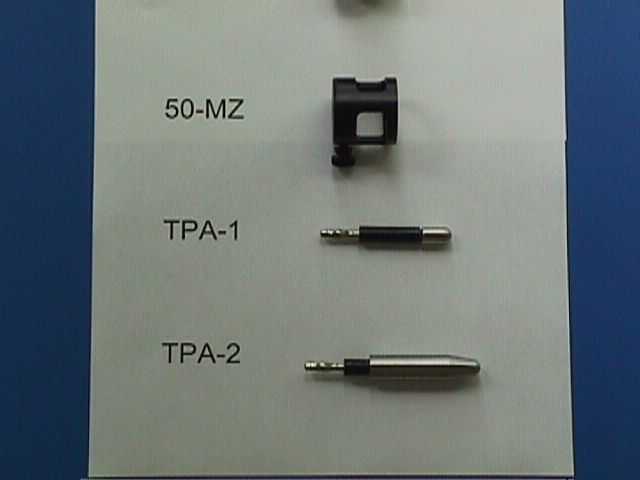

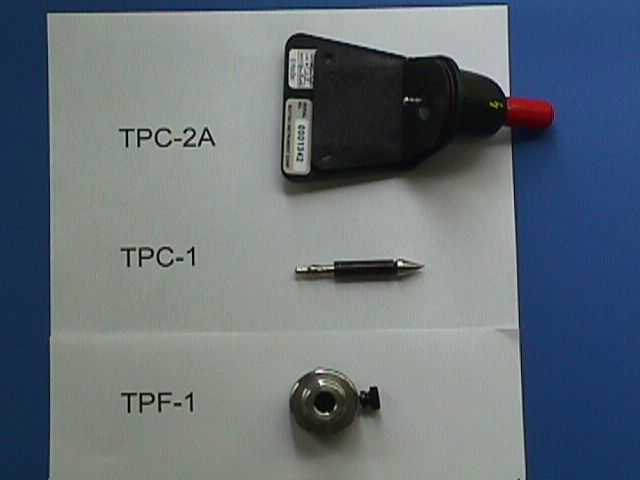

DISCHARGE TIPS





Rent Spike Generator



Model 9354-1 Transient Pulse Generator

DATA

Designed to meet the requirements of MIL-STD-461E test method CS116. Also capable of limited testing for RTCA DO-160E section 22 (Single Stroke to level 4) when used with the appropriate coupling device.
Generator provides six fixed frequency damped
sinusoidal waveforms as specified in MIL-STD-461E pulse three double exponential waveforms for RTCA DO-160E.



DATA



Type 9554-10K/100K

10 KHz to 100 KHz

Type 9554-100K/1M

100 KHz to 1 MHz

Type 9554-1M/6M

1 MHz to 6 MHz

Type 9554-6M/50M

6 MHz to 50 MHz

Type 9554-50M/100M

50 MHz to 100 MHz

Step Frequency Module Type 2154-500K/50K provides the nine frequencies available for DEF STD 59-41 testing.







Model 9355-1 Pulse Generator

DATA

Generator provides 35 nanosecond pulse required for test method CS115 of MIL-STD-461E.





Model 7054-1 Spike Generator



DATA

Provides a 600 volt, greater than 10 μs pulse for section 17 of RTCA DO-160E when used in conjunction with Type 2201-1 Impedance Matching Pulse Transformer.





Model 8282-1 Transient Pulse Generator



DATA

Transient generator for Test Method CS06 of MIL-STD-461C.





Model 7399-2 Spike Generator



DATA

Generator for the requirements of MIL-STD-1399 with

appendices A, B, C and D.





Rent Calibration Accessories



This equipment can be used to verify calibration of test equipment. No technical support is offered on the equipment. Monthly rental only, no weekly rentals available.

Part # Description
110   Pearson Current Transformer with 100:1 attn and 200:1 attn
2237   Barth Attenuator, Cables and 10x and 5x attn
PK1001D   6kV Differential Voltage probes





Rent Oscillatory Test System



EMC Partners Oscillatory Test System

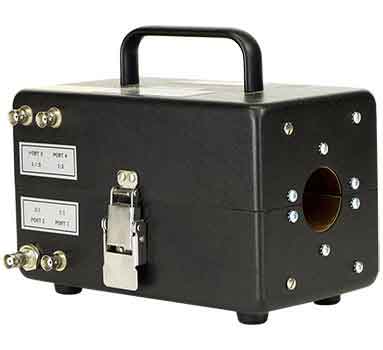

This protection relay tester generates ring waves at 100 Khz and 1 Mhz. This phenomenon is representative of switching actions in HV/MV open air stations, and is particularly related to the switching of HV busbars. We also carry the CDN required to meet the ANSI/IEEE C37.90.1.s and IEC 61000-4-18 specifications.

CDN2000-06-25 External three phase coupler for the MIG-OS-OS1, 450v, 25a maximum. C37.90.1
IEC 60255-5
IEC 61000-4-18
