RF
Shielded Tent Quote Request Form |
|
|
|
Series 100 |
|
Series 200 |
|
Series 300 |
|
Series 400 |
|

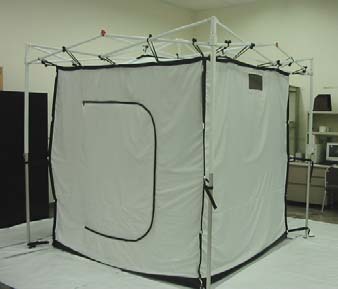

Easy-Assembly Aluminum External Frame
|
PVC Plastic External Frame
|
Structural
Aluminum External Frame |
Modular Tubular Aluminum External Frame |
|
Specific Sizes |
Size Range |
Size Range |
Size Range |
|
Frame
(ft)
Length
Width Height
8 x
8 x 7
8 x
8 x 8
8 x
8 x 10
10 x 10 x
7
10 x 10 x
8
10 x 10 x
10
10 x 10 x
12
10 x 15 x
7
10 x 15 x
8
10 x 15 x
10
10 x 15 x
12
10 x
20 x 7
10 x
20 x 8
10 x
20 x 10
10 x
20 x 12 |
Tent
(ft)
Length
Width Height
7 x 7 x 5.5
7 x 7 x 6.5
7 x 7 x
8
9 x 9 x 5.5
9 x 9 x 6.5
9 x 9 x 8
9 x 9 x 10
9 x 14 x
5.5
9 x 14 x
6.5
9 x 14 x 8
9 x 14 x 10
9 x 19 x
5.5
9 x 19 x
6.5
9 x 19 x 8
9 x 19 x 10 |
Frame
(ft)
Length
Width Height
From
1.5 x 1.5 x 1.5
To
8 x 8 x 8
Tent
Will be ≈ 6" less in all 3 dimensions |
Frame
(ft)
Length
Width Height
From
8 x 8 x 8
To
100 x 100 x 60
Tent
Will be ≈ 6" less in all 3 dimensions |
Frame
(ft)
Length
Width Height
From
1' x 1' x 1'
To
100' x 100' x 40'
Tent
Will be ≈ 6" less in all 3 dimensions
Frame
Can be broken down to lengths ≤ 48" |
|
Includes:
One (1) RF Shielded Tent
One (1) Tent Frame
One (1) Cable Sleeve
One (1) Standard Door, 5.0’ W x 5.5’ H
Door Height might be reduced due to
ceiling height of tent selected
One (1) Floor which has conductive layer(s) sandwiched between 2
layers of heavy duty black vinyl
One (1) Standard Tent carry/storage bag
Ease &
Speed of Assembly
Easy &
Fast |
Includes:
One (1) RF Shielded Tent
One (1) Tent Frame
One (1) Cable Sleeve
One (1) Standard Door, 5.0’ W x 5.5’ H
Door Height might be reduced due to
ceiling height of tent selected
One (1) Floor which has conductive layer(s) sandwiched between 2
layers of heavy duty black vinyl
One (1) Standard Tent carry/storage bag
Ease &
Speed of Assembly
Easy &
Medium |
Includes:
One (1) RF Shielded Tent
One (1) Tent Frame
One (1) Cable Sleeve
One (1) Standard Door, 5.0’ W x 5.5’ H
Door Height might be reduced due to
ceiling height of tent selected
One (1) Floor which has conductive layer(s) sandwiched between 2
layers of heavy duty black vinyl
One (1) Standard Tent carry/storage bag
Ease &
Speed of Assembly
Difficult &
Slow |
Includes:
One (1) RF Shielded Tent
One (1) Tent Frame
One (1) Cable Sleeve
One (1) Standard Door, 5.0’ W x 5.5’ H
Door Height might be reduced due to
ceiling height of tent selected
One (1) Floor which has conductive layer(s) sandwiched between 2
layers of heavy duty black vinyl
One (1) Standard Tent carry/storage bag
Ease &
Speed of Assembly
Easy &
Slow |
|
Please
Select the Tent Frame
Please Select
the Shielding Attenuation
Single
≥ 60 dB Attenuation
14 MHz to 10 GHz
Double
≥ 70 dB Attenuation
1 MHz to 10 GHz
Please
Enter the Tent Frame Size (That will fit in your structure)
Length (ft)
Width (ft)
Height (ft) |
|
|
|
Check if you just need an RF
Shielded Curtain
Length (ft)
Width (ft)
Height (ft)
Ceiling Mount Sliding Track
Check for Series 400 Bench
Top RF
Shielded Tent
Length (in)
Width (in)
Height (in) |
|
|
|
Optional
Accessories |
|
Frame Deluxe Roller Bag |
Additional I/O Cable Shielded Sleeves |
Additional Ventilation or I/O Cable Sleeves |
|
|
LED Lighting to Match Tent Selected |
24" Fluorescent Lights |
|
|
|
Additional Standard
5.0’ wide x 5.5’
high
Doors
|
Larger 5.0' wide x 5', 6' or 7' High (depending on tent
height)
Check
In Lieu of Standard Door |
|
Largest
Door
Possible ( ≈ 12" less in Width & Height of the Tent Wall) |
Custom Door of size
Width (ft)
Height (ft)
(Must be 12" less in Width & Height of the Tent Wall) |
|
White ESD Interior Liner |
|
|
|
|
Ventilation -
Intake Honeycomb |
Ventilation -
Exhaust Honeycomb |
Air
Circulation System
(Fan, Vents and One Sleeve) |
Air Conditioning
System
(AC Unit, Vents and Sleeves) |
|
RF Shielding
Attenuation Test & Report of Tent/Frame |
Clean
Room Tent Services |
|
|
|
Optional RF Shielded Tent Power & I/O
Connector Box |
|
If you have any metallic power,
communication, cable or I/O lines going into the tent, the RF
Shielded Box is a MUST HAVE
to eliminate conducted emissions |
|
Quote Standard I/O Box
which Includes: |
|
 |
One (1) Four
terminal, 20 amp, 0 – 250 VAC, with 6 Receptacle Power Strip
(inside tent) |
STERF8 |
 |
|
One(1)
100pF, Filtered dB9 connector |
CONN207 |
|
One (1) Pair of RJ45 to dB9 adapters for Ethernet |
STERJ45 |
|
One (1) Ground Post |
NA |
|
|
Quote Optional Connectors
and I/O Options for RF Shielded Tents (If you have
requirements beyond the standard I/O connector box above) |
|
Quantity |
Model |
|
Description |
|
|
CONN103 |
|
BNC FEED-THROUGH CONNECTOR |
|
|
CONN105 |
|
BNC DUST COVER |
|
|
CONN60 |
|
TNC FEED-THROUGH CONNECTOR |
|
|
CONN174 |
|
TNC DUST COVER |
|
|
CONN104 |
|
TYPE N FEED-THROUGH CONNECTOR |
|
|
CONN173 |
|
TYPE N DUST COVER |
|
|
CONN157 |
|
SMA FEED-THROUGH CONNECTOR
(female to female) |
|
|
CONN175 |
|
SMA DUST COVER |
|
|
CONN158 |
|
SMB FEED-THROUGH CONNECTOR
(female to female) |
|
|
CONN159 |
|
UHF FEED-THROUGH CONNECTOR |
|
|
STERF8 |
|
4 TERMINAL FILTERED AC POWER STRIP, 0 - 250
VAC, 20 AMP |
|
|
STERF13 |
|
4 TERMINAL FILTERED DC POWER STRIP, 0 - 100
VDC, 20 AMP |
|
|
STEFILT24 |
|
6 TERMINAL FILTERED AC POWER STRIP, 0 - 250
VAC, 20 AMP |
|
|
STEFILT8 |
|
6 TERMINAL FILTERED DC POWER STRIP, 0 - 100
VDC, 20 AMP |
|
|
PS18 |
|
6 POLE SURGE PROTECTED AC POWER STRIP |
|
|
PS26 |
|
6
POLE SURGE PROTECTED AC POWER STRIP
AT 250 VAC EUROPEAN SHUKO |
|
|
|
|
|
|
LLATCH |
|
LOCKING LATCH (s) |
|
|
SECURE |
|
SECURITY HARDWARE |
|
|
|
|
|
Other Connectors, I/Os or Items (Not Listed Above)
|
|
|
|
|
Quantity |
Model |
|
Description |
|
|
CONN67 |
|
1000 PF DB9 CONNECTOR (RF FILTERED) ON STE,
USED FOR RS-232 |
|
|
CONN207 |
|
100 PF DB9 CONNECTOR (RF FILTERED) ON
STE,
USED FOR HIGH-SPEED DATA,
≤ 150 Mbps
(REQUIRED FOR
USB 1.x OR RJ45 ADAPTERS) |
|
|
CONN278 |
|
10
PF DB9 CONNECTOR (RF FILTERED) ON STE,
USED FOR VERY HIGH-SPEED DATA, ≤
1.2 Gbps
(REQUIRED FOR USB 2.0 OR
RJ45 ADAPTERS) |
|
|
CONN216 |
|
1000 PF DB15 CONNECTOR (RF FILTERED) ON STE |
|
|
CONN204 |
|
820 PF DB15 CONNECTOR (RF FILTERED) ON STE |
|
|
CONN259 |
|
100 PF DB15 CONNECTOR (RF FILTERED) ON STE,
USED FOR VGA FILTERED INTERFACE |
|
|
CONN156 |
|
1000 PF DB25 CONNECTOR (RF FILTERED) ON STE |
|
|
CONN345 |
|
310 PF DB25 CONNECTOR (RF FILTERED) ON STE |
|
|
CONN262 |
|
1000 PF DB37 CONNECTOR (RF FILTERED) ON STE |
|
|
CONN261 |
|
310 PF DB37 CONNECTOR (RF FILTERED) ON STE |
|
|
CONN276 |
|
1000 PF DB50 CONNECTOR (RF FILTERED) ON STE |
|
|
CONN242 |
|
DB9 - RJ11/MALE, CONNECTS TO RF FILTERED DB9
(additional cost for DB9) |
|
|
CONN243 |
|
DB9 - RJ11/FEMALE, CONNECTS TO RF FILTERED
DB9 (additional cost for DB9) |
|
|
CONN199 |
|
PS/2 TO DB9 F-F, CONNECTS TO RF FILTERED DB9
(additional cost for DB9) |
|
|
CONN187 |
|
PS/2 TO DB9 M-M, CONNECTS TO RF FILTERED DB9
(additional cost for DB9) |
|
|
STEVGA |
|
VGA MONITOR INTERFACE CONN., CONNECTS TO RF
FILTERED DB15 (add cost for DB15) |
|
|
STERJ45 |
|
RJ45 INTERFACE CONNECTOR, CONNECTS TO RF
FILTERED DB9 (additional cost for DB9) |
|
|
STEUSB |
|
USB 1.x OR 2.O INTERFACE CONNECTOR (1EA USB-A & 1EA
USB-B IS STANDARD)
CONNECTS TO RF
FILTERED DB9 (additional cost for DB9) |
|
|
STEUSB2 |
|
USB 2.0 INTERFACE CONNECTOR FIBER TRANSCEIVER SYSTEM
(available for devices up to 480 Mb/s) |
|
|
CONN374 |
|
FIBER-OPTIC FEED-THROUGH (1EA ST to ST, Simplex
Multimode, female to female) |
|
|
STE1394 |
|
IEEE 1394 INTERFACE CONN., CONNECTS TO RF
FILTERED DB9 (additional cost for DB9) |
|
