RF Power Amplifiers

 Solid State RF and Microwave Amplifiers



OPHIR RF Broaband Power Amplifiers



OPHIR RF designs and manufactures High Power, Solid State, Broadband RF and Band-specific amplifiers.  Our products range in frequency from 10 kHz to 8 GHz, with power levels from 1 Watt to above 1000 Watts. Broadband markets served by OPHIR RF include immunity and emissions testing, Military, SATCOM, TACSAT, EMC/EMI/RFI, medical imaging MRI/NMR, TWT replacement, general laboratory equipment and much more. OPHIR RF serves the commercial market and the military. Our key commercial markets are EMC and Communications. EMC customers include system integrators, the automotive and medical industries, universities and national laboratories. Communication customers are comprised of fixed and mobile wireless infrastructure manufacturers and satellite service providers. Applications include cellular, paging, PCS, and Wireless Local Loop. Our communication amplifiers address all major modulation schemes, such as CDMA, TDMA, GSM and IMT2000/UMTS. OPHIR RF is a major provider of RF and microwave amplifiers for defense applications, such as electronic warfare, ECM (Electronic Counter Measures), radar and telemetry, as well as defense communications.

Manufactured and Serviced in Los Angeles, CA USA

OPHIR RF's standard line of robust products has continuously evolved to meet the challenging requirements of current and emerging technologies. Both Amplifier Systems and Amplifier Modules are offered in Broadband and Band-Specific frequencies, covering a wide range of applications. Please select a category below or on the left to begin browsing through our amplifier products.

OPHIR RF designs and manufactures its products in the USA. We are well-known in the industry for successfully adapting our amplifiers or custom designing new solutions to meet your application requirements. Please refer to our Adapted & Custom Design Solutions link to begin formulating your performance objectives and other criteria



 5 Year Parts & Labor Warranty

On All 5xxx Series

1 Year on 4xxx Series Amplifier Systems & Amplifier Modules

GSA Federal Supply Contract
      Visa Accepted   MasterCard Accepted



Design Your Own Amplifier   Ethernet Interface



RF & Microwave Solid State Amplifiers

Broadband & Narrowband

Sorted by Frequency Range - Click Model Number for Data file (.pdf)

Amplifier

Model

Number

Frequency

Range

CW

Output

(Saturated)

Linear

Output

( P1dB)

Gain

dB

Flatness

±dB

IP3

dBm

5084

0.01 - 230 MHz

25 Watts

15 Watts

44 dB

±1.5

+52

5085

0.01 - 200 MHz

100 Watts

60 Watts

50 dB

±1.5

+57

5087

0.01 - 200 MHz

250 Watts

200 Watts

55 dB

±2.0

+60

5088

0.01 - 200 MHz

500 Watts

400 Watts

57 dB

±2.0

+61

5188 0.01 - 1000 MHz 20 Watts 12 Watts 44 dB ±1.5 +46

5048

0.15 - 230 MHz

75 Watts

45 Watts

49 dB

±1.5

+56

5053

0.15 - 230 MHz

500 Watts

300 Watts

57 dB

±2.0

+61

5069

0.5 - 500 MHz

10 Watts

5 Watts

40 dB

±1.0

+47

5094

1 - 1000 MHz

4 Watts

3 Watts

36 dB

±1.5

+43

5064

1 - 1000 MHz

50 Watts

30 Watts

48 dB

±2.0

+56

5062

1 - 1000 MHz

100 Watts

60 Watts

50 dB

±2.0

+57

5062-005

1 - 1000 MHz

150 Watts

100 Watts

50 dB

±2.0

+57

7000 1 - 2500 MHz

100 Watts

60 Watts

50 dB

±2.0

4 CH

4035

2 - 30 MHz

100 Watts

60 Watts

50 dB

±.75

+53

4041

2 - 30 MHz

300 Watts

200 Watts

59 dB

±2.0

+59

4042

2 - 30 MHz

500 Watts

300 Watts

57 dB

±2.0

+61

4043

2 - 30 MHz

1000 Watts

600 Watts

60 dB

±2.0

+68

4044

2 - 30 MHz

1800 Watts

1100 Watts

63 dB

±2.0

+66

Model

Frequency

CW

P1dB

Gain

Flatness

IP3

5073

2 - 500 MHz

10 Watts

6 Watts

40 dB

±1.5

+44

5044

20 - 120 MHz

100 Watts

60 Watts

50 dB

±1.5

+54

5035

20 - 500 MHz

25 Watts

15 Watts

43 dB

±1.5

+52

5059

20 - 500 MHz

50 Watts

30 Watts

48 dB

±1.5

+55

5079

20 - 500 MHz

200 Watts

120 Watts

54 dB

±2.0

+59

5030

20 - 500 MHz

500 Watts

300 Watts

58 dB

±2.0

+61

5124

20 - 1000 MHz

20 Watts

13 Watts

44 dB

±1.5

+47

5125

20 - 1000 MHz

70 Watts

40 Watts

49 dB

±1.5

+52

5126

20 - 1000 MHz

120 Watts

75 Watts

52 dB

±2.0

+55

5127

20 - 1000 MHz

200 Watts

120 Watts

54 dB

±2.0

+57

5067

20 - 1000 MHz

500 Watts

250 Watts

58 dB

±2.5

+60

7002 20 - 2500 MHz

50 Watts

20 Watts 47 dB

±1.0


7001 20 - 3000 MHz

22 Watts

11 Watts

43 dB

±2.0

2 CH

5074

30 - 512 MHz

40 Watts

25 Watts

48 dB

±1.5

+50

5225

80 - 1000 MHz

200 Watts

120 Watts 54 dB ±2.5 +59
5226

80 - 1000 MHz

300 Watts

200 Watts 56 dB ±3.0 +62
5227

80 - 1000 MHz

500 Watts

300 Watts 58 dB ±3.5 +64
5228

80 - 1000 MHz

1000 Watts

700 Watts 68 dB ±4.0 +64

5072

80 - 1000 MHz

500 Watts

300 Watts

58 dB

±2.5

+61

Model

Frequency

CW

P1dB

Gain

Flatness

IP3

5051

100 - 500 MHz

500 Watts

400 Watts

57 dB

±2.0

+66

5083

200 - 500 MHz

200 Watts

125 Watts

54 dB

±1.5

+61

5112

200 - 500 MHz

300 Watts

180 Watts

54 dB

±2.0

+59

5006

200 - 500 MHz

500 Watts

300 Watts

57 dB

±2.0

+65

5075

200 - 500 MHz

1000 Watts

600 Watts

61 dB

±2.0

+64

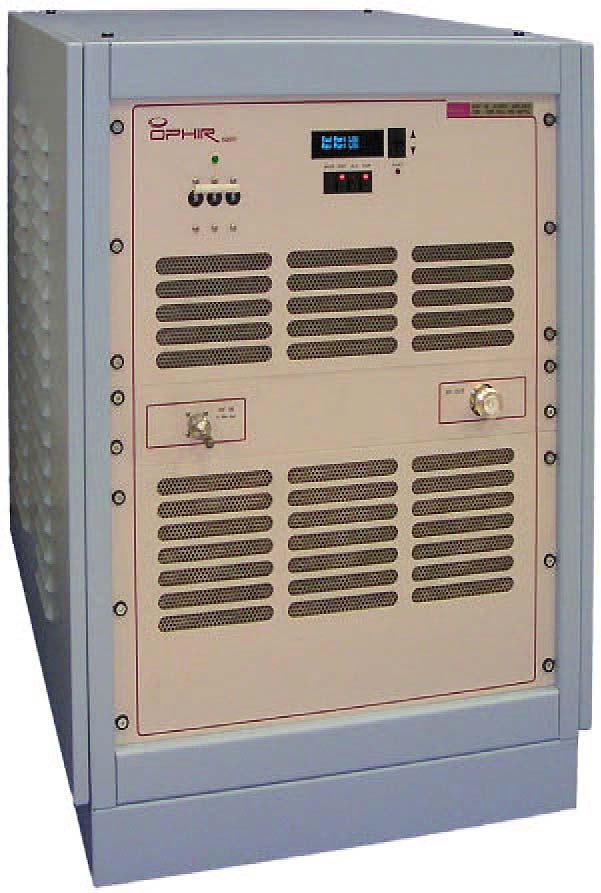

5037 Click to View Picture

200 - 1000 MHz

500 Watts

300 Watts

58 dB

±2.5

+61

5092  Click to View Picture

200 - 1000 MHz

1000 Watts

600 Watts

61 dB

±2.0

+64

5123

225 - 400 MHz

125 Watts

80 Watts

51 dB

±2.0

+55

4012

290 - 320 MHz

250 Watts

200 Watts

54 dB

±.75

+58

4007-004 350 - 400 MHz 1000 Watts 600 Watts 62 dB

±1.5

+64

4034

400 - 450 MHz

250 Watts

150 Watts

55 dB

±1.0

+58

4007

400 - 450 MHz

1000 Watts

600 Watts

62 dB

±1.0

+66

5036

500 - 1000 MHz

20 Watts

13 Watts

44 dB

±1.5

+49

5077

500 - 1000 MHz

50 Watts

30 Watts

48 dB

±1.5

+52

5019

500 - 1000 MHz

100 Watts

60 Watts

50 dB

±1.5

+55

5020

500 - 1000 MHz

200 Watts

100 Watts

53 dB

±1.5

+58

5029

500 - 1000 MHz

500 Watts

300 Watts

57 dB

±2.0

+63

5031

500 - 1000 MHz

1000 Watts

500 Watts

62 dB

±3.0

+64

Model

Frequency

CW

P1dB

Gain

Flatness

IP3

5141

0.7 - 3.0 GHz

15 Watts

12 Watts

43 dB

±2.0

+51

5142

0.7 - 3.0 GHz

30 Watts

24 Watts

46 dB

±2.0

+54

5143

0.7 - 3.0 GHz

50 Watts

40 Watts

48 dB

±2.0

+56

5144

0.7 - 3.0 GHz

100 Watts

80 Watts

51 dB

±2.0

+59

5145

0.7 - 3.0 GHz

200 Watts

150 Watts

54 dB

±2.0

+62

4015

0.8 - 1.0 GHz

50 Watts

30 Watts

48 dB

±1.5

+51

4014

0.8 - 1.0 GHz

100 Watts

60 Watts

51 dB

±1.5

+54

4009

0.8 - 1.0 GHz

200 Watts

100 Watts

54 dB

±1.5

+58

5002A

0.8 - 2.0 GHz

7 Watts

5 Watts

39 dB

±1.5

+47

5028A

0.8 - 2.0 GHz

12 Watts

10 Watts

41 dB

±1.0

+51

5016A

0.8 - 2.0 GHz

25 Watts

20 Watts

44 dB

±1.5

+53

5022A

0.8 - 2.0 GHz

50 Watts

40 Watts

48 dB

±1.5

+57

5038A

0.8 - 2.0 GHz

100 Watts

80 Watts

51 dB

±2.0

+59

5063A

0.8 - 2.0 GHz

200 Watts

150 Watts

54 dB

±2.0

+62

Model

Frequency

CW

P1dB

Gain

Flatness

IP3

5150

0.8 - 2.5 GHz

13 Watts

10 Watts

42 dB

±2.0

+50

5151

0.8 - 2.5 GHz

25 Watts

20 Watts

45 dB

±2.0

+53

5152

0.8 - 2.5 GHz

50 Watts

40 Watts

48 dB

±2.0

+56

5153

0.8 - 2.5 GHz

80 Watts

60 Watts

50 dB

±2.0

+58

5154

0.8 - 2.5 GHz

150 Watts

120 Watts

52 dB

±2.0

+61

5155

0.8 - 2.5 GHz

250 Watts

200 Watts

55 dB

±2.0

+63

5156

0.8 - 2.5 GHz

500 Watts

400 Watts

58 dB

±2.0

+66

5056

0.8 - 4.2 GHz

1.2 Watts

1 Watt

30 dB

±1.5

+41

5161 Click to View Picture

0.8 - 4.2 GHz

15 Watts

12 Watts

43 dB

±2.0

+51

5162

0.8 - 4.2 GHz

28 Watts

22 Watts

46 dB

±2.0

+54

5163

0.8 - 4.2 GHz

50 Watts

40 Watts

48 dB

±2.0

+56

5164

0.8 - 4.2 GHz

100 Watts

70 Watts

51 dB

±2.0

+58

5165

0.8 - 4.2 GHz

200 Watts

135 Watts

54 dB

±2.0

+61

Model

Frequency

CW

P1dB

Gain

Flatness

IP3

4008

950 - 1350 MHz

15 Watts

12 Watts

42 dB

±1.0

+50

4045

950 - 1450 MHz

60 Watts

40 Watts

49 dB

±1.0

+56

4040

950 - 1215 MHz

200 Watts

150 Watts

54 dB

±.75

+62

5046

1.0 - 2.0 GHz

1.2 Watts

1 Watts

30 dB

±1.5

+40

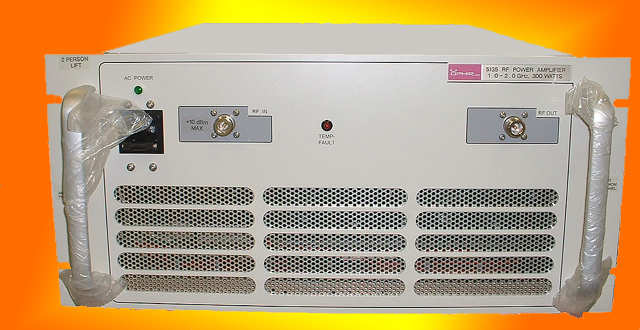

5135 Click to View Picture

1.0 - 2.0 GHz

300 Watts

250 Watts

56 dB

±2.0

+64

5171

1.0 - 3.0 GHz

15 Watts

12 Watts

43 dB

±1.5

+51

5172

1.0 - 3.0 GHz

30 Watts

24 Watts

46 dB

±1.5

+54

5173

1.0 - 3.0 GHz

50 Watts

40 Watts

48 dB

±2.0

+56

5174

1.0 - 3.0 GHz

100 Watts

80 Watts

51 dB

±2.0

+59

5175

1.0 - 3.0 GHz

200 Watts

150 Watts

54 dB

±2.0

+62

4056 1175 - 1675 MHz 500 Watts  58 dB

±1.5

+63

5097

1.35 - 1.85 GHz

200 Watts

160 Watts

54 dB

±1.5

+62

4003

1.8 - 2.0 GHz

120 Watts

100 Watts

52 dB

±.75

+60

4064

1.8 - 2.5 GHz

60 Watts

50 Watts

49 dB

±1.0

+57

4062

1.85 - 2.17 GHz

60 Watts

45 Watts

50 dB

±.75

+59

4060

1.85 - 2.17 GHz

120 Watts

100 Watts

53 dB

±.75

+61

4061

1.85 - 2.17 GHz

200 Watts

160 Watts

53 dB

±1.0

+62

 Model

Frequency

CW

P1dB

Gain

Flatness

IP3

5181

2.0 - 4.0 GHz

15 Watts

12 Watts

43 dB

±1.5

+51

5182

2.0 - 4.0 GHz

30 Watts

24 Watts

46 dB

±1.5

+54

5183

2.0 - 4.0 GHz

50 Watts

40 Watts

48 dB

±2.0

+56

5184

2.0 - 4.0 GHz

100 Watts

80 Watts

51 dB

±2.0

+59

5185

2.0 - 4.0 GHz

200 Watts

150 Watts

54 dB

±2.0

+62

5190

2.0 - 6.0 GHz

9 Watts

6 Watts

40 dB

±1.0

+46

5191

2.0 - 6.0 GHz

15 Watts

10 Watts

43 dB

±1.0

+50

5192

2.0 - 6.0 GHz

25 Watts

15 Watts

45 dB

±1.0

+52

5193

2.0 - 6.0 GHz

50 Watts

30 Watts

50 dB

±1.0

+54

5194

2.0 - 6.0 GHz

100 Watts

50 Watts

53 dB

±3.0

+57

4021

2.2 - 2.4 GHz

12 Watts

10 Watts

40 dB

±1.0

+50

4057

2.4 - 2.5 GHz

10 Watts

8 Watts

41 dB

±.75

+49

4058

2.4 - 2.5 GHz

50 Watts

40 Watts

48 dB

±.75

+56

4022

2.7 - 3.2 GHz

200 Watts

150 Watts

54 dB

±1.5

+62

4073

5.9 - 6.4 GHz

12 Watts

10 Watts

45 dB

±1.0

+50

4074

5.9 - 6.4 GHz

30 Watts

25 Watts

48 dB

±1.5

+54

∞ Under Redesign - Might Not be Available

Amplifier Options

Option

Description

Specific

Option E

Front panel digital display, forward and reverse power readings, gain adjustment, ALC on/off, fault indication, standby mode, and rear panel IEEE-488 HPIB, Ethernet Interface inclusive

Installed at Time of Order or Retrofit

Option F

Front Panel Connectors

Standard

Option R

Rear Panel Connectors

No Charge if Installed at Time of Order

Option S

Rack Mounting Slides
