RF Power Amplifier Modules

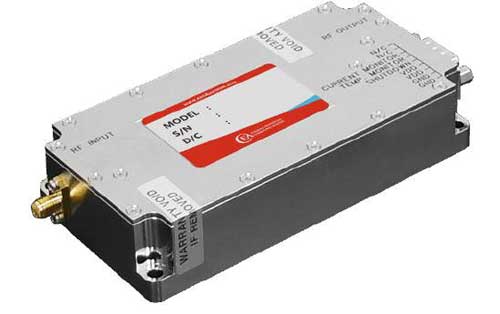

OPHIR RF Amplifier Module

OPHIR RF Amplifier Module with Heatsink & Fans

OPHIR RF Amplifier Modules

OPHIR RF designs and manufactures high power, solid state, Broadband RF, Microwave and Band-Specific amplifier modules.  Our products range in frequency from 10 kHz to 8 GHz, with power levels from 1 Watt to above 2000 Watts. Broadband markets served by OPHIR RF include immunity and emissions testing, SATCOM, TACSAT, EMC/EMI/RFI, medical imaging MRI/NMR, TWT replacement and general laboratory equipment.

Manufactured and Serviced in Los Angeles, CA USA

Fast Switching Broadband PA Modules

OPHIR RF power amplifier models 5303039D (20-1000 MHz) and 5303068A (800-2000 MHz) together cover the entire 20-2000 MHz frequency range at greater than 50 Watts RF output power at Psat, and can quickly be switched off to enhance system sensitivity in the Receive Mode. As a result, these modules are ideal for wideband communications and EW applications, which duplex receive and transmit functions. These versatile modules can be switched within 2 microseconds to be within 20 dB of KTB in conjunction with no input signal. They can also be hot switched. Typical input power for rated output power is 0 dBm. Based on proven designs with thousands of units now in the field, these modules are highly reliable and rugged. Typical delivery is 6 weeks and optional accessories such as DC Voltage conversion and regulation are available upon request. The modules are available with heat sink and fans. See below for specifications.



 1 Year Parts & Labor Warranty

On All

Amplifier Modules

GSA Federal Supply Contract
      Visa Accepted   MasterCard Accepted



Solid State RF & Microwave Amplifier Modules

Broadband & Narrowband

Sorted by Frequency Range - Click Model Number for Data file (.pdf)

Module

Model

Number 2

Frequency

Range

CW

Output

(Saturated)

Linear

Output

( P1dB)

Gain

dB

Flatness

dB

IP3

dBm

dBm

5303030

8 Watts

4 Watts

39 dB

1.0

43 dB

5303055

0.15 - 230 MHz

25 Watts

15 Watts

43 dB

1.5

48 dB

5302042

0.5 - 2 MHz

30 Watts

20 Watts

45 dB

1.5

53 dB

5303032

0.5 - 500 MHz

8 Watts

4 Watts

40 dB

1.0

42 dB

5303065 Click to View Picture

1 - 1000 MHz

2 Watts

1 Watts

34 dB

1.5

37 dB

5303060

1 - 1000 MHz

4 Watts

2 Watts

36 dB

1.5

39 dB

5803039A

1 - 1000 MHz

50 Watts

30 Watts

25 dB

2.0

51 dB

5303066

2 - 500 MHz

10 Watts

6 Watts

41 dB

1.5

44 dB

5303027A

20 - 500 MHz

20 Watts

10 Watts

43 dB

1.5

46 dB

5303006A

20 - 500 MHz

50 Watts

30 Watts

48 dB

1.5

51 dB

5300796

20 - 500 MHz

100 Watts

60 Watts

52 dB

1.5

54 dB

5303038

20 - 1000 MHz

25 Watts

13 Watts

46 dB

1.5

48 dB

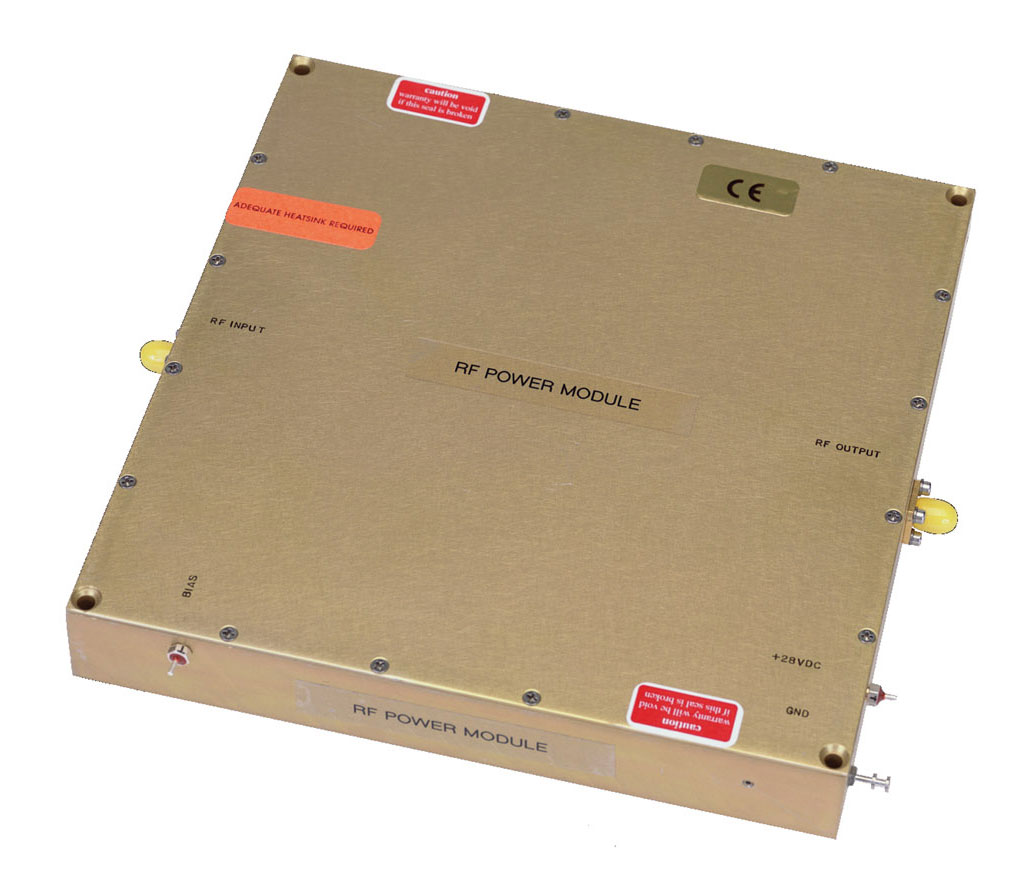

5303039D Click to View Picture

20 - 1000 MHz

(2s Switching)

50 Watts

30 Watts

25 dB

2.0

51 dB

5303099

20 - 1000 MHz

50 Watts

25 Watts

48 dB

1.5

50 dB

5803107

20 - 1000 MHz

170 Watts   55 dB

1.5

5303074

30 - 512 MHz

40 Watts

25 Watts

48 dB

1.5

50 dB

Module

Frequency

CW

Linear

Gain

Flatness

IP3

5302048A

70 - 108 MHz

40 Watts

25 Watts

45 dB

1.5

55 dB

5303007

225 - 450 MHz

125 Watts

80 Watts

11 dB

1.5

55 dB

5303057A

500 - 1000 MHz

7 Watts

5 Watts

38 dB

1.5

43 dB

5303021A

500 - 1000 MHz

20 Watts

13 Watts

44 dB

1.5

47 dB

5303058A

500 - 1000 MHz

50 Watts

30 Watts

48 dB

1.5

51 dB

5803031

500 - 1000 MHz

100 Watts

60 Watts

10 dB

1.5

54 dB

5803033

500 - 1000 MHz

200 Watts

120 Watts

10 dB

1.5

55 dB

5303084 500 - 3000 MHz 50 Watts

25 Watts

48 dB

1.5



5302022

0.8 - 1.0 GHz

12 Watts

10 Watts

45 dB

1.0

52 dB

5302063

0.8 - 1.0 GHz

40 Watts

25 Watts

44 dB

1.5

53 dB

5302075

0.8 - 1.0 GHz

40 Watts

30 Watts

50 dB

1.0

55 dB

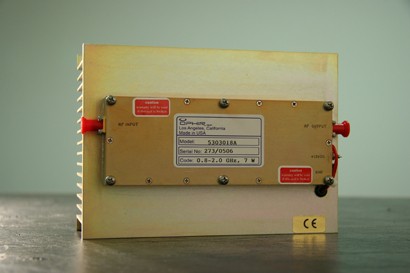

5303018A Click to View Picture

0.8 - 2.0 GHz

7 Watts

5 Watts

38 db

1.5

47 dB

5303012A

0.8 - 2.0 GHz

12 Watts

10 Watts

41 dB

1.5

50 dB

5303011A

0.8 - 2.0 GHz

25 Watts

20 Watts

17 dB

1.5

54 dB

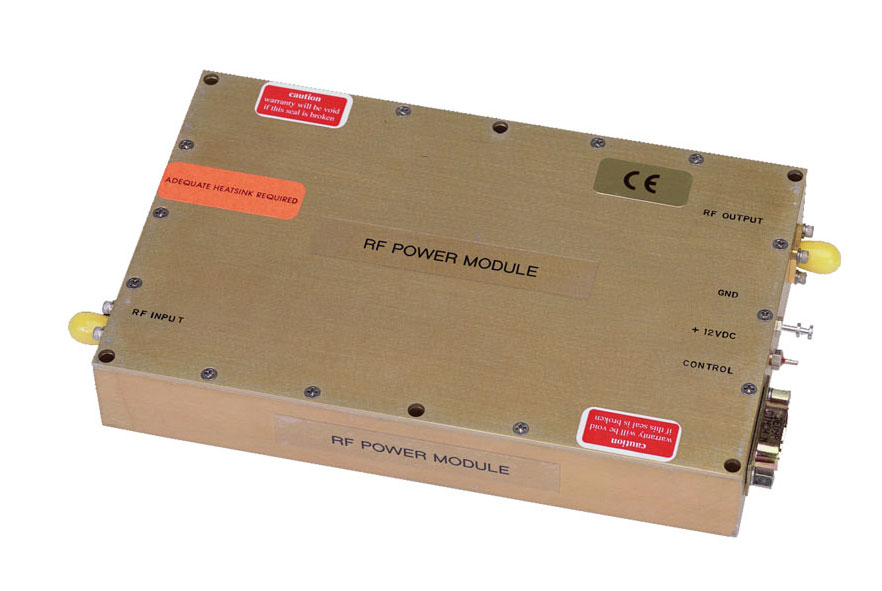

5803068A Click to View Picture

0.8 - 2.0 GHz

(2s Switching)

50 Watts

40 Watts

8 dB

1.5

56 dB

5303075

0.8 - 4.2 GHz

1.5 Watts

1.2 Watts

31 dB

2.0

41 dB

5303096 0.8 - 2.5 GHz 50 Watts

40 Watts

48 dB

1.25



5303062

0.8 - 4.2 GHz

7 Watts

6 Watts

6 dB

1.5

47 dB

Module

Frequency

CW

Linear

Gain

Flatness

IP3

5302023

960 - 1215 MHz

10Watts

8 Watts

37 dB

1.0

52 dB

5303081

1.0 - 2.5 GHz

10 Watts

8 Watts

40 dB

1.5

49 dB

5303069

1.0 - 3.0 GHz

8 Watts

6 Watts

39 dB

1.5

48 dB

5302024

1.2 - 1.6 GHz

10 Watts

8 Watts

43 dB

1.0

51 dB

5302380 1.2 - 1.6 GHz 20 Watts 15 Watts 44 dB .075 51 dB

5302026

1.6 - 1.8 GHz

12 Watts

10 Watts

45 dB

1.0

52 dB

5302027

1.8 - 2.0 GHz

12 Watts

10 Watts

45 dB

1.0

52 dB

5302030

1.8 - 2.0 GHz

40 Watts

35 Watts

45 dB

1.0

55 dB

5302034

1.8 - 2.0 GHz

60 Watts

50 Watts

50 dB

1.0

57 dB

5302029

1.8 - 2.0 GHz

80 Watts

60 Watts

51 dB

1.0

58 dB

5302031

1.8 - 2.0 GHz

150 Watts

120 Watts

53 dB

1.0

59 dB

5303023

2.0 - 4.0 GHz

4 Watts

3 Watts

36 dB

1.0

44 dB

5303024

2.0 - 4.0 GHz

8 Watts

6 Watts

39 dB

1.5

48 dB

5303025

2.0 - 4.0 GHz

15 Watts

10 Watts

12 dB

1.5

50 dB

5303009

2.0 - 4.0 GHz

25 Watts

20 Watts

12 dB

1.5

53 dB

Module

Frequency

CW

Linear

Gain

Flatness

IP3

5302019

2.2 - 2.5 GHz

100 MHz

 Instantaneous

 Bandwidth

60 Watts

50 Watts

48 dB

1.5

58 dB

5302053

2.4 - 2.5 GHz

2 Watts

1.5 Watts

34 dB

0.75

42 dB

5302054

2.4 - 2.5 GHz

5 Watts

4 Watts

38 dB

0.75

46 dB

5302015

2.4 - 2.5 GHz

10 Watts

8 Watts

41 dB

0.5

52 dB

5302019 2.4 - 2.5 GHz 50 Watts 40 Watts 48 dB 0.75 56 dB
Call for Data 2.5 - 6.0 GHz 10 Watts

8 Watts

>40 dB

1.5


Call for Data 2.5 - 6.0 GHz 25 Watts

20 Watts

>40 dB

1.5


Call for Data 2.5 - 6.0 GHz 50 Watts

40 Watts

>40 dB

1.5



5302055

3.5 - 3.6 GHz

2 Watts

1.5 Watts

34 dB

0.75

42 dB

5302056

3.5 - 3.6 GHz

5 Watts

4 Watts

38 dB

0.75

46 dB

5302073

5.9 - 6.4 GHz

12 Watts

10 Watts

41 dB

1.0

52 dB

5302074

5.9 - 6.4 GHz

35 Watts

25 Watts

47 dB

1.0

55 dB



Part Number

Description

530xxxx

-Stand-alone module (part number is 530XXXX)

590xxxx

-Module mounted on heatsink (part number is 590XXXX) and additional charges are $100.00

580xxxx

-Module mounted on heatsink with fans (part number is 580XXXX) and additional charges are $200.00.
