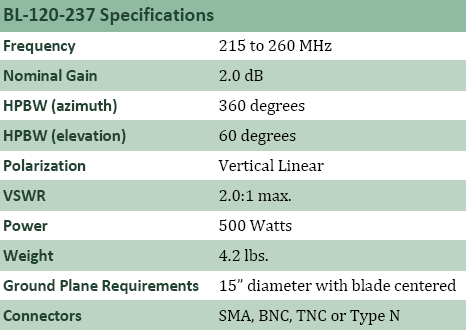

 BL-120-237 High Power Omni Directional Antenna


Model

Features

BL-120-237

215-1000 MHz

500 Watts

Rugged Construction


Linear Polarization

The BL-120-237 is a high power, wide band severe duty antenna for both military and commercial applications.



The antenna is constructed entirely of G-10 epoxy glass and aircraft certified 6061-T6 aluminum and with 100% sealed copper radiator. They are available with SMA, BNC, TNC or Type-N connectors.



Several options are available including monitor port and separate from prim radiator monitoring antenna. These antennas will provide years of trouble free service, even when used in the most severe environments.
