RF TIGHT TESTING... MADE EASY!
Wired & Wireless Device Testing!
Perfect for 802.11a, b, g, Wireless LAN, WiFi,
WiMax, Cellular, Paging, PCS, GPS, GSM 3G, RFID, Zigbee, Bluetooth®, Blade Servers, Cards, WAP’s, Production Testing,
Quality Assurance and other Wireless Devices Testing or just as a RF Shielded
Test Enclosure
Wide Variety Of I/O Options!
Great Isolation Up To 18GHZ!
Models To Fit Any Application!
|
|
|
All STE Standard Models are Temperature
Rated from - 20° C to + 80° C (- 4° F to + 176° F)
(-31° to +93° C and -55° to +100° C Avalable)
ALL STE Models are "In the Field"
Serviceable
|
|
|
CUSTOM ORDERS...ARE STANDARD!
We realize that the connectors, options and
actual test procedures of one customer are
entirely different from that of another. In
fact over the past 5 years we have never had
an identical connector and option
configuration between customers! We made it
easy with our precision machined I/O output
panels to get standard delivery of your
"custom configured" enclosure! It goes
beyond connectors and options. If you need
a special configuration, a different size or
door configuration, talk to us! The entire
line of STE enclosures has evolved from just
that, the needs of people like you! |
|
THE RF SCREEN
ROOM ON YOUR BENCH!
In 1997 Ramsey took the technician out of the large expensive
shielded screen room and put his hands and eyes into a portable
bench top RF Shielded Test Enclosure. With thousands placed in
service worldwide the patented STE technology became the standard
for efficient and cost effective RF isolation testing. That legacy
has continued with a wide variety of STE’s to suit every RF test
application, and size requirements you have today. Our exclusive
double lip gasket technology assures an RF tight seal each and every
time. Steady-hold hinges maintain the opening at any location and
prevent gasket compression due to prolonged closure pressure when
not in use. Our STE2800 and STE3800 STE’s feature our RTF Radiating
Test Fixture with a built-in broadband antenna to properly test
wireless telephones with guaranteed repeatability. All of the STE’s
feature a wide variety of available I/O connection and interface
options and RF filtered feed-throughs.
All available to fit your
custom requirements with the pricing and delivery of a stock unit!
|
|

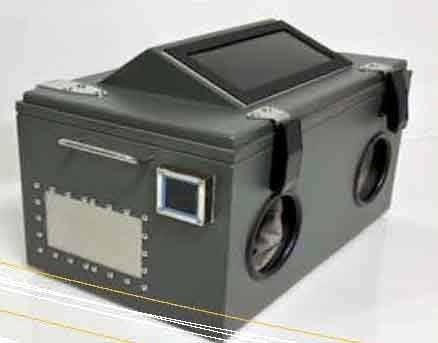

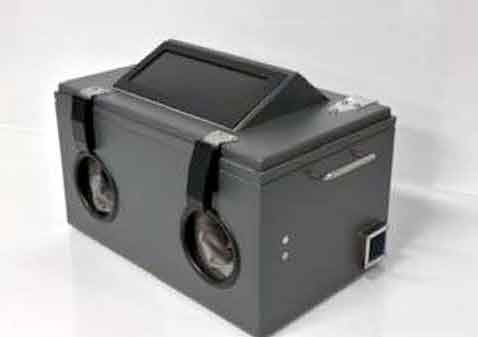

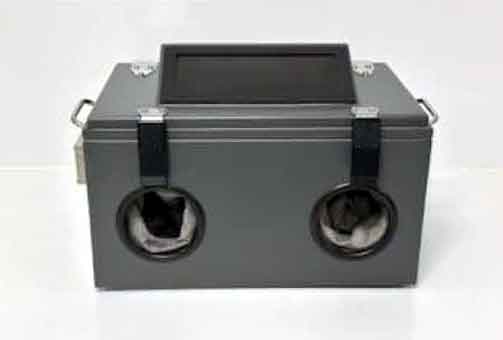

STE3000
 |
|
Picture(s) |
Model |
Features |
|
|
STE3000
formerly STE3000B
Base Model Price $1,295.00
Microwave RF
Shielded Test Enclosure
RF Isolation: 20 MHz to
8 GHz
9¾" H x 18"
W x 12" D
8¼” H x 16¾” W x 10¾” D
(Nom. Inside Dimensions)
24 dB Attenuation Absorber
STE3000F
Designed for Forensics Testing
Same as STE3000, but adds a removable Ivory colored MDF or Stainless
Steel tray to the bottom |
Interference Free Testing FOR
YOUR wireless equipment!
-
RF absorbent
foam liner
-
Exclusive double
lip RF tight gasket
-
Universal I/O
connector interface plate
-

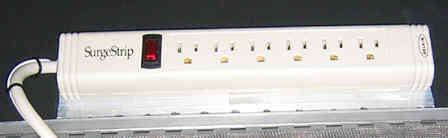

Six outlet
filtered power strip
-
RF tight

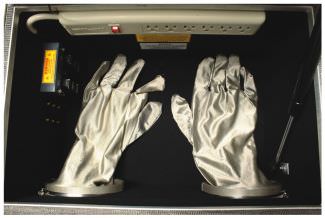

“hands-on” silver mesh gloves
-
RF tight
illuminated viewing window
-
Gas filled cover
strut
-
Designed for
hands-on adjustment and alignment of devices
Can be ordered without the gloves
|
|

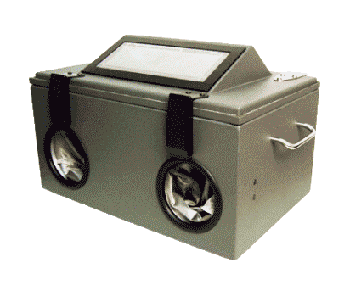

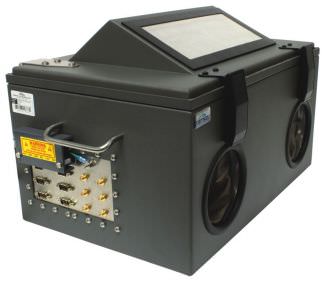

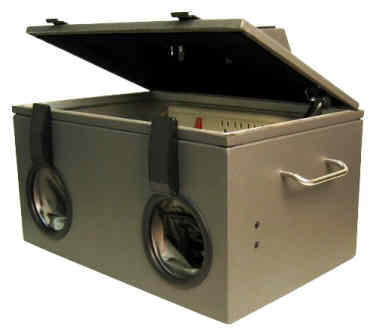

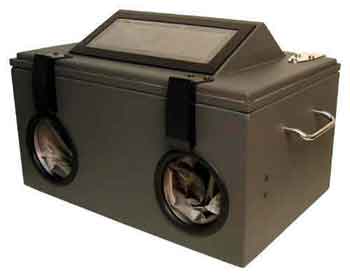

STE3000
The RF Test Enclosure
that started it all! How do you
troubleshoot, tune, align, and test
a device in an RF free and
interference free environment? Well,
up until now you had to invest in a
very expensive RF screen room. Our
patented STE3000B brought that
technology right down to your bench,
and the cost all the way down to
affordable!
Now you can work and see inside the
box, rather than inside an expensive
screen room. Working access is made
possible with our custom designed
silver impregnated, ultra fine mesh
gloves. These gloves offer an RF
tight seal to the box yet give you
excellent manual dexterity and hands
on access to devices under test.
Once the cover is closed, a large RF
tight viewing window overlooks the
entire working area that is
illuminated with built-in noise free
incandescent lighting. It doesn’t
get much easier than that! All I/O
connections and options are milled
into a removable 304 stainless steel
panel to allow for future changes.
Simply choose the I/O’s and
interfaces you require when
ordering, and the STE3000B will be
custom designed to your spec. Sounds
too good to be true? We thought so
too; that’s why we have a patent on
it! |
|
|
|
|
|
|
SPECIFICATIONS |
|
RF Isolation: |
≥ 90 dB
from 20 MHz to 1 GHz
≥ 90 dB
at
1 GHz
≥ 90 dB
at
3 GHz
≥ 80 dB
at
6 GHz |
|
Finish: |
Mist gray
epoxy powder coat with black/brass hardware |
|
RF
Reflective Foam: |
Standard RF
reflective attenuation foam provides 24 dB
attenuation. |
|
AC Power: |
6 outlet filtered
120VAC outlet strip; 4 pole filtered barrier strip feed-through
is standard |
|
Interior Lighting: |
LED lights in lid to illuminate the interior are
standard |
|

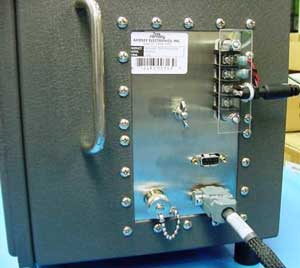

Connector Panel: |
Blank Removable (No
Connectors) is standard, 6.0" wide x 3.5" high, 0.090" thick,
Stainless Steel |
|
Connectors: |
None standard.
Please specify connector requirements from
Connector & I/O Options |
|
Overall
Dimensions: |
External: 9¾" H x 18"
W x 12" D Internal: 8¼” H x 16¾” W x 10¾” D |
|
Weight: |
23lbs. / 10.43kg. |
|
|
STE3000AV
|
|
Picture(s) |
Model |
Features |
|
|
STE3000AV
Base Model Price $2,295.00
Microwave RF
Shielded Test Enclosure
RF Isolation: 20 MHz to
8 GHz
9¾" H x 18"
W x 12" D
8¼” H x 16¾” W x 10¾” D
(Nom. Inside Dimensions)
24 dB Attenuation Absorber
|
Interference Free Testing FOR
YOUR wireless equipment!
-
RF Absorbent foam liner
-
Double-lip RF tight gasket
-
Easy release handles
-
Gas filled cover strut
-
Universal I/O panel
-
RF tight silver mesh gloves
-
RF tight screen-view window
-
Color OSD video camera
-
40GB video DVR system
-
Inside LED illumination
system
|
|
STE3000AV
With the new
STE3000AV, we've added a built-in
high resolution color video camera
inside the box, and a 7" widescreen
color TFT display on the outside -
but this display isn't just a
monitor! Not only does it give you
the clearest and closest view yet of
the device under test, it's also a
high resolution digital video
recorder with 40GB of storage! Once
the testing begins, as you manually
scroll through the phone displays
and menus using the RF-tight silver
mesh gloves, a video record can log
every move onto the DVR! And it gets
even better - a built-in microphone
on the device is recording as you
work, allowing you to narrate
throughout the process without the
need for another recorder.
Imagine recording high quality audio
and video of every step of your
product testing with a touch of a
button. The STE3000AV makes it
possible! Simply hit the record
button on the top of the recorder,
and sessions are stored as
time-stamped individual files on the
built-in 40GB hard drive. At the
highest quality setting the device
will hold approximately 18 hours of
video! These files can be exported
to standard SD memory cards or
transferred directly to any computer
via USB for backup, archiving, or
playback. Playback is immediately
available on the builtin 7" 16:9 TFT
display, and the built-in A/V
outputs also allow for playback or
realtime viewing on any external
video monitor or television with
standard RCA inputs. The DVR can
also be easily removed from the
swivel mount to be used as a
portable playback (or recording)
device, and the built-in Lithium-Ion
battery pack keeps it running for
hours before a charge is required.
The DVR can be controlled through
either the common sense on-screen
graphical menu interface, or the
included IR remote control.
Just like the STE3000, the
STE3000AV's heavy duty double lip
construction, high performance RF
gaskets, and absorbent foam is used
to provide up to -90dB isolation at
3GHz. All connections are brought
out through our universal I/O panel.
If you and your team are looking for
a foolproof all-in-one cellular
testing solution, the STE3000AV is
your answer! |
|
|
|
|
|
|
SPECIFICATIONS |
|
RF Isolation: |
≥ 90 dB
from 20 MHz to 1 GHz
≥ 90 dB
at
1 GHz
≥ 90 dB
at
3 GHz
≥ 80 dB
at
6 GHz |
|
Finish: |
Mist gray
epoxy powder coat with black/brass hardware |
|
RF
Reflective Foam: |
Standard RF
reflective attenuation foam provides 24 dB
attenuation. |
|
AC Power: |
6 outlet filtered
120VAC outlet strip; 6 pole filtered barrier strip feed-through
is standard |
|
Video System |
Color OSD video camera and 40GB video DVR system |
|
Interior Lighting: |
LED lights in lid to illuminate the interior are
standard |
|
Connector Panel: |
Blank Removable (No
Connectors) is standard, 6.0" wide x 3.5" high, 0.090" thick,
Stainless Steel |
|
Connectors: |
None standard.
Please specify connector requirements from
Connector & I/O Options |
|
Overall
Dimensions: |
Exterior: 12.8"H x
18.0"W x 12.0"D Interior: 8.0"H x 16.8"W x 10.5"D |
|
Weight: |
27lbs. / 12.25kg. |
|
|
STE3300
|
|
Picture(s) |
Model |
Features |
|
|

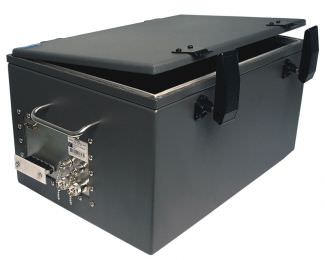

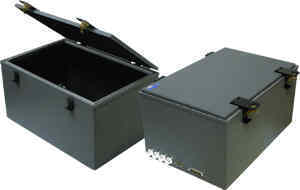

STE3300
Base Model Price $895.00
Microwave RF
Shielded Test Enclosure
RF Isolation: 20 MHz to
10 GHz
9¾" H x 18"
W x 12" D
8¼” H x 16¾” W x 10¾” D
(Nom. Inside Dimensions)
24 dB Attenuation Absorber
|
Interference Free Testing FOR YOUR wireless Equipment!
-
RF
absorbent foam liner
-
Exclusive
double lip RF tight gasket
-
Universal
I/O connecter interface plate
-
Easy
release latch system
-
Steady-hold hinge system
-
Designed
to test complete systems
|
|

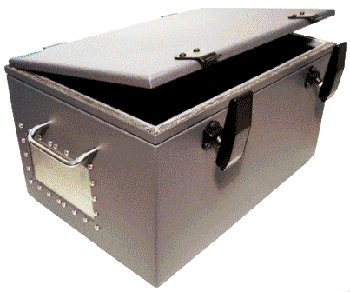

STE3300
Designed from
the ground up to be functional, fast, and convenient for the design,
production, testing, and maintenance of wireless LAN, Bluetooth, and
other microwave frequency applications. Durability is assured because
the STE3300 is constructed of rugged .090 and .125 aluminum with dual
heavy-duty latches.
Unmatched RF isolation is achieved by the use of the two rows of high
performance flexible RF gaskets. The entire interior is lined with RF
absorbent foam that provides 24dB reflective attenuation to eliminate
nulls and hotspots. The inside working space is large enough to test
your devices as a complete system or use multiple enclosures to
eliminate interference between work stations. A large variety of
connector options are available for specific customer applications. All
connectors are milled into a removable 304 stainless steel panel to
allow for future requirements when needed.
|
|
SPECIFICATIONS |
|
RF Isolation:
(Typical without Connectors) |
≥ 100 dB
from 20 MHz to 1 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
> 65 dB at 8 GHz
> 60 dB at 10 GHz
> 55 dB at 18 GHz
> 50 dB at 20 GHz |
|
Finish: |
Mist gray
epoxy powder coat with black/brass hardware |
|
RF
Reflective Foam: |
Standard RF
reflective attenuation foam provides 24 dB
attenuation. |
|
Connector Panel: |
Blank Removable (No
Connectors) is standard, 6.0" wide x 3.5" high, 0.090" thick,
Stainless Steel |
|
Connectors: |
None standard.
Please specify connector requirements from
Connector & I/O Options |
|
Overall
Dimensions: |
External: 9¾" H x 18"
W x 12" D Internal: 8¼” H x 16¾” W x 10¾” D |
|
Weight: |
18lbs. / 8.16kg. |
|
|
STE3500
|
|
Picture(s) |
Model |
Features |
|
|

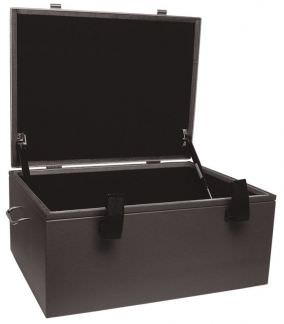

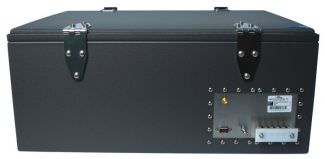

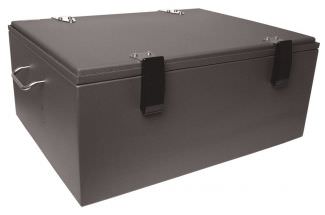

STE3500
Base Model Price $1,195.00
Microwave RF
Shielded Test Enclosure
RF Isolation: 20 MHz to
10 GHz
9" H x 22"
W x 17" D
8½” H x 18¾” W x 15¾” D
(Nom. Inside Dimensions)
24 dB Attenuation Absorber
|
Interference Free Testing FOR YOUR wireless Equipment!
-
RF
absorbent foam liner
-
Exclusive
double lip RF tight gasket
-
Universal
I/O connecter interface plate
-
Easy
release latch system
-
Dual gas filled cover struts
-
Designed
to test complete systems
Ideal for Production Testing
|
|
STE3500
Designed specifically for Wireless Communications circuit board
production testing where there is a need for a large footprint for
isolating oversized boards and minimal height to allow for easy device
placement. The lid opens automatically using the internally mounted dual
precision air pistons once the dual heavy duty latches are released.
Construction meets the same standards as our popular STE3300 and
incorporates the same double gasketed lid to provide the highest
attenuation factor at the best value. The I/O panel is located close to
the bottom of the rear panel to keep the cabling as close to the device
under test as possible.
All connectors are milled into a removable 304 stainless steel panel to
allow for future requirements when needed. |
|
SPECIFICATIONS |
|
RF Isolation:
(Typical without Connectors) |
≥ 100 dB
from 20 MHz to 1 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
> 65 dB at 8 GHz
> 60 dB at 10 GHz
> 55 dB at 18 GHz
> 50 dB at 20 GHz |
|
Finish: |
Mist gray
epoxy powder coat with black/brass hardware |
|
RF
Reflective Foam: |
Standard RF
reflective attenuation foam provides 24 dB
attenuation. |
|
Connector Panel: |
Blank Removable (No
Connectors) is standard, 6.0" wide x 3.5" high, 0.090" thick,
Stainless Steel |
|
Connectors: |
None standard.
Please specify connector requirements from
Connector & I/O Options |
|
Overall
Dimensions: |
External: 9" H x 22"
W x 17" D Internal: 8½” H x 18¾” W x 15¾” D |
|
Weight: |
35lbs. / 15.88kg. |
|
|

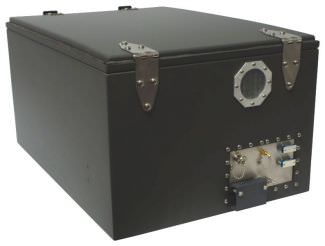

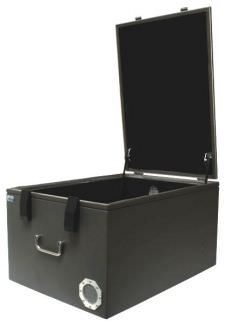

STE3600
|
|
Picture(s) |
Model |
Features |
|

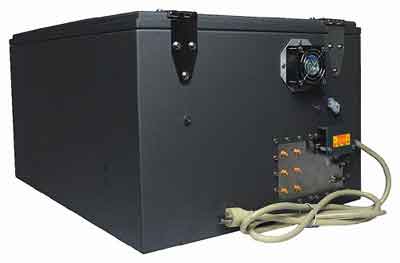

shown with optional fan
|

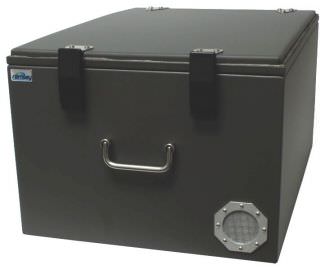

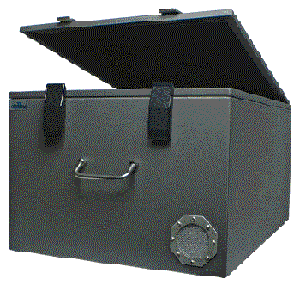

STE3600
Base Model Price $1,625.00
Microwave RF
Shielded Test Enclosure
RF Isolation: 20 MHz to
10 GHz
12" H x
17"
W x 24" D
11½” H x 16½” W x 23½” D
(Nom. Inside Dimensions)
24 dB Attenuation Absorber
|
Interference Free Testing FOR YOUR wireless Equipment!
-
RF
absorbent foam liner
-
Exclusive
double lip RF tight gasket
-
Universal
I/O connecter interface plate
-
Easy
release latch system
-
Designed
to test complete systems
-
Dual gas filled cover struts
-
Designed
for 19" Rack Mounting
-
Mounts to
a rack mount pull out shelf
-
Dual
ventilation
-
Optional
fan forced cooling
Ideal for Production Testing
|
|
STE3600
Designed specifically for Wireless Communications circuit board
production testing where there is a need for a large footprint for
isolating oversized boards and minimal height to allow for easy device
placement.
Construction meets the same standards as our popular STE3300 and
incorporates the same double gasketed lid to provide the highest
attenuation factor at the best value. The I/O panel is located close to
the bottom of the rear panel to keep the cabling as close to the device
under test as possible.
All connectors are milled into a removable 304 stainless steel panel to
allow for future requirements when needed. |
|
SPECIFICATIONS |
|
RF Isolation:
(Typical without Connectors) |
≥ 100 dB
from 20 MHz to 1 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
> 65 dB at 8 GHz
> 60 dB at 10 GHz
> 55 dB at 18 GHz
> 50 dB at 20 GHz |
|
Finish: |
Mist gray
epoxy powder coat with black/brass hardware |
|
RF
Reflective Foam: |
Standard RF
reflective attenuation foam provides 24 dB
attenuation. |
|
Connector Panel: |
Blank Removable (No
Connectors) is standard, 6.0" wide x 3.5" high, 0.090" thick,
Stainless Steel |
|
Connectors: |
None standard.
Please specify connector requirements from
Connector & I/O Options |
|
Overall
Dimensions: |
External: 12" H x
17"
W x 24" D Internal: 11½” H x 16½” W x 23½” D |
|
Weight: |
40lbs. / 18.14kg. |
|
|

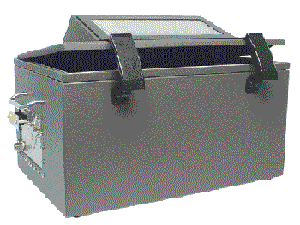

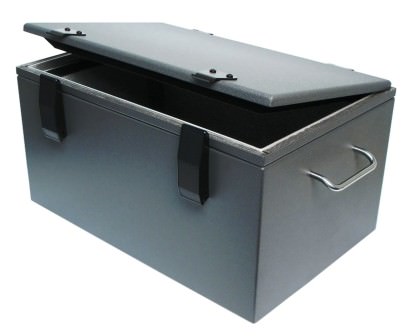

STE3800
|
|
Picture(s) |
Model |
Features |
|

Also available without view window Model STE3800B
|

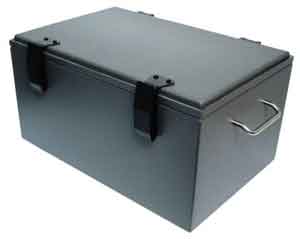

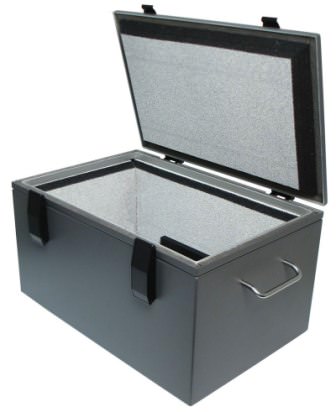

STE3800
Base Model Price $1,995.00
Microwave RF
Shielded Test Enclosure
with RTF
(Radiating Test Fixture)
RF Isolation: 20 MHz to
8 GHz
9¾" H x 18"
W x 12" D
5½” H x 15¼” W x 9¼” D
(Nom. Inside Dimensions Above RTF)
24 dB Attenuation Absorber
|
Interference Free Testing FOR
YOUR wireless equipment!
|
|
STE3800
If you are looking
for the ultimate enclosure for TDMA,
CDMA, AMPS, PCS, GMS, P2T, PDA, and
other wireless communications
devices the STE3800 is the enclosure
for you. The STE3800 is configured

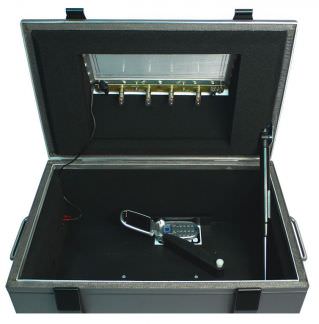

with a built-in Ramsey RTF Radiating
Test Fixture to give you flawless
go/no-go testing with guaranteed
repeatability. It is designed around
the STE3300 to give you a whopping
5½”H x 15¼”W x 9¼”D inside working
space. The RTF provides a broadband
coupling response from 800 MHz all
the way up to 8 GHz. The heavy duty
universal clamp system positions and
holds the device under test in an
exact position that can easily be
duplicated for repeatability.
Because frequent tests require the
operator to visually inspect the
device display (cell phone, PCS
phone, etc.), the STE3800 features a
large RF tight viewing window that
overlooks the entire working area.
The entire display and any
indicators, LED's etc. located on
the device can easily be seen
throughout the test process!
Double thickness 24dB RF absorbent
foam lines the entire work area for
a flat response. As with the
STE3300, double row RF gaskets are
used to provide RF isolation up to
-90dB at 4GHz. A Type-N female
connector is provided standard for
the RTF antenna connection, and is
located on the removable 304
stainless steel I/O panel that can
be custom configured with any
available I/O options. |
|
|
|
|
|
|
SPECIFICATIONS |
|
RF Isolation: |
≥ 90 dB
from 20 MHz to 1 GHz
≥ 90 dB
at
2 GHz
> 90 dB at 4 GHz
> 80 dB at 6 GHz
|
|
Finish: |
Mist gray
epoxy powder coat with black/brass hardware |
|
RF
Reflective Foam: |
Standard 1.0” RF
absorbent foam liner for a flatter response |
|
Test Fixture |
Integral RF radiating
test fixture (RTF) with a built-in broadband antenna, Flat
Coupling Factor 800MHz - 8 GHz |
|
AC Power: |
6 outlet filtered
120VAC outlet strip; 4 pole filtered barrier strip feed-through
is standard |
|
Interior Lighting: |
LED lights in lid to illuminate the interior are
standard. Also available without the view window lid. |
|
Connector Panel: |
Blank Removable, Two
(2) SMA connectors are standard, 6.0" wide x 3.5" high, 0.090" thick,
Stainless Steel |
|
Connectors: |
The STE2800
is provided standard with Two (2) SMA filtered connectors,
One (1) for the RTF & One (1) for output. Please specify connector requirements from
Connector & I/O Options |
|
Overall
Dimensions: |
External: 9¾" H x 18"
W x 12" D Internal: 5½” H x 15¼” W x 9¼” D (Nom.
Inside Dimensions Above RTF) |
|
Weight: |
28lbs. / 12.7kg. |
|
|
